MR118 HIGH DYNAMIC RANGE MIXER
RF/LO: 2 to 18 GHz IF: 10 to 5000 MHz
Standard Product Features:
•
+28 dBm IP3 Intercept Point
•
Triple Balanced Design
•
Broadband Performance
•
6.5 dB Typical Conversion Loss
•
30 dB Typical Isolation
•
Broadband IF Coverage
•
Low Cost

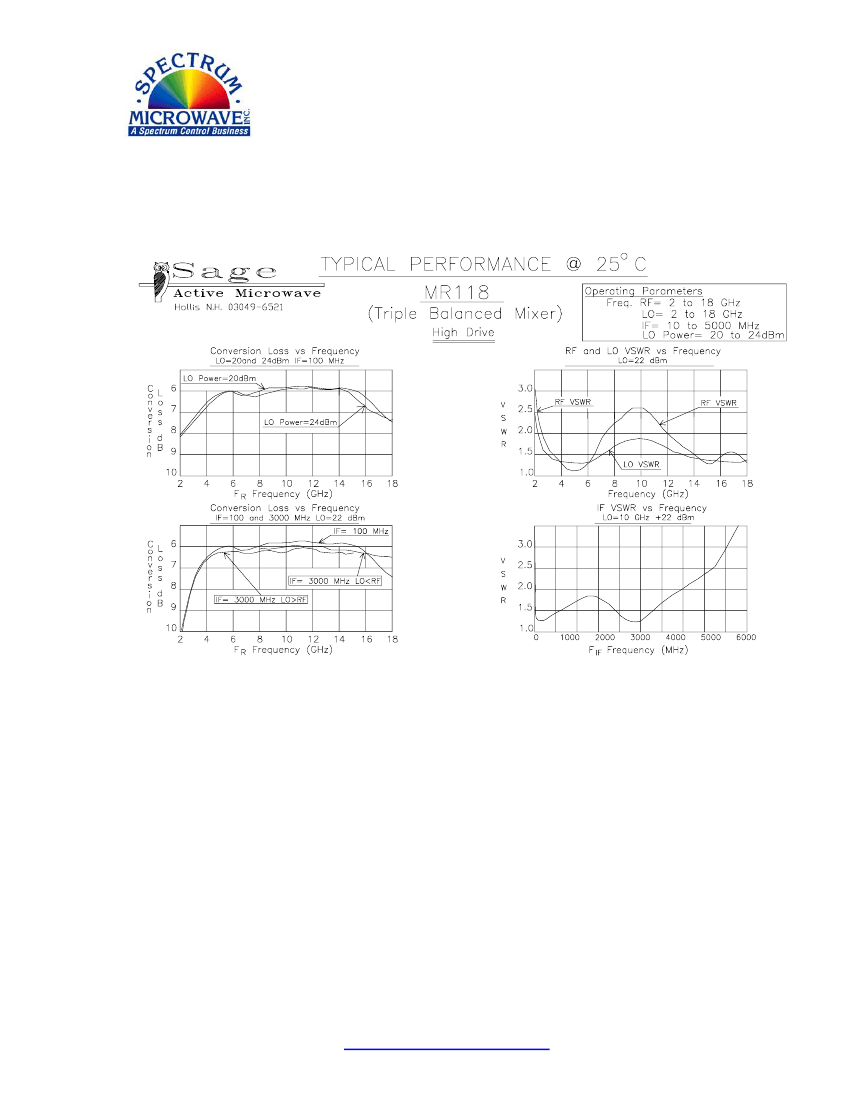

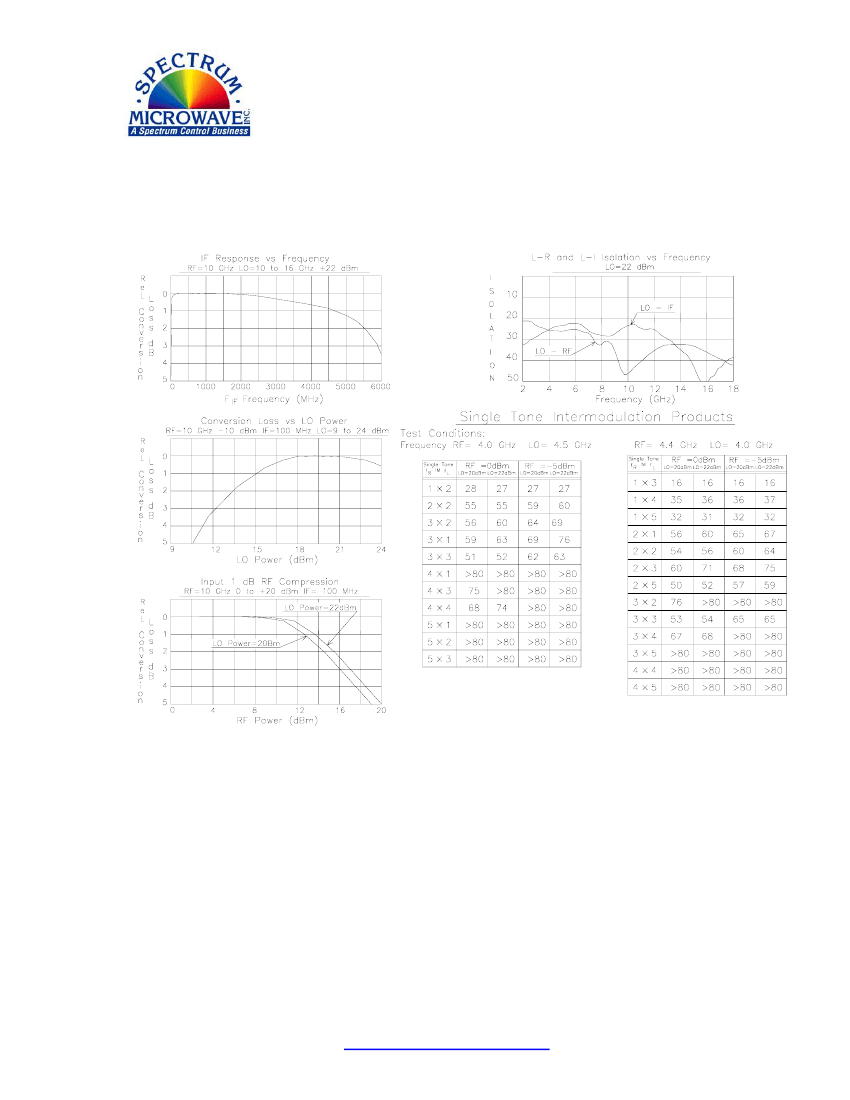

Specifications
RF/LO Frequency Range
IF Frequency Range (3 dB Bandwidth)
Conversion Loss (2 to 3 GHz)
(3 to 18 GHz)
LO Drive Level
Isolation, LO to RF
LO to IF
VSWR, RF
LO
Input 1 dB Compression
Input Two-Tone Third Order IP (IP3)
Operating Temperature Range
Storage Temperature Range
Typical
-----
-----
8.5 dB
5.5 dB
22 dBm
30 dB
25 dB
2.2:1
1.8:1
16 dBm
28 dBm
---
---
Min.
2 GHz
10
----
---
20 dBm
20 dB
15 dB
---
---
12 dBm
22 dBm
-54 C
-65 C
Max.
18 GHz
5000 MHz
10.0 dB
9.0 dB
24 dBm
---
---
---
---
---
---
+75 C
+125 C
Custom designs also available. Consult factory for assistance on your requirements.

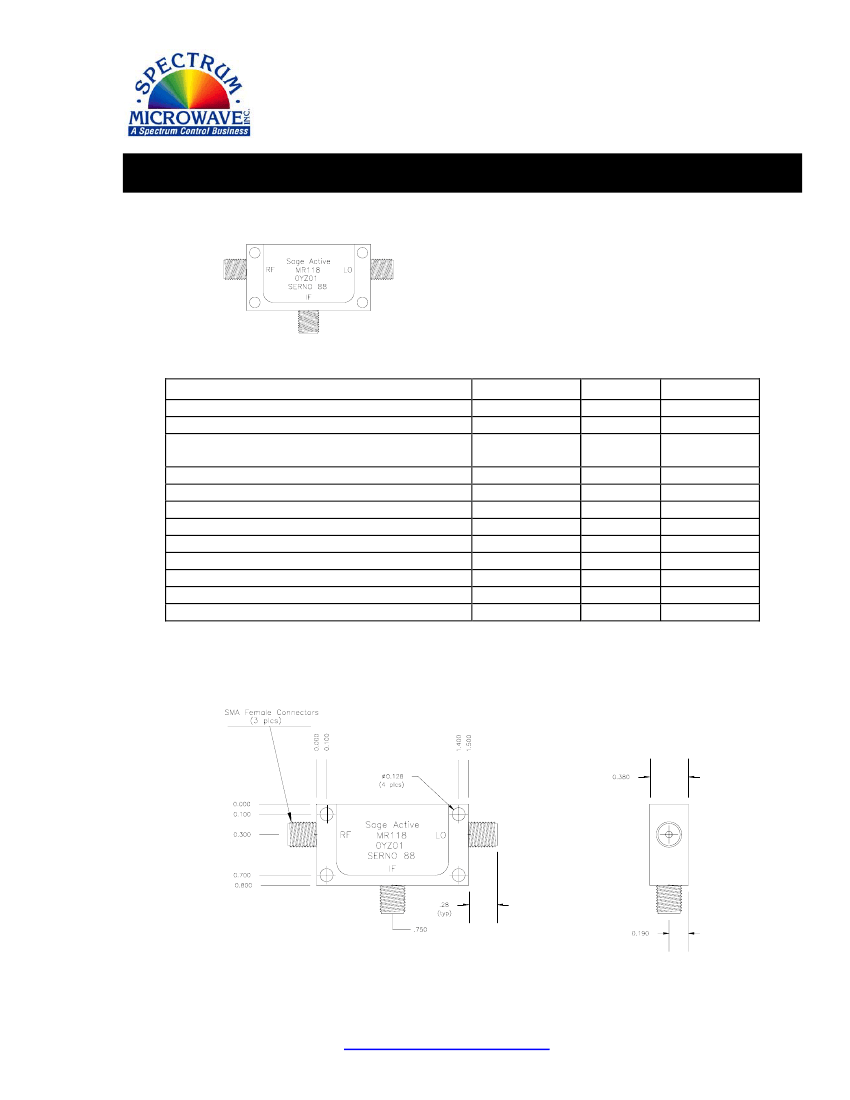

OUTLINE DRAWING
