MR143L TRIPLE BALANCED MIXER
RF/LO: 4 to 18 GHz IF: 1 to 10 GHz
Standard Product Features
•
SMA Removable Connectors
•
Broadband Performance
•
6.0 dB Typical Conversion Loss
•
30 dB Typical Isolation
•
IF Coverage to 10 GHz
•
Triple Balanced
•
Low Cost
Specifications
RF/LO Frequency Range
IF Frequency Range (3 dB Bandwidth)
Conversion Loss
LO Drive Level
Isolation, LO to RF
LO to IF
VSWR, RF
LO
Input 1 dB Compression
Input Two-Tone Third Order IP (IP3)
Operating Temperature Range
Storage Temperature Range
Typical
-----
-----
6.0 dB
11.0 dBm
30 dB
25 dB
2.2:1
1.8:1
7 dBm
16 dBm
---
---
Min.
4 GHz
1
----
9.0 dBm
20 dB
15 dB
---
---
4 dBm
12 dBm
-54 C
-65 C
Max.
18 GHz
10 GHz
10.5 dB
13.0 dBm
---
---
---
---
---
---
+95 C
+125 C
Alternate LO Drive Ranges are available. Consult factory for assistance on your requirements.

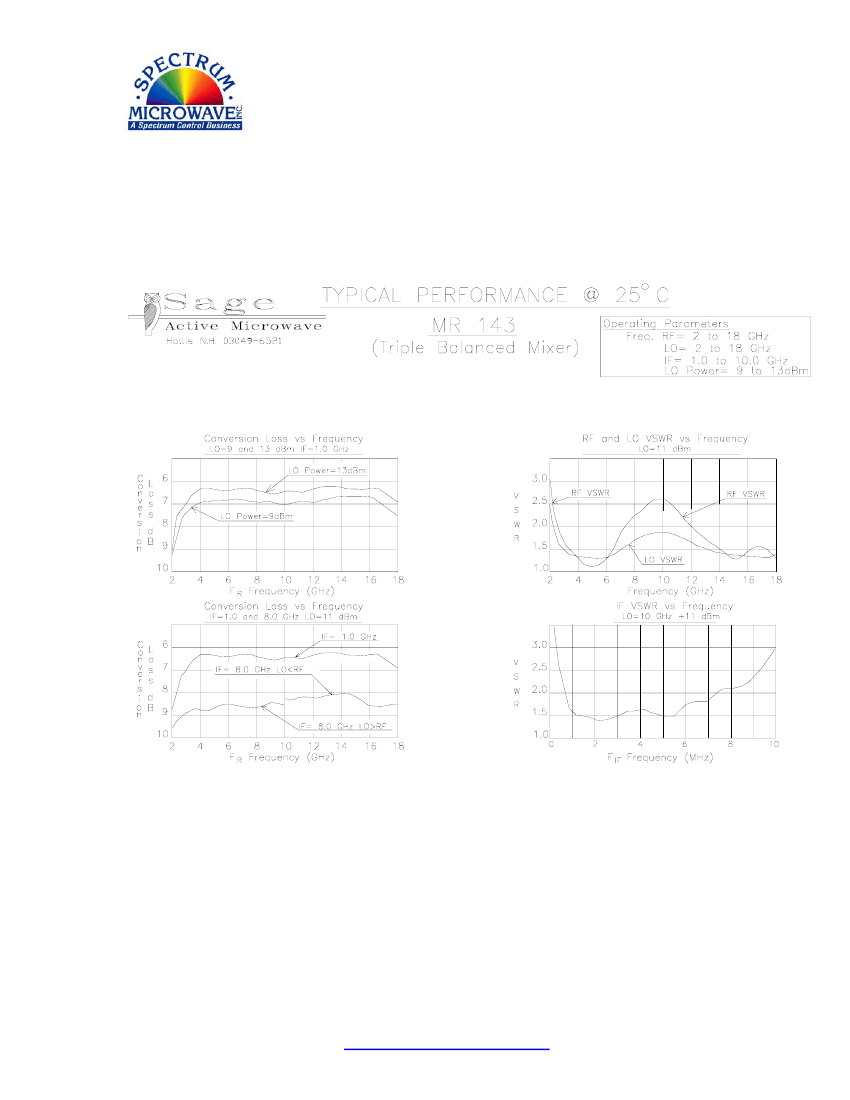

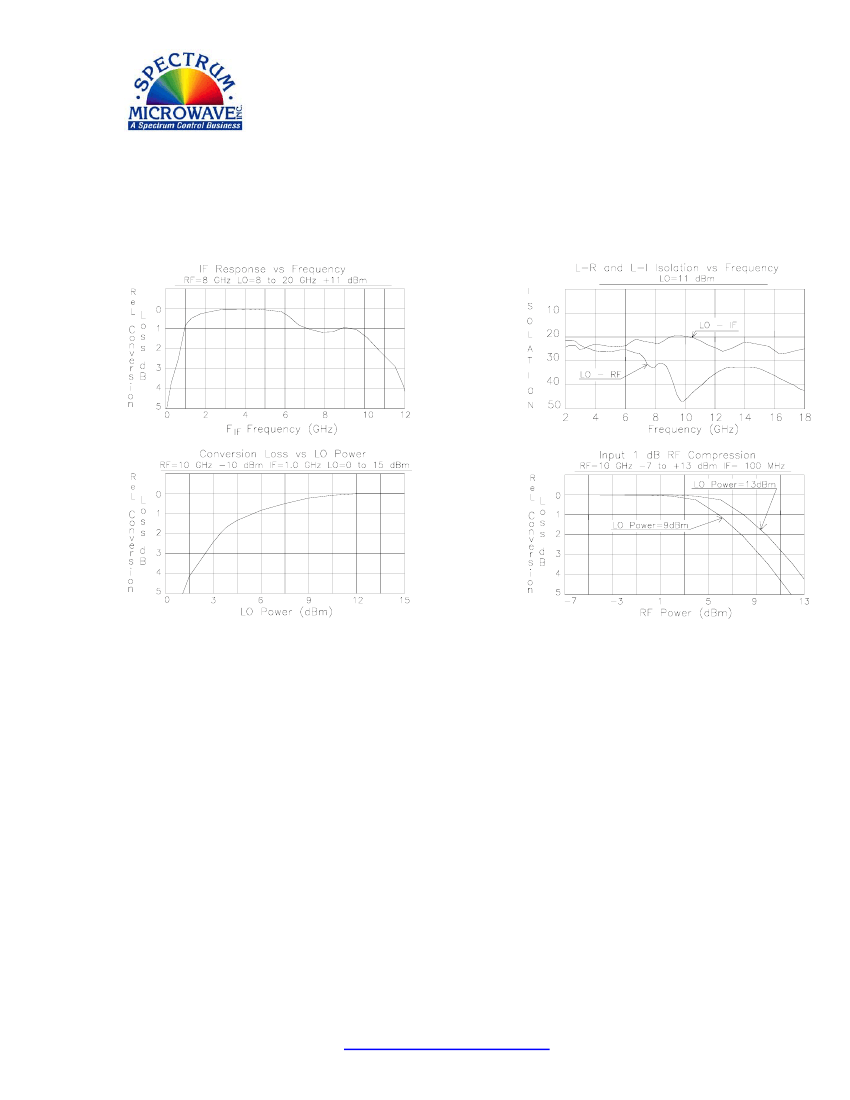

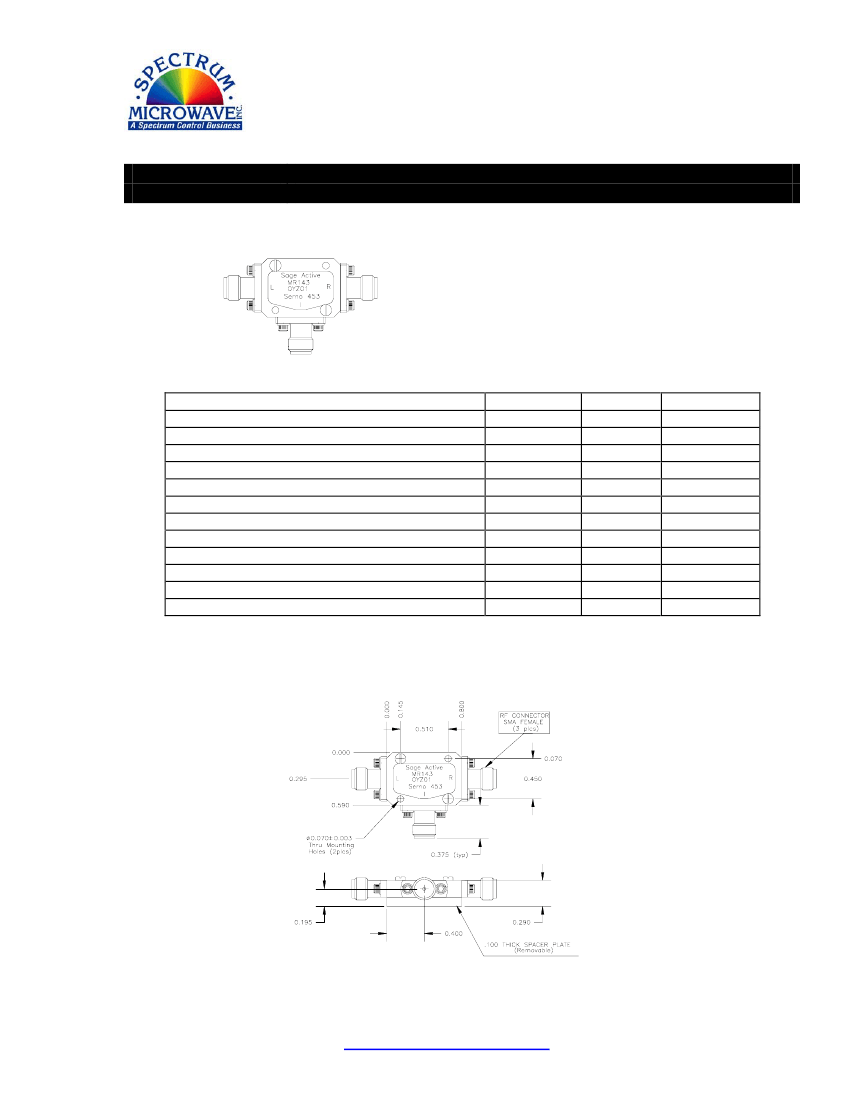

OUTLINE DRAWING
