MR160M Triple Balanced Mixer
RF/LO: 0.75 to 8.0 GHz IF: 10 to 5000 MHz
Standard Product Features
•
•
•
•
•
•
Broadband Performance
6.5 dB Typical Conversion Loss
25 dB Typical Isolation
Broadband IF Coverage
Versatile SMA Package
Low Cost
Min.
.75 GHz
10 MHz
-----
+13 dBm
12 dB
15 dB
+6 dBm
+13 dBm
-54° C
-65° C
Max.
8.0 GHz
5000 MHz
9.0 dB
+17 dBm
-----
-----
-----
-----
+95° C
+125° C
SPECIFICATIONS
RF/LO Frequency Range
IF Frequency Range
Conversion Loss
LO Drive Range
Isolations, LO to RF
LO to IF
Input 1 dB Compression
Input Two-Tone Third Order IP (IP3)
Operating Temperature Range
Storage Temperature Range
TYPICAL
-----
-----
6.5 dB
+15 dBm
25 dB
30 dB
+9 dBm
+18 dBm
---
---
Note: Alternate LO drive ranges are available. Consult factory for assistance on your requirement.

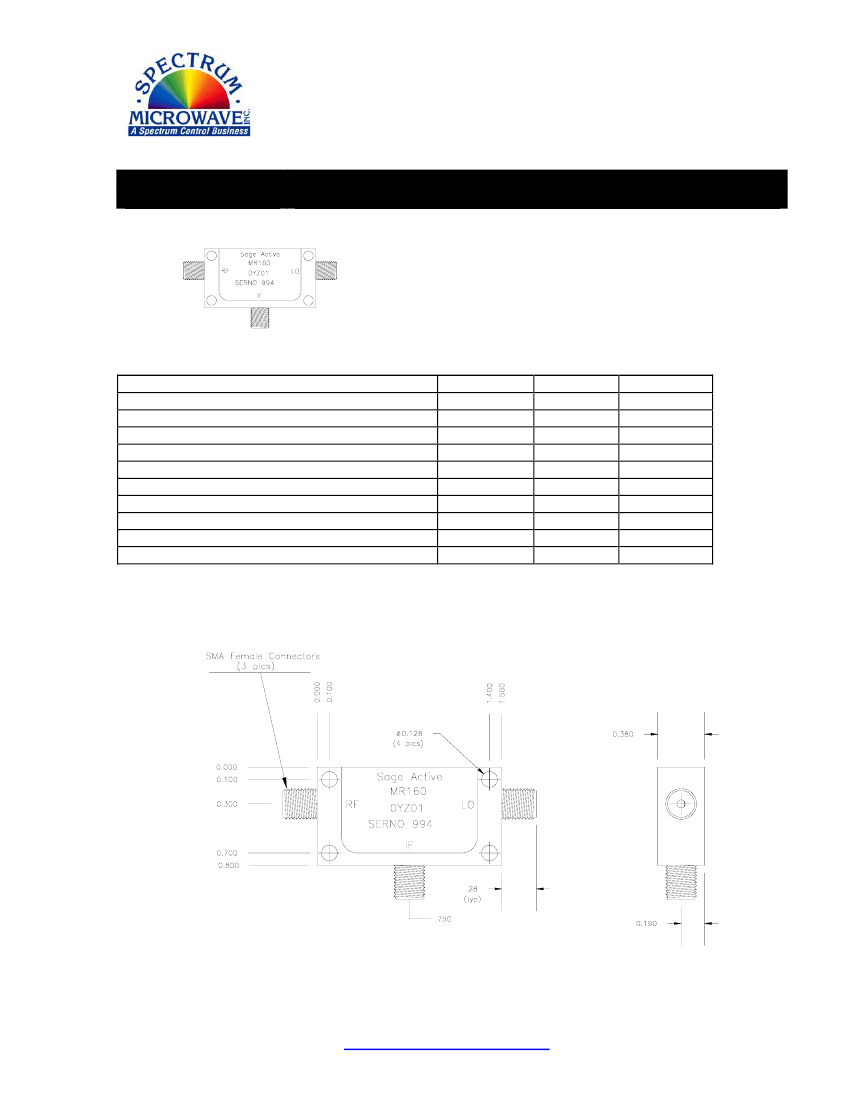

OUTLINE DRAWING
