NM93CS56TLVN datasheet, PDF - EEWORLD Datasheet

NM93CS56TLVN: DescriptionEEPROM, 128X16, Serial, CMOS, PDIP8, PLASTIC, DIP-8; Categorystorage storage; File Size194KB，9 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric View All

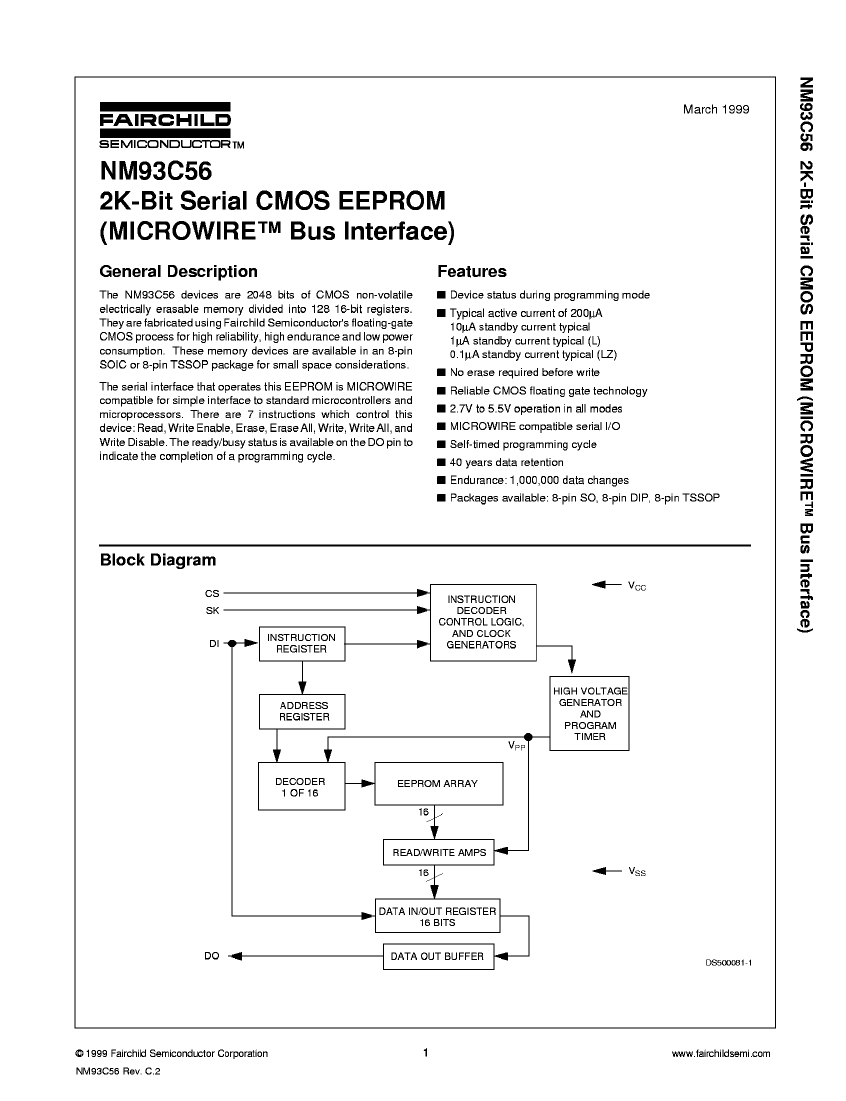

NM93CS56TLVN Overview

EEPROM, 128X16, Serial, CMOS, PDIP8, PLASTIC, DIP-8

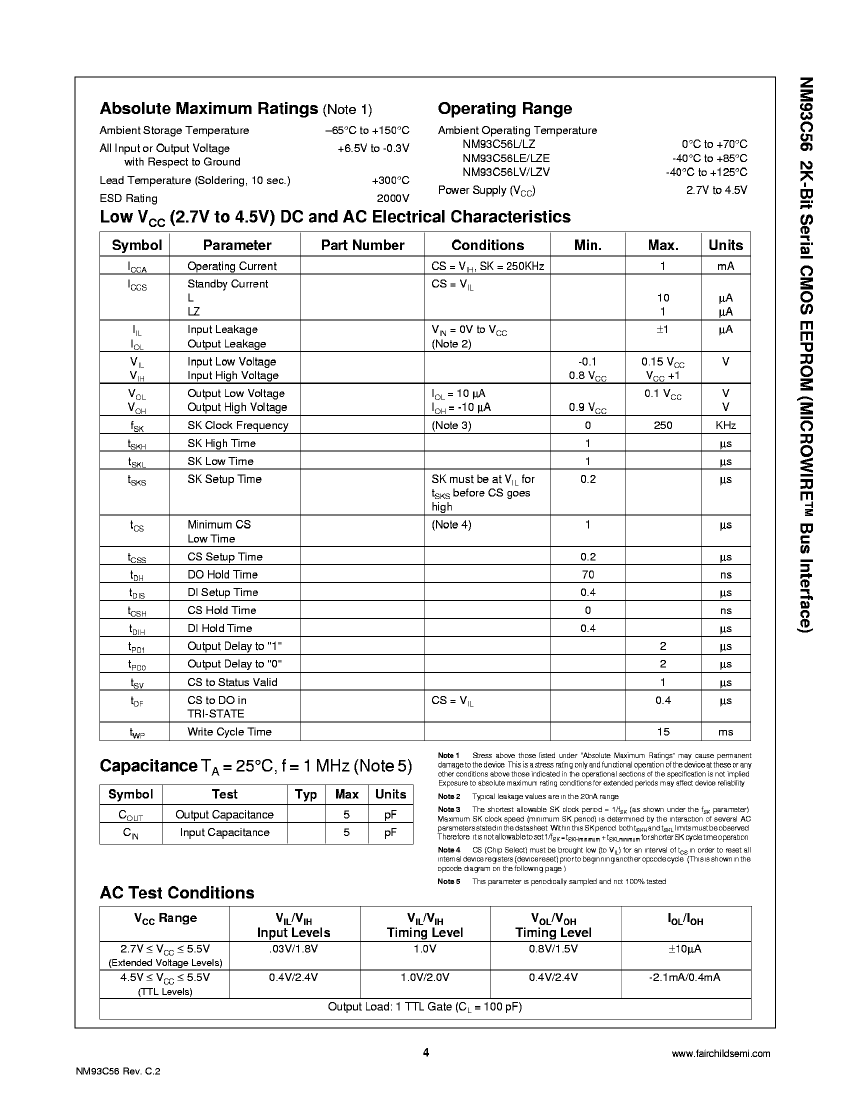

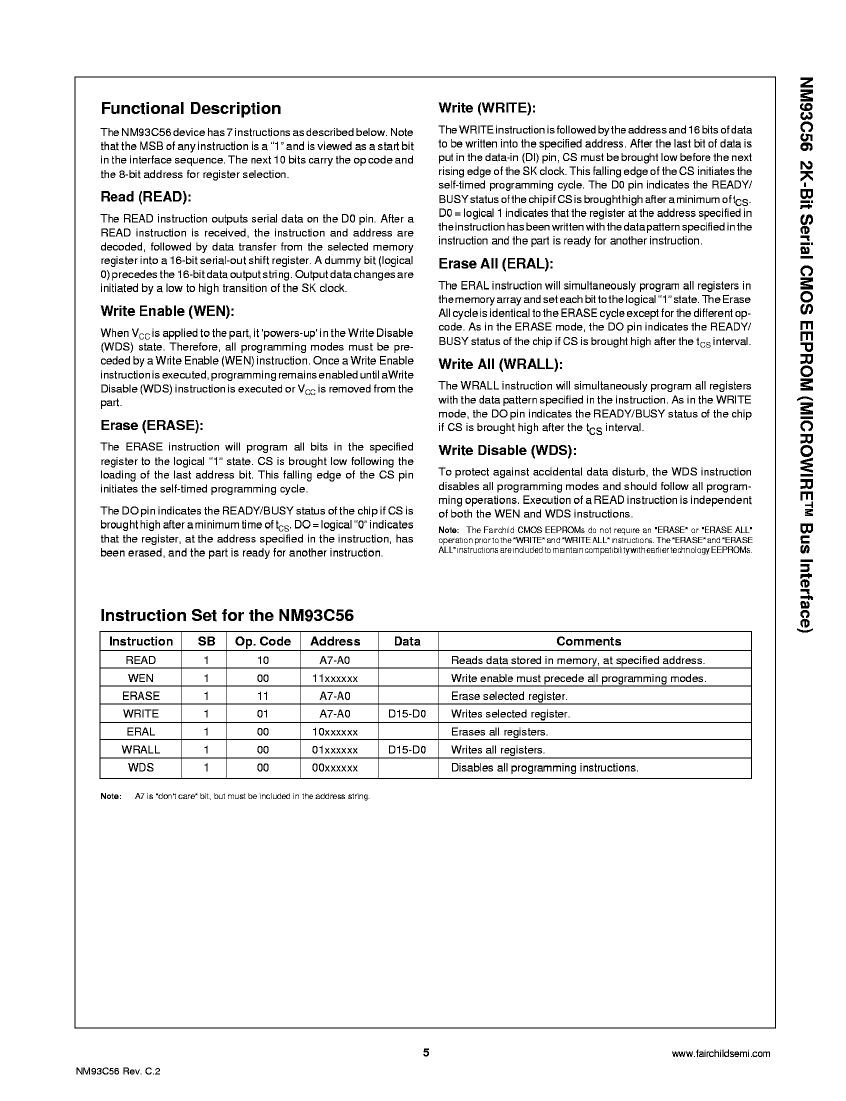

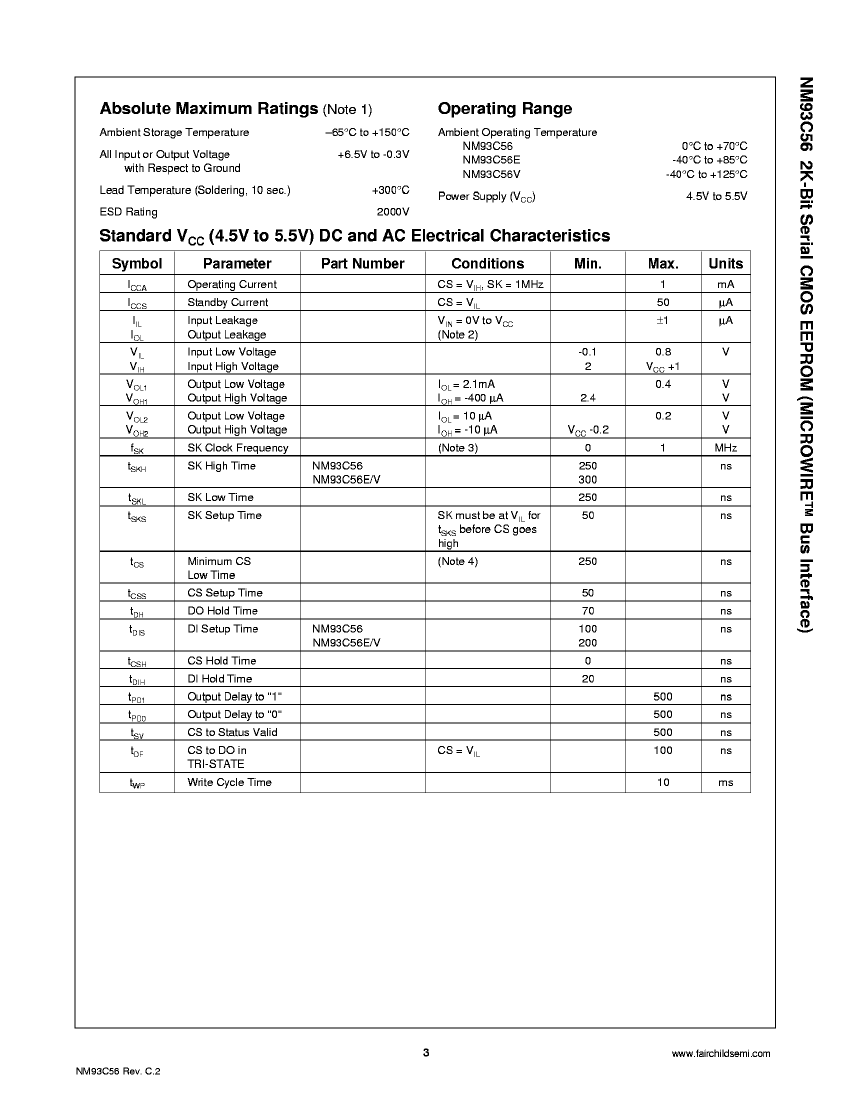

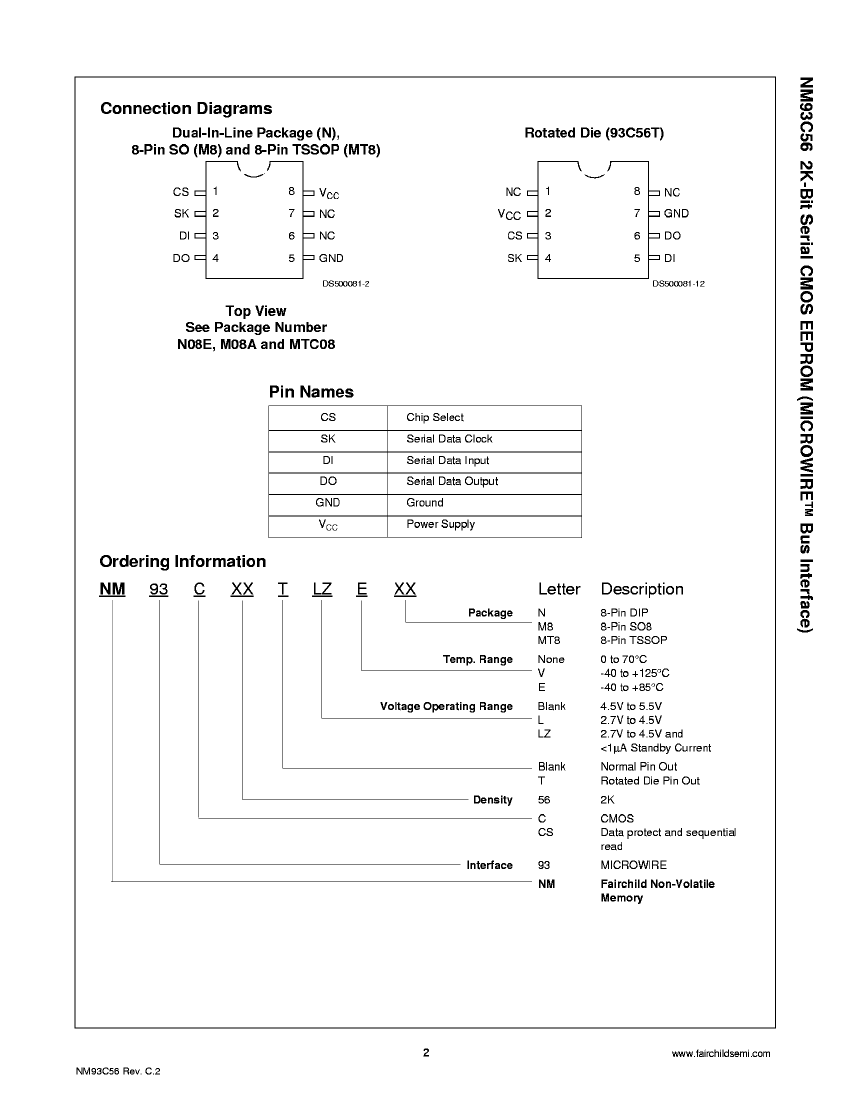

Parameter Name	Attribute value
Maker	Fairchild
Parts packaging code	DIP
package instruction	DIP,
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	DATA RETENTION = 40 YEARS
Maximum clock frequency (fCLK)	1 MHz
Data retention time - minimum	40
JESD-30 code	R-PDIP-T8
length	9.817 mm
memory density	2048 bit
Memory IC Type	EEPROM
memory width	16
Number of functions	1
Number of terminals	8
word count	128 words
character code	128
Operating mode	SYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
organize	128X16
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	SERIAL
Certification status	Not Qualified
Maximum seat height	5.08 mm
Serial bus type	MICROWIRE
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	NO
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Maximum write cycle time (tWC)	15 ms
