LR1102BG-33-AF5-R

Description
Fixed Positive LDO Regulator, 3.3V, 0.25V Dropout, CMOS, PDSO5, HALOGEN FRE, SOT-25, 5 PIN
CategoryPower/power management    The power supply circuit
File Size396KB,12 Pages
ManufacturerUNISONIC TECHNOLOGIES CO.,LTD
Websitehttp://www.unisonic.com.tw/
Download Datasheet Parametric View All

LR1102BG-33-AF5-R Overview

Fixed Positive LDO Regulator, 3.3V, 0.25V Dropout, CMOS, PDSO5, HALOGEN FRE, SOT-25, 5 PIN

LR1102BG-33-AF5-R Parametric

Parameter NameAttribute value
MakerUNISONIC TECHNOLOGIES CO.,LTD
Parts packaging codeSOT
package instructionHALOGEN FRE, SOT-25, 5 PIN
Contacts5
Reach Compliance Codecompliant
ECCN codeEAR99
Maximum drop-back voltage 10.25 V
Maximum input voltage8 V
Minimum input voltage2 V
JESD-30 codeR-PDSO-G5
length2.9 mm
Number of functions1
Number of terminals5
Working temperatureTJ-Max125 °C
Maximum output voltage 13.399 V
Minimum output voltage 13.201 V
Nominal output voltage 13.3 V
Package body materialPLASTIC/EPOXY
encapsulated codeLSSOP
Package shapeRECTANGULAR
Package formSMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Regulator typeFIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height1.25 mm
surface mountYES
technologyCMOS
Terminal formGULL WING
Terminal pitch0.95 mm
Terminal locationDUAL
width1.6 mm

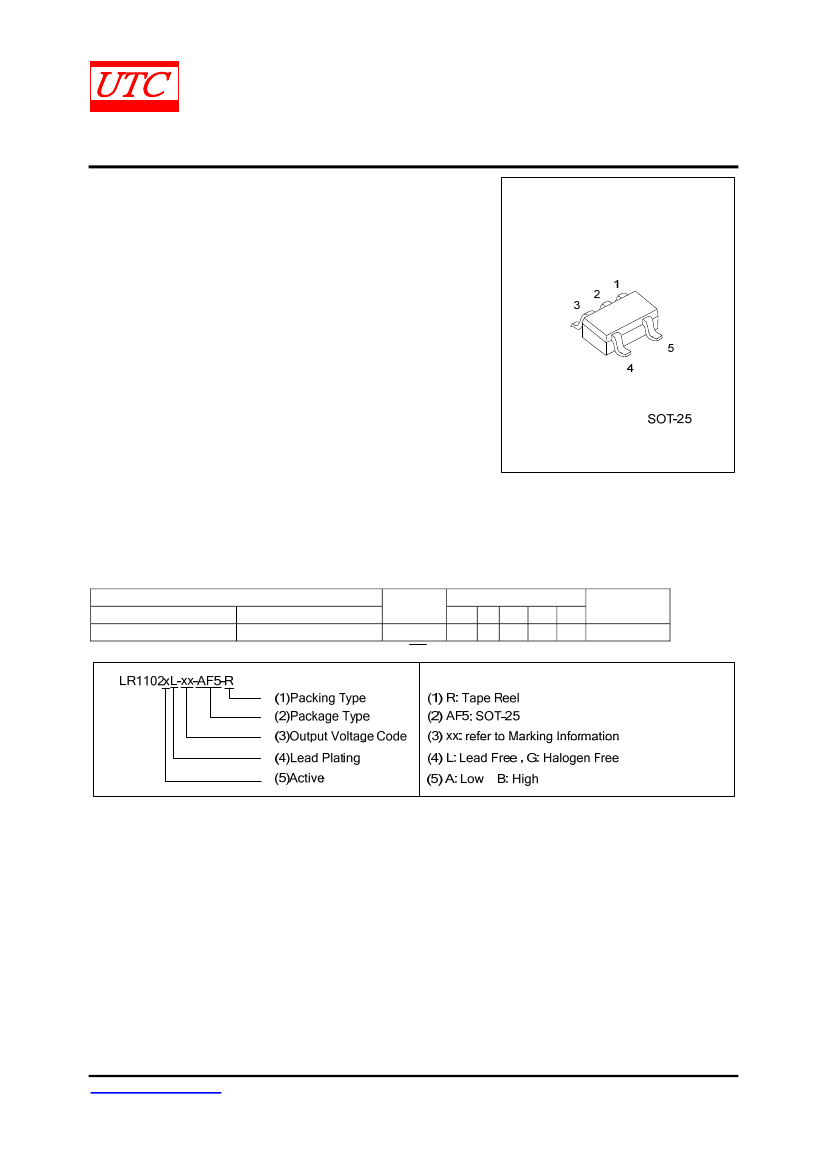

UNISONIC TECHNOLOGIES CO., LTD
LR1102
LOW NOISE 150mA LDO
REGULATOR
DESCRIPTION
The UTC
LR1102
families are CMOS-based voltage regulator
ICs with extremely low supply current, high output voltage
accuracy, high Ripple Rejection and chip enable circuit.
These ICs performance are excellent and with SOT-25
package, thus these ICs are very suitable for hand-held
communication equipment.
CMOS IC
FEATURES
* Ultra-Low Supply Current : Typ. 35µA
* Standby Mode: Typ. 0.1µA
* Low Dropout Voltage: Typ. 0.2V (I
OUT
= 100mA)
* Excellent Line Regulation: Typ. 0.05%/V
* High Ripple Rejection: Typ. 70dB (f = 1kHz)
ORDERING INFORMATION
Ordering Number
Lead Free
Halogen Free
LR1102xL-xx-AF5-R
LR1102xG-xx-AF5-R
Note:
Package
SOT-25
Pin Assignment
1
2 3
4
5
I
G C
N
O
Packing
Tape Reel
Pin Assignment: I:V
DD
O:V
OUT
G:GND C: CE/CE
N: No Connection
www.unisonic.com.tw
Copyright © 2010 Unisonic Technologies Co., Ltd
1 of 12
QW-R502-038,H
