QL12X16B-1CG84M/883D datasheet, PDF

QL12X16B-1CG84M/883D: DescriptionField Programmable Gate Array, 192 CLBs, 2000 Gates, CMOS, CPGA84, CERAMIC, PGA-84; CategoryProgrammable logic devices Programmable logic; File Size235KB，8 Pages; ManufacturerQuickLogic Corporation; Websitehttps://www.quicklogic.com

Download Datasheet Parametric View All

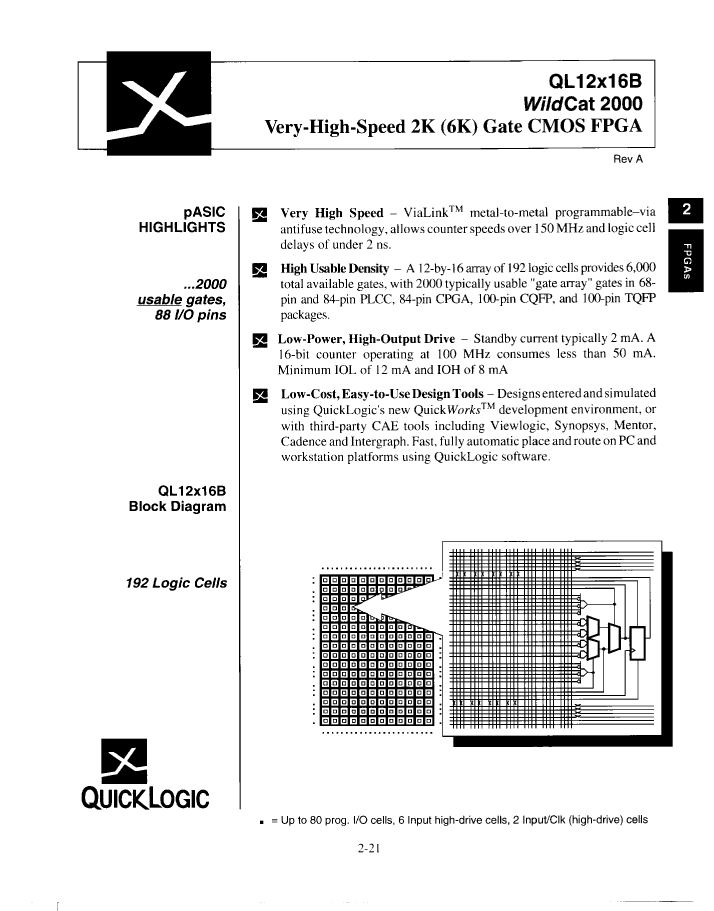

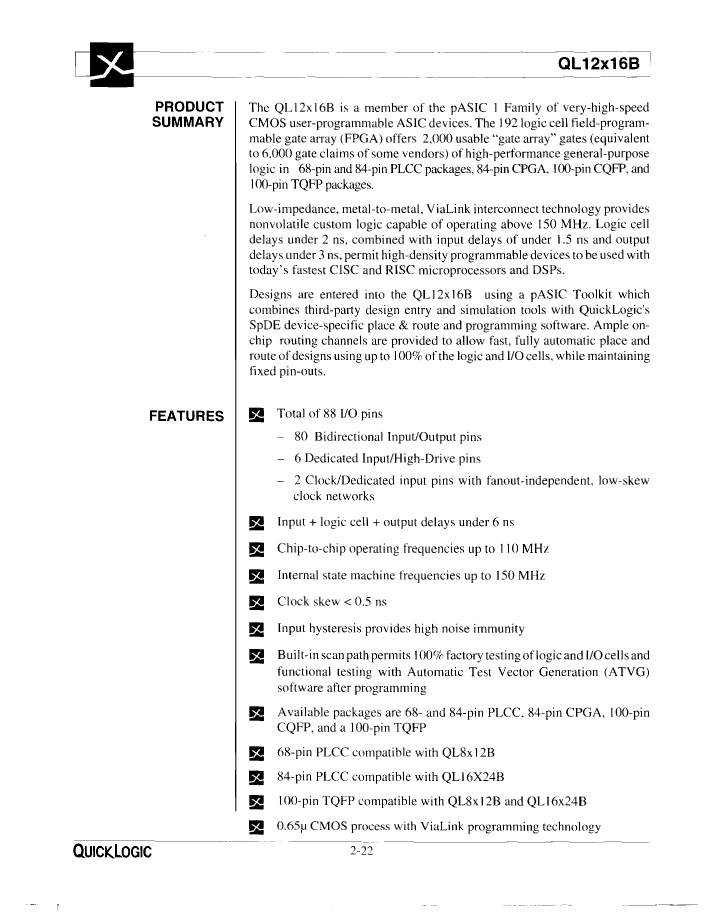

QL12X16B-1CG84M/883D Overview

Field Programmable Gate Array, 192 CLBs, 2000 Gates, CMOS, CPGA84, CERAMIC, PGA-84

Parameter Name	Attribute value
Maker	QuickLogic Corporation
Parts packaging code	PGA
package instruction	PGA,

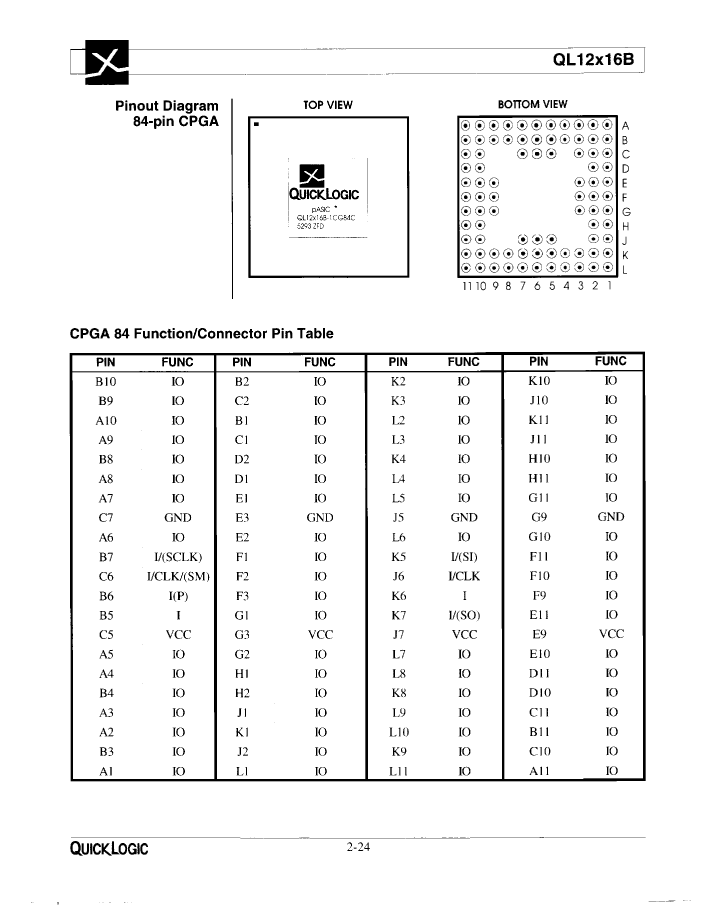

Contacts	84
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Other features	MAX 68 I/OS
Combined latency of CLB-Max	8.112 ns
JESD-30 code	S-CPGA-P84
length	27.94 mm
Configurable number of logic blocks	192
Equivalent number of gates	2000
Number of terminals	84
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	192 CLBS, 2000 GATES
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	PGA
Package shape	SQUARE
Package form	GRID ARRAY
Programmable logic type	FIELD PROGRAMMABLE GATE ARRAY
Certification status	Not Qualified
Maximum seat height	4.1656 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	PERPENDICULAR
width	27.94 mm
