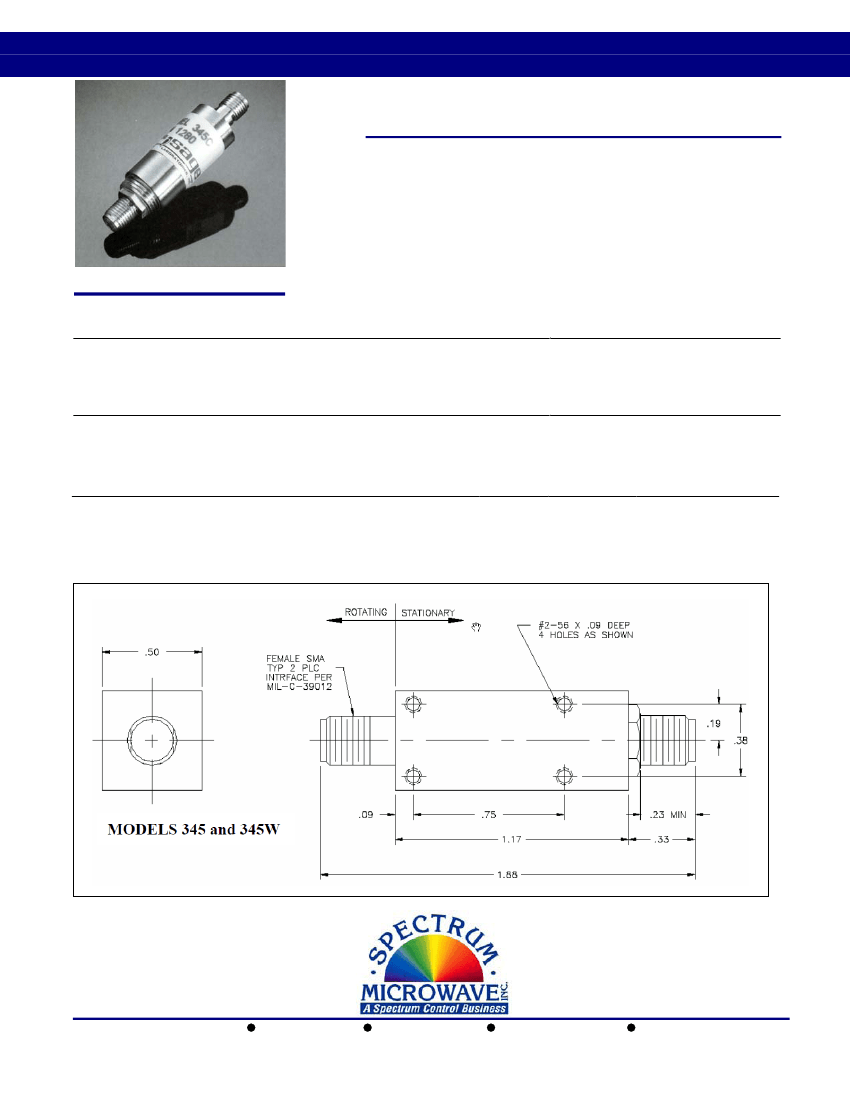

PRODUCT
SPECIFICATION
FEATURES
•
•
•
•
•
ROTARY JOINTS
MINIATURE, IN-LINE, SMA CONNECTORS
Coaxial Inline with SMA Connectors
Excellent Insertion Loss
Designed for MIL-E-5400 Class II
Small Size and Lightweight
Weatherized Versions (345W, 345C, 345F)
Model 345C
SPECIFICATIONS
Frequency
Range
(GHz)
DC – 18
VSWR
Max @
f(GHz)
Insertion
Loss,
max
(dB)
0.5
Peak
Power
(W)
500
Average
Power
Watts @
f (GHz)
100 @ 1
Starting Continuous
Torque Rotational
Max
Speed
(rpm)
(oz-in)
7.0
100
Nominal
Weight
(ounces)
0.9
Model
Number
345C
DC-10 1.20:1
(all models)
10-18 1.35:1
(all models)
NOTES:
1.
2.
WOW (max VSWR/min VSWR) is 1.02 max per 360
o
.
Max DC Current is 5 Amps.
OUTLINE DRAWINGS
Spectrum Microwave
8 Executive Drive Hudson, NH 03051 Phone: 603-459-1600
www.SpectrumMicrowave.com
Fax: 603.459.1605

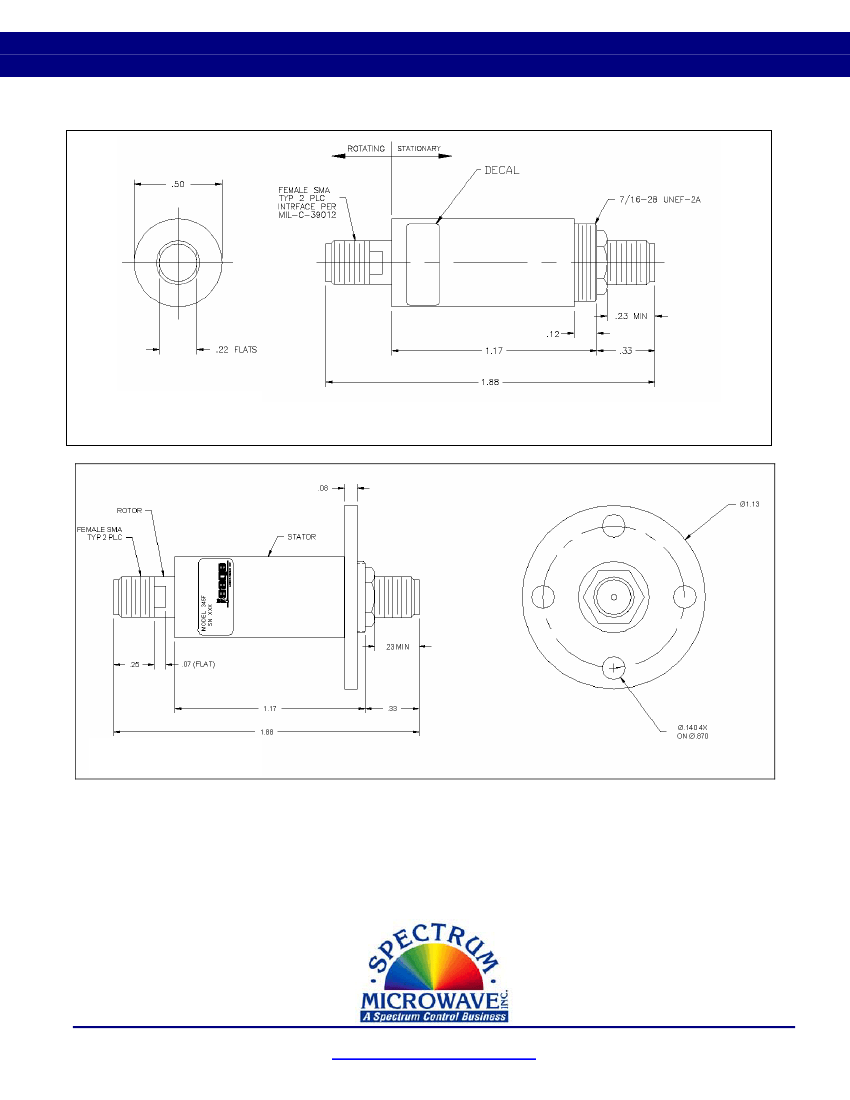

PRODUCT
SPECIFICATION
ROTARY JOINTS
MINIATURE, IN-LINE, SMA CONNECTORS
MODEL 345C
MODEL 345F
MISCELLANEOUS:
1.
2.
3.
4.
Spectrum Microwave “Standard Warranty and Order Terms and Conditions” apply to all orders.
All specifications subject to change without notice.
Check “Ordering and Availability Listing” for delivery and ordering information.
Contact our local Manufacturers Representative for pricing.
Specification Revision – 070710
