SRAH-01H250G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> SRAH-01H250G

SRAH-01H250G: DescriptionDC-DC Regulated Power Supply Module, 1 Output, 2.5W, Hybrid, ROHS COMPLIANT, SMD-7; CategoryPower/power management The power supply circuit; File Size375KB，10 Pages; ManufacturerBel Fuse; Environmental Compliance

Download Datasheet Parametric View All

SRAH-01H250G Overview

DC-DC Regulated Power Supply Module, 1 Output, 2.5W, Hybrid, ROHS COMPLIANT, SMD-7

SRAH-01H250G Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Bel Fuse
Parts packaging code	MODULE
package instruction	ROHS COMPLIANT, SMD-7
Contacts	7
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	32 V
Minimum input voltage	4.5 V
Nominal input voltage	20 V
JESD-30 code	R-XDMA-G7
Number of functions	1
Output times	1
Number of terminals	7
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output voltage	2.75 V
Minimum output voltage	2.25 V
Nominal output voltage	2.5 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	240
Certification status	Not Qualified
surface mount	YES
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	2.5 W
Fine-tuning/adjustable output	YES

Preview

Download Datasheet

View All

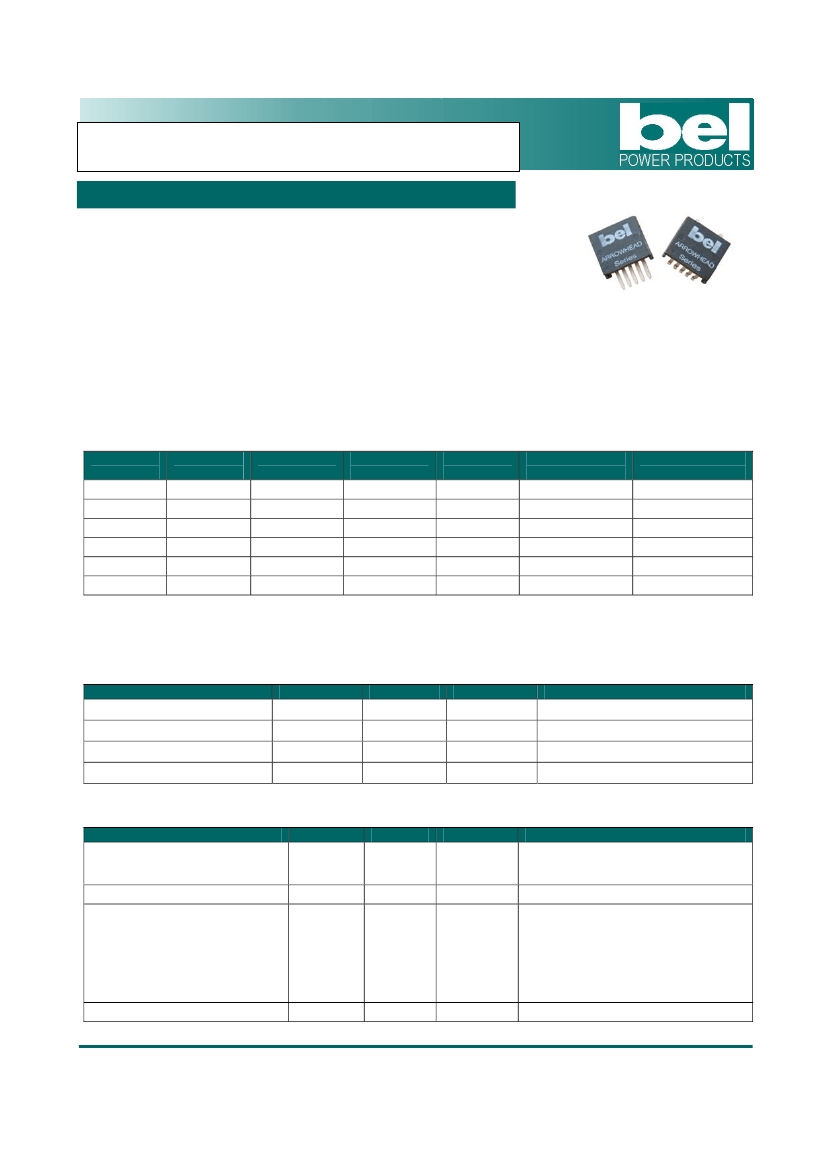

NON-ISOLATED DC/DC CONVERTER

4.5 Vdc - 32 Vdc Input

1.2 Vdc - 5.0 Vdc/1 A Output

xRAH-01Hxx0

•

Non-Isolated

•

Trim Function

RoHS Compliant

•

OCP/SCP

Rev.A

Remote On/Off

Under-Voltage Lockout (UVLO)

•

Low Profile Package (7.82 mm)

•

UL60950-1 Recognized (UL/cUL)

Description

The Bel xRAH-01Hxx0 series are part of the low cost non-isolated dc/dc converter series. These modules use a

SMD or vertical mount package for ease of layout and space savings. The output is closely regulated and the

efficiency of 5 Vdc output is typically 90% at full load. Typical features include remote on/off, input under voltage

lockout, over current protection and short circuit protection.

Part Selection

Output

Voltage

5.0 V

3.3 V

2.5 V

1.8 V

1.5 V

1.2 V

Input

Voltage

8.0 V - 32 V

4.5 V - 32 V

Max. Output

Current

Max. Output

Power

5.0 W

3.3 W

2.5 W

1.8 W

1.5 W

1.2 W

Typical

Efficiency

90%

86%

83%

79%

76%

73%

Part Number

Surface Mount

SRAH-01H500

SRAH-01H330

SRAH-01H250

SRAH-01H180

SRAH-01H150

SRAH-01H120

Part Number

Vertical Mount

VRAH-01H500

VRAH-01H330

VRAH-01H250

VRAH-01H180

VRAH-01H150

VRAH-01H120

Notes:

1. Add “0” suffix at the end of the model number to indicate “Tube Packaging”, and “R” for “Reel

Packaging”, and “G” for “Tray Packaging”.

2. All part numbers above indicate RoHS 6. Change the second letter "R" to "7" for RoHS 5 part numbers.

Absolute Maximum Ratings

Parameter

Input Voltage (continuous)

Output Enable Terminal Voltage

Ambient Temperature

Storage Temperature

Min

-0.3 V

-40

°C

-40

°C

Typ

Max

34 V

12 V

°C

125

°C

Notes

Input Specifications

Parameter

Input Voltage

=5.0 V

=1.2 V-3.3 V

Input Current (no load)

Input Current (full load)

=5.0 V

=3.3 V

=2.5 V

=1.8 V

=1.5 V

=1.2 V

Remote Off Input Current

Min

8.0 V

4.5 V

Typ

20 V

5 mA

2 mA

Max

32 V

8 mA

0.30 A

0.20 A

0.16 A

0.12 A

0.11 A

0.09 A

5 mA

Notes

Bel Fuse Inc.

206 Van Vorst Street, Jersey City, NJ 07302

•

Tel 201-432-0463

•

Fax 201-432-9542

•

www.belfuse.com
