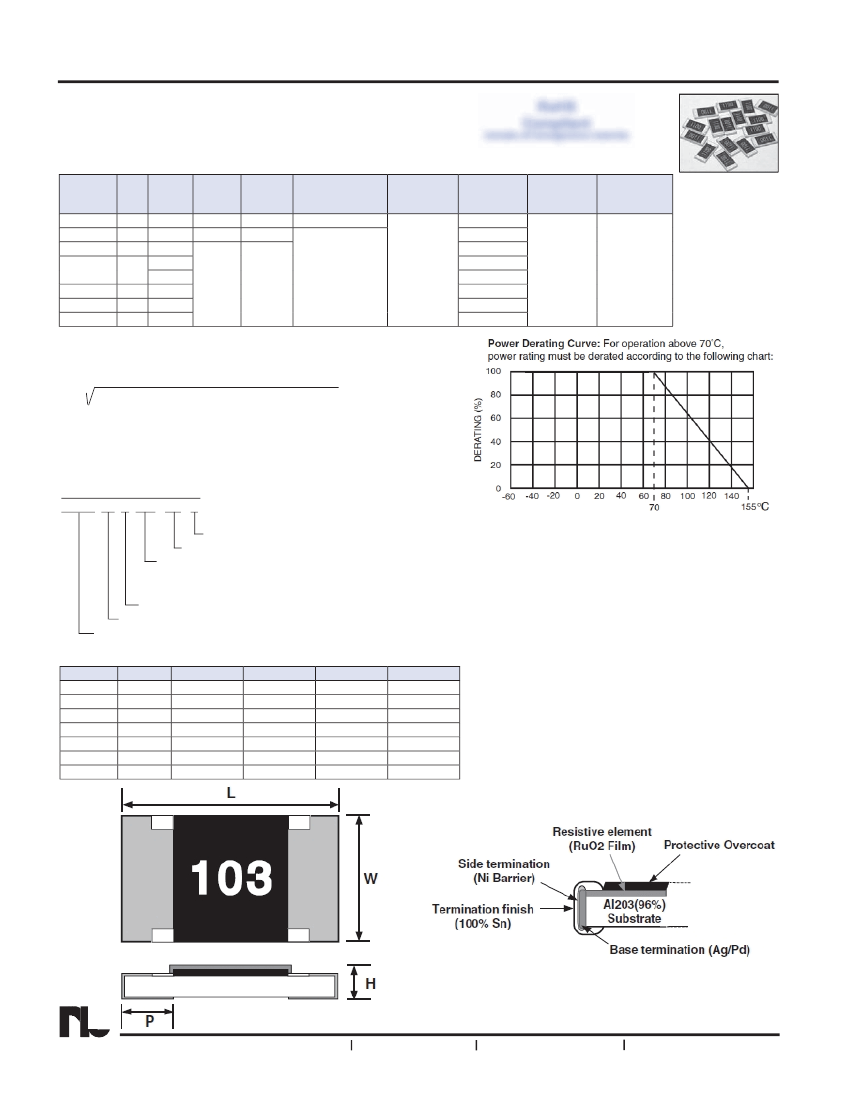

Anti-Surge Thick Film Chip Resistors
FEATURES
• EXCELLENT ANTI-SURGE CHARACTERISTICS
• BOTH FLOW SOLDER AND REFLOW SOLDERING ARE APPLICABLE
includes all homogeneous materials
NRCP Series
RoHS
Compliant
SPECIFICATIONS
Type
EIA
Size
*See Part Number System for Details
Resistance
Value
Operating
Temperature
Range
NRCP06 0603
NRCP10 0805
NRCP12 1206
NRCP25 1210
NRCP35 1812
NRCP50 2010
NRCP100 2512
Power Max. *1 Max. *2
Resistance
Temperature Resistance
Rating Working Overload
Tolerance
Coefficient
Range
at 70°C Voltage Voltage
Code
(ppm/°C)
(Ω)
1/10W
50
100
10% (K), 20% (M)
10 ~ 1Meg
1/8W
150
300
10 ~ 1Meg
1/4W
10 ~ 1Meg
1/3W
1.1k ~ 1Meg
±200ppm
5% (J), 10% (K),
1/2W
10 ~ 1K
20% (M)
200
400
1/2W
10 ~ 1Meg
3/4W
10 ~ 1Meg
1W
10 ~ 1Meg
E-24
-55°C ~
+155°C
Note *1
- Maximum allowable continuous Working Voltage
for all resistors is the lower of the two values:
“Maximum Working Voltage” as specified above
(or)
Power rating (Watts) x Resistance (Ohms)
Note *2
- Maximum allowable Overload voltage is 2 times the
Maximum Working Voltage (see Note *1 above) or Maximum Over-
load Voltage as specified in the table whichever is lower
PART NUMBER SYSTEM (E-24 VALUES)
NRCP 12 K 226 TR F
RoHS Compliant
Tape & Reel Packaging
Resistance Code: First 2
fi
gures are significant,
3rd digit is the multiplier, “R”
indicates a decimal point.
Tolerance Code: M=20%, K=10%, J=5%
Size
Series
COMPONENT DIMENSIONS (mm)
Type
EIA Size
NRCP06
0603
NRCP10
0805
NRCP12
1206
NRCP25
1210
NRCP35
1812
NRCP50
2010
NRCP100
2512
L
1.60 ± 0.15
2.00 ± 0.10
3.20 ± 0.15
3.20 ± 0.15
4.50 ± 0.15
5.00 ± 0.15
6.30 ± 0.15
W
0.80 ± 0.15
1.25 ± 0.10
1.60 ± 0.15
2.50 ± 0.15
3.20 ± 0.15
2.50 ± 0.15
3.20 ± 0.15
H
0.45 ± 0.10
0.50 ± 0.10
0.60 ± 0.10
0.60 ± 0.10
0.60 ± 0.10
0.60 ± 0.10
0.60 ± 0.10
P
0.30 ± 0.20
0.40 ± 0.20
0.50 ± 0.20
0.50 ± 0.20
0.50 ± 0.20
0.50 ± 0.30
0.70 ± 0.20
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
9

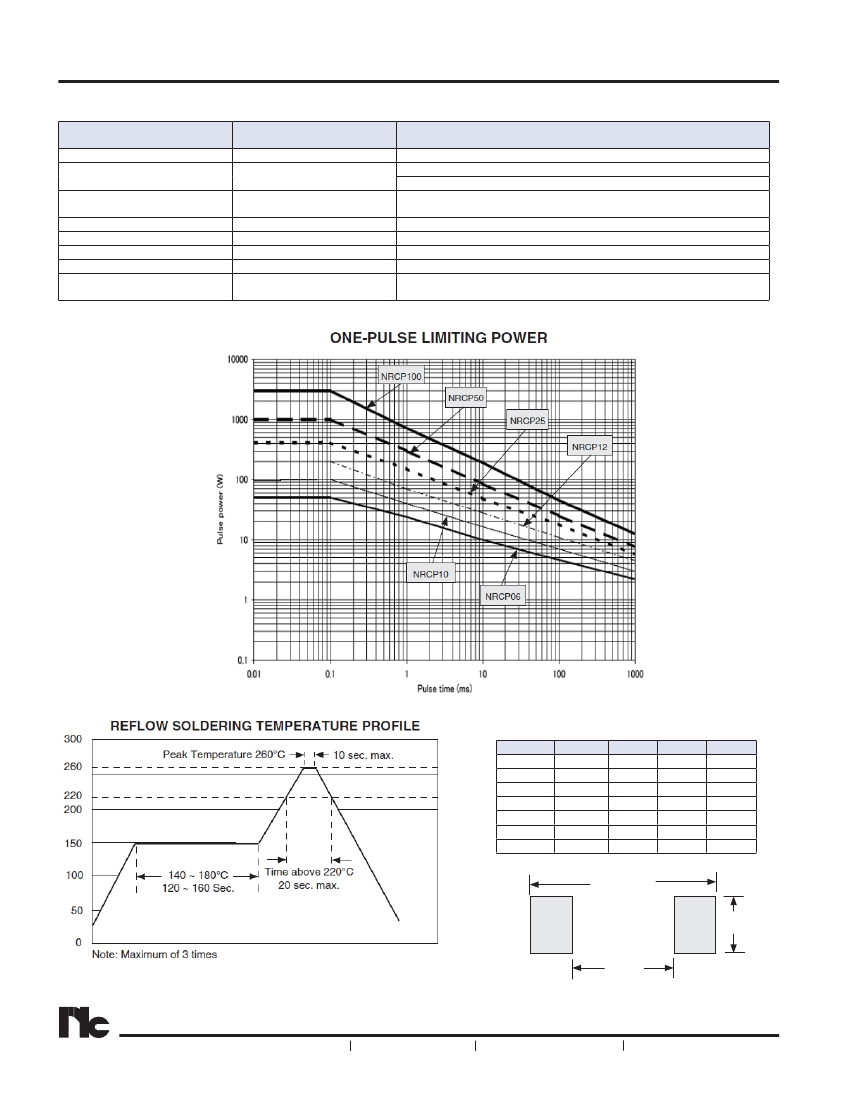

Anti-Surge Thick Film Chip Resistors
PERFORMANCE CHARACTERISTICS
Test Items
Voltage proof
Variation of resistance
with temperature
Shorttime Overload
Resistance to Soldering Heat
Temperature Cycling
Humidity Test (Steady State)
Load Life
Humidity Load Life
Requirement
ΔR
± ([ ] +0.1Ω)
No breakdown or
fl
ashover
See Specifications Table
[2%]
[1%]
[1%]
[1%]
[3%]
[3%]
Test Method (JISC5201-1)
NRCP Series
Maximum Overload Voltage, 60 seconds
+20°C/-55°C/+20°C/+125°C/+20°C or
+20°C/-55°C/+20°C/+155°C/+20°C
Rated Voltage x 2.5 or Max. Overload Voltage x 2
Whichever is the greater, 2 seconds
Immersion into solder bath at 260°C for 5 seconds
100 times at -55°C 30 minutes/+125°C 30 minutes
+60°C, 90% ~ 95% RH, 1,000 hours
Rated Voltage, 1.5 hrs ON/0.5 hrs OFF Cycle, +70°C, 1,000 hrs
+60°C, 90% ~ 95% RH, 1,000 hours
Rated Voltage, 1.5 hrs ON/0.5 hrs OFF cycle, 1,000 hrs
LAND PATTERN DIMENSIONS (mm)
Type
EIA Size
NRCP06
0603
NRCP10
0805
NRCP12
1206
NRCP25
1210
NRCP35
1812
NRCP50
2010
NRCP100
2512
a
0.9
1.35
2.2
2.2
3.5
3.7
4.7
b
2.6
3.45
4.7
5.2
6.1
6.2
7.6
c
0.78
1.1
1.4
2.15
2.75
2.15
2.75
b
c
a
10
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
Embedded System
