PCB
Text Relay – G5LA
Power Relays
Model number
Flux protection
SPDT
Standard
G5LA-1
G5LA-1-CF
High capacity (NC side)
G5LA-1-E
G5LA-1-E-CF
SPST-NO
G5LA-1A
G5LA-1A-CF
G5LA-14
G5LA-14-CF
G5LA-14-E
G5LA-14-E-CF
G5LA-1A4
G5LA-1A4-CF
Fully sealed

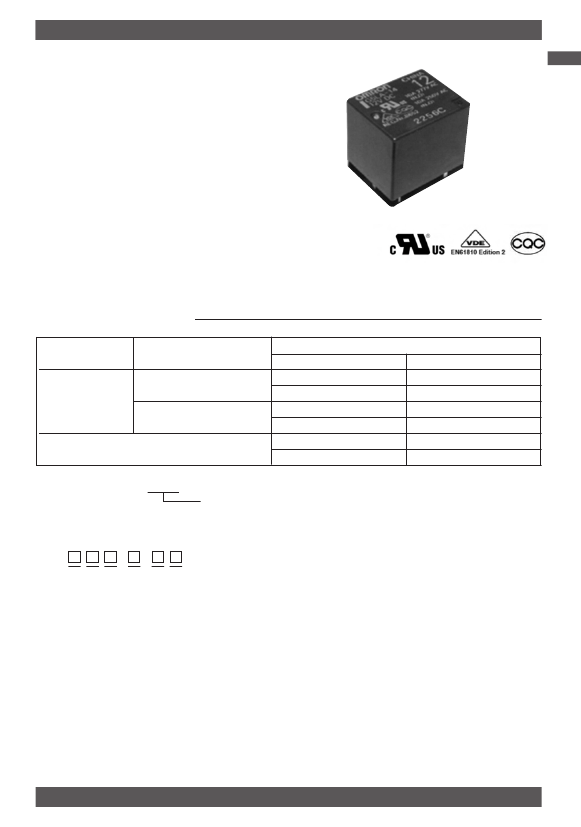

A Cubic, Single-pole 10A
Power Relay
■
Small size and light weight
• 19.6 x 15.6 x 15.6 mm, 7.5g
■
High Insulation
• Dielectric strength 2,000V
• Withstand impulse voltage 4,500V
■
High heat resistance and tracking
performance
• UL class-F available (-CF model)
• IEC60335 GWT compliant
• Tracking resistance CTI>250
■
Environmental friendly
■
ROHS compliant.
Ordering Information
Contact form
Switching capacity
Note:
When ordering, add the rated coil voltage to the model number.
Examples : G5LA-1 12VDC
Rated Coil Voltage
Model Number Legend
G5LA
-
-
VDC
1
1.
2
3
4
5
6
4.
Contact Type
None: Standard
E:
High capacity (NC side)
Number of Poles
1:
1 pole
2.
Contact Form/Contact Construction
None: SPDT
A:
SPST-NO
5.
UL Insulation System
None: Standard
CF:
Class F
3.
Sealing/Protective Construction
None: Flux protection
4:
Fully sealed
6.
Rated Coil Voltage
97
PCB
Text Relay – G5LA
Specifications
■
Coil Ratings
5 VDC
72 mA
69.4
Ω
9 VDC
40 mA
225
Ω
12 VDC
30 mA
400
Ω
24 VDC
15 mA
1600
Ω
48 VDC
10 mA
4800
Ω Ω
Rated voltage
Rated current
Coil resistance
Must operate voltage
Must release voltage
Max. voltage
Power consumption
75% max. of rated voltage
10% min. of rated voltage
130% of rated voltage at 85˚C, 170% of rated voltage at 23˚C
360 mW
480mW
Note:
The rated current and coil resistance are measured at a coil temperature of 23˚C with a tolerance of ±10%.
■
Contact Ratings
Item
Standard model
High capacity (-E) model
Contact material
Load
Rated load
NO
NO/NC
Rated carry current
Max. switching voltage
Max. switching current
Max. switching power
NO
NO/NC
Failure rate (reference value)
AgSnO
2
Resistive load (cos
φ
=1)
10A at 250VAC
10A at 24VDC
5A/5A at 125VAC
5A/5A at 250VAC
10A(NO), 5A(NC)
250VAC, 24VDC
10A(NO), 5A(NC)
AC2,500VA, DC240W
AC625VA, DC120W
100 mA at 5 VDC
AC1,250VAC, DC120W
10A
5A/5A at 24VDC
5A/5A at 24VDC
10A
Note:
P level:
λ
60 = 0.1 x 10 /operation
-6
■
Characteristics
100 mΩ max.
10 ms max.
5 ms max.
Mechanical: 18,000 operations/hr
Electrical: 1,800 operations/hr (under rated load)
1,000MΩ min. (at 500 VDC)
2,000 VAC. 1mA 50/60Hz for 1 min between coil and contacts
750 VAC 1mA 50/60Hz for 1 min between contacts of same polarity
Destruction: 10 to 55Hz, 1.5mm double amplitude
Malfunction: 10 to 55Hz, 1.5mm double amplitude
Destruction: 1,000 m/s
2
(approx. 100G)
Malfunction: 100 m/s
2
(approx. 10G)
Mechanical: 10,000,000 operations min.
Electrical: 100,000 operations typical
Operating: -40° to 85° (with no icing)
Storage: -40° to 85° (with no icing)
Operating: 35% to 85%
Storage: 35% to 85%
Approx. 7.5g
Contact resistance
Operate time
Release time
Max. switching frequency
Insulation resistance
Dielectric strength
Vibration resistance
Shock resistance
Endurance
Ambient temperature
Ambient humidity
Weight
Note:
Values in the above table are the initial values.
98
PCB
Text Relay – G5LA
Power Relays
Approved Standards
UL508 (UL File No. E41643)
■
Model
G5LA
Coil ratings
5 to 48 VDC
Contact ratings
NO:
10A, 277VAC, general use, 100,000 cycles
10A, 277VAC, general use, 85ºC, 50,000 cycles (-CF model)
15A, 125VAC, general use, 50,000 cycles
1/2Hp, 125VAC
1/2Hp, 250VAC
200W tungsten, 125VAC, 100,000 cycles
NC:
10A, 125VAC, resistive
10A, 277VAC, general use, 100,000 cycles (-E model)
EN61810-1 (VDE Reg. No. B652)
Model
G5LA
Coil ratings
5,6,9,12,18,24,48 VDC
Contact ratings
NO:
10A, 250VAC, cosφ=1, 85ºC, 1 sec
- flux protection: 50,000 cycles
- fully sealed: 10,000 cycles
10A, 250VAC, cosφ=1, 85ºC, 5 sec
12A, 125VAC, cosφ=1, 85ºC, 10,000
NC:
10A, 250VAC, cosφ=1, 85ºC, 25,000
NO/NC:
5A, 250VAC, cosφ=1, 85ºC
- flux protection: 50,000 cycles
- fully sealed: 10,000 cycles
GB15092.1 (CQC File No. CQC06001015477)
Model
G5LA
Coil ratings
5,9,12,24,48 VDC
NO:
10A, 250VAC,
12A, 120VAC,
NO/NC:
10A, 250VAC,
12A, 250VAC,
Contact ratings
resistive, 10,000 cycles
resistive, 10,000 cycles
resistive, 10,000 cycles (-E model)
resistive, 10,000 cycles (-E model)
99
PCB
Text Relay – G5LA

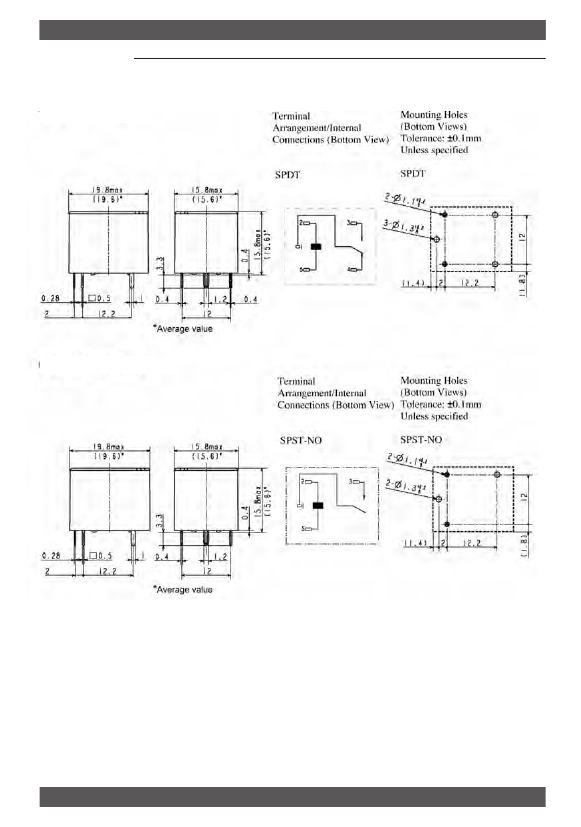

Dimensions
Note:
All units are in millimeters unless otherwise indicated.
■
SPDT Models
■
SPST-NO Models
100
PCB
Text Relay – G5LA

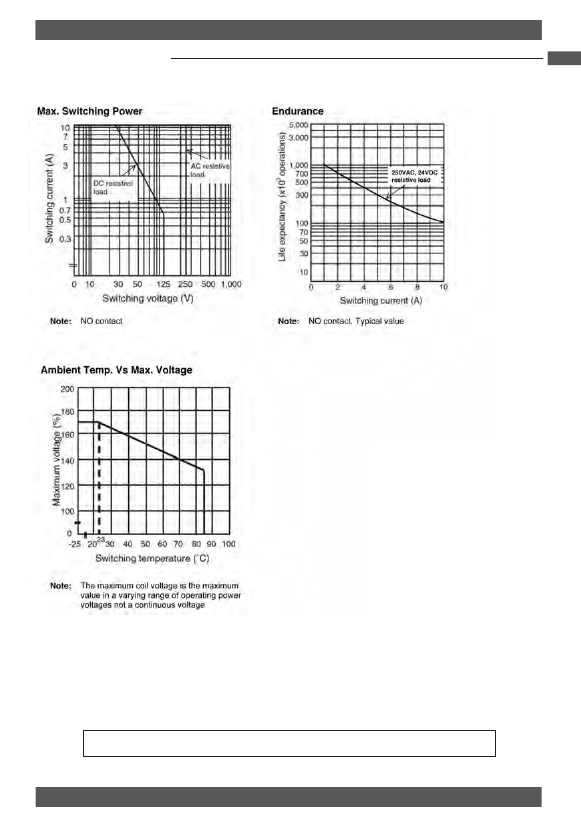

Engineering Data
Power Relays
ALL DIMENSIONS SHOWN ARE IN MILLIMETRES.
To convert millimetres into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.
CAT. No. K901-E2-01
