XRD54L10AIP8 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> XRD54L10AIP8

XRD54L10AIP8: DescriptionD/A Converter, 1 Func, Serial Input Loading, 13us Settling Time, PDIP8, 0.300 INCH, PLASTIC, DIP-8; CategoryAnalog mixed-signal IC converter; File Size73KB，2 Pages; ManufacturerExar

Download Datasheet Parametric Compare View All

XRD54L10AIP8 Overview

D/A Converter, 1 Func, Serial Input Loading, 13us Settling Time, PDIP8, 0.300 INCH, PLASTIC, DIP-8

XRD54L10AIP8 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Exar
Parts packaging code	DIP
package instruction	DIP,
Contacts	8
Reach Compliance Code	compliant
Maximum analog output voltage	3 V
Minimum analog output voltage
Converter type	D/A CONVERTER
Enter bit code	BINARY
Input format	SERIAL
JESD-30 code	R-PDIP-T8
JESD-609 code	e0
length	9.8806 mm
Number of digits	10
Number of functions	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	5.334 mm
Nominal settling time (tstl)	13 µs
Nominal supply voltage	3 V
surface mount	NO
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm

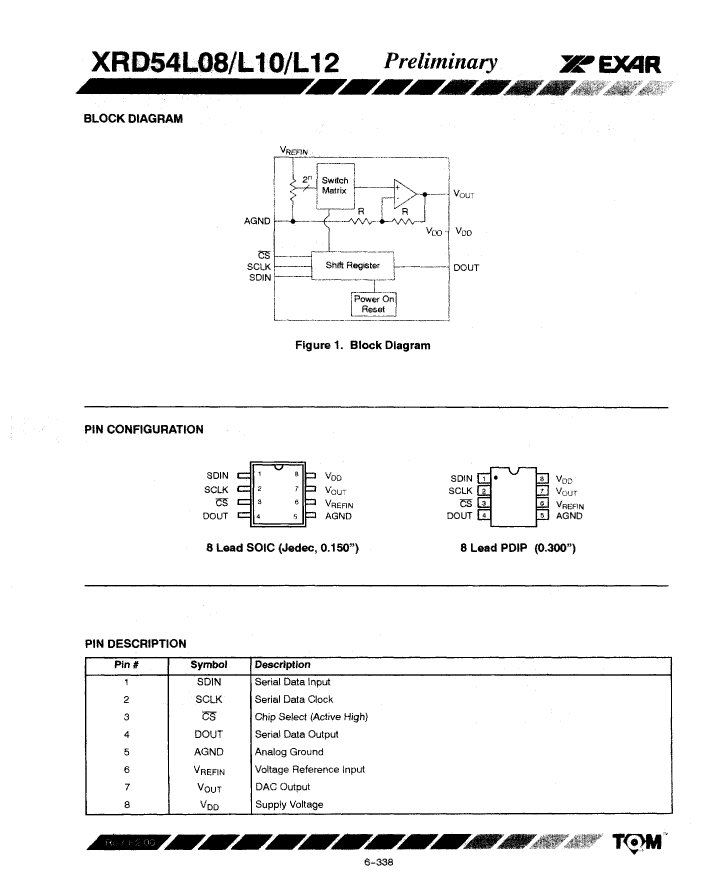

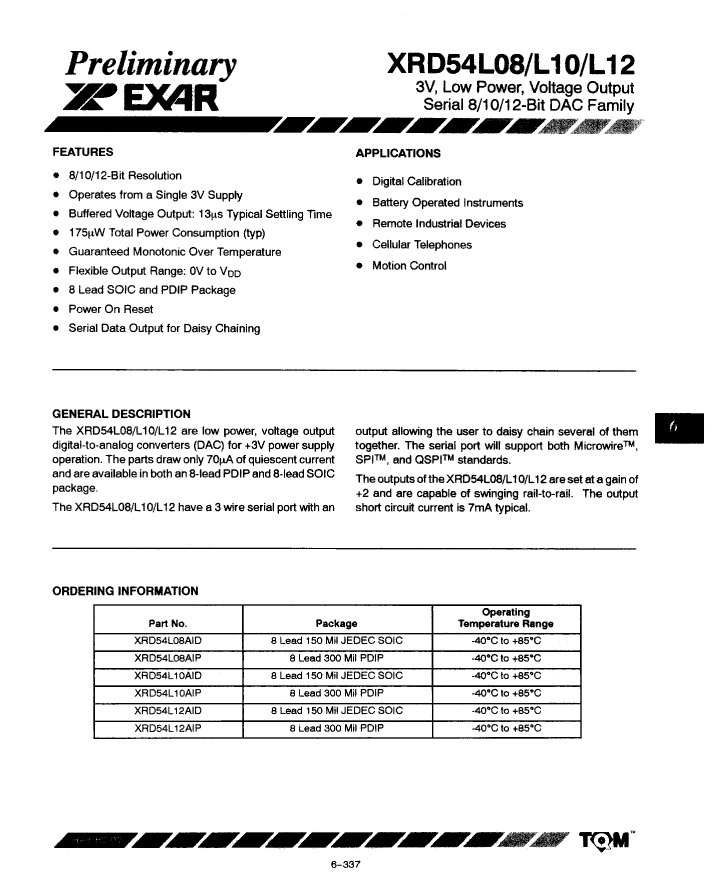

Preview

Download Datasheet

View All

XRD54L10AIP8 Related Products

	XRD54L10AIP8	XRD54L12AID8	XRD54L12AIP8	XRD54L08AIP8	XRD54L10AID8	XRD54L08AID8
Description	D/A Converter, 1 Func, Serial Input Loading, 13us Settling Time, PDIP8, 0.300 INCH, PLASTIC, DIP-8	D/A Converter, 1 Func, Serial Input Loading, 13us Settling Time, PDSO8, 0.150 INCH, SOIC-8	D/A Converter, 1 Func, Serial Input Loading, 13us Settling Time, PDIP8, 0.300 INCH, PLASTIC, DIP-8	D/A Converter, 1 Func, Serial Input Loading, 13us Settling Time, PDIP8, 0.300 INCH, PLASTIC, DIP-8	D/A Converter, 1 Func, Serial Input Loading, 13us Settling Time, PDSO8, 0.150 INCH, SOIC-8	D/A Converter, 1 Func, Serial Input Loading, 13us Settling Time, PDSO8, 0.150 INCH, SOIC-8
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	DIP	SOIC	DIP	DIP	SOIC	SOIC
package instruction	DIP,	SOP,	DIP,	DIP,	SOP,	SOP,
Contacts	8	8	8	8	8	8
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Maximum analog output voltage	3 V	3 V	3 V	3 V	3 V	3 V
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
Enter bit code	BINARY	BINARY	BINARY	BINARY	BINARY	BINARY
Input format	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL
JESD-30 code	R-PDIP-T8	R-PDSO-G8	R-PDIP-T8	R-PDIP-T8	R-PDSO-G8	R-PDSO-G8
JESD-609 code	e0	e0	e0	e0	e0	e0
length	9.8806 mm	4.9 mm	9.8806 mm	9.8806 mm	4.9 mm	4.9 mm
Number of digits	10	12	12	8	10	8
Number of functions	1	1	1	1	1	1
Number of terminals	8	8	8	8	8	8
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP	DIP	DIP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	240	NOT SPECIFIED	NOT SPECIFIED	240	240
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.334 mm	1.75 mm	5.334 mm	5.334 mm	1.75 mm	1.75 mm
Nominal settling time (tstl)	13 µs	13 µs	13 µs	13 µs	13 µs	13 µs
Nominal supply voltage	3 V	3 V	3 V	3 V	3 V	3 V
surface mount	NO	YES	NO	NO	YES	YES
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING
Terminal pitch	2.54 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	30	NOT SPECIFIED	NOT SPECIFIED	30	30
width	7.62 mm	3.9 mm	7.62 mm	7.62 mm	3.9 mm	3.9 mm
Maker	Exar	-	-	Exar	Exar	Exar
