SPE0588
Ultra Low Capacitance Single-Line ESD Protection Array
DESCRIPTION
The SPE0588 is an ESD transient voltage suppression
component which provides a very high level of protection
for sensitive electronic components that may be subjected
to electrostatic discharge (ESD).
It is particularly well-suited for cellular phones, portable
device, digital cameras, power supplies and many other
portable applications because of its small package and
low weight. The SPE0588 is Uni-directional, Safely
dissipate ESD strikes of Level 4, IEC61000-4-2,
exceeding the maximum requirement. Using the
MILSTD-883 (Method 3015) specification for Human
Body Model (HBM) ESD, the device provides protection
for contact discharges to greater than +/-10KV.
The SPE0588 is available in a SOD-523 package with
peak reverse working voltage of 5 voltages.
APPLICATIONS
Cellular Handsets and Accessories
Cordless Phone
PDA
Notebooks and Handhelds
Portable Instrumentation
Digital Cameras
MP3 Player
FEATURES
Transient protection for data lines to
IEC 61000-4-2 (ESD)
±15kV (air)
±8kV (contact)
IEC 61000-4-4 (EFT)
40A (5/50ns)
Protects single I/O lines
Working voltage: 5V
Low leakage current
Low operating and clamping voltages
PIN CONFIGURATION ( SOD-523 )
PART MARKING
Mx
M= Month Code
x=Specific Device Code
2011/03/16
Ver.2
Page 1
SPE0588
Ultra Low Capacitance Single-Line ESD Protection Array
ORDERING INFORMATION
Part Number
Package
Part
Marking
Mx
SPE0588D52RGB
SOD-523
M=Month Code (A~Z)
※
SPE0588D52RGB : Tape Reel ; Pb – Free ; Halogen – Free
ABSOULTE MAXIMUM RATINGS
(T
A
=25
℃
Unless otherwise noted)
Parameter
Peak Pulse Power ( tp = 8/20
μs
)
Maximum Peak Pulse Current ( tp = 8/20
μs
)
ESD per IEC 61000 – 4 – 2 (Air )
ESD per IEC 61000 – 4 – 2 (Contact )
Operating Junction Temperature
Storage Temperature Range
Lead Soldering Temperature
Symbol
Ppk
Ipp
Vpp
Vpp
T
J
T
STG
T
L
Typical
250
7
±15
±10
-55 ~ 125
-55 ~ 150
260 ( 10sec )
Unit
W
A
KV
KV
℃
℃
℃
ELECTRICAL CHARACTERISTICS
(T
A
=25
℃
Unless otherwise noted)
Parameter
Reverse Stand – Off
Voltage
Reverse Breakdown Voltage
Reverse Leakage Current
Clamping Voltage
Junction Capacitance
Symbol
V
RWM
V
BR
I
R
V
C
Cj
It = 1mA
V
RWM
= 5V , T=25℃
Ipp = 1A , tp = 8/20
μs
Between I/O Pin and GND
V
R
= 0V , f = 1MHz
0.5
6
1
8
0.9
Conditions
Min.
Typ
Max.
5
Unit
V
V
μA
V
pF
2011/03/16
Ver.2
Page 2
SPE0588
Ultra Low Capacitance Single-Line ESD Protection Array

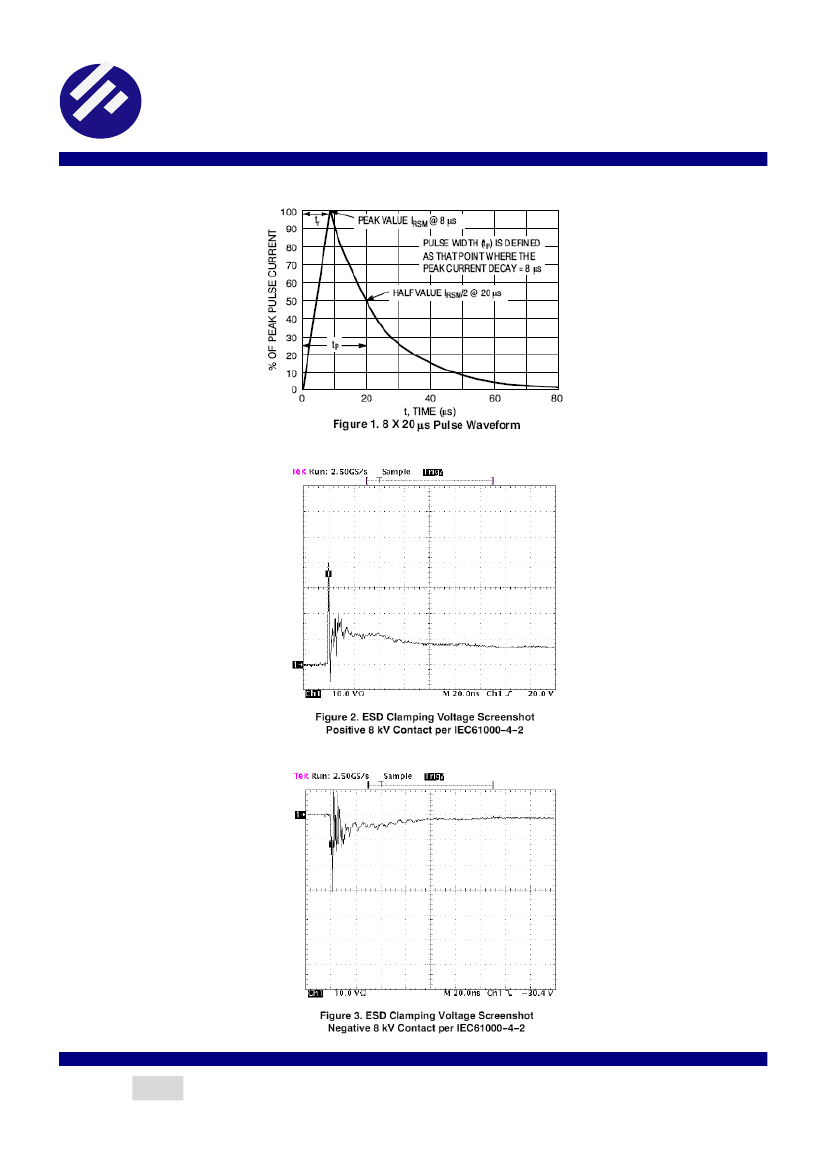

TYPICAL CHARACTERISTICS
2011/03/16
Ver.2
Page 3
SPE0588
Ultra Low Capacitance Single-Line ESD Protection Array

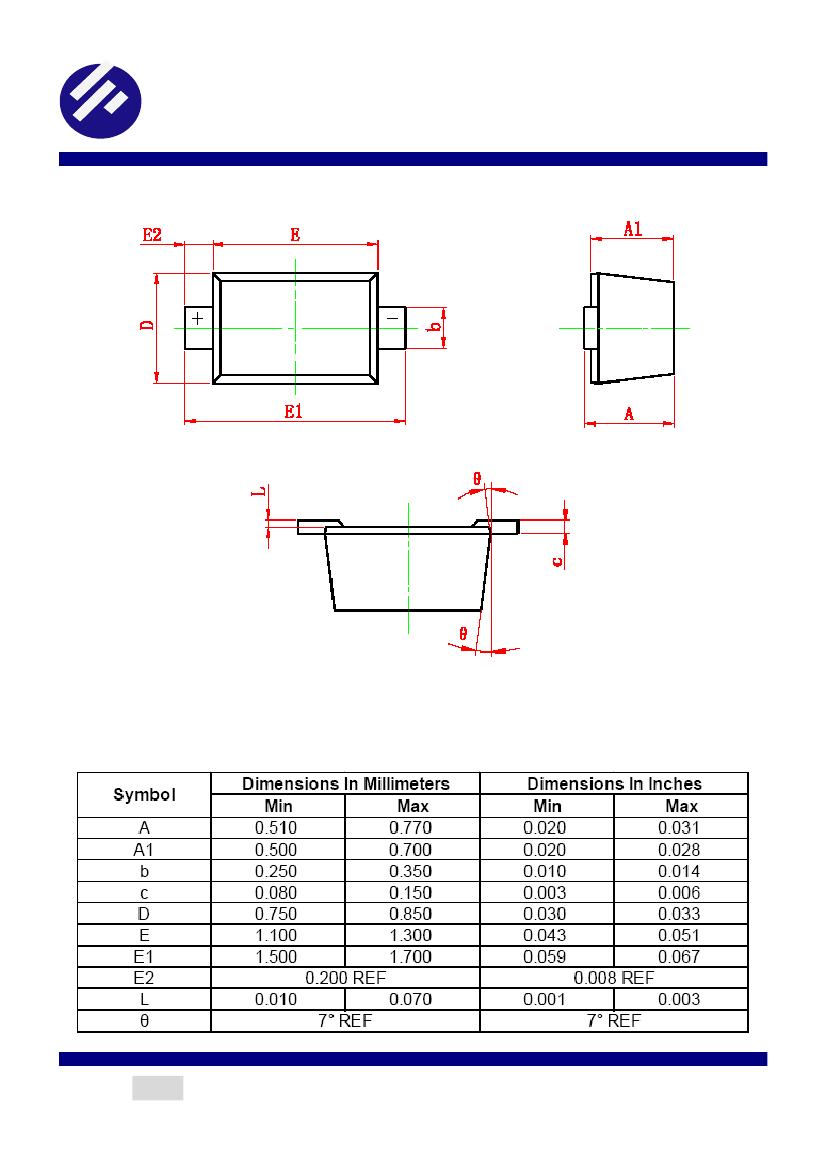

SOD-523 PACKAGE OUTLINE
2011/03/16
Ver.2
Page 4
SPE0588
Ultra Low Capacitance Single-Line ESD Protection Array
