UC7912K datasheet, PDF - EEWORLD Datasheet

UC7912K: DescriptionFixed Negative Standard Regulator, 12V, BIPolar, MBFM2,; CategoryPower/power management The power supply circuit; File Size224KB，4 Pages; ManufacturerUnitrode Corporation

Download Datasheet Parametric View All

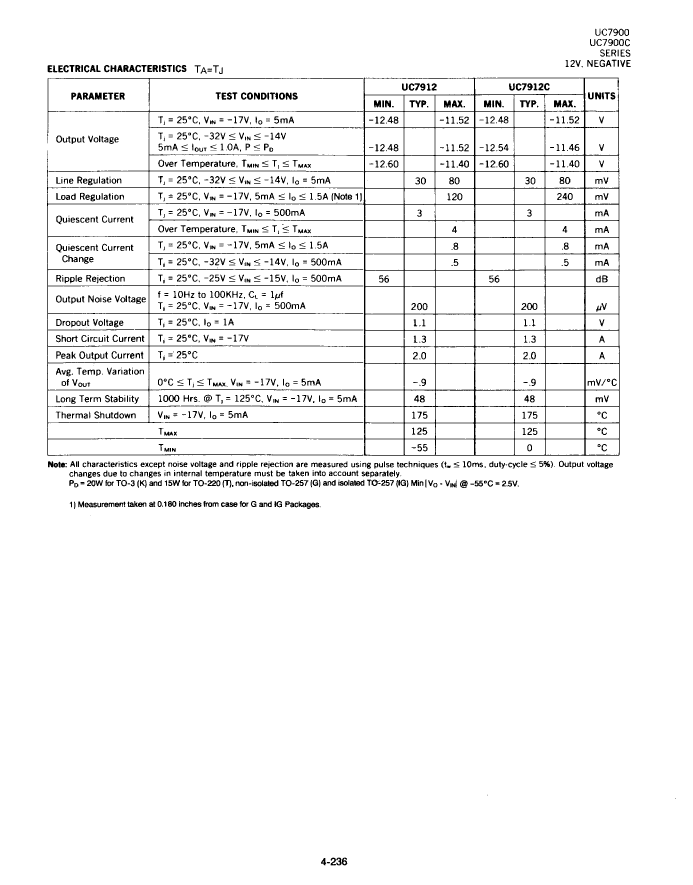

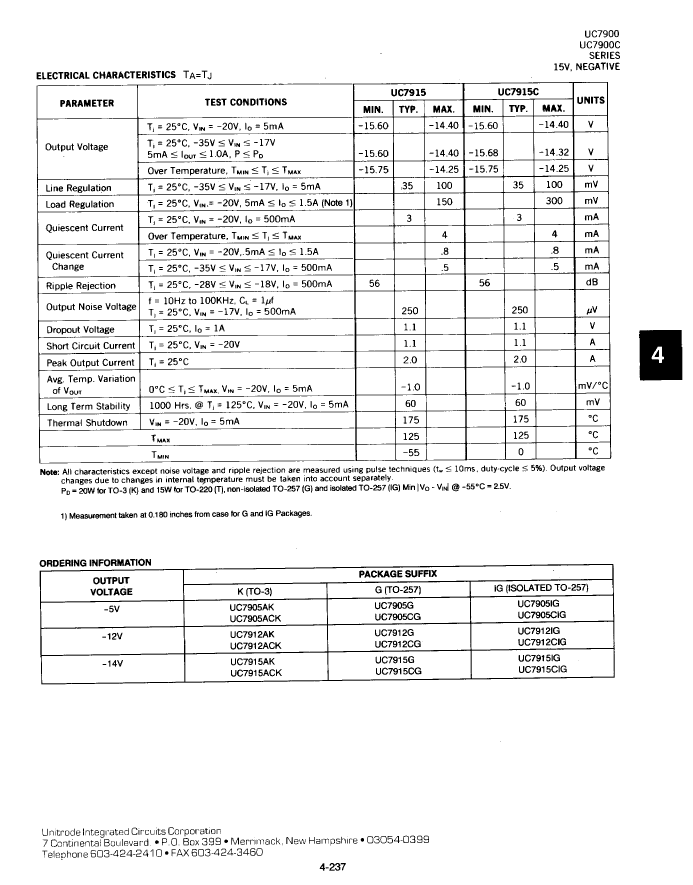

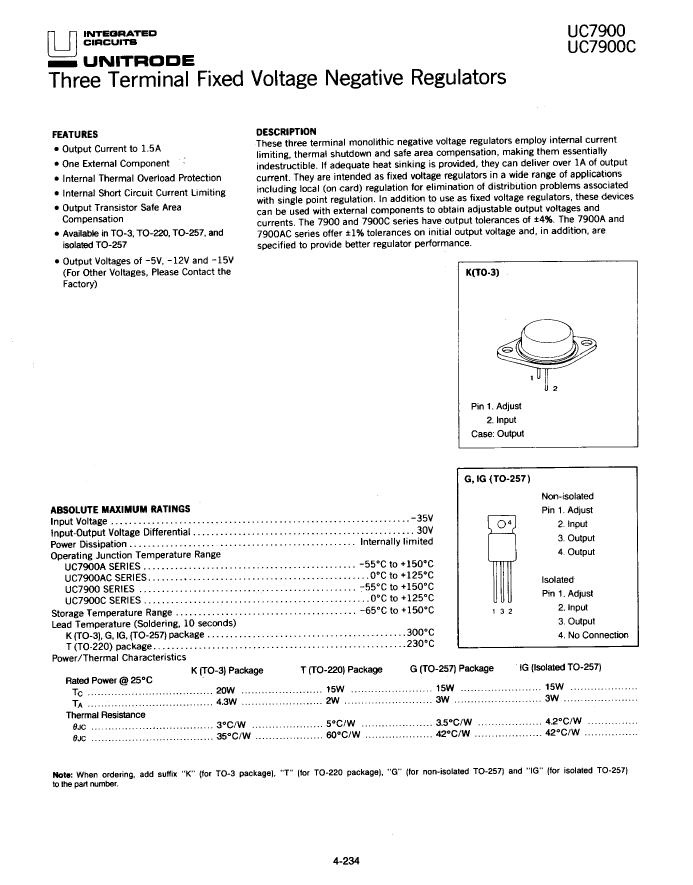

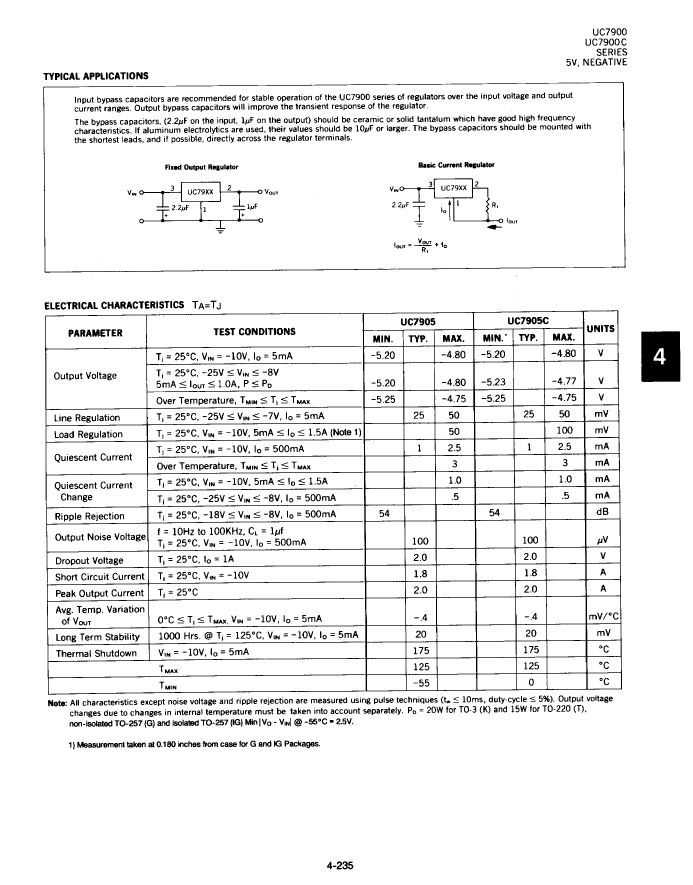

UC7912K Overview

Fixed Negative Standard Regulator, 12V, BIPolar, MBFM2,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Unitrode Corporation
package instruction	, TO-204/-3
Reach Compliance Code	unknown
Adjustability	FIXED
Nominal dropback voltage 1	2.6 V
Maximum absolute input voltage	35 V
Maximum input voltage	32 V
Minimum input voltage	14 V
JESD-30 code	O-MBFM-P2
JESD-609 code	e0
Maximum grid adjustment rate	0.08%
Maximum load regulation	0.12%
Number of functions	1
Output times	1
Number of terminals	2
Working temperatureTJ-Max	150 °C
Working temperature TJ-Min	-55 °C
Maximum output current 1	1.5 A
Maximum output voltage 1	12.6 V
Minimum output voltage 1	11.4 V
Nominal output voltage 1	12 V
Package body material	METAL
Encapsulate equivalent code	TO-204/-3
Package shape	ROUND
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Regulator type	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR
surface mount	NO
technology	BIPOLAR
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum voltage tolerance	5%
