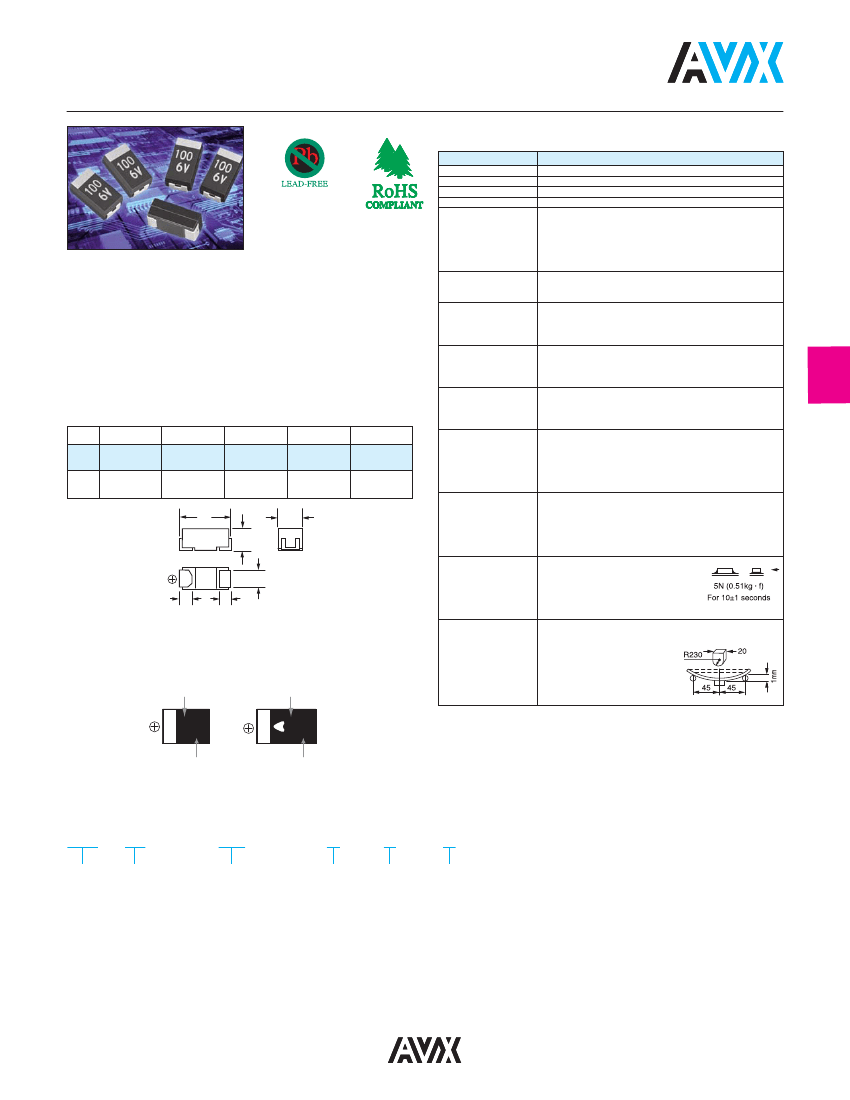

F91 Series
Low ESR, Resin-Molded Chip J-Lead
TECHNICAL SPECIFICATIONS
Item
Category Temperature Range
Capacitance Tolerance
Dissipation Factor
ESR (100kHz)
Performance Characteristics
-55 to +125°C (Rated temperature: +85°C)
±20%, ±10% (at 120Hz)
Refer to next page
Refer to next page
• After 1 minute’s application of rated voltage, leakage current at 20°C
is not more than 0.01CV or 0.5μA, whichever is greater.
• After 1 minute’s application of rated voltage, leakage current at 85°C
is not more than 0.1CV or 5μA, whichever is greater.
• After 1 minute’s application of derated voltage, leakage current at 125°C
is not more than 0.125CV or 6.3μA, whichever is greater.
+15% Max. (at +125°C)
+10% Max. (at +85°C)
-10% Max. (at -55°C)
At 40°C, 90 to 95% R.H., 500 hours (No voltage applied)
Capacitance Change ........... Within ±10% of the initial value
Dissipation Factor ................ Initial specified value or less
Leakage Current .................. Initial specified value or less
-55°C / +125°C, 30 minutes each, 5 cycles
Capacitance Change ........... Within ±5% of the initial value
Dissipation Factor ................ Initial specified value or less
Leakage Current .................. Initial specified value or less
10 seconds reflow at 260°C, 5 seconds immersion at 260°C.
Capacitance Change ........... Within ±5% of the initial value
Dissipation Factor ................ Initial specified value or less
Leakage Current .................. Initial specified value or less
After application of surge voltage in series with a 33Ω resistor at the rate of
30 seconds ON, 30 seconds OFF, for 1000 successive test cycles at 85ºC,
capacitors shall meet the characteristic requirements table below.
Capacitance Change ........... Within ±5% of the initial value
Dissipation Factor ................ Initial specified value or less
Leakage Current .................. Initial specified value or less
After 2000 hours’ application of rated voltage in series with a 3Ω resistor at
85°C, or derated voltage in series with a 3Ω resistor at 125°C, capacitors
shall meet the characteristic requirements table below.
Capacitance Change ........... Within ±10% of the initial value
Dissipation Factor ................ Initial specified value or less
Leakage Current .................. Initial specified value or less
After applying the pressure load of 5N for 10±1
seconds horizontally to the center of capacitor
side body which has no electrode and has been
soldered beforehand on a substrate, there shall
be found neither exfoliation nor its sign at the
terminal electrode.
Keeping a capacitor surface-mounted on a substrate upside down and
supporting the substrate at both of the opposite bottom points 45mm apart
from the center of capacitor, the pressure
strength is applied with a specified jig at the
center of substrate so that the substrate
may bend by 1mm as illustrated. Then,
there shall be found no remarkable
abnormality on the capacitor terminals.
LEAD-FREE COMPATIBLE
COMPONENT
Leakage Current
FEATURES
• Compliant to the RoHS2 directive 2011/65/EU
• SMD J-lead
• Low ESR
Capacitance Change
by Temperature
Damp Heat
(Steady State)
APPLICATIONS
• General medium power DC/DC convertors
Temperature Cycles
CASE DIMENSIONS:
millimeters (inches)
Code
C
N
L
W
1
W
2
H
S
6.00 ± 0.20
3.20 ± 0.20
2.20 ± 0.10
2.50 ± 0.20
1.30 ± 0.20
(0.236 ± 0.008) (0.126 ± 0.008) (0.087 ± 0.004) (0.098 ± 0.008) (0.051 ± 0.008)
7.30 ± 0.20
4.30 ± 0.20
2.40 ± 0.10
2.80 ± 0.20
1.30 ± 0.20
(0.287 ± 0.008) (0.169 ± 0.008) (0.094 ± 0.004) (0.110 ±0.008) (0.051 ± 0.008)
L
H
W
1
Resistance to
Soldering Heat
Surge
Endurance
W
2
S
S
Shear Test
MARKING
C CASE
Capacitance
(μF)
N CASE
Capacitance
(μF)
Terminal Strength
Rated Voltage
(V)
68
10V
Rated Voltage
(V)
HOW TO ORDER
F91
1A
107
Type
Rated
Voltage
Capacitance
Code
pF code: 1st two digits
represent significant figures,
3rd digit represents multiplier
(number of zeros to follow)
220
10V
M
Tolerance
K = ±10%
M = ±20%
C
Case
Size
See
table
above
Packaging
See page
168 for
details
JANUARY 2014
■
67
