DV74HC161AD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> DV74HC161AD

DV74HC161AD: DescriptionBinary Counter, HC/UH Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, CMOS, PDSO16, PLASTIC, SOP-16; Categorylogic logic; File Size881KB，5 Pages; ManufacturerAVG [AVG Semiconductors(HITEK)]

Download Datasheet Parametric Compare View All

DV74HC161AD Overview

Binary Counter, HC/UH Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, CMOS, PDSO16, PLASTIC, SOP-16

DV74HC161AD Parametric

Parameter Name	Attribute value
Maker	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	SOIC
package instruction	SOP,
Contacts	16
Reach Compliance Code	unknown
Counting direction	UP
series	HC/UH
JESD-30 code	R-PDSO-G16
length	9.9 mm
Load/preset input	YES
Logic integrated circuit type	BINARY COUNTER
Operating mode	SYNCHRONOUS
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
propagation delay (tpd)	320 ns
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	4.5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
width	3.9 mm
minfmax	24 MHz

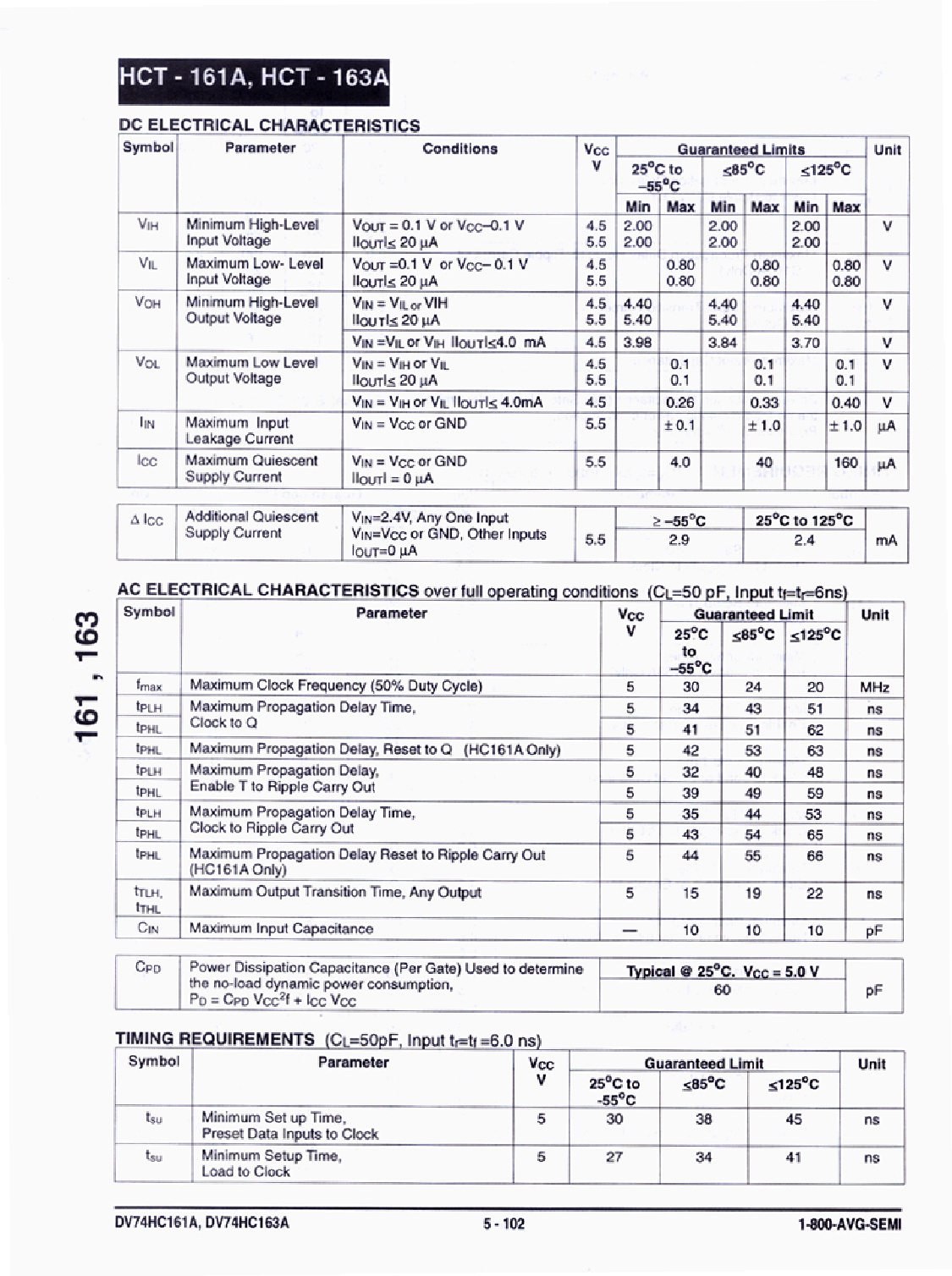

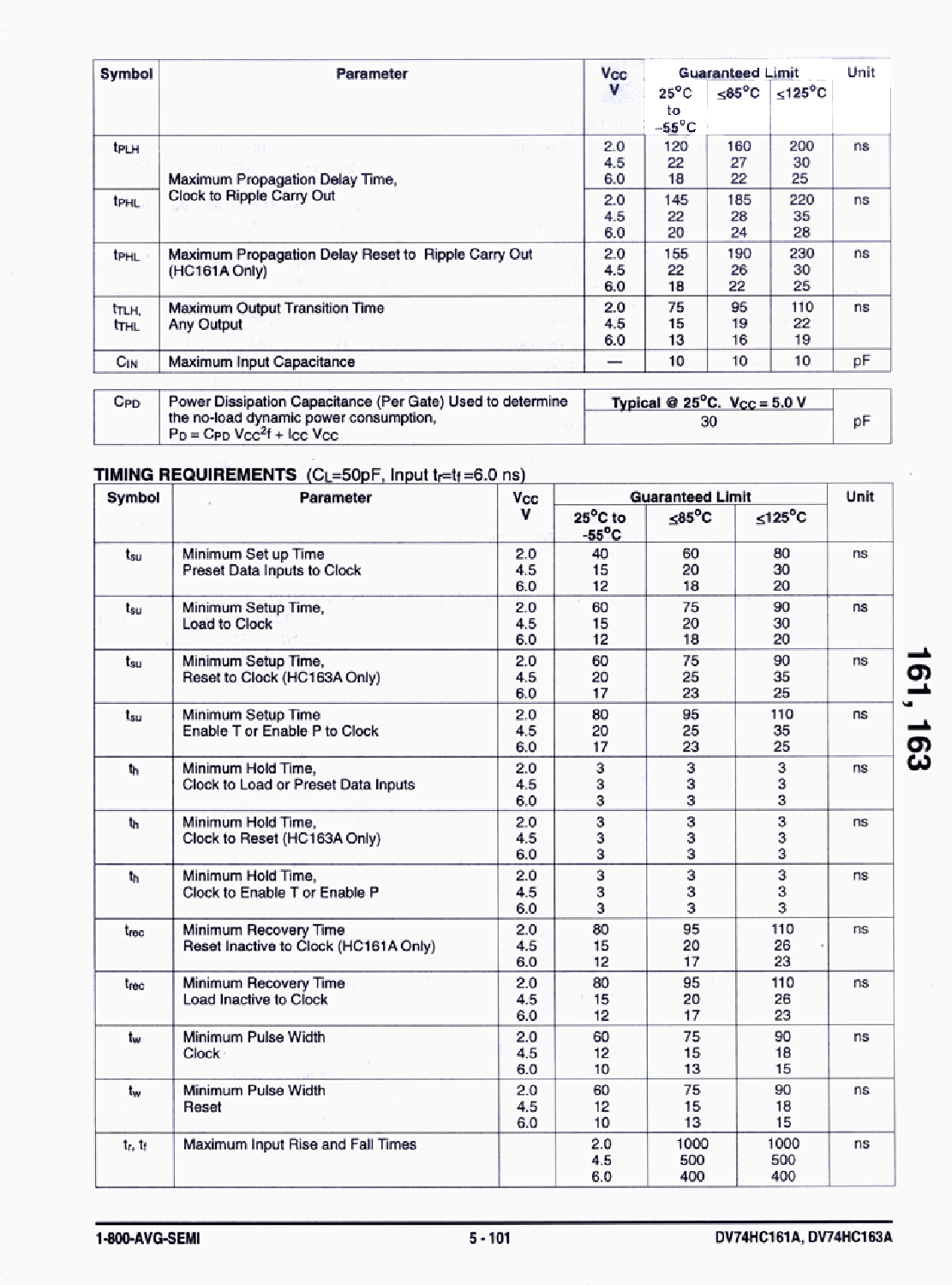

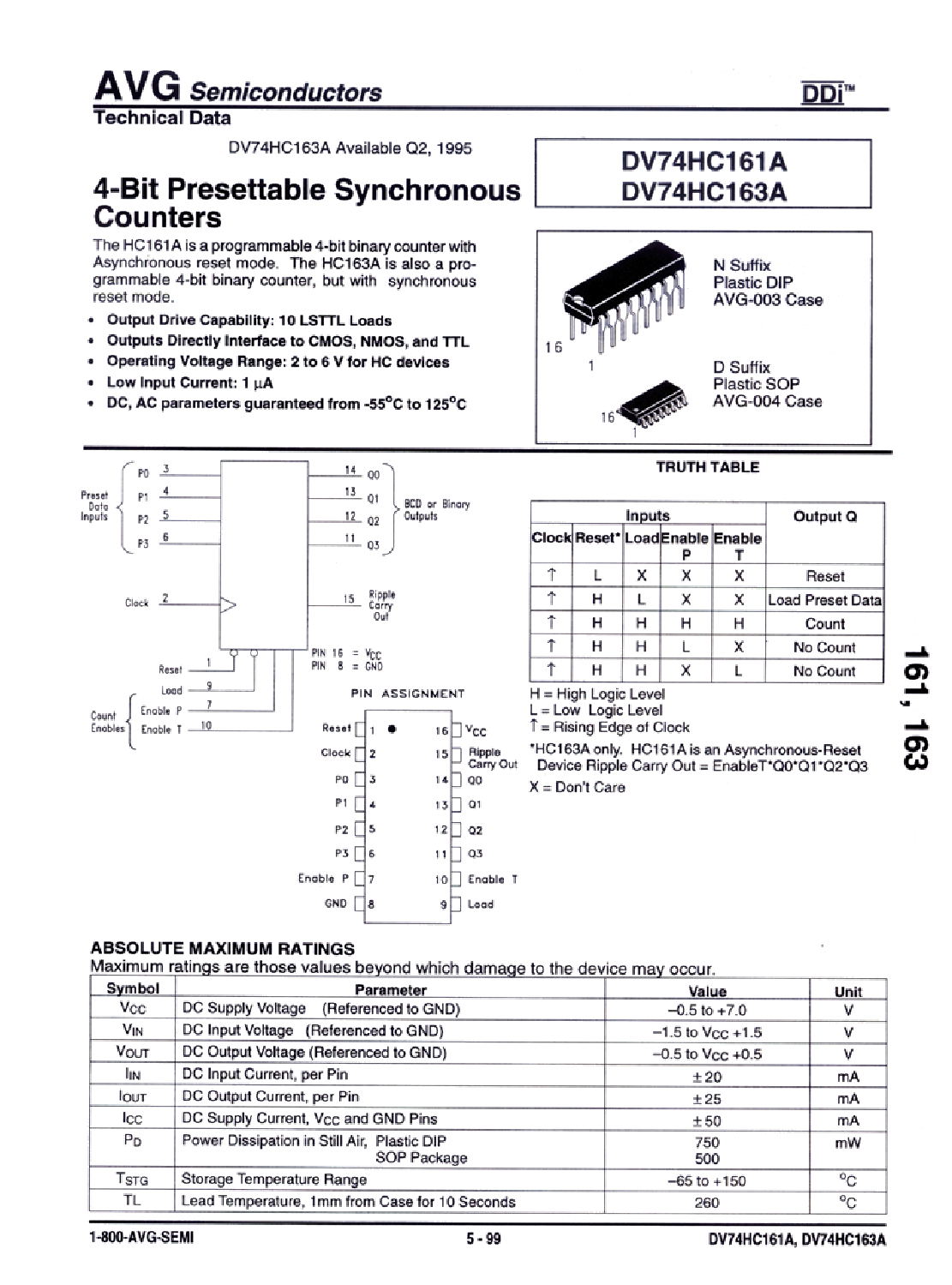

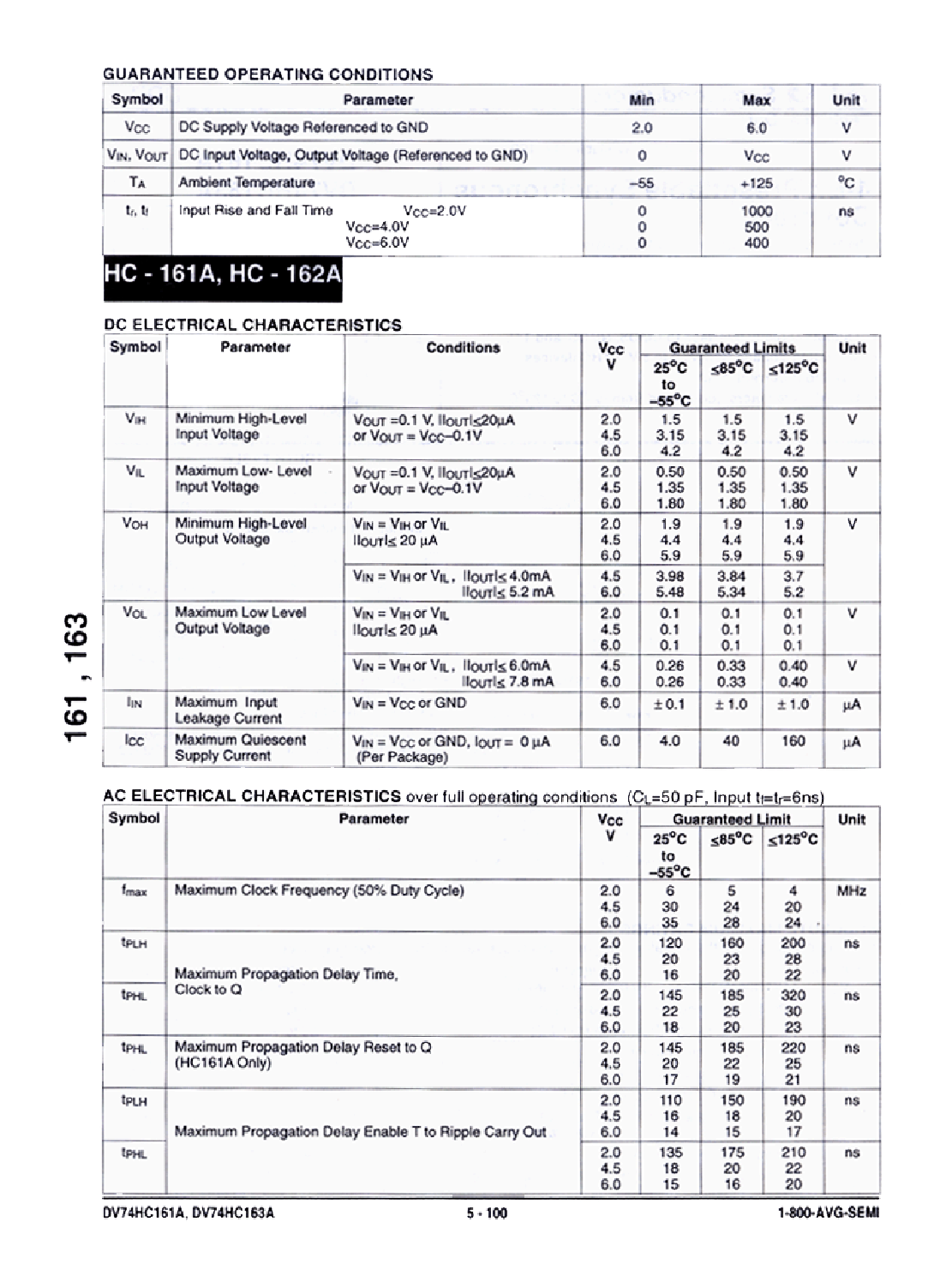

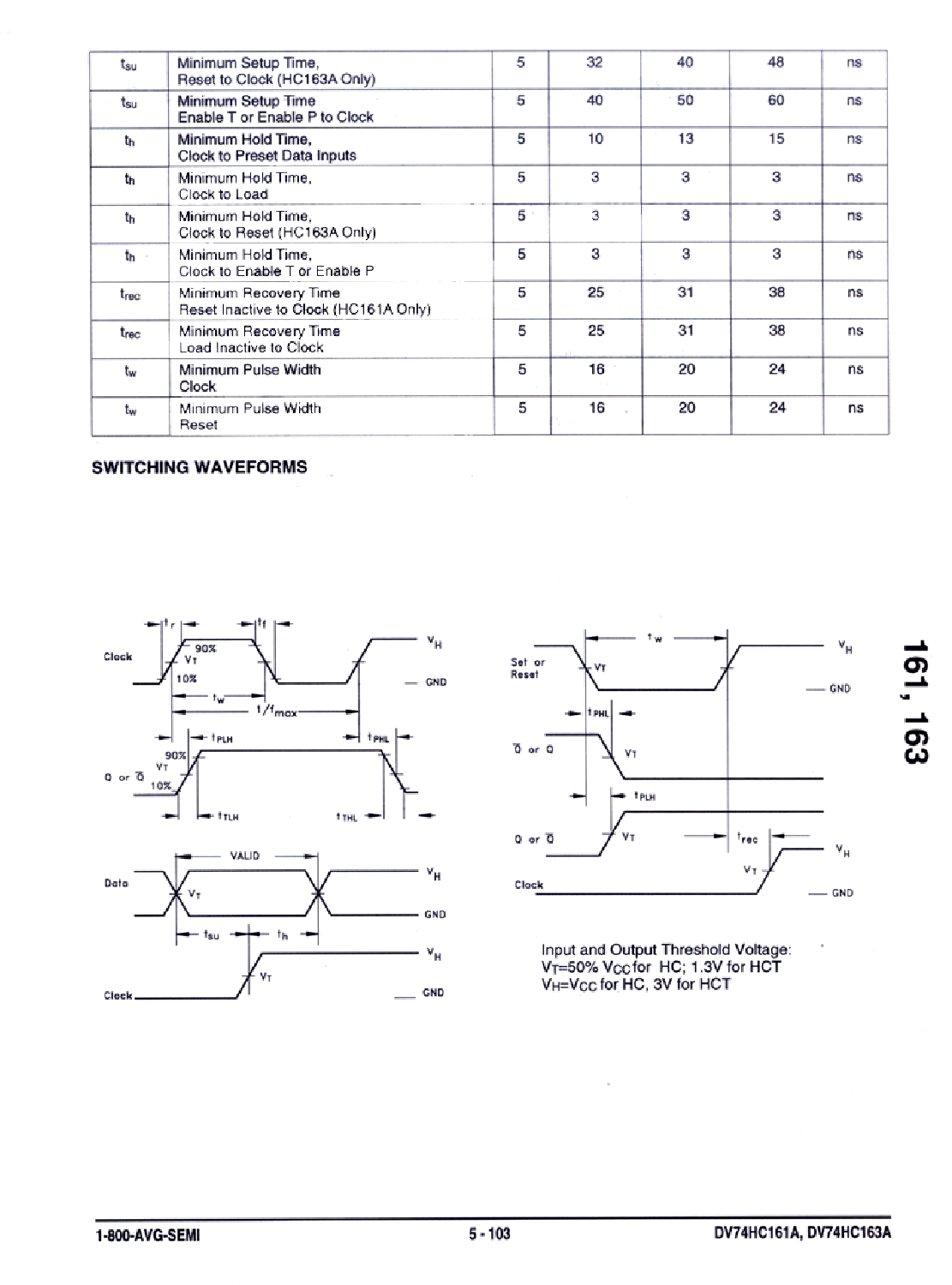

Preview

Download Datasheet

View All

DV74HC161AD Related Products

	DV74HC161AD	DV74HC161AN	DV74HCT163AN	DV74HC163AN
Description	Binary Counter, HC/UH Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, CMOS, PDSO16, PLASTIC, SOP-16	Binary Counter, HC/UH Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, CMOS, PDIP16, PLASTIC, DIP-16	Logic Circuit	Binary Counter, HC/UH Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, CMOS, PDIP16, PLASTIC, DIP-16
package instruction	SOP,	DIP,	,	DIP,
Reach Compliance Code	unknown	unknown	unknown	unknown
Parts packaging code	SOIC	DIP	-	DIP
Contacts	16	16	-	16
Counting direction	UP	UP	-	UP
series	HC/UH	HC/UH	-	HC/UH
JESD-30 code	R-PDSO-G16	R-PDIP-T16	-	R-PDIP-T16
length	9.9 mm	19.175 mm	-	19.175 mm
Load/preset input	YES	YES	-	YES
Logic integrated circuit type	BINARY COUNTER	BINARY COUNTER	-	BINARY COUNTER
Operating mode	SYNCHRONOUS	SYNCHRONOUS	-	SYNCHRONOUS
Number of digits	4	4	-	4
Number of functions	1	1	-	1
Number of terminals	16	16	-	16
Maximum operating temperature	125 °C	125 °C	-	125 °C
Minimum operating temperature	-55 °C	-55 °C	-	-55 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY
encapsulated code	SOP	DIP	-	DIP
Package shape	RECTANGULAR	RECTANGULAR	-	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	-	IN-LINE
propagation delay (tpd)	320 ns	320 ns	-	320 ns
Certification status	Not Qualified	Not Qualified	-	Not Qualified
Maximum seat height	1.75 mm	4.44 mm	-	4.44 mm
Maximum supply voltage (Vsup)	6 V	6 V	-	6 V
Minimum supply voltage (Vsup)	2 V	2 V	-	2 V
Nominal supply voltage (Vsup)	4.5 V	4.5 V	-	4.5 V
surface mount	YES	NO	-	NO
technology	CMOS	CMOS	-	CMOS
Temperature level	MILITARY	MILITARY	-	MILITARY
Terminal form	GULL WING	THROUGH-HOLE	-	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	-	2.54 mm
Terminal location	DUAL	DUAL	-	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE	-	POSITIVE EDGE
width	3.9 mm	7.62 mm	-	7.62 mm
minfmax	24 MHz	24 MHz	-	24 MHz
