Document 435-1

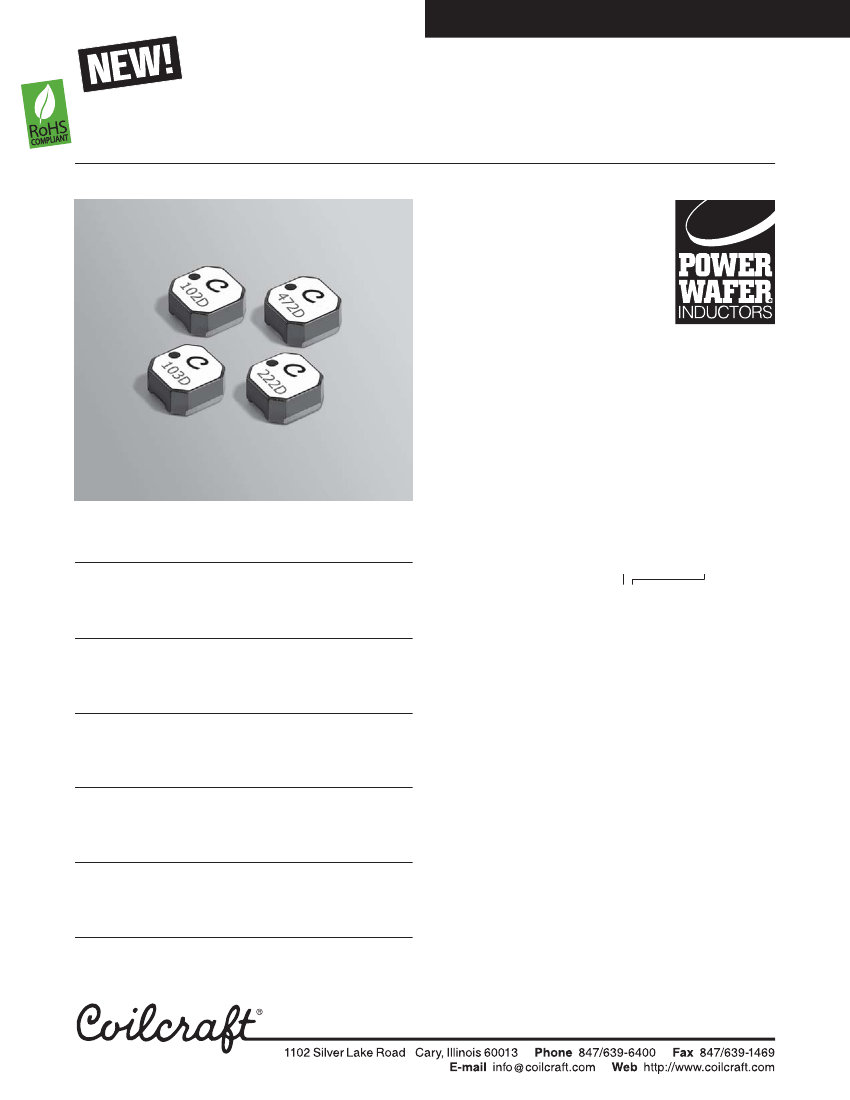

SMT Power Inductors – LPS4018 Series
The LPS4018 series of shielded power
inductors is ideal for use in wireless
phones, PDAs, digital cameras and
other handheld products.
These inductors feature very low
DCR and exceptional current han-
dling capability – up to 4.8 Amps!
They are available in 28 values from
0.56 µH to 3.3 mH.
Coilcraft
Designer’s Kit C392
contains samples of 0.80 µH
to 33 µH parts (3 each) from LPS3008, LPS3010 and
LPS3015.
Kit C401
contains samples of 0.56 µH to 33 µH
parts (3 each) from LPS4012 and LPS4018.
Kit C402
contains samples of 220 µH to 3300 µH parts (3 each)
from all five series. For details of kit contents and to
order, contact Coilcraft or visit
http://order.coilcraft.com.
Part number
1
LPS4018-561ML_
LPS4018-102ML_
LPS4018-222ML_
LPS4018-332ML_
LPS4018-472ML_
LPS4018-682ML_
LPS4018-103ML_
LPS4018-153ML_
LPS4018-183ML_
LPS4018-223ML_
LPS4018-333ML_
LPS4018-473ML_
LPS4018-683ML_
LPS4018-104ML_
LPS4018-124ML_
LPS4018-154ML_
LPS4018-184ML_
LPS4018-224ML_
LPS4018-334ML_
LPS4018-474ML_
LPS4018-564ML_
LPS4018-684ML_
LPS4018-824ML_
LPS4018-105ML_
LPS4018-155ML_
LPS4018-185ML_
LPS4018-225ML_
LPS4018-335ML_
L
L typ DCR SRF
±20%
2
@1 MHz max
3
typ
4
(µH)
(µH) (Ohms) (MHz)
0.56
0.56
1.0
1.0
2.2
2.2
3.3
3.3
4.7
4.7
6.8
6.8
10.0
10.0
15.0
15.0
18.0
18.0
22.0
22.0
33.0
33.0
47.0
47.0
68.0
68.0
100
100
120
—
150
—
180
—
220
—
330
—
470
—
560
—
680
—
820
—
1000
—
1500
—
1800
—
2200
—
3300
—
0.030
0.040
0.070
0.080
0.125
0.150
0.200
0.260
0.270
0.360
0.420
0.650
0.950
1.40
1.60
2.00
2.50
3.70
5.90
7.10
10.0
11.5
14.0
16.5
25.0
31.5
32.5
48.0
250
180
90
75
65
50
40
32
27
26
20
16
13
10
9.0
8.0
7.5
6.5
5.5
4.5
4.0
3.5
2.9
2.8
2.4
2.3
2.1
1.6
Isat
5
Irms
6
(A)
(A)
4.8
3.4
2.5
2.2
1.6
1.2
1.1
0.86
0.78
0.70
0.58
0.50
0.41
0.34
0.31
0.27
0.24
0.22
0.17
0.14
0.13
0.11
0.11
0.10
0.095
0.090
0.086
0.080
2.8
2.7
2.3
2.0
1.8
1.5
1.25
1.12
1.00
0.90
0.80
0.68
0.56
0.50
0.45
0.40
0.36
0.30
0.23
0.20
0.18
0.16
0.14
0.125
0.118
0.110
0.105
0.100
1. When ordering, please specify
termination
and
packaging
codes:
LPS4018-223MLC
Termination: L
= RoHS compliant silver-palladium-platinum-glass frit.
Special order:
T
= RoHS tin-silver-copper (95.5/4/0.5)
or
S
= non-RoHS tin-lead (63/37).
Packaging: C
= 7″ machine-ready reel. EIA-481 embossed plastic
tape (1000 parts per full reel).
B
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge),
use code letter C instead.
D
= 13″ machine-ready reel. EIA-481 embossed plastic
tape. Factory order only, not stocked (3500 parts
per full reel).
Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc.
DCR measured on a micro-ohmmeter.
SRF measured using Agilent/HP 8753ES or equivalent.
For inductance values
≥10
µH, DC current at which the inductance
drops 20% (max) from its value without current. For inductance
values <10 µH, DC current at which the inductance drops 30% (max)
from its value without current.
Average current for a 40°C (typ) rise above 25°C ambient.
Storage and operating temperature range
−40°C
to +85°C.
Electrical specifications at 25°C.
2.
3.
4.
5.
6.
7.
8.
Specifications subject to change without notice.
Please check our website for latest information. Document 435-1
Revised 01/18/07
© Coilcraft, Inc. 2007
Document 435-2

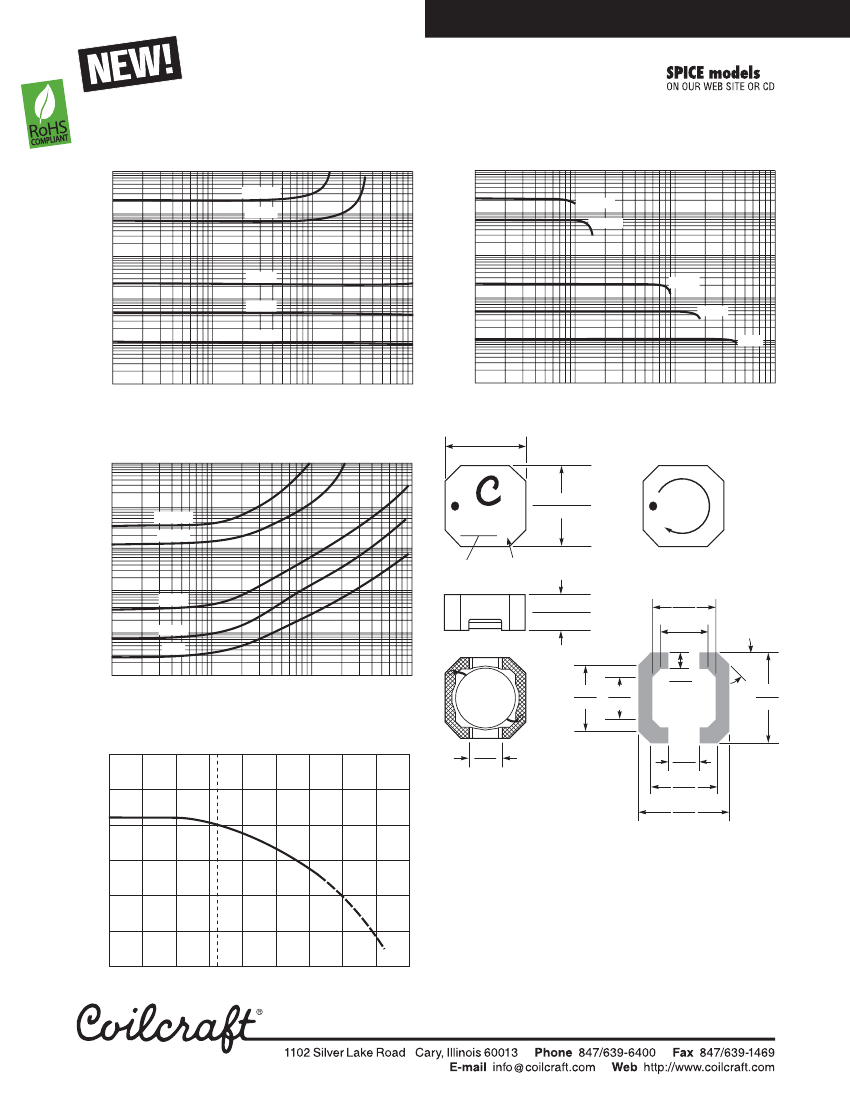

SMT Power Inductors – LPS4018 Series
Typical L vs Frequency
10000
2200 µH
2200 µH
680 µH
Typical L vs Current
10000
1000
1000
680 µH
Inductance (µH)
Inductance (µH)
100
22 µH
100
22 µH
10
4.7 µH
1 µH
10
4.7 µH
1
1
1 µH
0.1
0.1
0.01
0.1
1
10
0.01
0.1
1
10
Frequency (MHz)
Current (A)
0.1535 ±0.003
*
3,90 ±0,076
Typical ESR vs Frequency
Equivalent Series Resistance (Ohms)
1000
100
2200 µH
680 µH
XXX X
Dash
number
Internal
code
0.1535 ±0.003
*
3,90 ±0,076
Winding
direction
10
1
Recommended
Land Pattern
0.0669 ±0.004
1,70 ±0,10
0.118
3,00
0.090
2,30
45°
typ
0.173
4,40
22 µH
4.7 µH
1 µH
0.1
0.01
0.01
0.1
1
10
Frequency (MHz)
0.123
3,124
0.090
2,30
0.028
0,70
Typical Isat Derating
+20
0.060
1,52
Change in rated current (%)
+10
0
-10
-20
-30
-40
-40
-20
0
20
40
60
80
100
120 140
*
Dimensions are of the case not
including the termination. For maximum
overall dimensions including the
termination, add 0.005 in / 0,13 mm.
0.060
1,50
0.123
3,124
0.173
4,40
Weight:
82 – 94 mg
Tape and reel:
1000/7″ reel; 3500/13″ reel 12 mm tape width
For packaging data see Tape and Reel Specifications section.
Ambient temperature (°C)
Specifications subject to change without notice.
Please check our website for latest information. Document 435-2
Revised 01/18/07
© Coilcraft, Inc. 2007
