ABS1624418 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> ABS1624418

ABS1624418: DescriptionSnap Acting/Limit Switch, SPST, Momentary, 0.1A, 30VDC, 4mm, Wire Terminal, Simulated Roller Lever Actuator, Panel Mount; CategoryMechanical and electronic products switch; File Size178KB，11 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html; Environmental Compliance

Download Datasheet Parametric View All

ABS1624418 Overview

Snap Acting/Limit Switch, SPST, Momentary, 0.1A, 30VDC, 4mm, Wire Terminal, Simulated Roller Lever Actuator, Panel Mount

ABS1624418 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Panasonic
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator angle
Actuator length	0.248 inch
Actuator stroke	4 mm
Actuator type	SIMULATED ROLLER LEVER
Other features	SIMULATED ROLLER LEVER
body width	6.4 mm
body height	16.9 mm
Body length or diameter	21.2 mm
Contact (AC) maximum rated R load	.1A@250VAC
Maximum contact current (AC)	0.1 A
Maximum contact current (DC)	0.1 A
Contact (DC) maximum rated R load	.1A@30VDC
Contact resistance	0.15 mΩ
contact time	SNAP ACTION
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	30 V
Dielectric withstand voltage	1500VRMS V
Electrical life	200000 Cycle(s)
Insulation resistance	100000000 Ω
JESD-609 code	e4
Manufacturer's serial number	ABS1
Installation features	PANEL MOUNT
Maximum operating force	0.34 N
work location	0.459 inch
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum pre-travel	2.8 mm
seal	ENVIRONMENTALLY SEALED; IP67
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Switch type	SNAP ACTING/LIMIT SWITCH
Terminal surface	Gold (Au)
Termination type	WIRE

Preview

Download Datasheet

View All

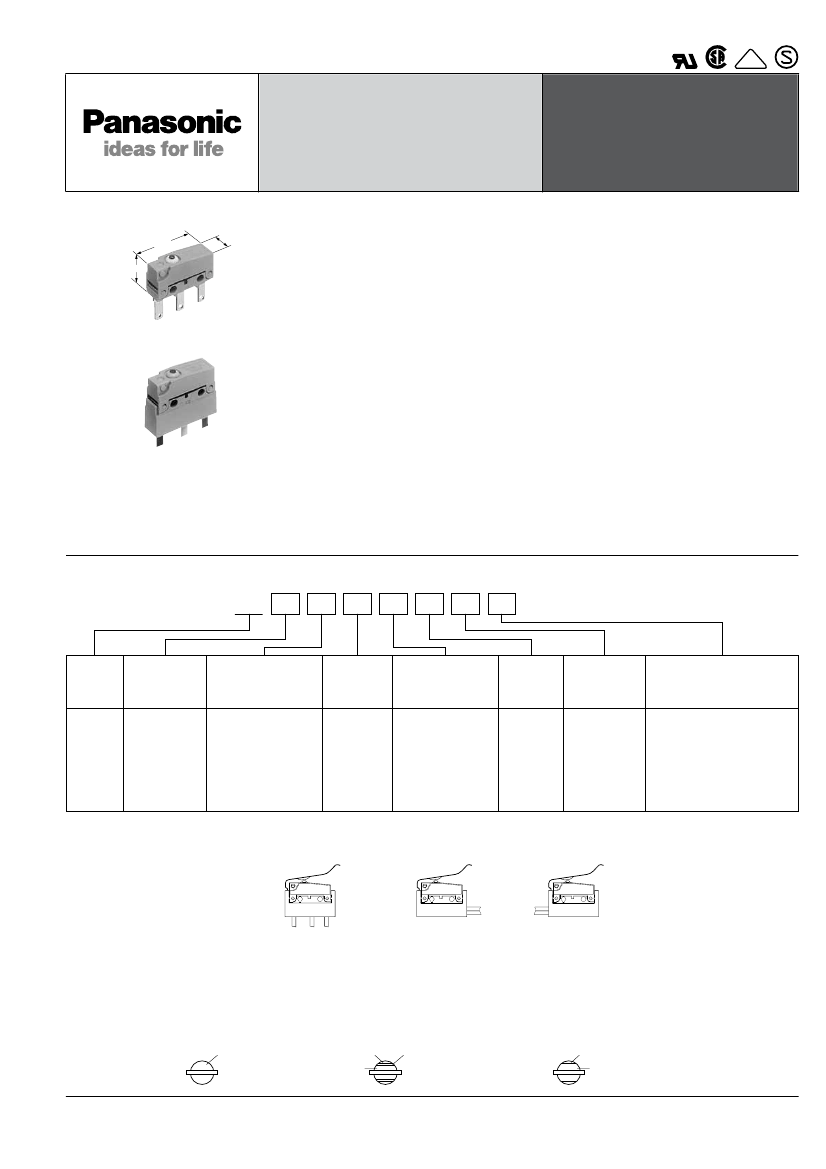

VDE

HIGH ENVIRONMENTAL

RESISTANCE

TURQUOISE

SWITCHES

ABS TYPE

FEATURES

19.3

11.1

6.4

• Subminiature size (19.8×11.1×6.4 mm)

• Sealed construction for use in adverse environment-Sealed construction by

epoxy resin and rubber cap greatly reduces possible miscontact due to

contaminants such as dust. Conforming to IP67* of IEC protective construction

classiﬁcation

• Elastomer double molding technology, an industry ﬁrst and ultrasonic swaging

technology contribute to uniform sealing in high production quantities

• Expansion of low-level circuit type

• We offer a Au clad 2-ply contact type (for small loads) that we developed

speciﬁcally for small current and voltage loads in the range of 1 mA to 100 mA

and 5 V to 30 V.

• UL/CSA/VDE/SEMKO approved

(AS for Au-clad twin layer, VDE and SEMKO are not approved.)

* Based on the protective construction classiﬁcation of IEC, items which satisfy the test

requirements are denoted with an IP designation.

TYPICAL APPLICATIONS

• Automotive

• Home appliances (vacuum cleaner, air puriﬁer)

• Others (gas cooking range)

ORDERING INFORMATION

Ex. ABS

Type of

switch

Wire and

terminal

position

Terminal

Contact

arrangement

ABS:

1: Straight type 1: .110 quick-connect

Turquoise 4: Right angle

terminal

switch

5: Left angle

4: Solder terminal

S type

5: PC board terminal

6: Wire leads

Operating

force by

Actuator

Contact*

Agency standard

pin plunger

(max.)

1: SPDT

0: Pin plunger

4: 0.98 N

0: AgNi alloy

3: UL/CSA/SEMKO

2: SPST-NC 1: Short hinge lever 5: 1.47 N

1: Au-clad

(AgNi alloy contact,

3: SPST-NO 2: Hinge lever

triple layer

Au-clad triple layer type)

3: Long hinge lever

4: Au-clad

8: VDE/SEMKO

4: Simulated roller

double layer

(AgNi alloy contact,

lever

Au-clad triple layer type)

6: Roller lever

9: UL/CSA

8: Leaf lever

(Au-clad double layer type)

Remarks: 1.

Standard packing: Dust protected type 100 pcs./carton, 1,000 pcs./case; Immersion protected type 50 pcs./case.

SPST-NC and SPST-NO are only available for wire leads type.

Leaf lever is only available for wire leads type

As for wire position:

Straight type

Wire opposite to the

actuator side type

(Right angle)

Wire actuator side type

(Left angle)

5. Not every combination is available. Please refer to the following table, “PRODUCT TYPES”.

* Contact

0: AgNi alloy

AgNi alloy

1: Au-clad triple layer

Au-clad

CuNi alloy

AgNi alloy

4: Au-clad double layer

Au-clad

CuNi alloy
