Fiber Pigtailed Pulsed Laser Diodes
Features
▪
▪
▪
▪
▪
Single and stacked devices up to 65 Watts ex fiber
905 nm and 1550 nm
Coupling efficiency up to 85%
Excellent temperature stability
Custom versions available
Applications
▪
▪
▪
▪
▪
Range finding
Surveying equipment
Laser radar
Medical
DTS
1
Germany & Other Countries
Laser Components GmbH
Tel: +49 8142 2864 – 0
Fax: +49 8142 2864 – 11
info@lasercomponents.com
www.lasercomponents.com
USA
Laser Components USA, Inc.
Tel: +1 603 821 – 7040
Fax: +1 603 821 – 7041
info@laser-components.com
www.laser-components.com
United Kingdom
Laser Components (UK) Ltd.
Tel: +44 1245 491 499
Fax: +44 1245 491 801
info@lasercomponents.co.uk
www.lasercomponents.co.uk
France
Laser Components S.A.S.
Tel: +33 1 39 59 52 25
Fax: +33 1 39 59 53 50
info@lasercomponents.fr
www.lasercomponents.fr
Laser
Diodes
Fiber Pigtailed Pulsed Laser Diodes
905 xx FP-Series
Generic Characteristics at t
RT
= 21°C
Min
Wavelength of peak radiant
intensity
l
m
Spectral bandwidth
Dl
at 50%
intensity points
Wavelength temperature coefficient
* 8 nm for multi-junction devices
Typ
905
5*
0.27
Max
915
Units
nm
nm
nm/°C
895
Single Chips
Single chip characteristics at t
RT
= 21°C, t
W
= 150 ns, P
rr
= 6.66 kHz
Parameter
Integrated Pulsed Laser Diode
Po ex fiber at i
FM
, (min.)
Fiber core / cladding diameter
Fiber NA
Max. peak forward current i
FM
lth typ
905D1S03FP-10/15-L-0-01
905D1S03R
4.75 W
105 µm / 125 µm
0.15
7A
200 mA
905D1S03FP-10/22-F-0-01
905D1S03R
3.5 W
105 µm / 125 µm
0.22
7A
200 mA
Multi Junction Chips and Stacked Arrays
Stacked chip characteristics at t
RT
= 21°C, t
W
= 150 ns, P
rr
= 6.66 kHz
Parameter
Integrated Pulsed Laser Diode
Po ex fiber at i
FM
, (min.)
Fiber core / cladding diameter
Fiber NA
Max peak forward current i
FM
lth typ
905D1S3J03FP-
10/22-F-0-01
905D1S3J03R
12 W
105 µm/125 µm
0.22
11 A
300 mA
905D1S3J09FP-
40/22-F-0-01
905D1S3J09R
35 W
400 µm/440 µm
0.22
35 A
800 mA
905D2S3J09FP-
40/22-F-0-01
905D2S3J09R
65 W
400 µm/440 µm
0.22
35 A
800 mA
2
Germany & Other Countries
Laser Components GmbH
Tel: +49 8142 2864 – 0
Fax: +49 8142 2864 – 11
info@lasercomponents.com
www.lasercomponents.com
USA
Laser Components USA, Inc.
Tel: +1 603 821 – 7040
Fax: +1 603 821 – 7041
info@laser-components.com
www.laser-components.com
United Kingdom
Laser Components (UK) Ltd.
Tel: +44 1245 491 499
Fax: +44 1245 491 801
info@lasercomponents.co.uk
www.lasercomponents.co.uk
France
Laser Components S.A.S.
Tel: +33 1 39 59 52 25
Fax: +33 1 39 59 53 50
info@lasercomponents.fr
www.lasercomponents.fr
Laser
Diodes
Fiber Pigtailed Pulsed Laser Diodes
155 xx FP-Series
Generic Characteristics at t
RT
= 21°C
Min
Wavelength of peak radiant
intensity
l
m
Spectral bandwidth
Dl
at 50%
intensity points
Wavelength temperature coefficient
1520
Typ
1550
30
0.6
Max
1580
Units
nm
nm
nm/°C
Single Chips
Single chip characteristics at t
RT
= 21°C, T
W
= 150 ns, P
rr
= 3.33 kHz
Parameter
Integrated Pulsed Laser Diode
Po ex fiber at i
FM
, (min) *
Fiber core / cladding diameter
Fiber NA
Max. peak forward current i
FM
lth typ
HI155G1S02FP-62/
27-F-0-01
HI155G1S02R
4W
62.5 µm / 125 µm
0.27
20 A
300 mA
HI155G1S04FP-10/
22-L-0-01
HI155G1S04R
7W
105 µm / 125 µm
0.22
30 A
600 mA
HI155G1S04FP-10/
22-F-0-01
HI155G1S04R
5W
105 µm / 125 µm
0.22
30 A
600 mA
* l
FM
is the maximum peak current under any drive condition and is applicable to devices operated for short and intermittent dura-
tion such as in hand held range finders.
For applications that demand continuous use at maximum duty factor, we recommended l
FM
at 50% to ensure longevity. High
temperature operation will reduce peak power and MTTF so for optimal performance under high stress conditions it is important to
provide an adequate heat sink.
3
Germany & Other Countries
Laser Components GmbH
Tel: +49 8142 2864 – 0
Fax: +49 8142 2864 – 11
info@lasercomponents.com
www.lasercomponents.com
USA
Laser Components USA, Inc.
Tel: +1 603 821 – 7040
Fax: +1 603 821 – 7041
info@laser-components.com
www.laser-components.com
United Kingdom
Laser Components (UK) Ltd.
Tel: +44 1245 491 499
Fax: +44 1245 491 801
info@lasercomponents.co.uk
www.lasercomponents.co.uk
France
Laser Components S.A.S.
Tel: +33 1 39 59 52 25
Fax: +33 1 39 59 53 50
info@lasercomponents.fr
www.lasercomponents.fr
Laser
Diodes
Fiber Pigtailed Pulsed Laser Diodes
Absolute Maximum Ratings
Maximum ratings
Peak reverse voltage
Pulse duration
Single element
Stacks
Duty factor
Temperature
Storage
Operating
Lead soldering
5 seconds max at
Limiting values
6V
150 ns
150 ns
0.1%
-55°C to +85°C
-40°C to +85°C
200°C
Note:
Further specifications are available on the individual datasheets of the integrated pulsed laser diode.
4
Germany & Other Countries
Laser Components GmbH
Tel: +49 8142 2864 – 0
Fax: +49 8142 2864 – 11
info@lasercomponents.com
www.lasercomponents.com
USA
Laser Components USA, Inc.
Tel: +1 603 821 – 7040
Fax: +1 603 821 – 7041
info@laser-components.com
www.laser-components.com
United Kingdom
Laser Components (UK) Ltd.
Tel: +44 1245 491 499
Fax: +44 1245 491 801
info@lasercomponents.co.uk
www.lasercomponents.co.uk
France
Laser Components S.A.S.
Tel: +33 1 39 59 52 25
Fax: +33 1 39 59 53 50
info@lasercomponents.fr
www.lasercomponents.fr
Laser
Diodes
Fiber Pigtailed Pulsed Laser Diodes

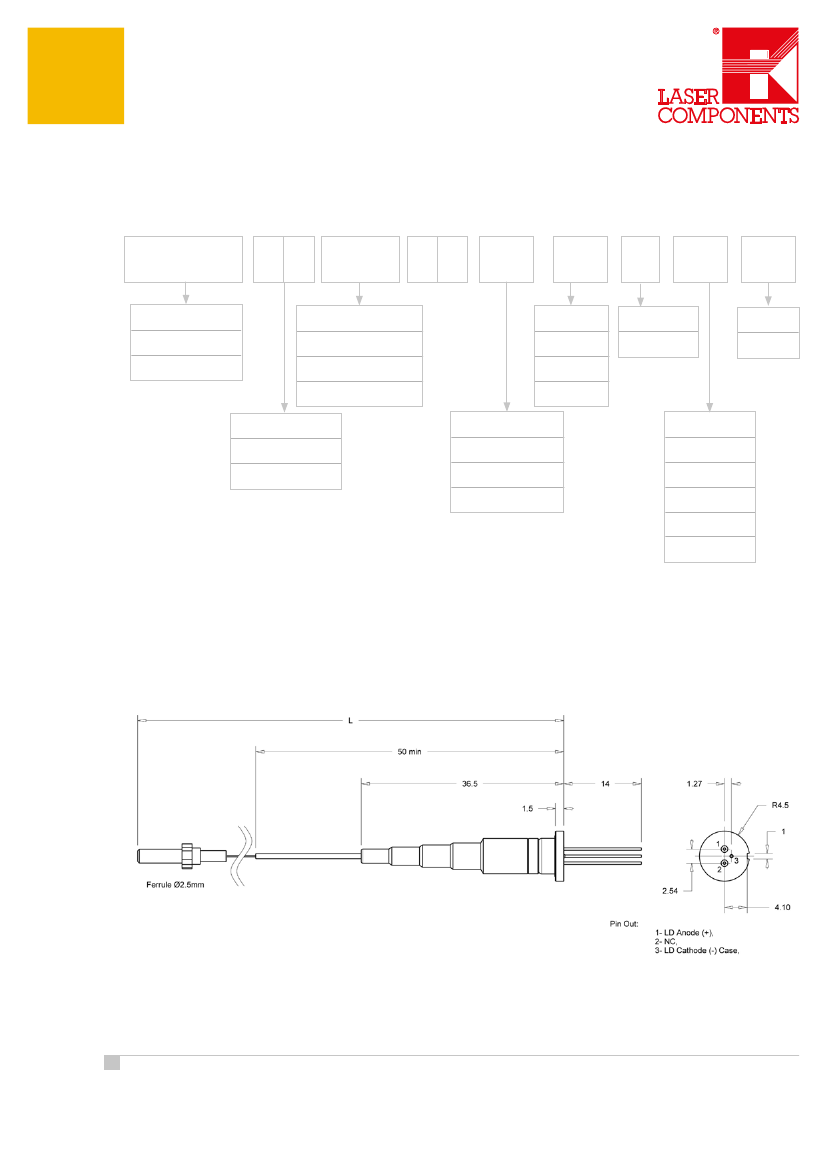

Product Number Designation
F
Wavelength
905D = 905 nm
HI155G= 1550 nm
P
-
/
Fiber NA
15= 0.15
22= 0.22
27= 0.27
-
-
L= lensed fiber
F= flat fiber
-
01
Emitter Size
03= 75 µm
04= 100 µm
3J09= 225 µm x 10 µm
Diode Configuration
1S= single stack
2S= double stack
Length
1m
Fiber core/cladding
10= 105/125 µm
40= 400/440 µm
62= 62.5/125 µm
Connector
0= none
F= ferule
FC= FC/PC
FA= FC/APC
SM= SMA 905
Note:
other fiber types, lengths, and connectors are available upon request.
Please contact us for further details.
Package FP Fiber Pigtailed
5
Germany & Other Countries
Laser Components GmbH
Tel: +49 8142 2864 – 0
Fax: +49 8142 2864 – 11
info@lasercomponents.com
www.lasercomponents.com
USA
Laser Components USA, Inc.
Tel: +1 603 821 – 7040
Fax: +1 603 821 – 7041
info@laser-components.com
www.laser-components.com
United Kingdom
Laser Components (UK) Ltd.
Tel: +44 1245 491 499
Fax: +44 1245 491 801
info@lasercomponents.co.uk
www.lasercomponents.co.uk
France
Laser Components S.A.S.
Tel: +33 1 39 59 52 25
Fax: +33 1 39 59 53 50
info@lasercomponents.fr
www.lasercomponents.fr
