MICROCIRCUIT CORPORATION
ACCUTEK
SOIC ADAPTER
SOCKETS
DO YOU REMEMBER WHEN YOU COULD SOCKET THAT DIP IC FOR
REMOVAL OR LATER REPLACEMENT, BUT NOW YOUR IC AND PC
BOARD IS DESIGNED FOR SURFACE MOUNT
NOW YOU CAN SOCKET THAT SOIC PACKAGE AND SOLDER THE
SOCKET TO THE SITE THAT WAS DESIGNED FOR SURFACE MOUNT
DESCRIPTION
FEATURES
·
·
·
·
·
·

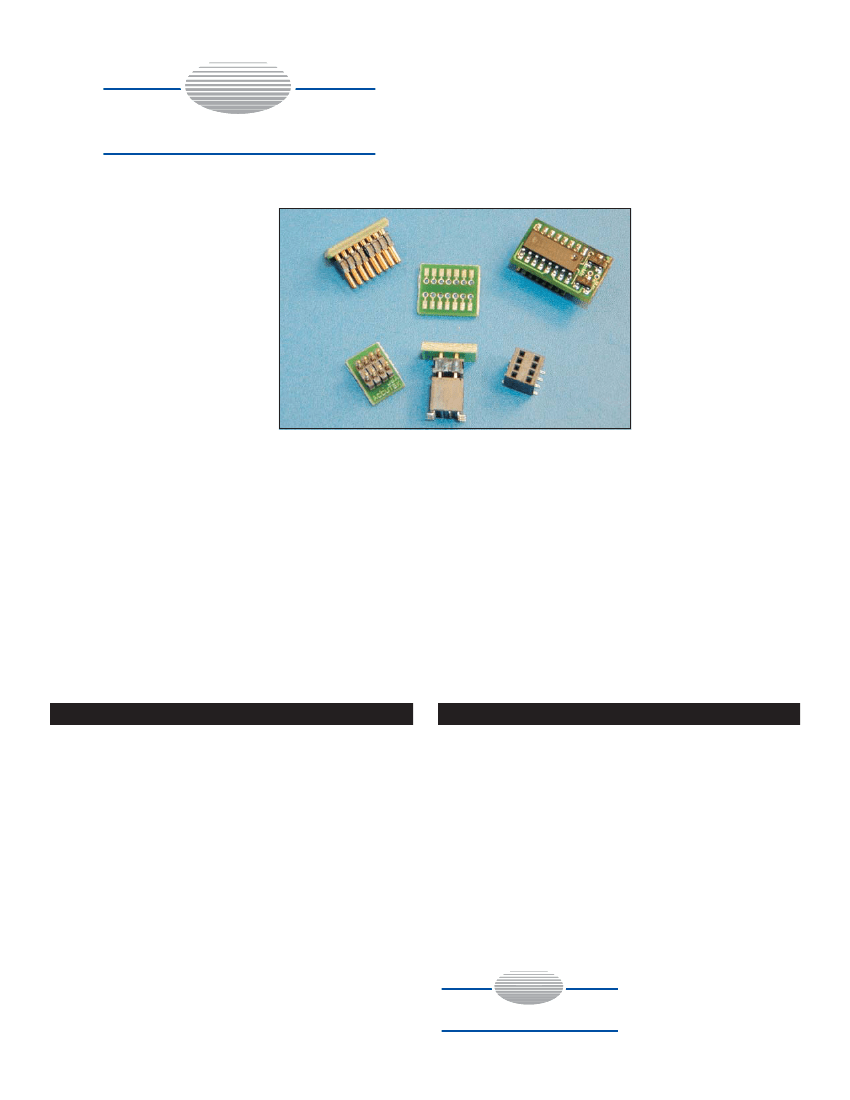

The Accutek family of SOIC Adapter Sockets
is designed to allow the socketing of an SOIC
packaged device onto the site originally de-
signed for a surface mount component.
This system consists of an adapter module
constructed of a small PC Board with pins
protruding out of the bottom and the SOIC is
soldered onto the top surface. A surface
mount socket is soldered onto your mother-
board in the site that was designed to accept
the SOIC device.
The adapter may now be inserted into the
socket and removed at any time for testing or
replacement.
Socket adapters for 8, 14, 16, 18, and 20 pin
SOIC devices
Solders to the PCB site designed for
standard surface mount SOIC’s
Adapter comes fully assembled
Can be provided as assembly only or full
turnkey
Custom configurations for special
applications
Ideal for Serial EEPROMs, programming of
adapter also available
MICROCIRCUIT CORPORATION
ACCUTEK
5 NEW PASTURE ROAD
NEWBURYPORT, MA 01950-4040
PHONE: 978-465-6200 FAX: 978-462-3396
Email: sales@accutekmicro.com
Internet: www.accutekmicro.com
8 PIN PROGRAMMING ADAPTER FOR EEPROM
SOIC SOCKET. THIS ALLOWS PROGRAMMING
USING PROGRAMMERS STANDARD DIP SOCKET
AK08DS-SOSPA
OTHER PIN COUNT PROGRAMMING
OR TEST SOCKETS ARE AVAILABLE
FOR THIS PRODUCT. CONSULT THE
FACTORY FOR PART NUMBER AND
AVAILABILITY.

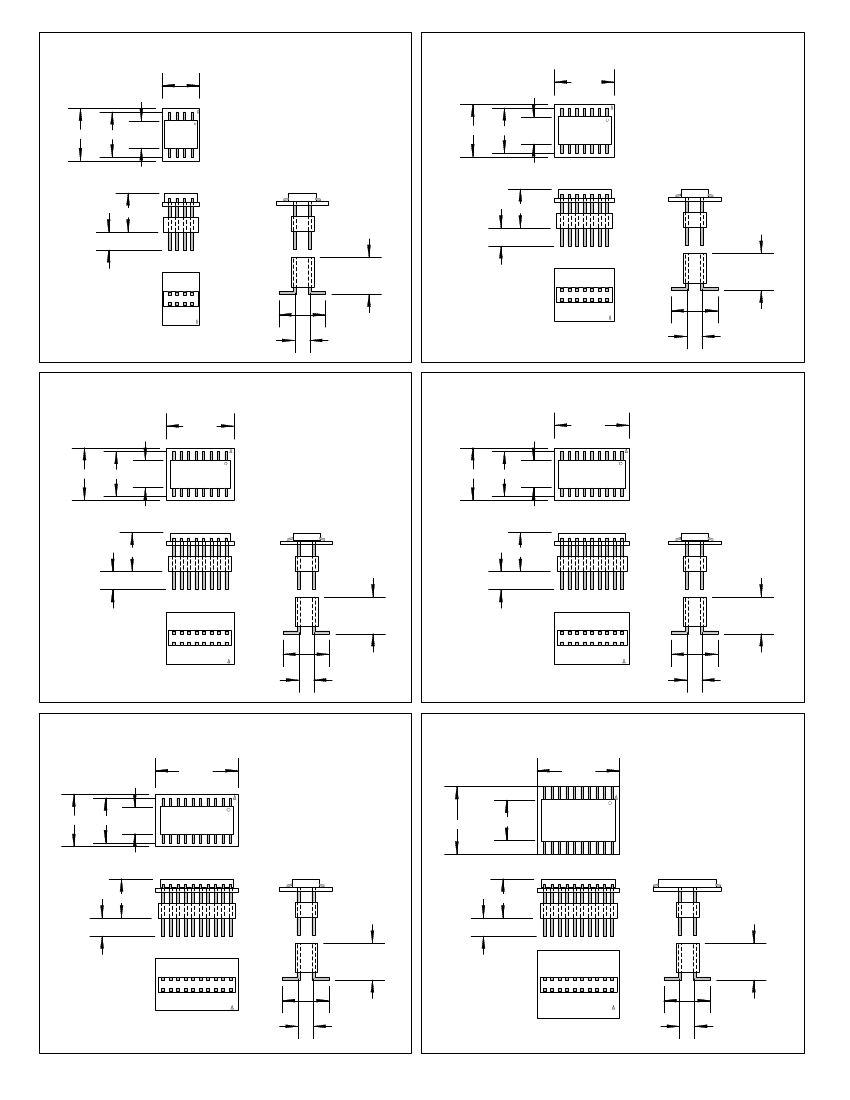

0.250"
0.400"
0.400"
0.050"
0.300"
0.080"
0.125"
0.320"
0.100"
ACCUTEKMICRO.COM 2/2011
