90152-3242 datasheet, PDF - EEWORLD Datasheet

90152-3242: DescriptionBoard Connector, 42 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal; CategoryThe connector The connector; File Size521KB，6 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

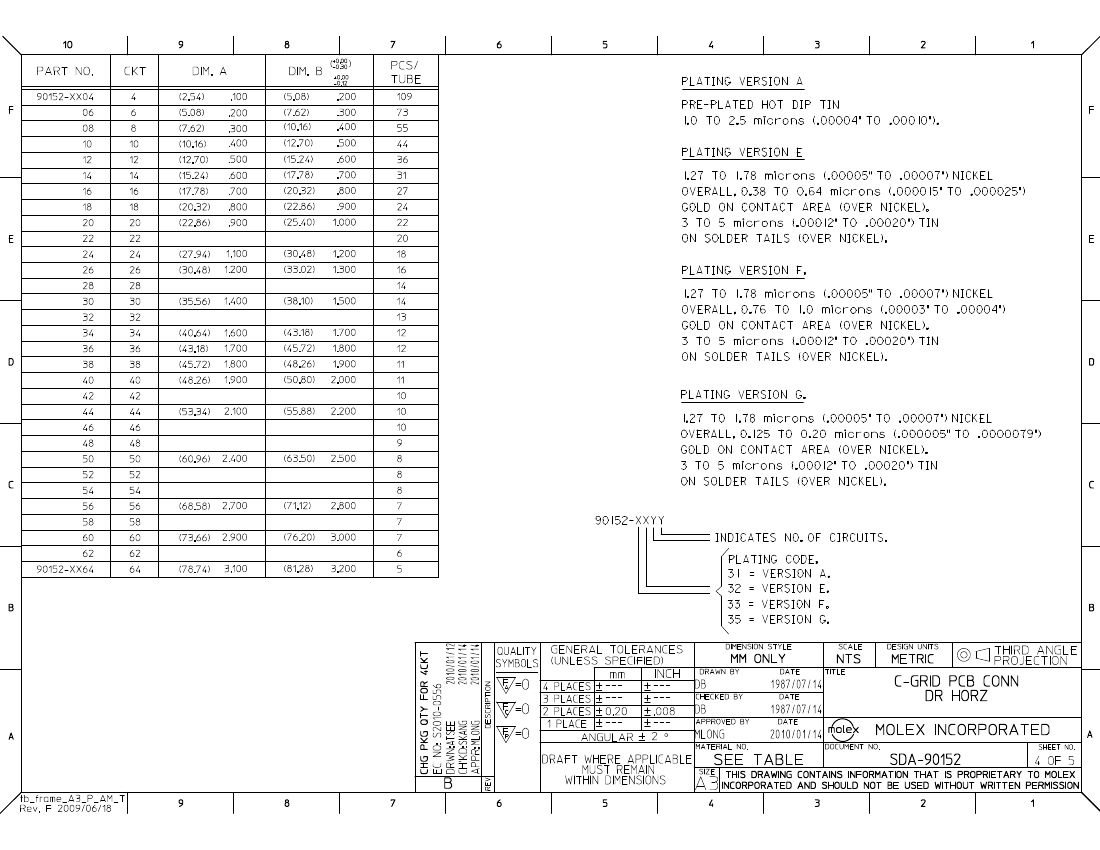

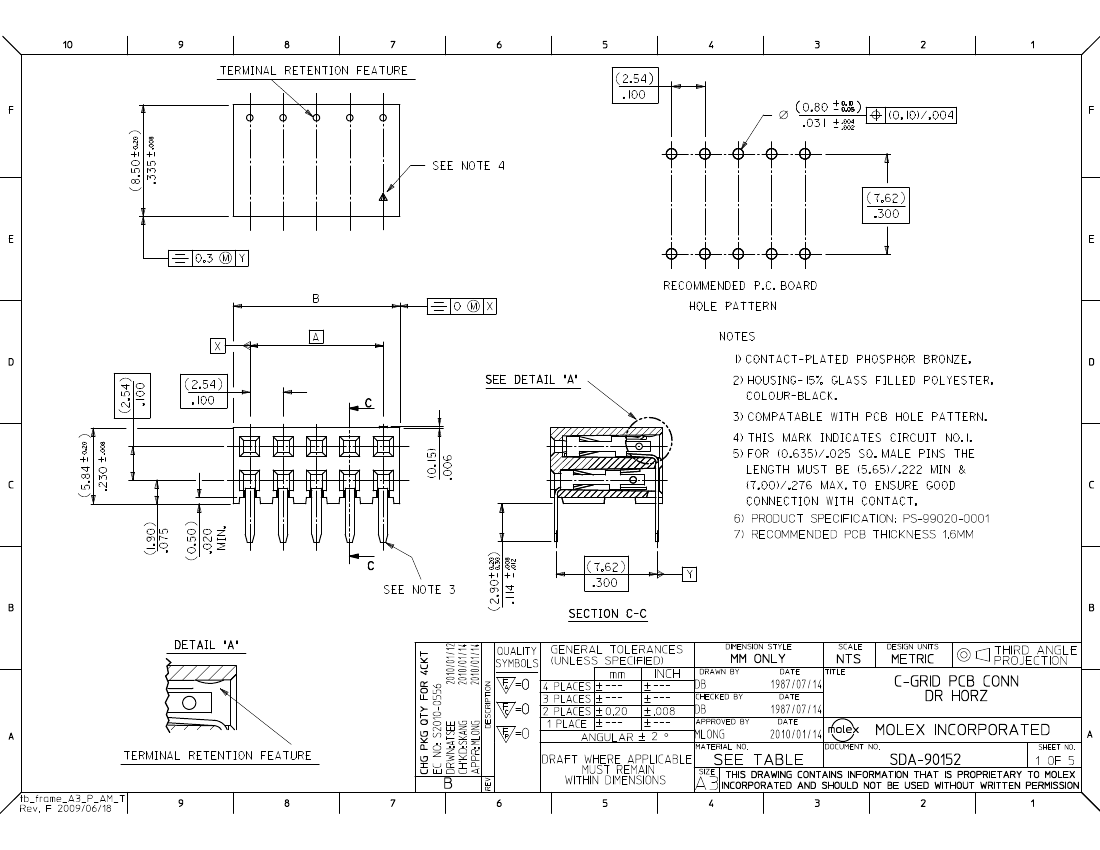

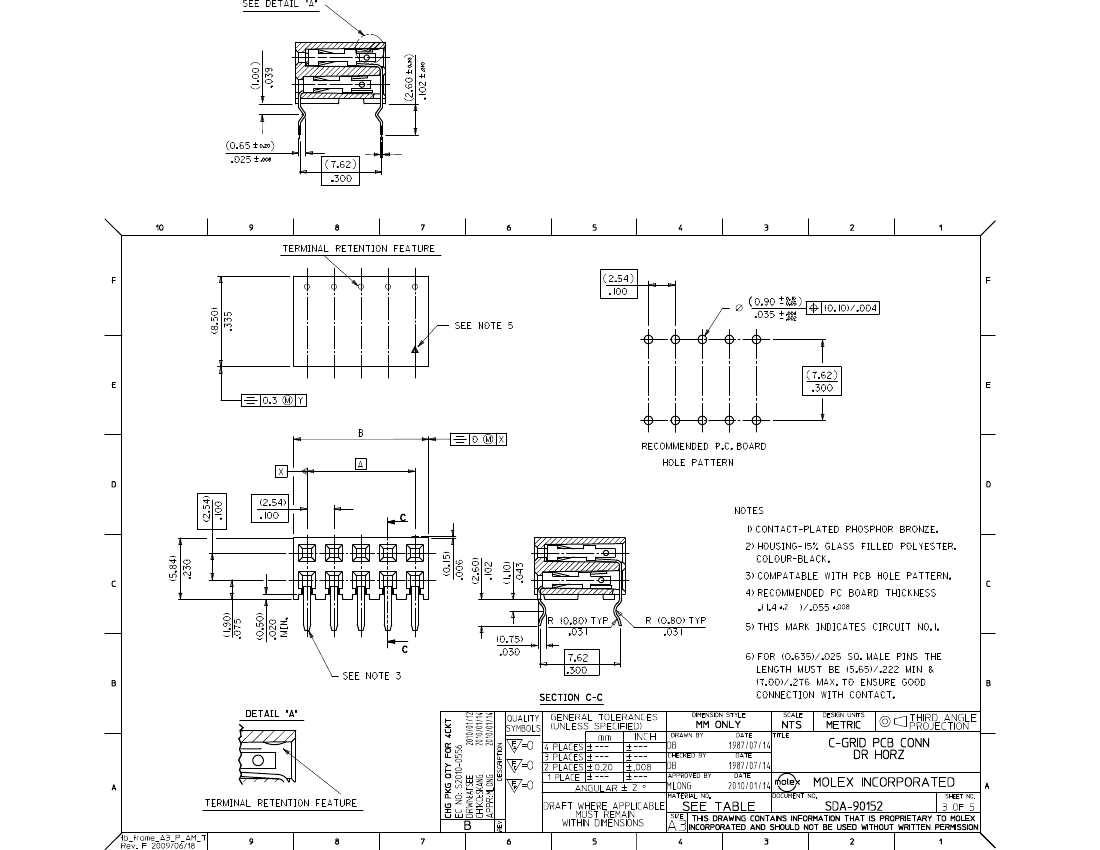

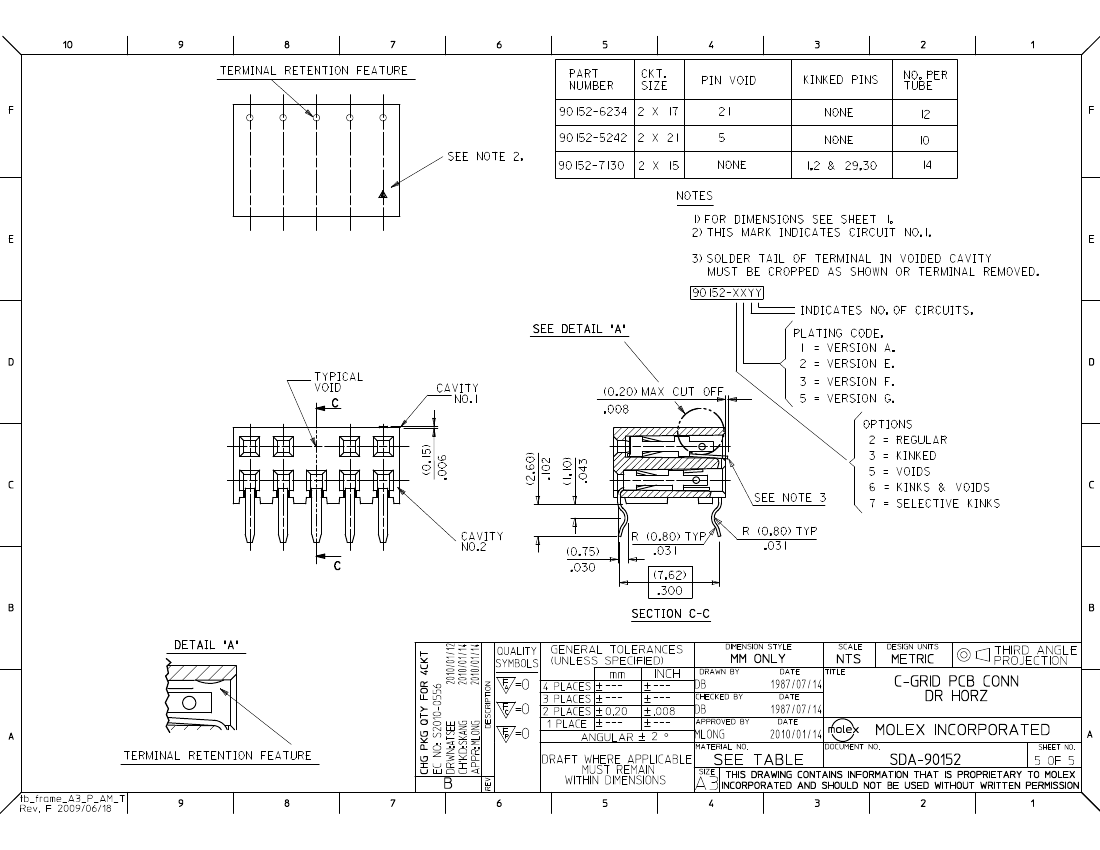

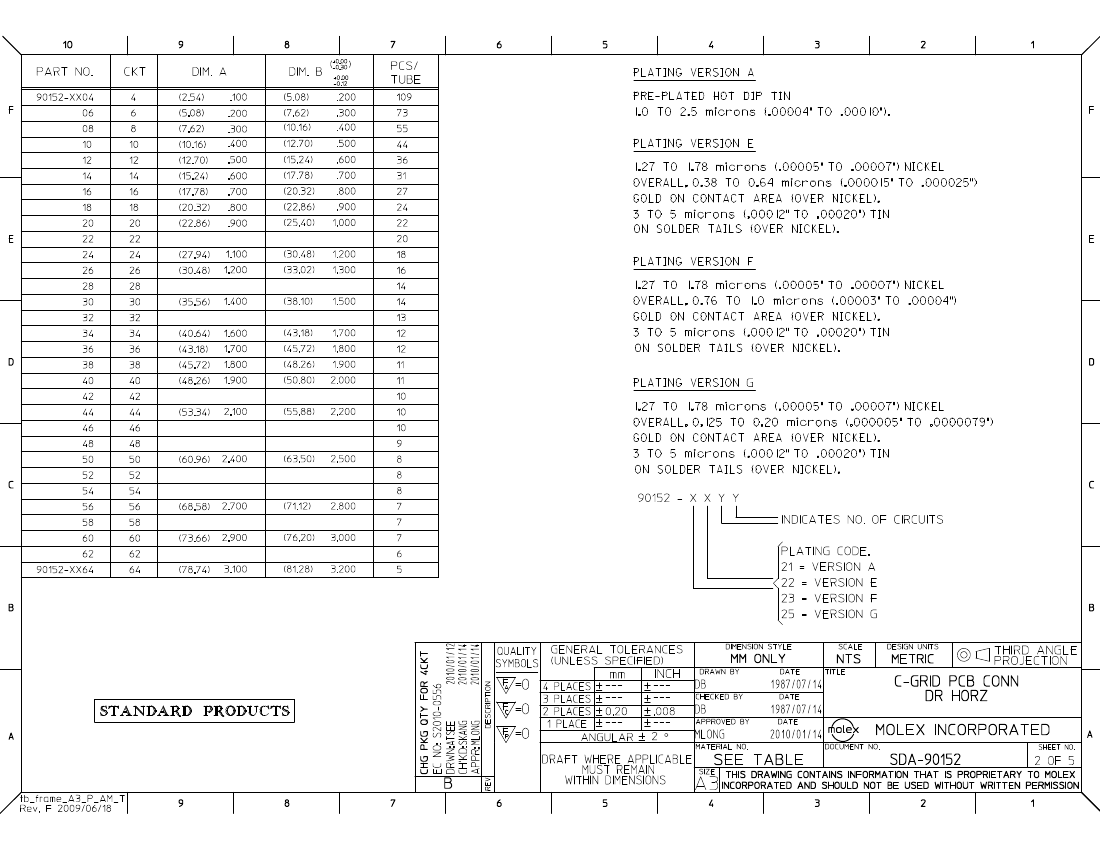

90152-3242 Overview

Board Connector, 42 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (25) OVER NICKEL (70)
Contact completed and terminated	TIN (200) OVER NICKEL (70)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	90152
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	42
