B5743-105-M-T-2 datasheet, PDF

Datasheet> All Categories > The connector> The connector> B5743-105-M-T-2

B5743-105-M-T-2: DescriptionBoard Connector, 5 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, Plug,; CategoryThe connector The connector; File Size94KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/

Download Datasheet Parametric Compare View All

B5743-105-M-T-2 Overview

Board Connector, 5 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, Plug,

B5743-105-M-T-2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Harwin
Reach Compliance Code	compliant
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN LEAD
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Termination type	SOLDER
Total number of contacts	5
UL Flammability Code	94V-0

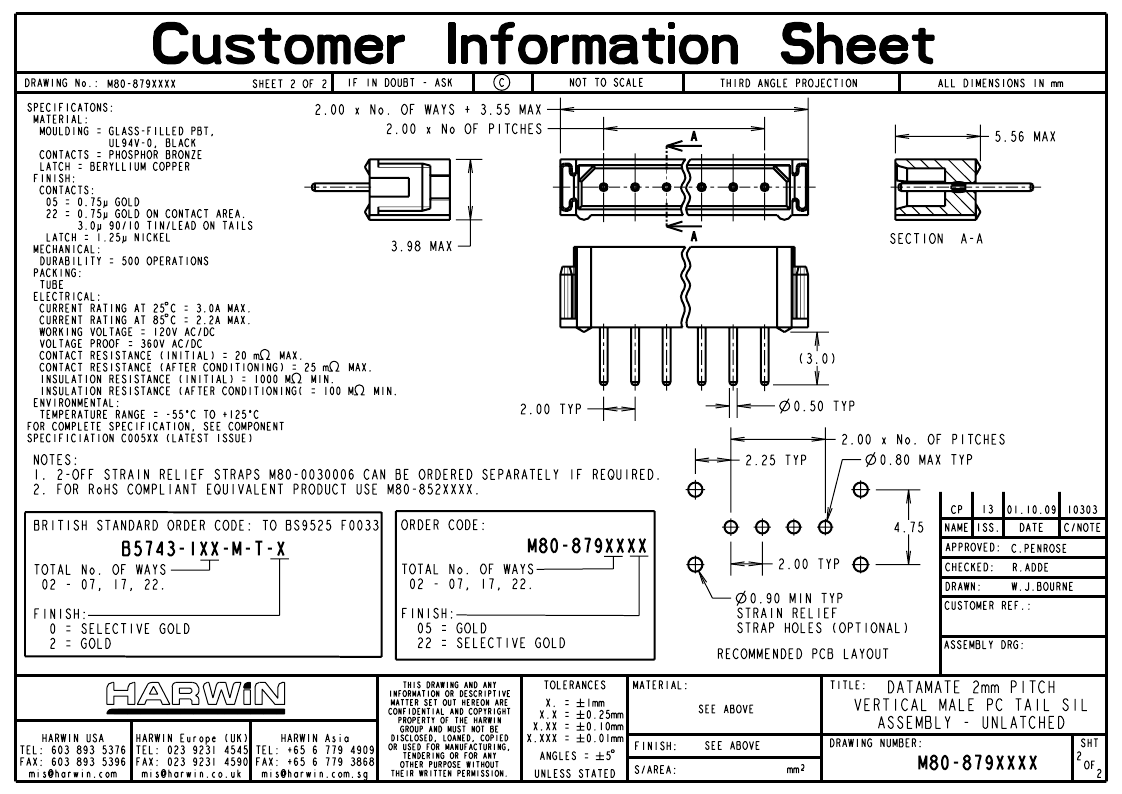

Preview

Download Datasheet

View All

B5743-105-M-T-2 Related Products

	B5743-105-M-T-2	M80-8792205	M80-8790305	M80-8790505	B5743-107-M-T-2	B5743-117-M-T-2	B5743-106-M-T-2	B5743-102-M-T-2
Description	Board Connector, 5 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, Plug,	Board Connector, 22 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle,	Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle,	Board Connector, 5 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle,	Board Connector, 7 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, Plug,	Board Connector, 17 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, Plug,	Board Connector, 6 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, Plug,	Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, Plug,
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compli
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	GOLD	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	TIN LEAD	Gold (Au)	Gold (Au)	Gold (Au)	TIN LEAD	TIN LEAD	Tin/Lead (Sn/Pb)	TIN LEAD
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	PHOSPHOR BRONZE	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e0	e4	e4	e4	e0	e0	e0	e0
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	5	22	3	5	7	17	6	2
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Maker	Harwin	-	-	-	Harwin	Harwin	Harwin	Harwin
Body/casing type	PLUG	RECEPTACLE	-	-	PLUG	PLUG	PLUG	PLUG
