5962-8953101HXX datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> converter> 5962-8953101HXX

5962-8953101HXX: DescriptionD/A Converter, 1 Func, Parallel, Word Input Loading, CDIP24, CERAMIC, DIP-24; CategoryAnalog mixed-signal IC converter; File Size138KB，4 Pages; ManufacturerC&D; Related ProductsFound9parts with similar functions to 5962-8953101HXX

Download Datasheet Parametric Compare View All

5962-8953101HXX Overview

D/A Converter, 1 Func, Parallel, Word Input Loading, CDIP24, CERAMIC, DIP-24

5962-8953101HXX Parametric

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	DIP,
Contacts	24
Reach Compliance Code	unknow
ECCN code	3A001.A.2.C
Maximum analog output voltage	5 V
Minimum analog output voltage	-5 V
Converter type	D/A CONVERTER
Enter bit code	COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY
Input format	PARALLEL, WORD
JESD-30 code	R-CDIP-T24
Maximum linear error (EL)	0.0038%
Nominal negative supply voltage	-15 V
Number of digits	16
Number of functions	1
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Nominal supply voltage	15 V
surface mount	NO
technology	HYBRID
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
width	15.24 mm
Base Number Matches	1

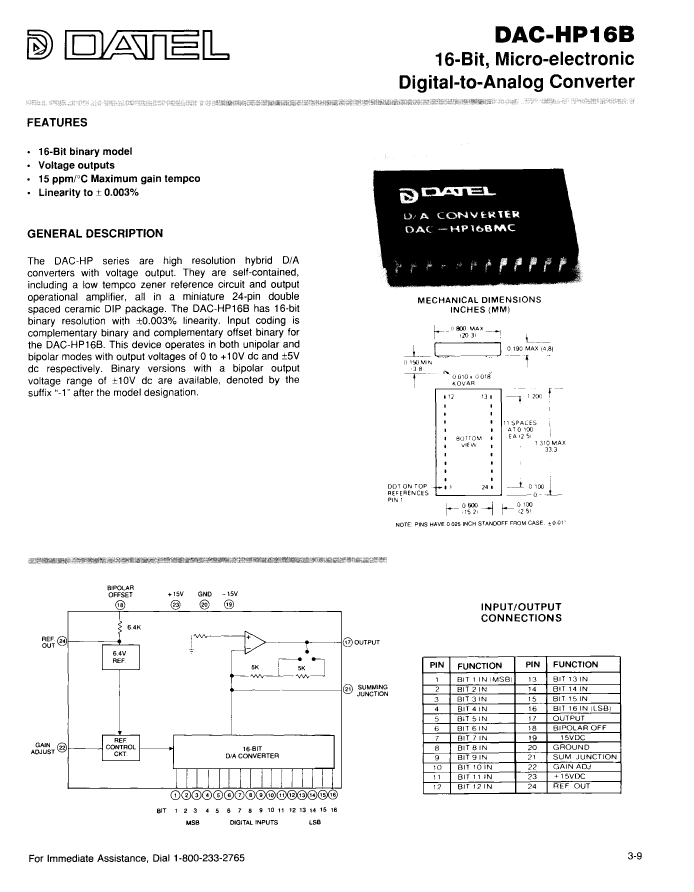

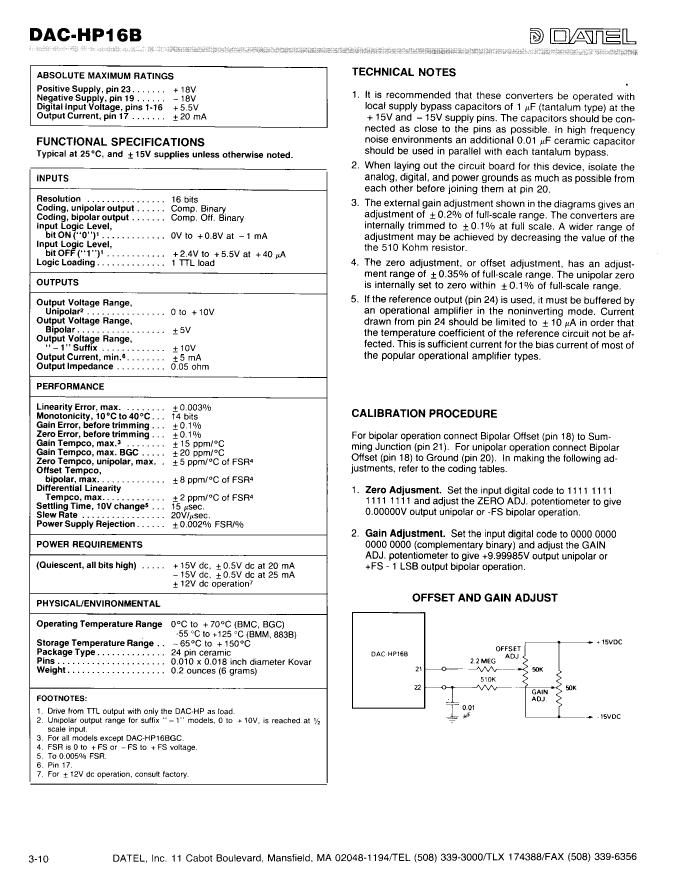

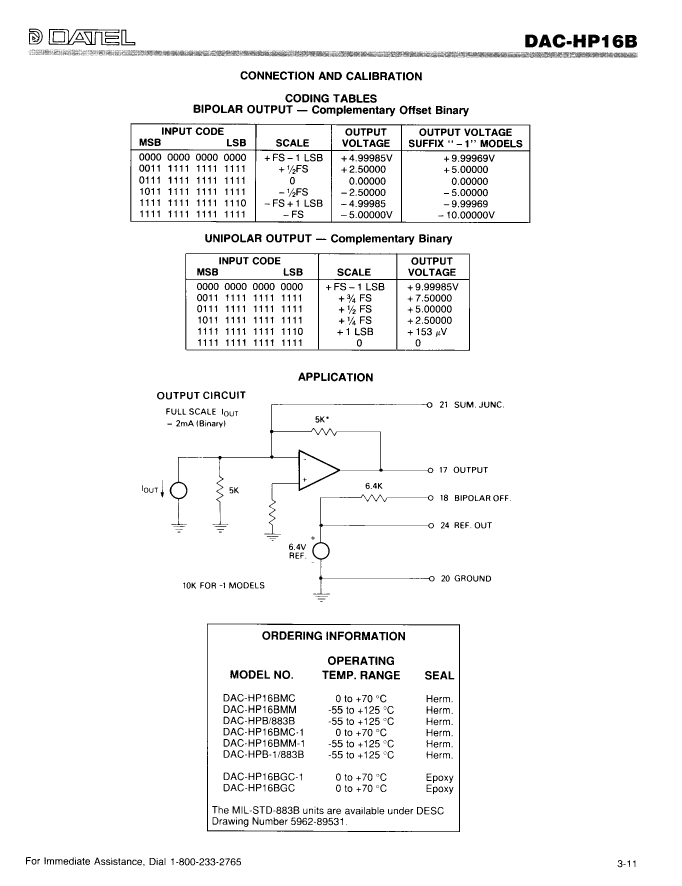

Preview

Download Datasheet

View All

5962-8953101HXX Related Products

	5962-8953101HXX	DAC-HPB/883B	DAC-HPB-1/883B
Description	D/A Converter, 1 Func, Parallel, Word Input Loading, CDIP24, CERAMIC, DIP-24	D/A Converter, 1 Func, Parallel, Word Input Loading, 15us Settling Time, CDIP24, MINIATURE, DOUBLE WIDTH, HERMETIC SEALED, CERAMIC, DIP-24	D/A Converter, 1 Func, Parallel, Word Input Loading, 15us Settling Time, CDIP24, MINIATURE, DOUBLE WIDTH, HERMETIC SEALED, CERAMIC, DIP-24
Parts packaging code	DIP	DIP	DIP
package instruction	DIP,	DIP,	DIP,
Contacts	24	24	24
Reach Compliance Code	unknow	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
Maximum analog output voltage	5 V	5 V	5 V
Minimum analog output voltage	-5 V	-5 V	-5 V
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
Enter bit code	COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY	COMPLEMENTARY OFFSET BINARY, COMPLEMENTARY BINARY	COMPLEMENTARY OFFSET BINARY, COMPLEMENTARY BINARY
Input format	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD
JESD-30 code	R-CDIP-T24	R-GDIP-P24	R-GDIP-P24
Maximum linear error (EL)	0.0038%	0.003%	0.003%
Nominal negative supply voltage	-15 V	-15 V	-15 V
Number of digits	16	16	16
Number of functions	1	1	1
Number of terminals	24	24	24
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage	15 V	15 V	15 V
surface mount	NO	NO	NO
Temperature level	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	PIN/PEG	PIN/PEG
Terminal location	DUAL	DUAL	DUAL
width	15.24 mm	15.24 mm	15.24 mm
Is it Rohs certified?	-	incompatible	incompatible
Maker	-	C&D	C&D
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	NOT SPECIFIED
Maximum seat height	-	4.8 mm	4.8 mm
Nominal settling time (tstl)	-	15 µs	15 µs
Terminal pitch	-	2.54 mm	2.54 mm
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED
