G 5/...-EX
(IEC)
rigid
flexible
stranded AWG
0.2-4
0.2-4
24-12
–
I
[A]
32
21
U
[V]
500
275
2
[mm ] solid
IEC 60 947-7-1
EN 50 019 *
0.2-4
0.2-4
* Certificate no.: BAS Ex 89C3087U
H
BASEEFA
No. of positions
Type
3
G 5/3-EX
4
G 5/4-EX
6
G 5/6-EX
12
G 5/12-EX
Order No.
27 03 17 2
27 03 18 5
27 03 19 8
27 03 20 8
Pcs.
Pkt.
50
50
50
50
Description

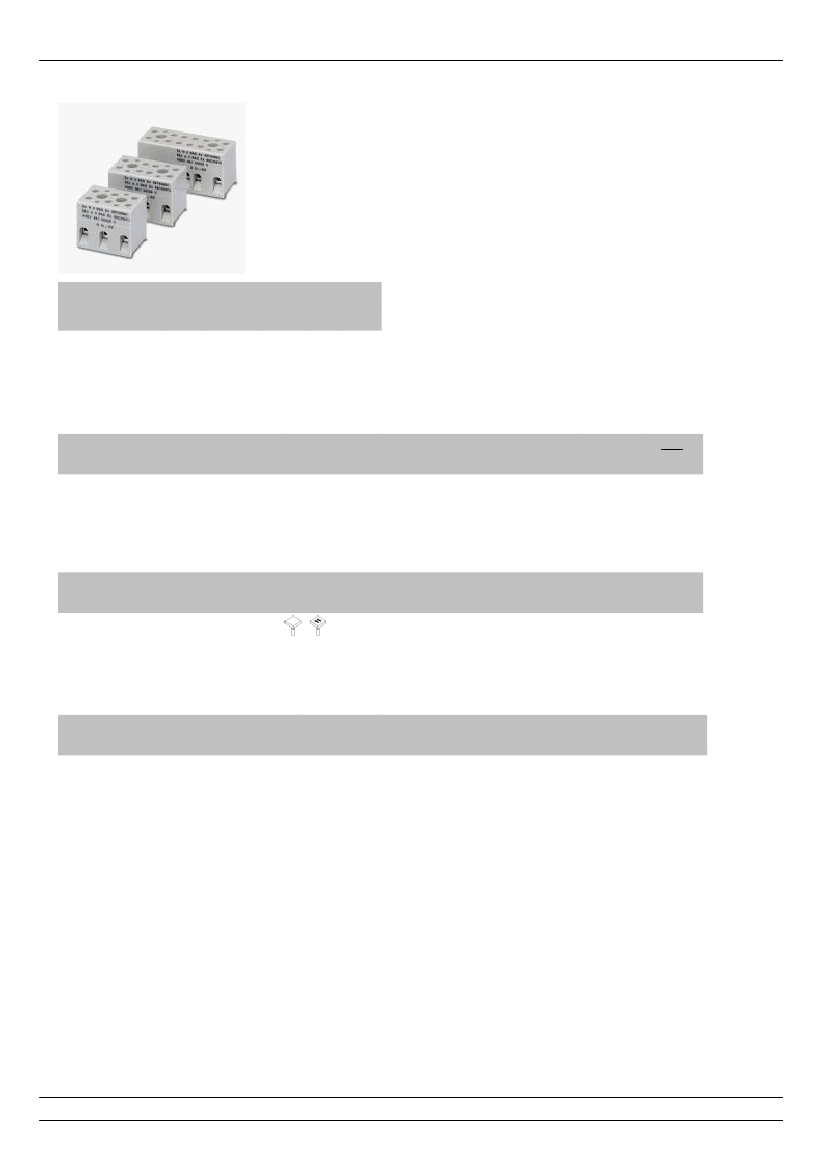

Equipment terminal block,
for direct mounting
Accessories
(1)
Marker pin,
plastic
unprinted:
for labeling with marker
pen
printed:
with 1, 2 or 3 characters,
white
Technical data
Dimensions
Technical data in accordance with IEC 60 947-7-1
Maximum load current / cross section
Rated surge voltage / contamination class
Surge voltage category / insulation
material group
Connection capacity
Stranded with ferrule without / with plastic
sleeve
[mm ]
2
BN WH:…
(see
info)
BNB WH…
1
)
14 01 41 7
100
100
see description drawing
[A] / [mm ]
[kV] / –
–/–
2
32 / 4
6/3
III / I
0.25 - 4 / 0.25 - 2.5
Multi-conductor connection (2 conductors with same
cross section)
Solid / stranded
Stranded with ferrule without plastic sleeve
Stranded with TWIN ferrule with plastic
sleeve
Stripping length
[mm ]
[mm ]
[mm ]
[mm]
2
2
2
0.2 - 1.5 / 0.2 - 1.5
0.25 - 1.5
0.5 - 1.0
8
Page 1 / 2
Phoenix Contact Elektronischer Katalog
Module no:2703172 LabelId:2703172 Operator:Phoenix
Internal cylindrical gage (IEC 60 947-1:1988)
Thread
Torque
Insulation material
Inflammability class acc. to UL 94
Temperature indices RTI acc. to UL 746 B / Ti acc. to IEC
60 216-1
Installation temperature range /
temperature class
1
17:11:51, Donnerstag, 28. Juni 2001
A3
M3
[Nm]
0.6 - 0.8
PA
V2
125 / 100
-25...+80 / T6
[°C] / –
) Required marking is to be specified.
Technical Data
Type
G 5/3
G 5/4
G 5/6
G 5/12
a
31
38
52
92
b
11
18
32
72.5
Important Ex note:
All clamping screws must be tightened.
Dimensional drawing
Phoenix Contact Elektronischer Katalog
Page 2 / 2
