QS54QST3583PB datasheet, PDF - EEWORLD Datasheet

QS54QST3583PB: DescriptionBus Exchanger, QST Series, 2-Func, 10-Bit, True Output, CMOS, PDIP24,; Categorylogic logic; File Size126KB，5 Pages; ManufacturerQuality Semiconductor Inc

Download Datasheet Parametric View All

QS54QST3583PB Overview

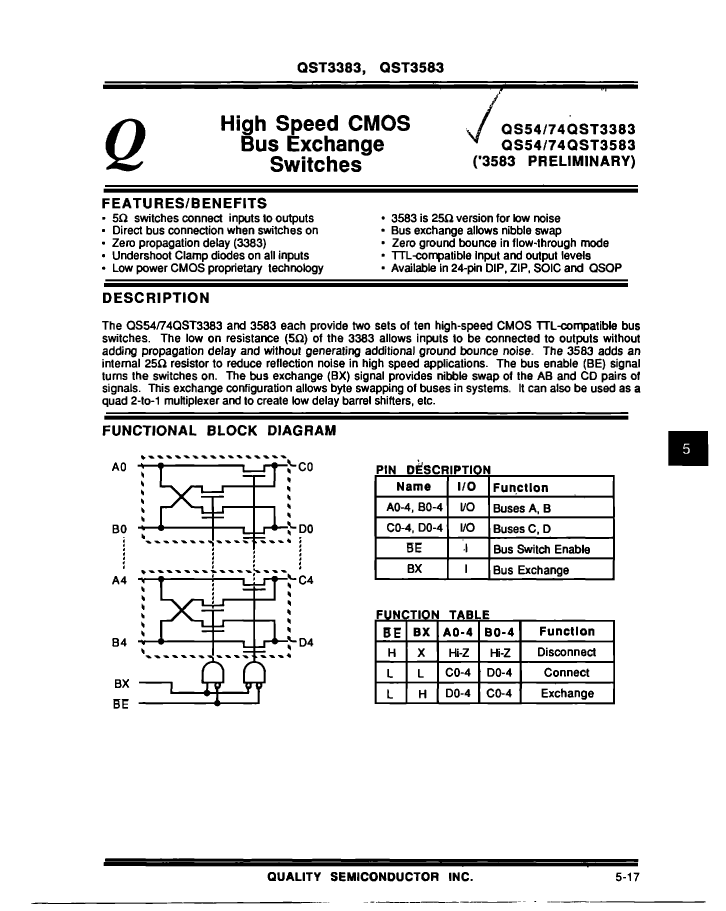

Bus Exchanger, QST Series, 2-Func, 10-Bit, True Output, CMOS, PDIP24,

Parameter Name	Attribute value
Maker	Quality Semiconductor Inc
Reach Compliance Code	unknown
series	QST
JESD-30 code	R-PDIP-T24
Logic integrated circuit type	BUS EXCHANGER
Number of digits	10
Number of functions	2
Number of ports	4

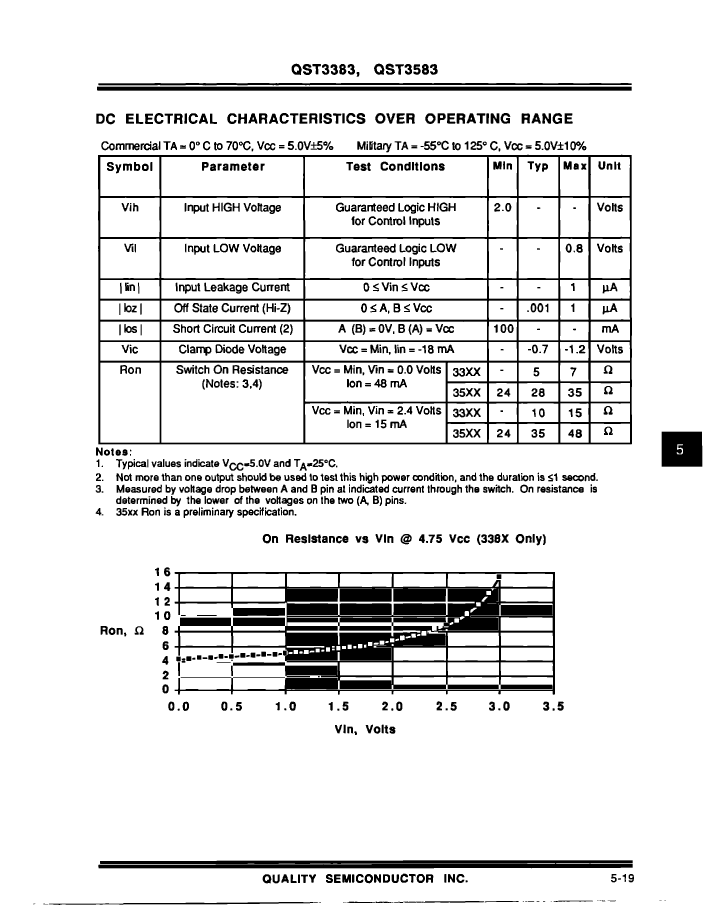

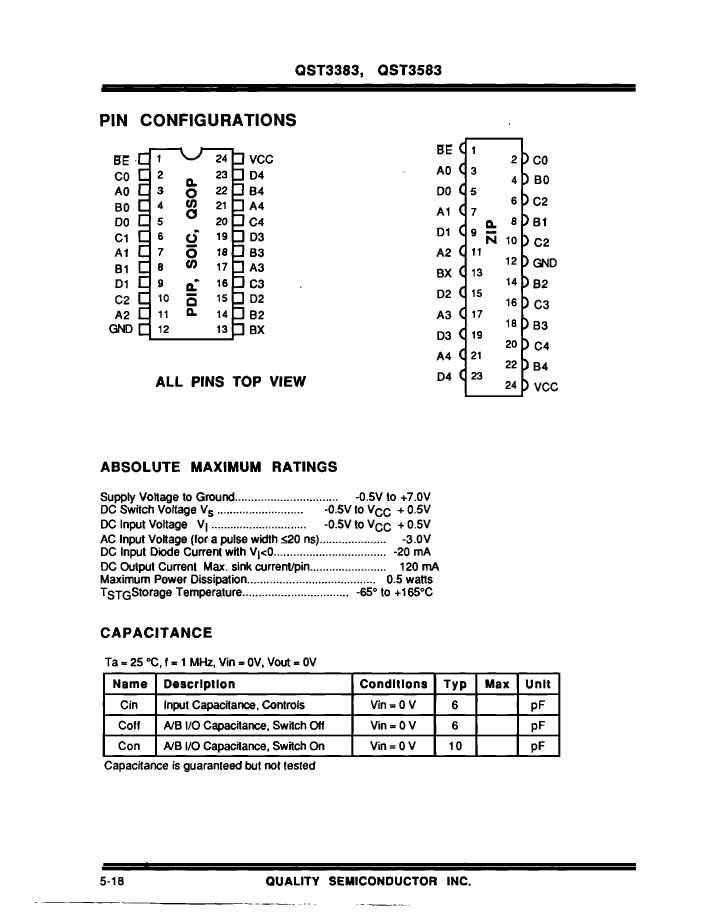

Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE WITH SERIES RESISTOR
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE

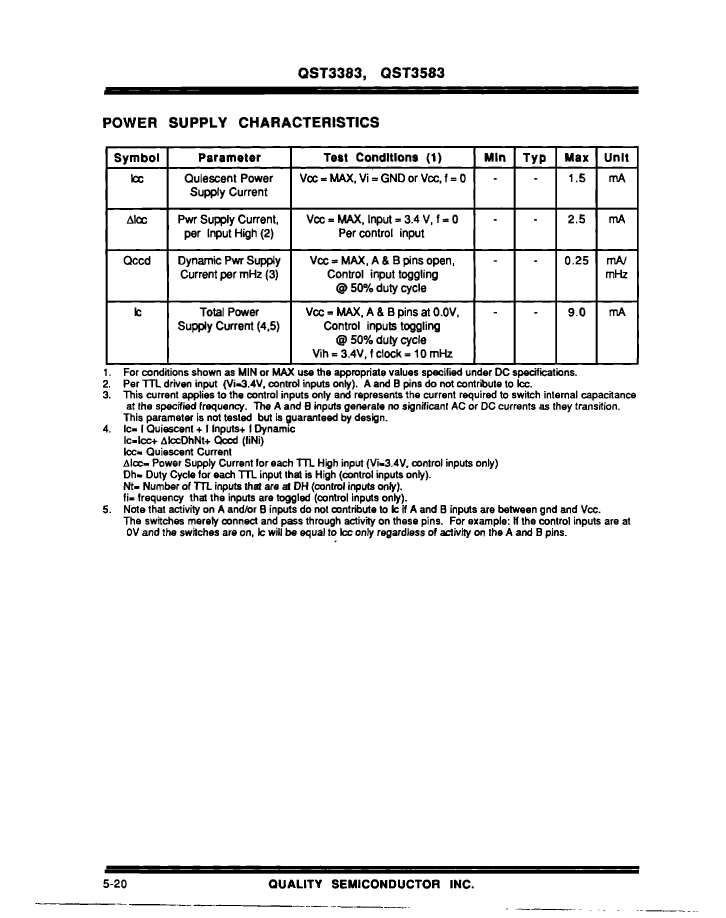

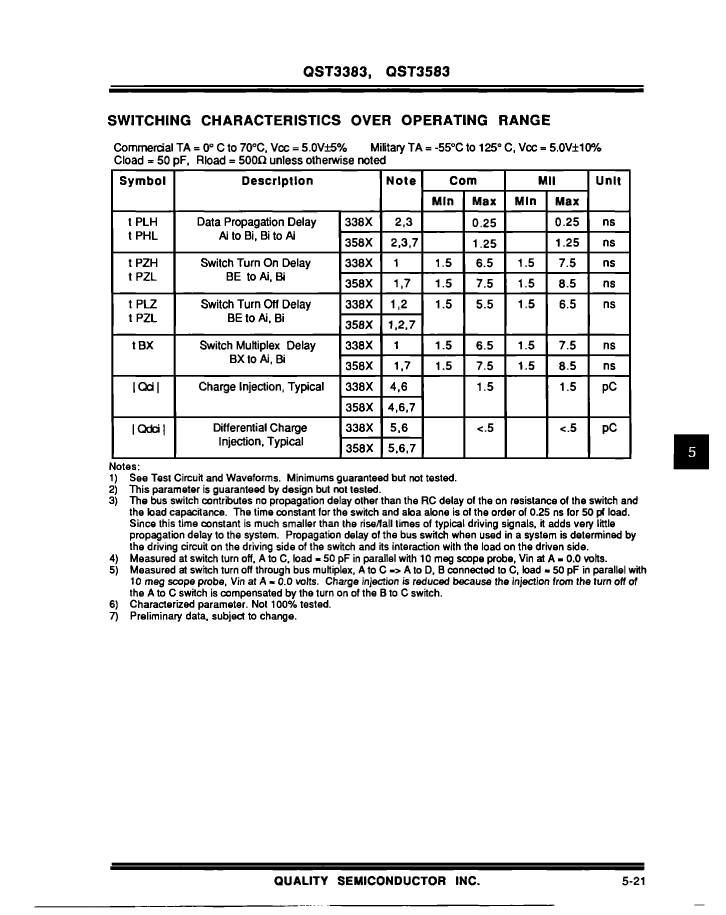

propagation delay (tpd)	1.25 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
