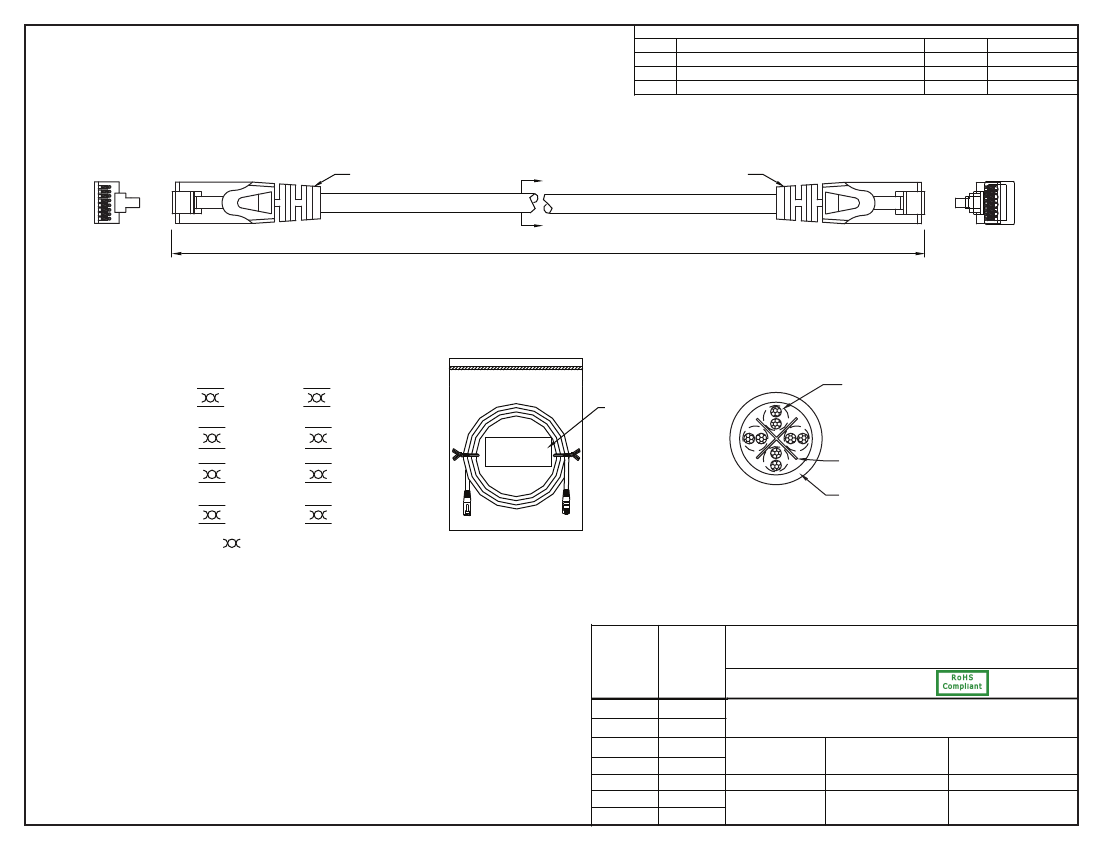

P1
PLUG 8P8C R 50u”
1
8
REV.
B
REVISION
DESCRIPTION
Updated Specifications
DATE
01-25-11
APPROVED
LY
P2
PLUG 8P8C R 50u”
S.R.
A
A
914.4mm ± 20mm
S.R.
8
1
P1
1
2
3
6
4
5
WIRING:568B
COLOR
white/orange
orange
white/green
green
blue
white/blue
white/brown
brown
P2
1
2
3
6
4
5
7
8
LABEL
SEC: A-A
CONDUCTORS
HD-PE
PVC JACKET
7
8
NOTE:
TWISTED PAIR
NOTES:
1. CABLE: CAT. 6 UTP
26AWG COPPER STRANDED WIRE. 4 TWISTED PAIRS, 30V, 60°C
OUTER JACKET: COLOR: GRAY, O.D.: 6.0 ± 0.2mm
JACKET MATERIAL: PVC
2. PLUG TYPE: MODULAR U.S. 8P8C GOLD PLATING 50u”
MATERIAL: PC UL 94V-2
S.R.: PVC 75P MOLD, COLOR: GRAY
3. PACKING: 1PC/POLYBAG
4. RoHS COMPLIANT
Dim
range
(mm)
0-1
1-6
6-18
18-50
50-120
120-250
250-500
Tolerance
+/-
(mm)
0.15
0.20
0.30
0.50
0.70
0.90
1.20
CONTROLLED
Qualtek Electronics Corp.
Part Number:
Description:
WCI DIVISION
1226004-03
CAT. 6 UTP 8P8C - 8P8C
UNIT: mm
REV. B
Approved / Date
LY / 09-16-10
Drawn / Date
R.Nuti
09-16-10
Checked / Date
09-16-10
