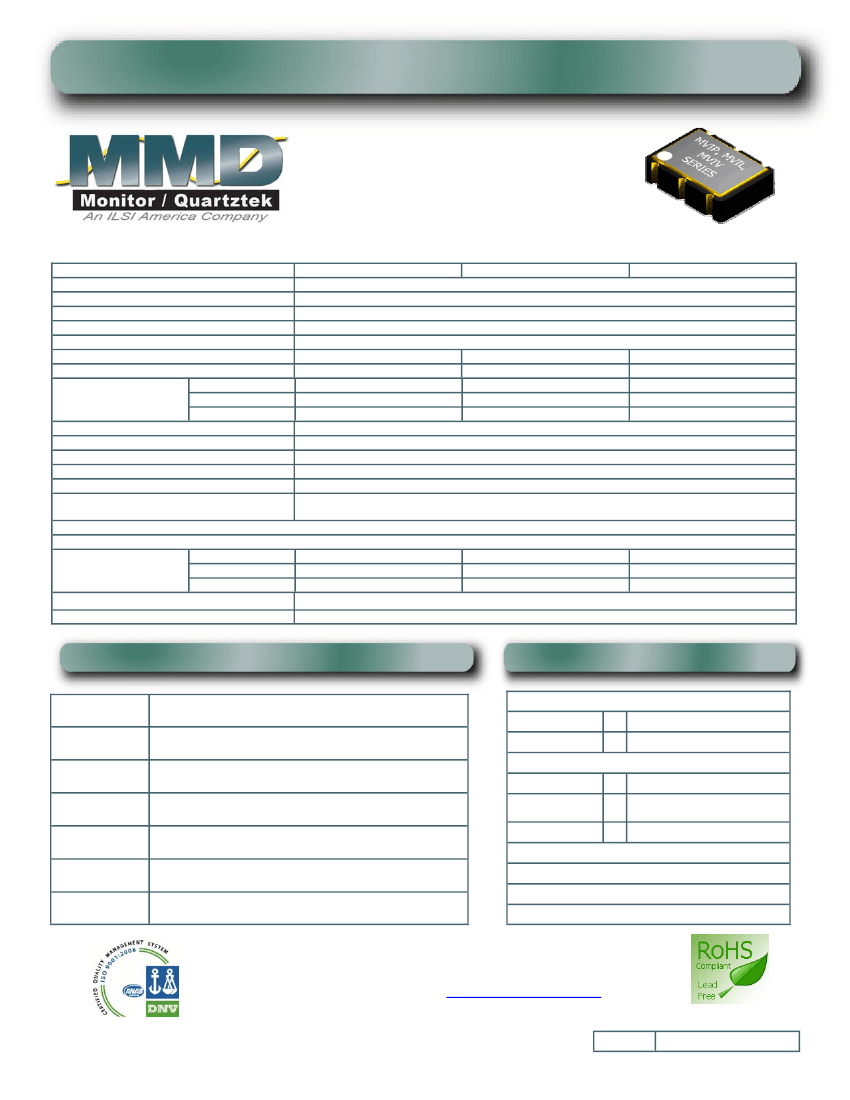

MVIP, MVIL & MVIV Series VCXO
MIL-STD-883 Level B Screening Available
Available to -55°C to + 125°C Operating
RoHS Compliant
Less than 1 pSec Jitter
LVDS
Frequency Range
Frequency Stability*
Operating Temp.Range
Storage Temp. Range
Aging
Logic “0”
Logic “1”
Supply Voltage (Vdd)
Supply Current
Symmetry (50% of waveform)
Rise / Fall Time (20% to 80%)
Load
Start Time
Phase Jitter (12kHz to 20MHz)
Tri-State Operation
* Inclusive of Temp., Load and Voltage
+2.5VDC
+3.3VDC
+5.0VDC
Vil
+2.5VDC ± 5%
+3.3VDC ± 5%
+5.0VDC ± 5%
1.43V typ
1.10V typ
50 mA max
60 mA max
N/A
LVPECL
PECL
70.000MHz to 800.000MHZ
(See Part Number Guide for Options)
(See Part Number Guide for Options)
-55°C to +125°C
±5 ppm / yr max
Vdd – 1.620 VDC max
Vdd – 1.620 VDC max
Vdd- 1.025 vdc min
Vdd- 1.025 vdc min
50 mA max
N/A
60 mA max
N/A
N/A
140 mA max
(See Part Number Guide for Options)
2nSec max
50 Ohms into Vdd-2.00 VDC
10m Sec max
Less than 1 pSec
Vih = 70% of Vdd min to Enable Output
= 30% max or grounded to Disable Output (High Impedance)
Control Voltage (Vc)
Pullability
Linearity
1.25VDC ±1.00VDC
1.65VDC ±1.50VDC
N/A
1.25VDC ±1.00VDC
1.65VDC ±1.50VDC
N/A
(See Part Number Guide for Options)
(See Part Number Guide for Options)
N/A
N/A
2.50VDC ±2.00VDC
Environmental & Mechanical Detail
Shock
Solderability
Solvent Re-
sistance
Vibration
Gross Leak
Test
Fine Leak Test
MSL
MIL-STD-883, Method 2002 Cond B
MIL-STD-883, Method 2003
MIL-STD-202, Method 215
MIL-STD-883, Method 2007, Cond A
MIL-STD-883, Method 1014, Cond C
MIL-STD-883, Method 1014, Cond A2
Level 1 per IPC/JEDEC J-STD 20
Marking Detail
Line 1 = MXXXXX
M
XXXXX
Line 2 = SYYWWL
S
YYWW
L
Line 3 = XXXXX
Internal use only
May vary with lots
Black dot to denote Pin 1
=
=
=
Internal Code
4 Numerical Digit Date Code
(Year / Week) Jan 27 2011=1105
=
=
MMD
Frequency in MHZ
Denotes RoHS Compliant
MMD MONITOR/QUARTZEK – An ILSI Company,
5458 Louie Lane, Reno, NV 89511
Phone: (775) 851-8880,
www.mmdcomp.com
Revision:
Revisions only with customer approval
07/31/13 D
Pg 1 of 2

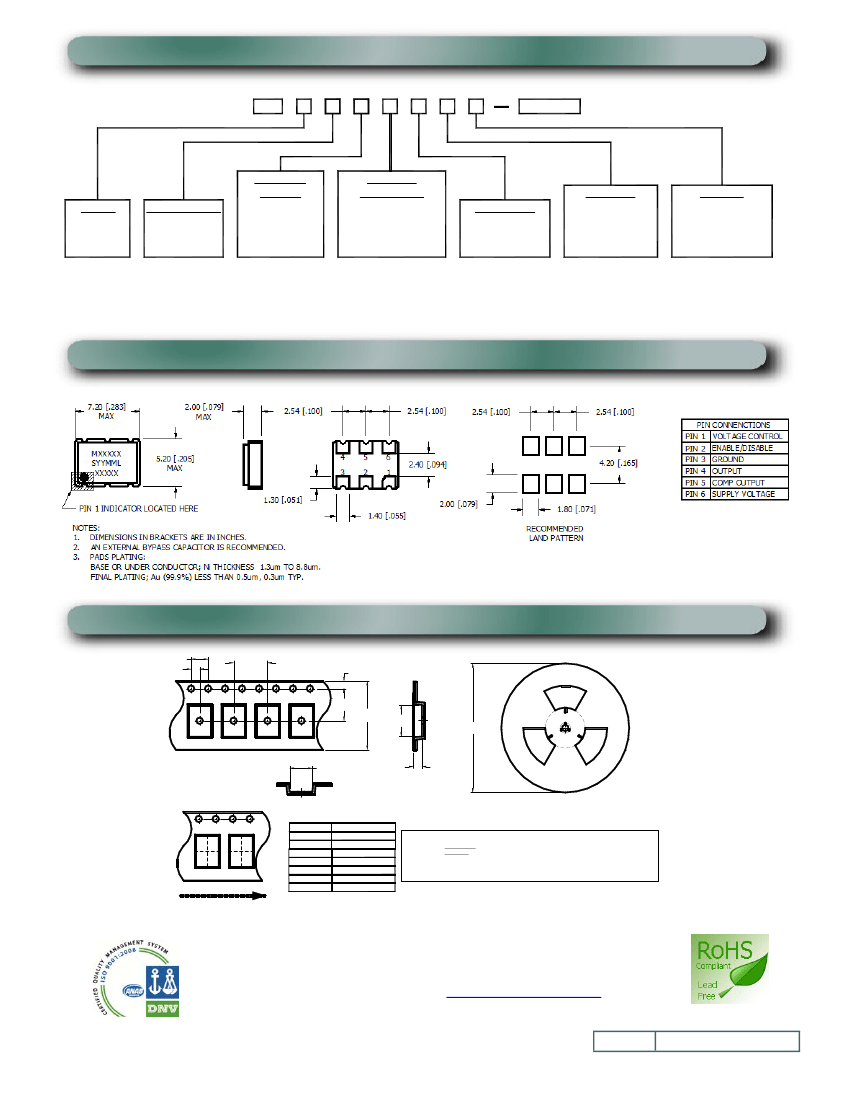

Part Number Guide
MVI
Frequency
Output
P = PECL
L = LVPECL
V = LVDS
Supply Voltage
2 = +2.5 VDC
3 = +3.3 VDC
5 = +5.0 VDC
Frequency
Stability
020 = ±20 ppm
025 = ±25 ppm
050 = ±50 ppm
100 = ±100 ppm
Operating
Temperature
Blank = 0°C to +70°C
27 = -20°C to +70°C
48 = -40°C to +85°C
55 = -55°C to +125°C
Symmetry *
Blank = 40%/60%
A = 45%/55%
B = 47.5%/52.5%
Pullability
A = ±200 ppm min
C = ±100 ppm min
D = ±50 ppm min
P = ±25 ppm min
Linearity
Blank = ±20% max
X = ±5% max
Y = ±10% max
Z = ±15% max
*Option B (47.5/52.5%) Available up to 500MHZ only
Please Consult with MMD Sales Deparment for any other Parameters or Options
Mechanical Details
Tape & Reel Dimensions
4.00
2.00
PITCH
1.75
7.50
Tape Width
B0
REEL DIA
A0
K0
Q1 Q2
Q3 Q4
Q1 Q2
Q3 Q4
AO
BO
K0
PITCH
TAPE WIDTH
REEL DIA
QTY PER REEL
PIN 1 ORIENT.
1.85 [.073]
2.25 [.089]
0.95 [.037]
4.00 [.157]
12.00 [.471]
180 [7.0]
500
Q1
NOTES: UNLESS OTHERWISE SPECIFIED
1. Applicable Standards / Specifications
ANSI Y14.5M, Dimensions and Tolerances
EIA-481-B, 8 mm through 200mm Embossed Carrier Taping and 8 mm and 12 mm
Punched Carrier Taping of Surface Mount Components for Automatic Handling.
2. Dimensions are in millimeters [inch].
3. Tolerances are ±0.1 [.004] mm unless otherwise specified.
4. Do not scale drawing.
DIRECTION OF FEED
MMD MONITOR/QUARTZEK – An ILSI Company,
5458 Louie Lane, Reno, NV 89511
Phone: (775) 851-8880,
www.mmdcomp.com
Revision:
Revisions only with customer approval
07/31/13 D
Pg 2 of 2
