MX27C512DC-12 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> MX27C512DC-12

MX27C512DC-12: DescriptionUVPROM, 64KX8, 120ns, CMOS, CDIP28, 0.600 INCH, WINDOWED, CERDIP-28; Categorystorage storage; File Size352KB，11 Pages; ManufacturerMacronix; Websitehttp://www.macronix.com/en-us/Pages/default.aspx

Download Datasheet Parametric Compare View All

MX27C512DC-12 Overview

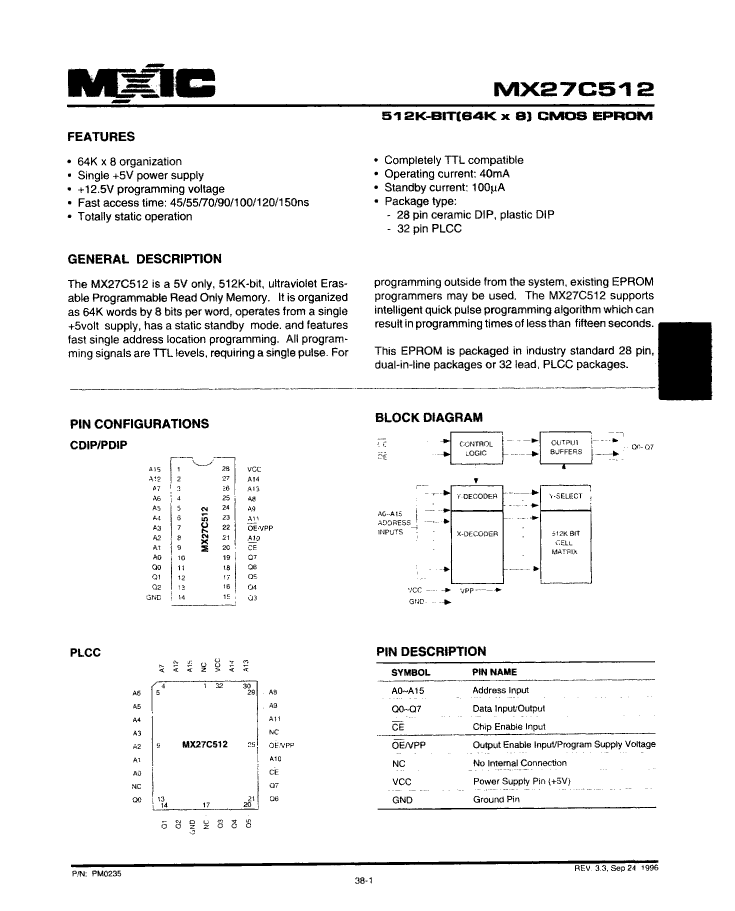

UVPROM, 64KX8, 120ns, CMOS, CDIP28, 0.600 INCH, WINDOWED, CERDIP-28

MX27C512DC-12 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Macronix
Parts packaging code	DIP
package instruction	WDIP, DIP28,.6
Contacts	28
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	120 ns

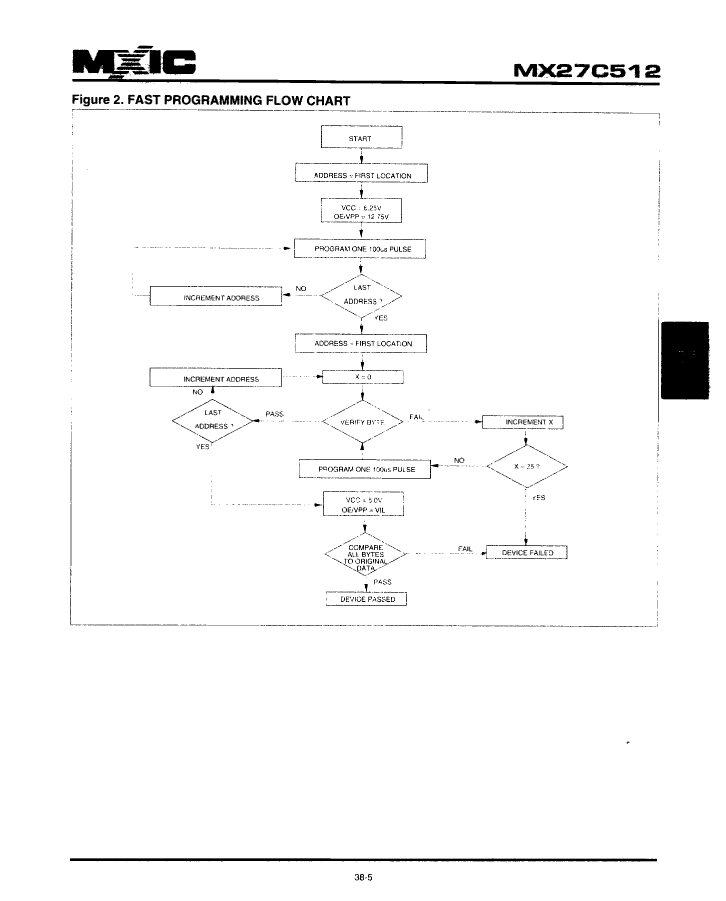

Other features	QUICK PULSE PROGRAMMING ALGORITHM
I/O type	COMMON
JESD-30 code	R-GDIP-T28
JESD-609 code	e0
memory density	524288 bit
Memory IC Type	UVPROM
memory width	8
Number of functions	1
Number of terminals	28
word count	65536 words
character code	64000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	64KX8
Output characteristics	3-STATE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	WDIP
Encapsulate equivalent code	DIP28,.6
Package shape	RECTANGULAR
Package form	IN-LINE, WINDOW
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum standby current	0.0001 A
Maximum slew rate	0.04 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm

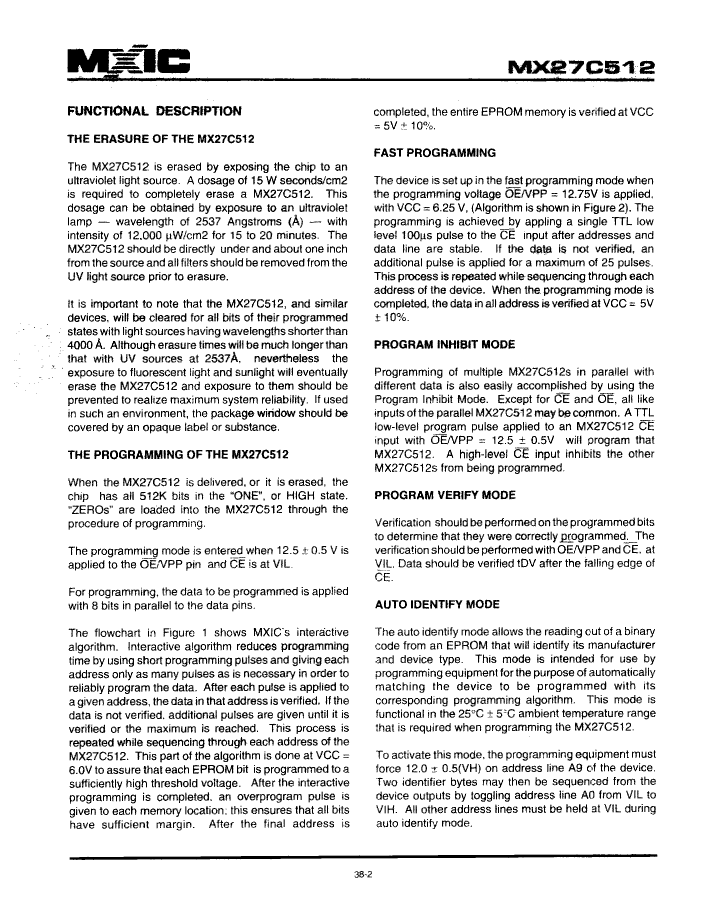

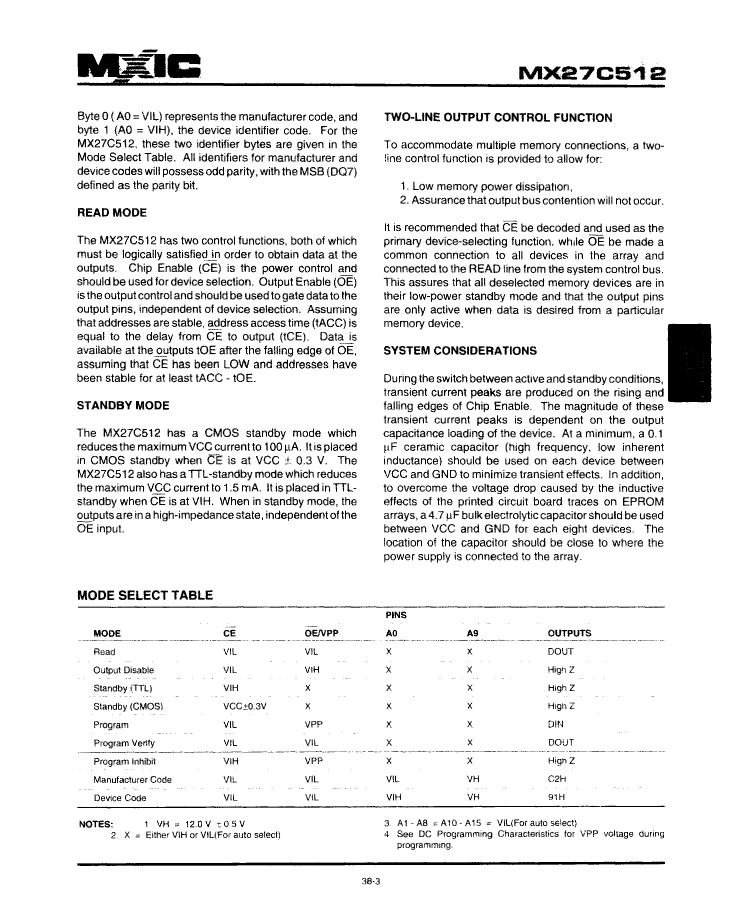

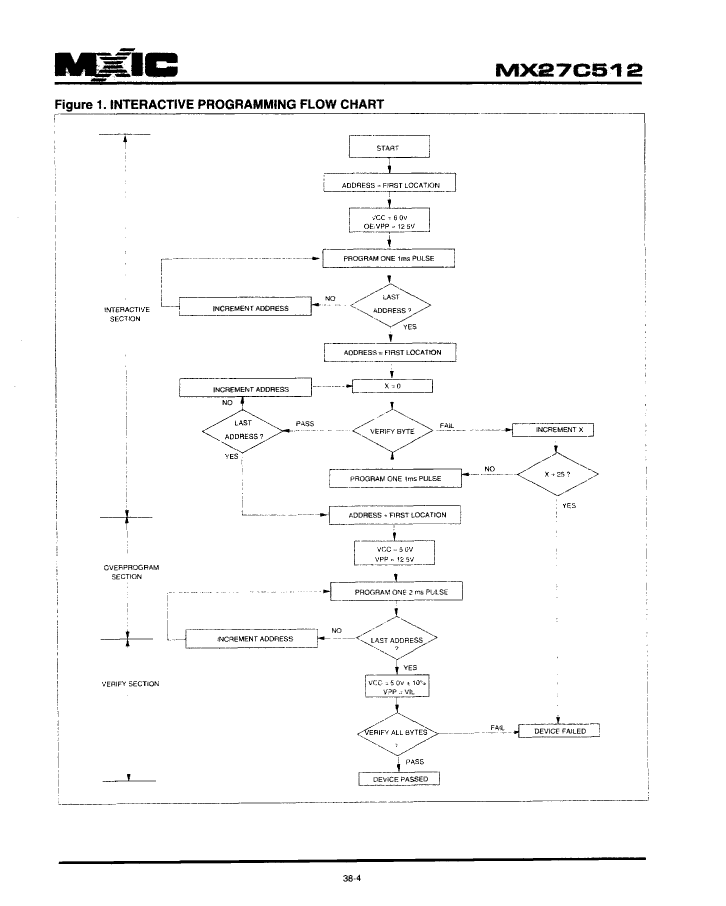

Preview

Download Datasheet

View All

MX27C512DC-12 Related Products

	MX27C512DC-12	MX27C512DC-10	MX27C512DC-70	MX27C512DC-90	MX27C512DC-15
Description	UVPROM, 64KX8, 120ns, CMOS, CDIP28, 0.600 INCH, WINDOWED, CERDIP-28	UVPROM, 64KX8, 100ns, CMOS, CDIP28, 0.600 INCH, WINDOWED, CERDIP-28	UVPROM, 64KX8, 70ns, CMOS, CDIP28, 0.600 INCH, WINDOWED, CERDIP-28	UVPROM, 64KX8, 90ns, CMOS, CDIP28, 0.600 INCH, WINDOWED, CERDIP-28	UVPROM, 64KX8, 150ns, CMOS, CDIP28, 0.600 INCH, WINDOWED, CERDIP-28
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	DIP	DIP	DIP	DIP	DIP
package instruction	WDIP, DIP28,.6	WDIP, DIP28,.6	WDIP, DIP28,.6	WDIP, DIP28,.6	WDIP, DIP28,.6
Contacts	28	28	28	28	28
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	120 ns	100 ns	70 ns	90 ns	150 ns
Other features	QUICK PULSE PROGRAMMING ALGORITHM	QUICK PULSE PROGRAMMING ALGORITHM	QUICK PULSE PROGRAMMING ALGORITHM	QUICK PULSE PROGRAMMING ALGORITHM	QUICK PULSE PROGRAMMING ALGORITHM
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-GDIP-T28	R-GDIP-T28	R-GDIP-T28	R-GDIP-T28	R-GDIP-T28
JESD-609 code	e0	e0	e0	e0	e0
memory density	524288 bit	524288 bit	524288 bit	524288 bit	524288 bit
Memory IC Type	UVPROM	UVPROM	UVPROM	UVPROM	UVPROM
memory width	8	8	8	8	8
Number of functions	1	1	1	1	1
Number of terminals	28	28	28	28	28
word count	65536 words	65536 words	65536 words	65536 words	65536 words
character code	64000	64000	64000	64000	64000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C
organize	64KX8	64KX8	64KX8	64KX8	64KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	WDIP	WDIP	WDIP	WDIP	WDIP
Encapsulate equivalent code	DIP28,.6	DIP28,.6	DIP28,.6	DIP28,.6	DIP28,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE, WINDOW	IN-LINE, WINDOW	IN-LINE, WINDOW	IN-LINE, WINDOW	IN-LINE, WINDOW
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum standby current	0.0001 A	0.0001 A	0.0001 A	0.0001 A	0.0001 A
Maximum slew rate	0.04 mA	0.04 mA	0.04 mA	0.04 mA	0.04 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm
Maker	Macronix	-	Macronix	Macronix	Macronix
