801-038-02M6-4FC: DescriptionCircular Connector, 4 Contact(s), Aluminum Alloy, Female, Solder Terminal, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size248KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

801-038-02M6-4FC Overview

Circular Connector, 4 Contact(s), Aluminum Alloy, Female, Solder Terminal, Receptacle, ROHS COMPLIANT

801-038-02M6-4FC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	PANEL
Options	GENERAL PURPOSE
Shell surface	NICKEL PLATED
Shell material	ALUMINUM ALLOY
Housing size	6
Termination type	SOLDER
Total number of contacts	4
Base Number Matches	1

Preview

Download Datasheet

View All

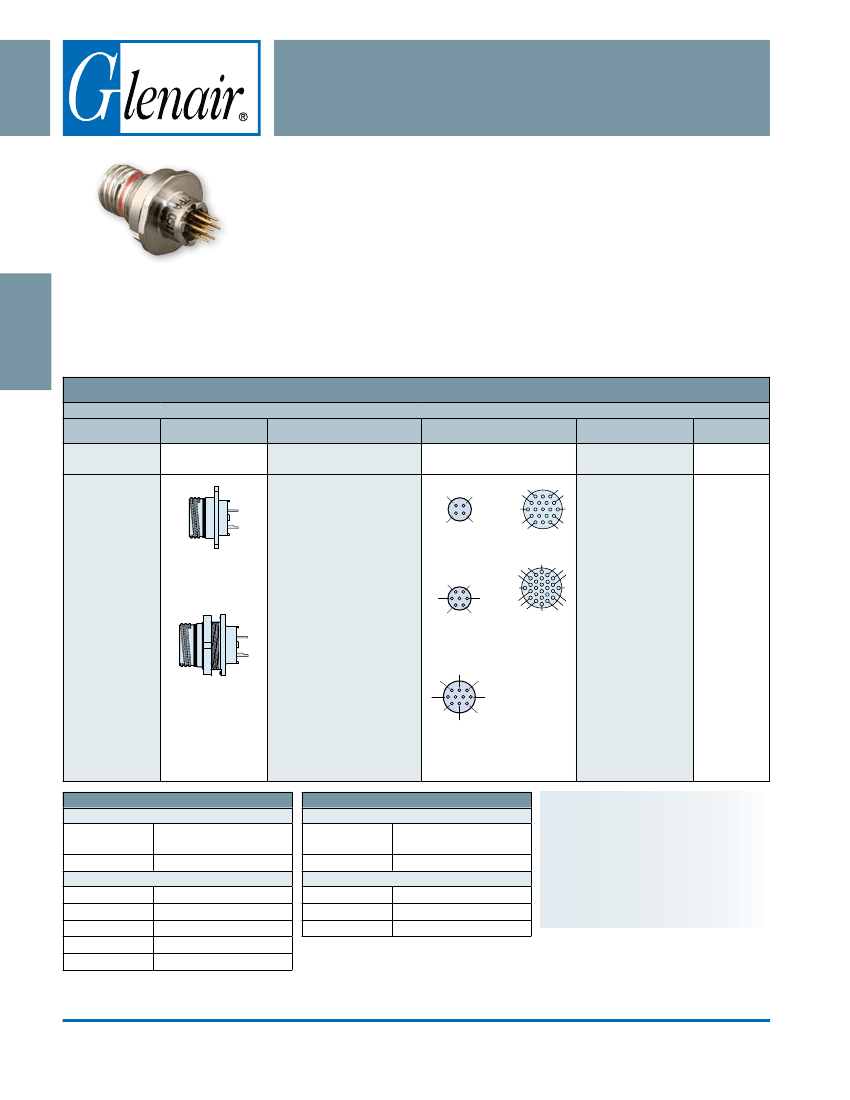

801-038

Series 801 Mighty Mouse

High-Speed

Double-Start ACME Threads

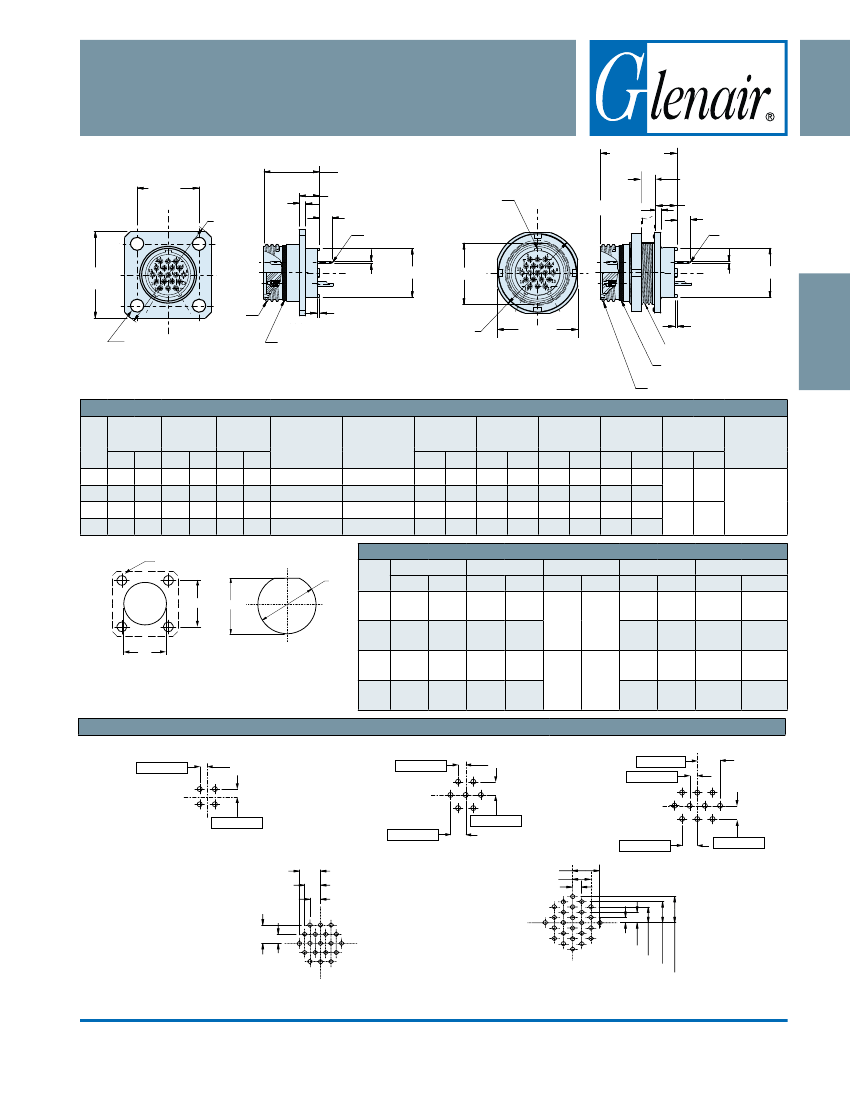

PCB Receptacle Ordering Information

Series 801

Mighty Mouse

Series 801 High Speed

Printed Circuit Board Receptacle

Printed Circuit Board Receptacles

feature low profile shells for minimum protrusion

inside enclosures and integral standoffs for board washout. The connector is

equipped with special PFA (Teflon) insulators and is optimized for use with high-

speed differential wire such as our 963-001 Series cable. Five insert arrangements are

offered with 4, 7, 10 and 26 PC tail or solder cup terminations. Contacts are non-

removable.

Water Immersion, Unmated

Specify 801-038 connectors for applications where

open face water immersion is not a requirement. For MIL-STD-810 Method 512G

immersion requirements, specify 801-041 watertight connectors . These 801-041

connectors are specially sealed (“MoD-518”) and are 100% tested to maintain a

helium leak rate of 1 x 10-4 cc/second at one atmosphere pressure differential from

-40C to +70C.

How To Order

Sample Part Number

B

801-038

Series

-07

Shell Style

M

Shell Material / Finish

7-10

Shell Size- Insert Arrangement

1

4

2

12

7

3

1

4

8

19

17

13

p

Contact Type

a

Shell Key

Position

receptacle for

PCB or Solder

Cup Termination,

with Standard

Epoxy Potting

801-038

Aluminum / Electroless

Nickel

roHS Compliant

M

3

16

Pin,

PC Tail

P

Normal

Alternate

Key

Positions:

A

Square Flange

receptacle for

Solder Cup or

PCB Termination

with Special

Mod Code 518

Sealing for open

Face (Unmated)

Water Immersion

requirements.

100% Leak

Tested.

-02

Aluminum / Cadmium with

olive Drab Chromate

Aluminum / Zinc-Nickel

with Black Chromate

Aluminum / Nickel-PTFE

roHS Compliant

NF

6-4

1

6

5

7

9 - 19

6 3

11

1

8

14

20

5

10

17

22

7

13

19

2 4

2

3

4

9

15

18

23

25

12

24

16

21

801-041

ZNU

MT

Z1

Socket,

PC Tail

S

6-7

3

7

10

9

8

2

1

4

10-26

26

Pin,

Solder Cup

E

B

C

D

E

F

Jam Nut

-07

Stainless Steel / Passivated

roHS Compliant

7 - 10

Socket,

Solder Cup

F

With Grommet Removed

High Speed Performance

Impedance

VSWr

1 GHz

2 GHz

3 GHz

4 GHz

5 GHz

100 Ω ±7 Ω

at 100-Picosecond

<1.4 up to 4-GHz

Insertion Loss

.51 dB

.53 dB

.57 dB

1.2 dB

1.25 dB

With Grommet Intact

High Speed Performance

Impedance

VSWr

1 GHz

2 GHz

3 GHz

100 Ω ±15 Ω

at 100-Picosecond

<1.5 up to 3-GHz

Insertion Loss

.73 dB

.76 dB

.85 dB

Material and Finish

Plug Barrel, Coupling Nut: Aluminum

Alloy or Stainless Steel

Insulator: PFA

Potting Compound: Epoxy

Interfacial Seal, Grommet Seal:

Fluorosilicone

Contact: Copper Alloy/Gold Plate

In order to achieve high speed performance, this

connector must be mated to another high speed

Mighty Mouse connector.

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

B-10

E-Mail: sales@glenair.com
