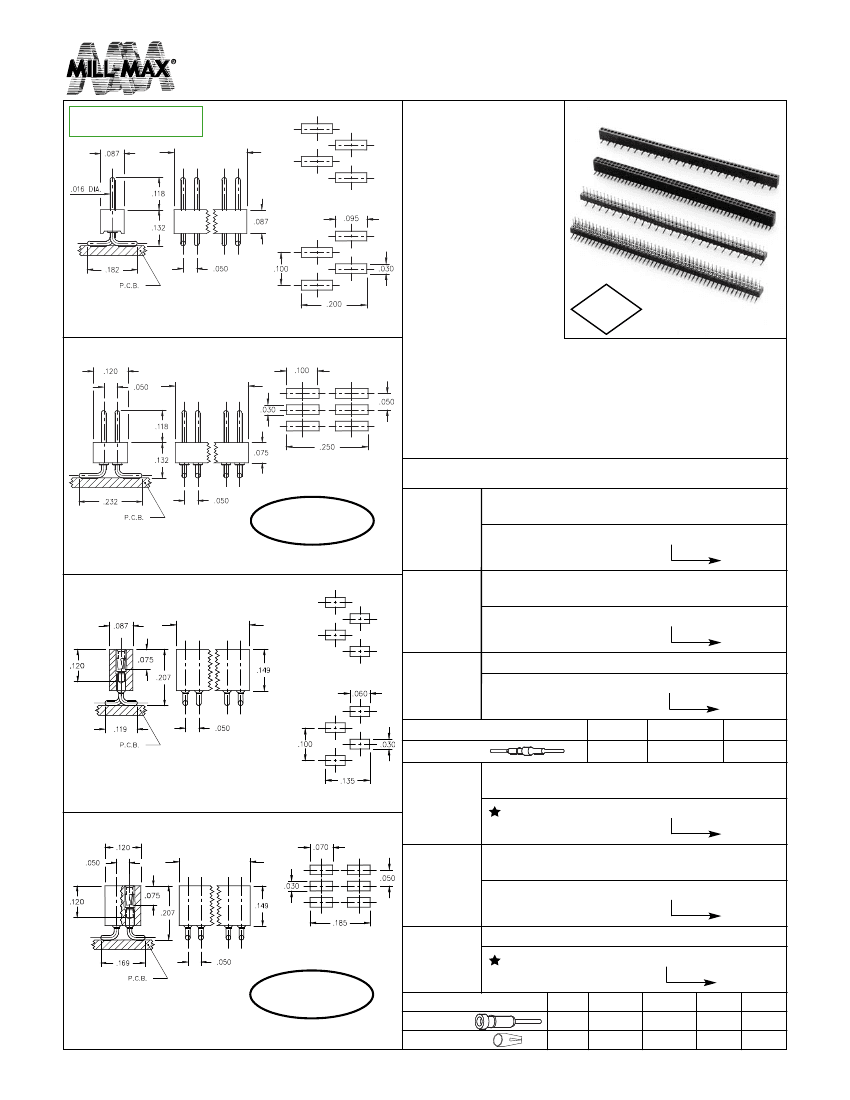

INTERCONNECTS
.050” Grid Surface Mount Headers and Sockets
Single and Double Row
For RoHS compliance
select
plating code.
(Number of Pins
X .050”) + .015”
Series 850, 851
852, 853
Left Hand
Footprint
Right Hand
Footprint
Coplanarity .005”. For Pin Counts
> 20 Consult Tech Support
Fig. 1
Footprint
(Number of Pins
X .050”/2) + .015”
•
Single row intercon-
nects having an
even number of pins
are now available
with a left or right
hand footprint.
•
Headers (850 &
852) use MM# 4006
pins. See page 175
for details.
•
Sockets (851 & 853)
RoHS
2002/95/EC
use MM# 4890-0
receptacles and
accept pin diameters from .015-.021. See page 131
for details.
•
Coplanarity .005” (Single Row max 20 pins; Double
Row max 40 pins). For higher pin counts contact
techical support .
•
Insulators are high temp. thermoplastic.
Ordering Information
Coplanarity .005”. For Pin Counts
> 40 Consult Tech Support
XX=Plating Code
See Below
Single Row Header, Left Hand Footprint
Odd or Even # of pins
Fig. 1L
850-XX-0_ _-30-001000
Specify # of pins
02-50
Single Row Header, Right Hand Footprint
Even # of pins
Fig. 2
Left Hand
Footprint
(Number of Pins
X .050”) + .015”
Fig. 1R
850-XX-0_ _-30-002000
Specify even # of pins
02-50
Double Row Header, Even # of pins
Right Hand
Footprint
Fig. 2
SPECIFY PLATING CODE XX=
852-XX-_ _ _-30-001000
Specify even # of pins
10
90
004-100
40
Coplanarity .005”. For Pin Counts
> 20 Consult Tech Support
Pin Plating
10μ” Au 200μ” Sn/Pb 200μ” Sn
Fig. 3
Footprint
(Number of Pins
X .050”/2) + .015”
Single Row Socket, Left Hand Footprint
Odd or Even # of pins
Fig. 3L
44 Plating
Non-Standard
851-XX-0_ _-30-001000
Fig. 3R
Specify # of pins
02-50
Single Row Socket, Right Hand Footprint
Even # of pins
851-XX-0_ _-30-002000
Specify even # of pins
02-50
Double Row Socket, Even # of pins
Fig. 4
Coplanarity .005”. For Pin Counts
> 40 Consult Tech Support
For Electrical,
Mechanical & Enviromental
Data, See pg. 4
44 Plating
Non-Standard
853-XX-_ _ _-30-001000
004-100
99
200µ”Sn/Pb
Specify even # of pins
SPECIFY PLATING CODE XX=
13
30µ” Au
93
30µ” Au
43
44
Sleeve (Pin)
10µ” Au
200µ” Sn/Pb 200µ”Sn/Pb 200µ”Sn 200µ”Sn
30µ” Au 200µ”Sn
Fig. 4
w w w. m i l l - m a x . c o m
Contact (Clip)
68
516-922-6000
