BA3530FS-T1 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Consumption circuit> BA3530FS-T1

Preview

BA3530FS-T1: DescriptionAudio Amplifier, 0.04W, 2 Channel(s), 1 Func, PDSO16, SSOP-16; CategoryAnalog mixed-signal IC Consumption circuit; File Size106KB，7 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BA3530FS-T1 Overview

Audio Amplifier, 0.04W, 2 Channel(s), 1 Func, PDSO16, SSOP-16

BA3530FS-T1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	SOIC
package instruction	SSOP-16
Contacts	16
Reach Compliance Code	compliant
ECCN code	EAR99
Nominal bandwidth	20 kHz
Commercial integrated circuit types	AUDIO AMPLIFIER
Gain	0.5 dB
harmonic distortion	0.04%
JESD-30 code	R-PDSO-G16
JESD-609 code	e3/e2
length	6.6 mm
Number of channels	2
Number of functions	1
Number of terminals	16
Maximum operating temperature	75 °C
Minimum operating temperature	-10 °C
Nominal output power	0.04 W
Package body material	PLASTIC/EPOXY
encapsulated code	LSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	1.6 mm
Maximum slew rate	18 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
surface mount	YES
Temperature level	COMMERCIAL EXTENDED
Terminal surface	TIN/TIN COPPER
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	10
width	4.4 mm

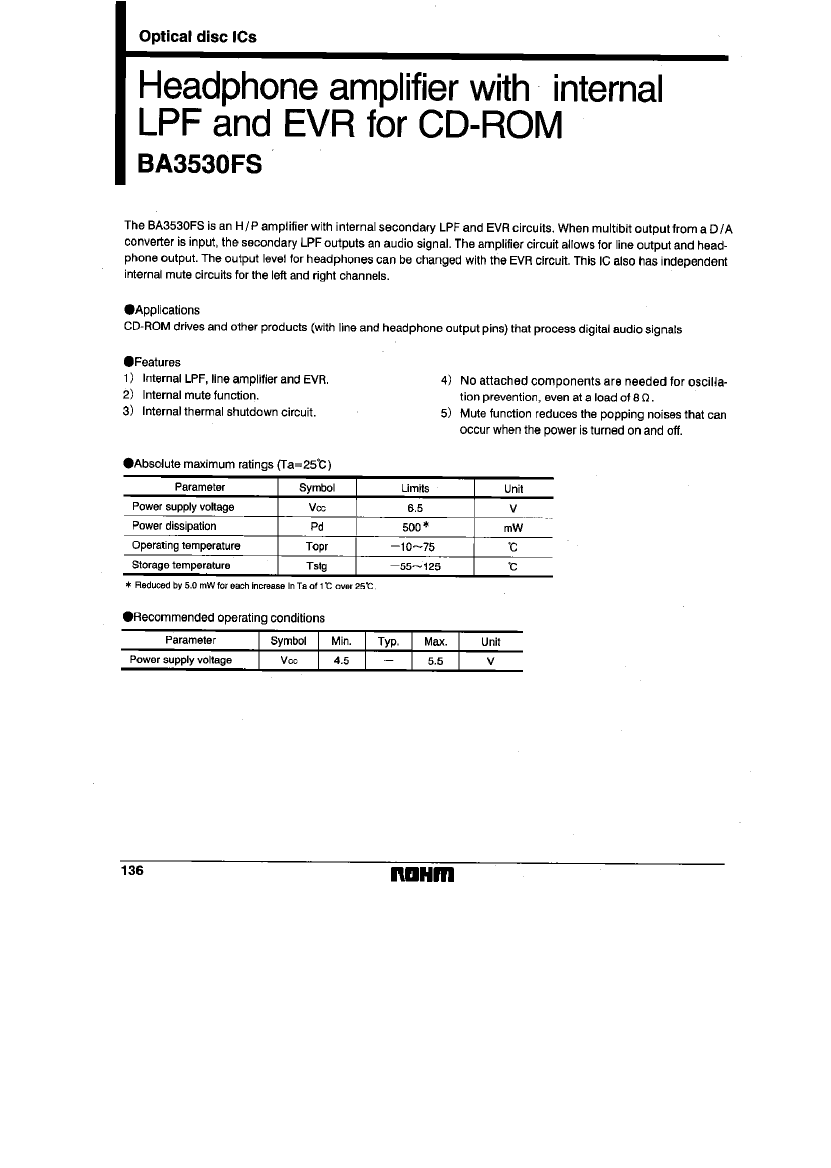

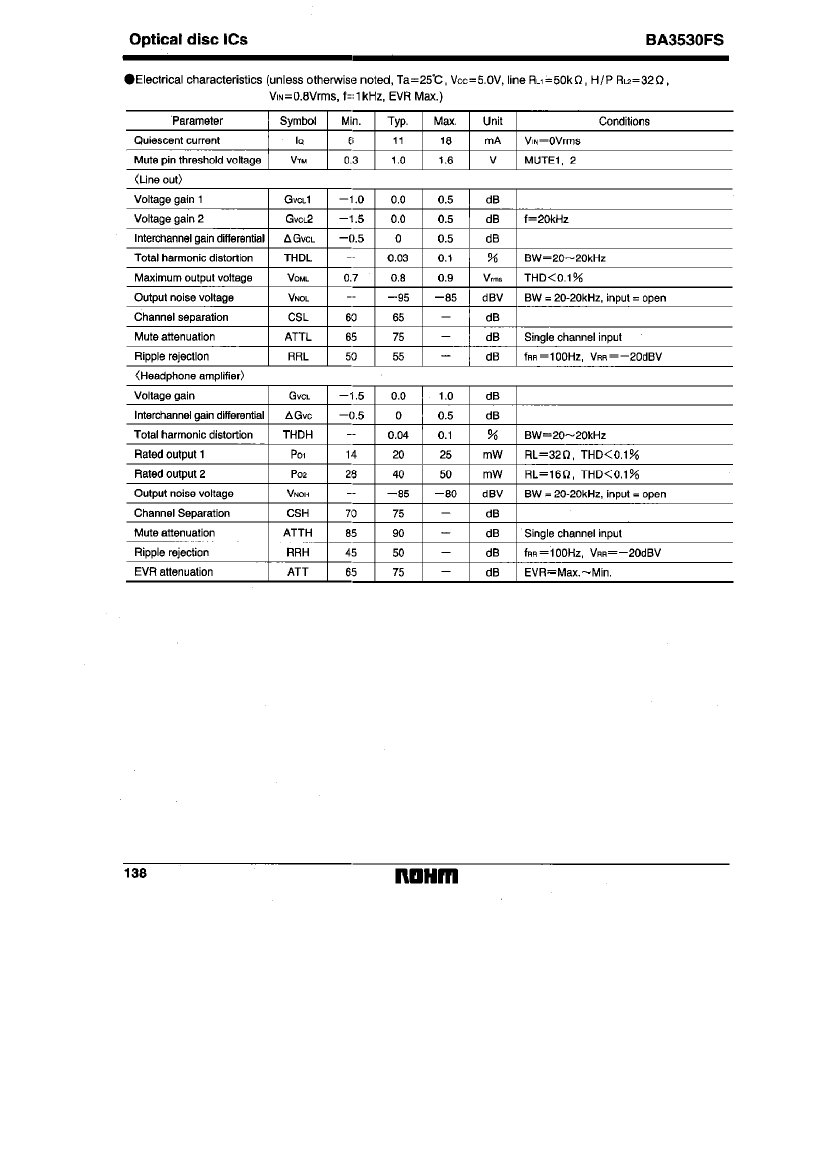

BA3530FS-T1 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

BA3530FS-T1 Related Products

	BA3530FS-T1	BA3530FS-E1	BA3530FS-T2
Description	Audio Amplifier, 0.04W, 2 Channel(s), 1 Func, PDSO16, SSOP-16	Audio Amplifier, 0.04W, 2 Channel(s), 1 Func, Bipolar, PDSO16, SSOP-16	Audio Amplifier, 0.04W, 2 Channel(s), 1 Func, PDSO16, SSOP-16
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
Maker	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor
Parts packaging code	SOIC	SOIC	SOIC
package instruction	SSOP-16	SSOP-16	SSOP-16
Contacts	16	16	16
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Nominal bandwidth	20 kHz	20 kHz	20 kHz
Commercial integrated circuit types	AUDIO AMPLIFIER	AUDIO AMPLIFIER	AUDIO AMPLIFIER
Gain	0.5 dB	0.5 dB	0.5 dB
harmonic distortion	0.04%	0.04%	0.04%
JESD-30 code	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16
JESD-609 code	e3/e2	e3/e2	e3/e2
length	6.6 mm	6.6 mm	6.6 mm
Number of channels	2	2	2
Number of functions	1	1	1
Number of terminals	16	16	16
Maximum operating temperature	75 °C	75 °C	75 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C
Nominal output power	0.04 W	0.04 W	0.04 W
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LSSOP	LSSOP	LSSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260	260	260
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.6 mm	1.6 mm	1.6 mm
Maximum slew rate	18 mA	18 mA	18 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
surface mount	YES	YES	YES
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal surface	TIN/TIN COPPER	TIN/TIN COPPER	TIN/TIN COPPER
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	0.8 mm	0.8 mm	0.8 mm
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	10	10	10
width	4.4 mm	4.4 mm	4.4 mm
