FQP90N10V2/FQPF90N10V2
QFET
FQP90N10V2/FQPF90N10V2
100V N-Channel MOSFET
General Description
These N-Channel enhancement mode power field effect
transistors are produced using Fairchild’s proprietary,
planar stripe, DMOS technology.
This advanced technology has been especially tailored to
minimize on-state resistance, provide superior switching
performance, and withstand high energy pulse in the
avalanche and commutation mode. These devices are well
suited for DC to DC converters, sychronous rectification,
and other applications lowest Rds(on) is required.
®
Features
•
•
•
•
•
•
90 A, 100V, R
DS(on)
= 0.01Ω @V
GS
= 10 V
Low gate charge ( typical 147 nC)
Low Crss ( typical 300 pF)
Fast switching
100% avalanche tested
Improved dv/dt capability
D
!
●
◀
▲
●
●
G
!
G DS
TO-220
FQP Series
GD S
TO-220F
FQPF Series
!
S
Absolute Maximum Ratings
Symbol
V
DSS
I
D
I
DM
V
GSS
E
AS
I
AR
E
AR
dv/dt
P
D
T
J
, T
STG
T
L
T
C
= 25°C unless otherwise noted
Parameter
Drain-Source Voltage
- Continuous (T
C
= 25°C)
Drain Current
- Continuous (T
C
= 100°C)
Drain Current
- Pulsed
(Note 1)
FQP90N10V2
100
90
68
360
FQPF90N10V2
90 *
68 *
360 *
±
30
2430
90
25
4.5
Units
V
A
A
A
V
mJ
A
mJ
V/ns
W
W/°C
°C
°C
Gate-Source Voltage
Single Pulsed Avalanche Energy
Avalanche Current
Repetitive Avalanche Energy
Peak Diode Recovery dv/dt
Power Dissipation (T
C
= 25°C)
(Note 2)
(Note 1)
(Note 1)
(Note 3)
- Derate above 25°C
Operating and Storage Temperature Range
Maximum lead temperature for soldering purposes,
1/8" from case for 5 seconds
250
1.67
-55 to +175
300
83
0.55
* Drain current limited by maximum junction temperature.
Thermal Characteristics
Symbol
R
θJC
R
θJS
R
θJA
Parameter
Thermal Resistance, Junction-to-Case
Thermal Resistance, Case-to-Sink Typ.
Thermal Resistance, Junction-to-Ambient
FQP90N10V2
0.6
0.5
62.5
FQPF90N10V2
1.8
--
62.5
Units
°C/W
°C/W
°C/W
©2004 Fairchild Semiconductor Corporation
Rev. A1, April 2004
FQP90N10V2/FQPF90N10V2
Electrical Characteristics
Symbol
Parameter
T
C
= 25°C unless otherwise noted
Test Conditions
Min
Typ
Max
Units
Off Characteristics
BV
DSS
∆BV
DSS
/
∆T
J
I
DSS
I
GSSF
I
GSSR
Drain-Source Breakdown Voltage
Breakdown Voltage Temperature
Coefficient
Zero Gate Voltage Drain Current
Gate-Body Leakage Current, Forward
Gate-Body Leakage Current, Reverse
V
GS
= 0 V, I
D
= 250
µA
I
D
= 250
µA,
Referenced to 25°C
V
DS
= 100 V, V
GS
= 0 V
V
DS
= 80 V, T
C
= 150°C
V
GS
= 30 V, V
DS
= 0 V
V
GS
= -30 V, V
DS
= 0 V
100
--
--
--
--
--
--
0.1
--
--
--
--
--
--
1
10
100
-100
V
V/°C
µA
µA
nA
nA
On Characteristics
V
GS(th)
R
DS(on)
g
FS
Gate Threshold Voltage
Static Drain-Source
On-Resistance
Forward Transconductance
V
DS
= V
GS
, I
D
= 250
µA
V
GS
= 10 V, I
D
= 45 A
V
DS
= 40 V, I
D
= 45 A
(Note 4)
2.0
--
--
--
8.5
72
4.0
10
--
V
mΩ
S
Dynamic Characteristics
C
iss
C
oss
C
rss
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
V
DS
= 25 V, V
GS
= 0 V,
f = 1.0 MHz
--
--
--
4730
1180
300
6150
1530
390
pF
pF
pF
Switching Characteristics
t
d(on)
t
r
t
d(off)
t
f
Q
g
Q
gs
Q
gd
Turn-On Delay Time
Turn-On Rise Time
Turn-Off Delay Time
Turn-Off Fall Time
Total Gate Charge
Gate-Source Charge
Gate-Drain Charge
V
DS
= 80 V, I
D
= 90 A,
V
GS
= 10 V
(Note 4, 5)
V
DD
= 50 V, I
D
= 90 A,
R
G
= 25
Ω
(Note 4, 5)
--
--
--
--
--
--
--
52
492
304
355
147
28
60
114
994
618
720
191
--
--
ns
ns
ns
ns
nC
nC
nC
Drain-Source Diode Characteristics and Maximum Ratings
I
S
I
SM
V
SD
t
rr
Q
rr
Maximum Continuous Drain-Source Diode Forward Current
Maximum Pulsed Drain-Source Diode Forward Current
V
GS
= 0 V, I
S
= 90 A
Drain-Source Diode Forward Voltage
Reverse Recovery Time
Reverse Recovery Charge
V
GS
= 0 V, I
S
= 90 A,
dI
F
/ dt = 100 A/µs
(Note 4)
--
--
--
--
--
--
--
--
114
0.54
90
360
1.4
--
--
A
A
V
ns
µC
Notes:
1. Repetitive Rating : Pulse width limited by maximum junction temperature
2. L = 0.3mH, I
AS
= 90A, V
DD
= 50V, R
G
= 25
Ω,
Starting T
J
= 25°C
3. I
SD
≤
90A, di/dt
≤
200A/µs, V
DD
≤
BV
DSS,
Starting T
J
= 25°C
4. Pulse Test : Pulse width
≤
300µs, Duty cycle
≤
2%
5. Essentially independent of operating temperature
©2004 Fairchild Semiconductor Corporation
Rev. A1, April 2004
FQP90N10V2/FQPF90N10V2

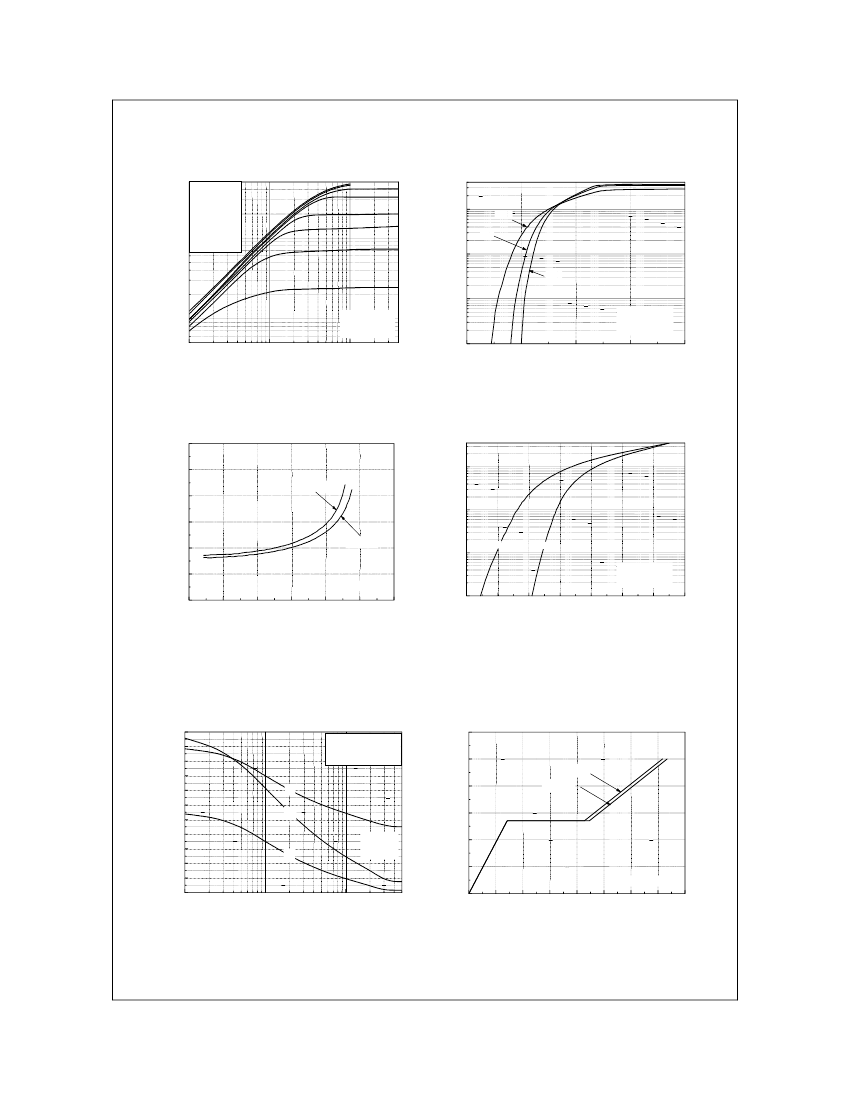

Typical Characteristics
V
GS
15.0 V
10.0 V
8.0 V
7.0 V
6.0 V
5.5 V
5.0 V
Bottom : 4.5 V
Top :
10
2
175
°
C
25
°
C
I
D
, Drain Current [A]
10
2
I
D
, Drain Current [A]
10
1
-55
°
C
10
0
10
1
Notes :
1. 250
µ
s Pulse Test
2. T
C
= 25
°
-1
Notes :
1. V
DS
= 40V
2. 250
µ
s Pulse Test
-1
10
10
0
10
1
10
2
4
6
8
10
V
DS
, Drain-Source Voltage [V]
V
GS
, Gate-Source Voltage [V]
Figure 1. On-Region Characteristics
Figure 2. Transfer Characteristics
30
R
DS(ON)
[m
Ω
],
Drain-Source On-Resistance
V
GS
= 10V
20
I
DR
, Reverse Drain Current [A]
25
10
2
10
1
15
10
V
GS
= 20V
175
°
C
10
0
25
°
C
Notes :
1. V
GS
= 0V
2. 250
µ
s Pulse Test
5
Note : T
J
= 25
°
0
0
100
200
300
400
500
600
10
-1
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
I
D
, Drain Current [A]
V
SD
, Source-Drain voltage [V]
Figure 3. On-Resistance Variation vs
Drain Current and Gate Voltage
Figure 4. Body Diode Forward Voltage
Variation with Source Current
and Temperature
11000
10000
9000
8000
C
iss
= C
gs
+ C
gd
(C
ds
= shorted)
C
oss
= C
ds
+ C
gd
C
rss
= C
gd
12
10
V
GS
, Gate-Source Voltage [V]
V
DS
= 50V
8
Capacitance [pF]
7000
6000
5000
4000
3000
2000
1000
0
-1
10
0
C
iss
C
oss
Notes ;
1. V
GS
= 0 V
V
DS
= 80V
6
4
C
rss
2. f = 1 MHz
2
Note : I
D
= 90A
10
10
1
0
0
20
40
60
80
100
120
140
160
V
DS
, Drain-Source Voltage [V]
Q
G
, Total Gate Charge [nC]
Figure 5. Capacitance Characteristics
Figure 6. Gate Charge Characteristics
©2004 Fairchild Semiconductor Corporation
Rev. A1, April 2004
FQP90N10V2/FQPF90N10V2
Typical Characteristics
(Continued)
1.2
3.0
BV
DSS
, (Normalized)
Drain-Source Breakdown Voltage
1.1
R
DS(ON)
, (Normalized)
Drain-Source On-Resistance
2.5
2.0
1.0
1.5
1.0
0.9
Notes :
1. V
GS
= 0 V
2. I
D
= 250
µ
A
0.5
Notes :
1. V
GS
= 10 V
2. I
D
= 45 A
0.8
-100
-50
0
50
100
150
200
0.0
-100
-50
0
50
100
150
200
T
J
, Junction Temperature [
°
C]
T
J
, Junction Temperature [
°
C]
Figure 7. Breakdown Voltage Variation
vs Temperature
Figure 8. On-Resistance Variation
vs Temperature

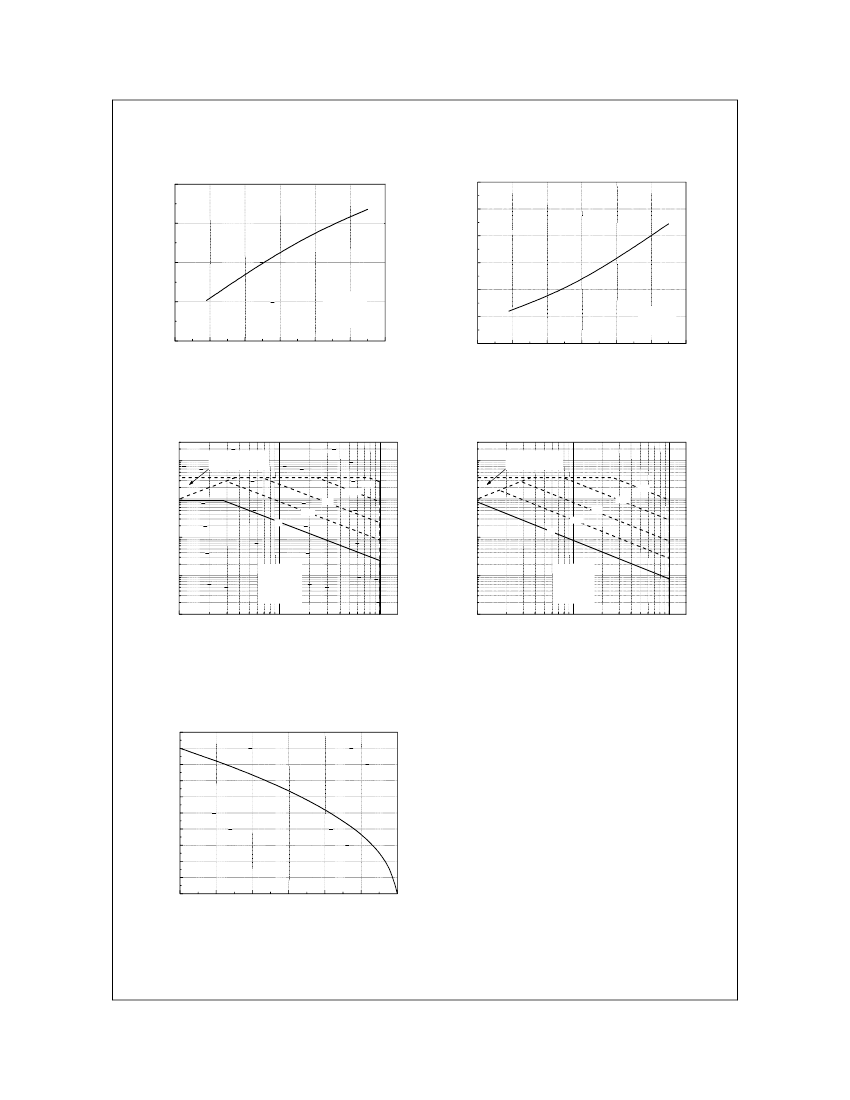

10
3
Operation in This Area
is Limited by R
DS(on)
10
µ
s
100
µ
s
1 ms
10 ms
DC
10
3
Operation in This Area
is Limited by R
DS(on)
I
D
, Drain Current [A]
10
2
I
D
, Drain Current [A]
10
µ
s
10
2
100
µ
s
1 ms
10 ms
DC
10
1
10
1
10
0
Notes :
1. T
C
= 25
°
C
2. T
J
= 175
°
C
3. Single Pulse
10
0
Notes :
1. T
C
= 25
°
C
2. T
J
= 175
°
C
3. Single Pulse
10
-1
10
0
10
1
10
2
10
-1
10
0
10
1
10
2
V
DS
, Drain-Source Voltage [V]
V
DS
, Drain-Source Voltage [V]
Figure 9-1. Maximum Safe Operating Area
for FQP90N10V2
Figure 9-2. Maximum Safe Operating Area
for FQPF90N10V2
100
90
80
I
D
, Drain Current [A]
70
60
50
40
30
20
10
0
25
50
75
100
125
150
175
T
C
, Case Temperature [
°
C]
Figure 10. Maximum Drain Current
vs Case Temperature
©2004 Fairchild Semiconductor Corporation
Rev. A1, April 2004
京公网安备 11010802033920号
EEWORLD
