BYS22-90 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BYS22-90

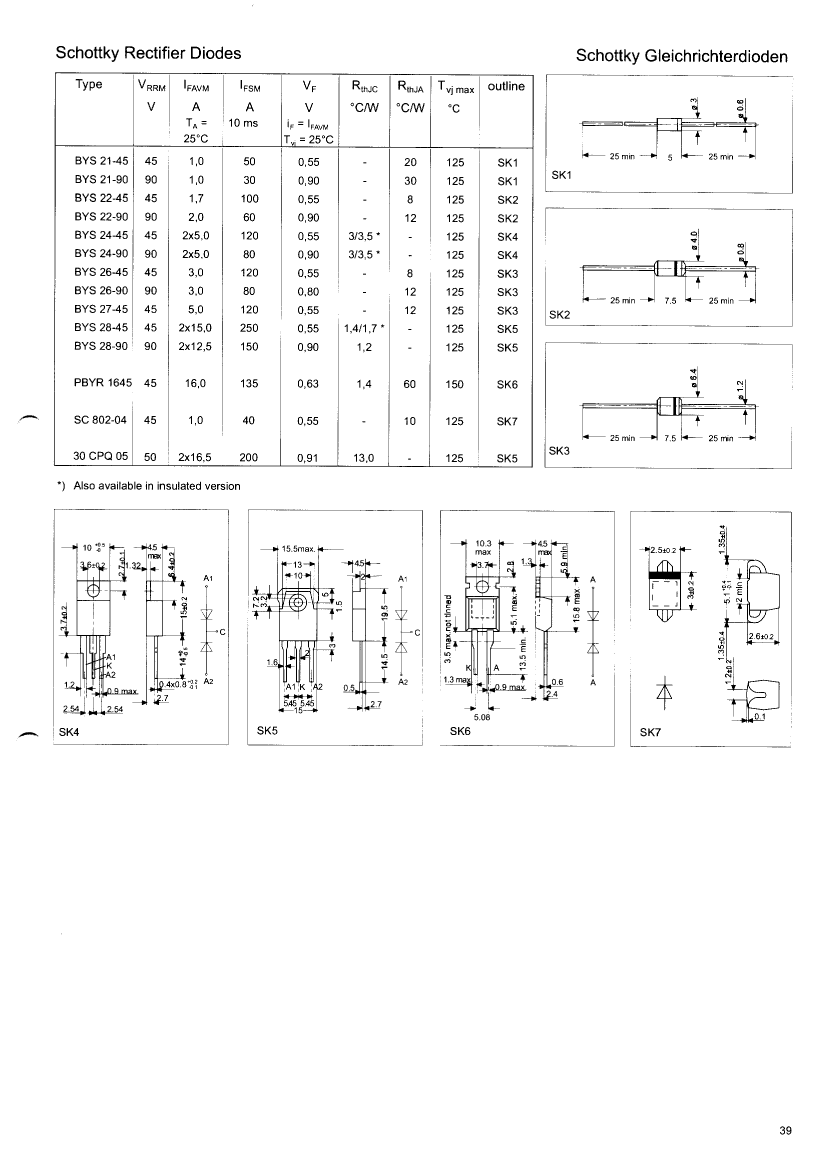

BYS22-90: DescriptionRectifier Diode, Schottky, 1 Phase, 1 Element, 2A, 90V V(RRM), Silicon, SK2, 2 PIN; CategoryDiscrete semiconductor diode; File Size37KB，1 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

BYS22-90 Overview

Rectifier Diode, Schottky, 1 Phase, 1 Element, 2A, 90V V(RRM), Silicon, SK2, 2 PIN

BYS22-90 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Infineon
package instruction	SK2, 2 PIN
Contacts	2
Reach Compliance Code	not_compliant
ECCN code	EAR99
application	GENERAL PURPOSE
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.9 V
JESD-30 code	O-XALF-W2
JESD-609 code	e0
Maximum non-repetitive peak forward current	60 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	125 °C
Maximum output current	2 A
Package body material	UNSPECIFIED
Package shape	ROUND
Package form	LONG FORM
Maximum repetitive peak reverse voltage	90 V
surface mount	NO
technology	SCHOTTKY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	AXIAL

Preview

Download Datasheet

View All

BYS22-90 Related Products

	BYS22-90	30CPQ05	BYS22-45	BYS28-90	BYS27-45	BYS21-90	BYS28-45	BYS26-90
Description	Rectifier Diode, Schottky, 1 Phase, 1 Element, 2A, 90V V(RRM), Silicon, SK2, 2 PIN	Rectifier Diode, Schottky, 1 Phase, 2 Element, 16.5A, 50V V(RRM), Silicon, SK5, 3 PIN	Rectifier Diode, Schottky, 1 Phase, 1 Element, 1.7A, 45V V(RRM), Silicon, SK2, 2 PIN	Rectifier Diode, Schottky, 1 Phase, 2 Element, 12.5A, 90V V(RRM), Silicon, SK5, 3 PIN	Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 45V V(RRM), Silicon, SK3, 2 PIN	Rectifier Diode, Schottky, 1 Element, 1A, 90V V(RRM),	Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 45V V(RRM), Silicon, SK5, 3 PIN	Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 90V V(RRM), Silicon, SK3, 2 PIN
Contacts	2	3	2	3	2	2	3	2
Reach Compliance Code	not_compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Configuration	SINGLE	COMMON CATHODE, 2 ELEMENTS	SINGLE	COMMON CATHODE, 2 ELEMENTS	SINGLE	SINGLE	COMMON CATHODE, 2 ELEMENTS	SINGLE
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.9 V	0.91 V	0.55 V	0.9 V	0.55 V	0.9 V	0.55 V	0.8 V
Maximum non-repetitive peak forward current	60 A	200 A	100 A	150 A	120 A	30 A	250 A	80 A
Number of components	1	2	1	2	1	1	2	1
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Maximum output current	2 A	16.5 A	1.7 A	12.5 A	5 A	1 A	15 A	3 A
Maximum repetitive peak reverse voltage	90 V	50 V	45 V	90 V	45 V	90 V	45 V	90 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Is it Rohs certified?	incompatible	-	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Infineon	Infineon	-	Infineon	Infineon	Infineon	Infineon	Infineon
package instruction	SK2, 2 PIN	SK5, 3 PIN	SK2, 2 PIN	SK5, 3 PIN	SK3, 2 PIN	-	SK5, 3 PIN	SK3, 2 PIN
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	-	SILICON	SILICON
JESD-30 code	O-XALF-W2	R-PSFM-T3	O-XALF-W2	R-PSFM-T3	O-XALF-W2	-	R-PSFM-T3	O-XALF-W2
JESD-609 code	e0	-	e0	e0	e0	e0	e0	e0
Phase	1	1	1	1	1	-	1	1
Number of terminals	2	3	2	3	2	-	3	2
Package body material	UNSPECIFIED	PLASTIC/EPOXY	UNSPECIFIED	PLASTIC/EPOXY	UNSPECIFIED	-	PLASTIC/EPOXY	UNSPECIFIED
Package shape	ROUND	RECTANGULAR	ROUND	RECTANGULAR	ROUND	-	RECTANGULAR	ROUND
Package form	LONG FORM	FLANGE MOUNT	LONG FORM	FLANGE MOUNT	LONG FORM	-	FLANGE MOUNT	LONG FORM
Terminal surface	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	WIRE	THROUGH-HOLE	WIRE	THROUGH-HOLE	WIRE	-	THROUGH-HOLE	WIRE
Terminal location	AXIAL	SINGLE	AXIAL	SINGLE	AXIAL	-	SINGLE	AXIAL
