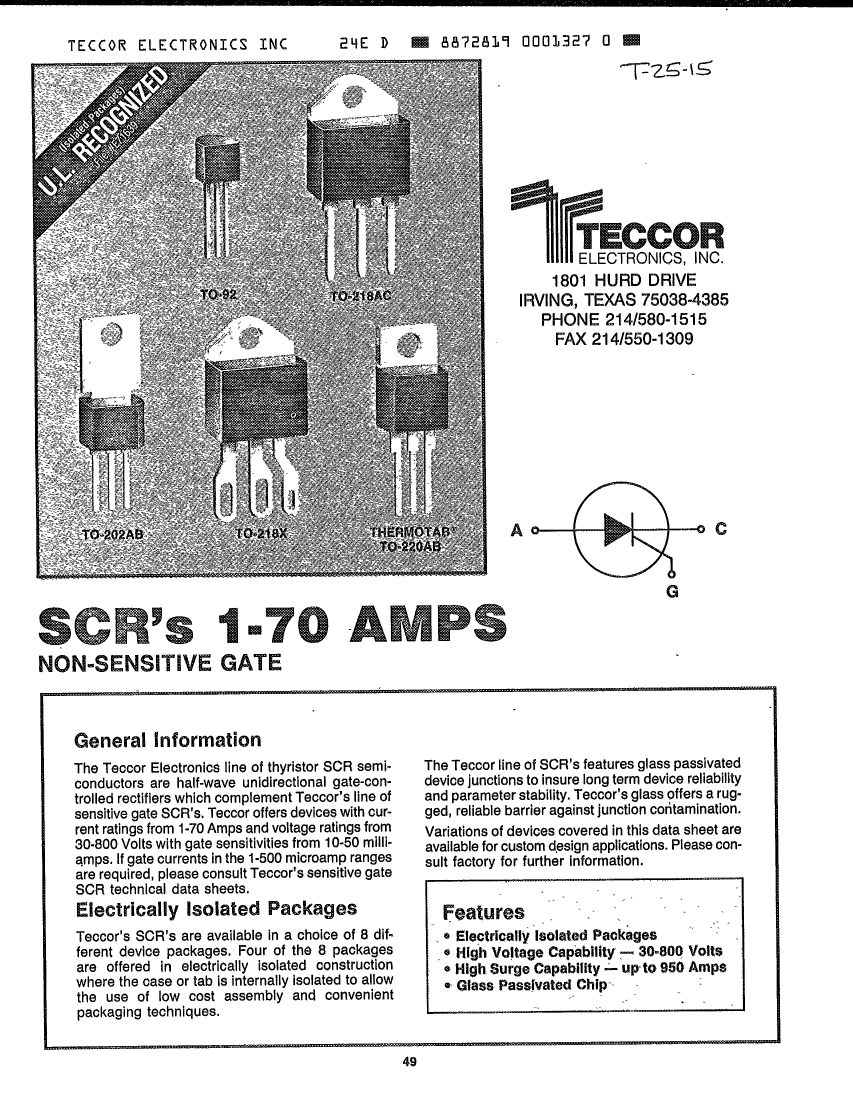

Silicon Controlled Rectifier, 35A I(T)RMS, 35000mA I(T), 800V V(DRM), 800V V(RRM), 1 Element, TO-218X, 3 PIN

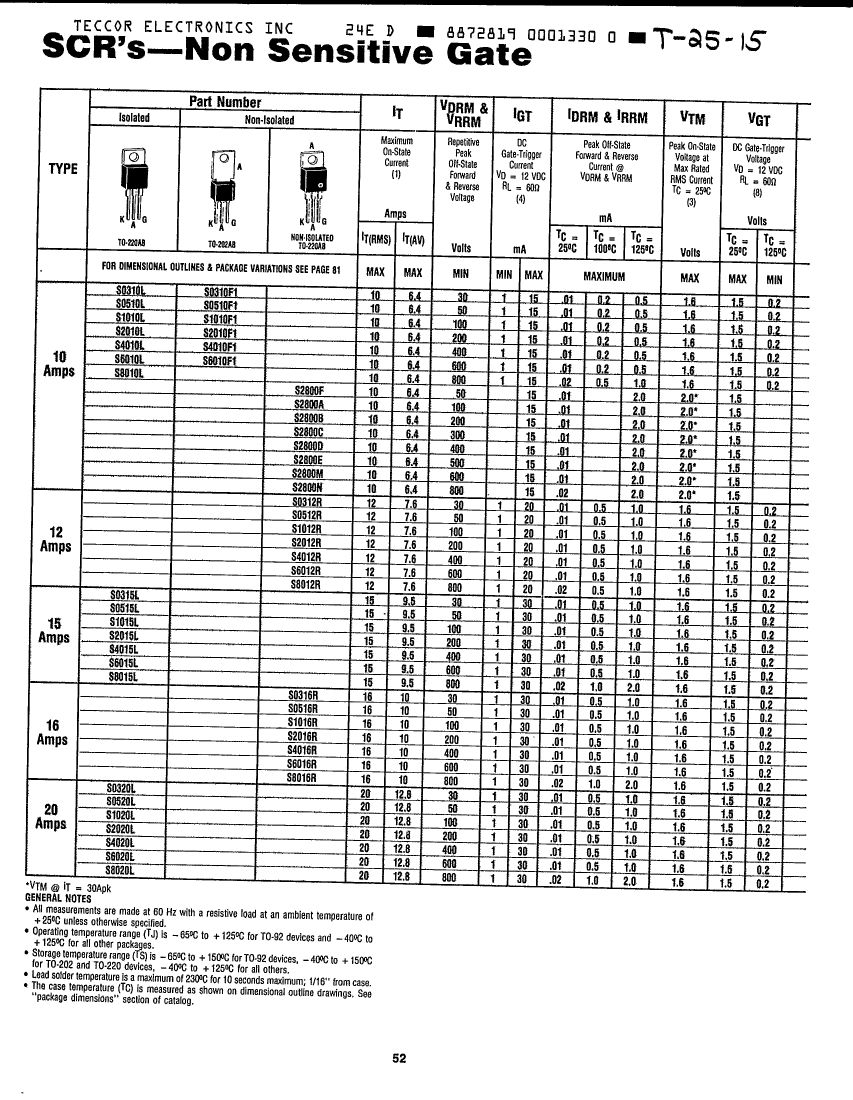

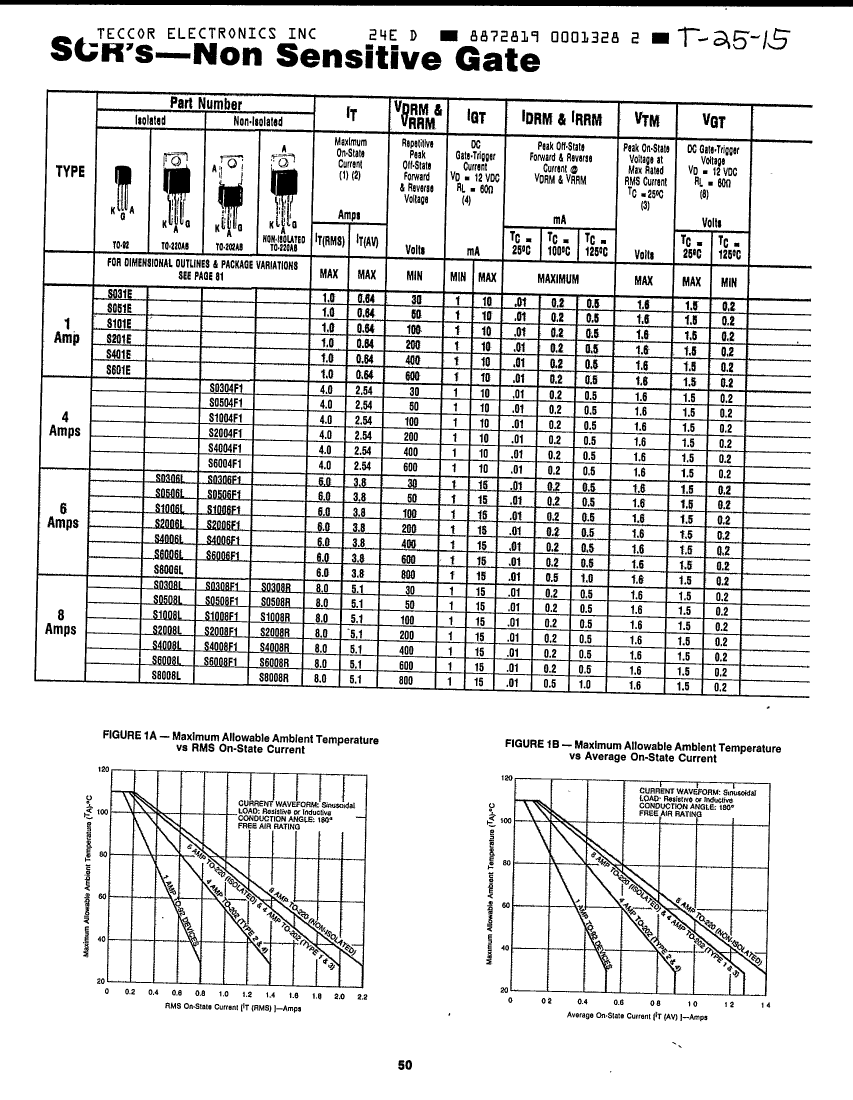

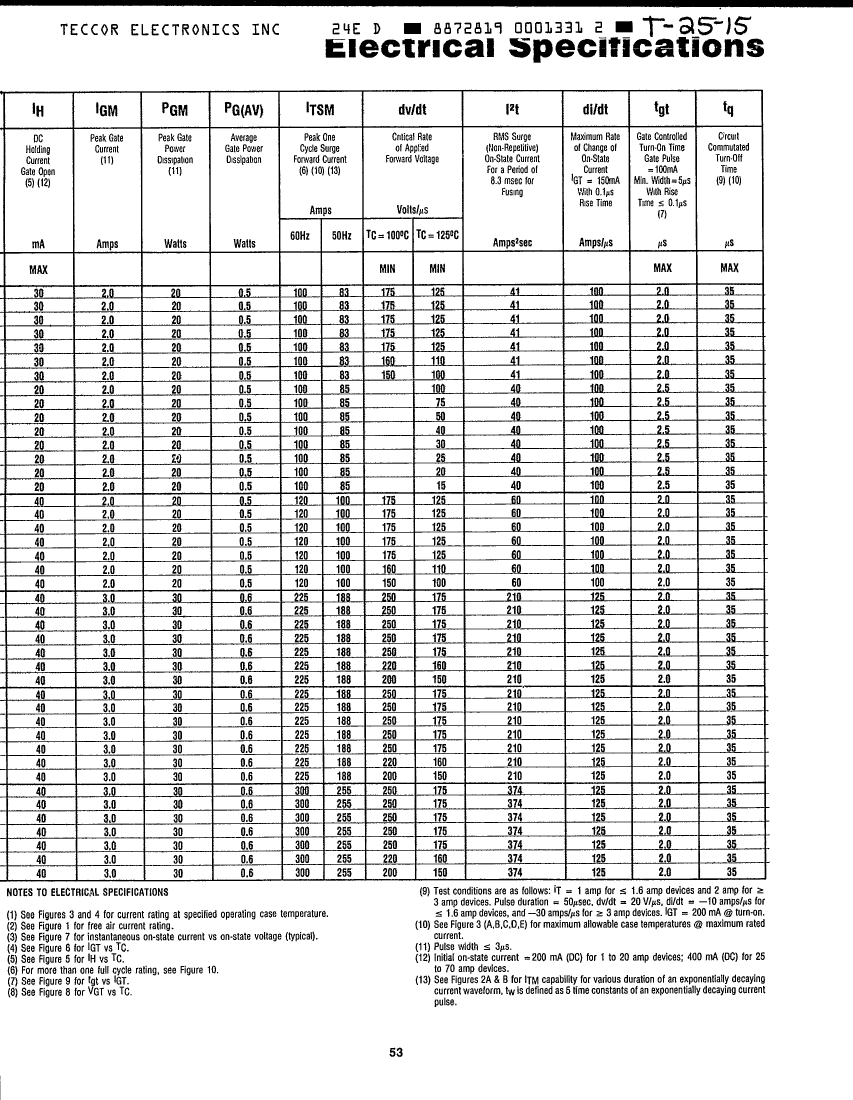

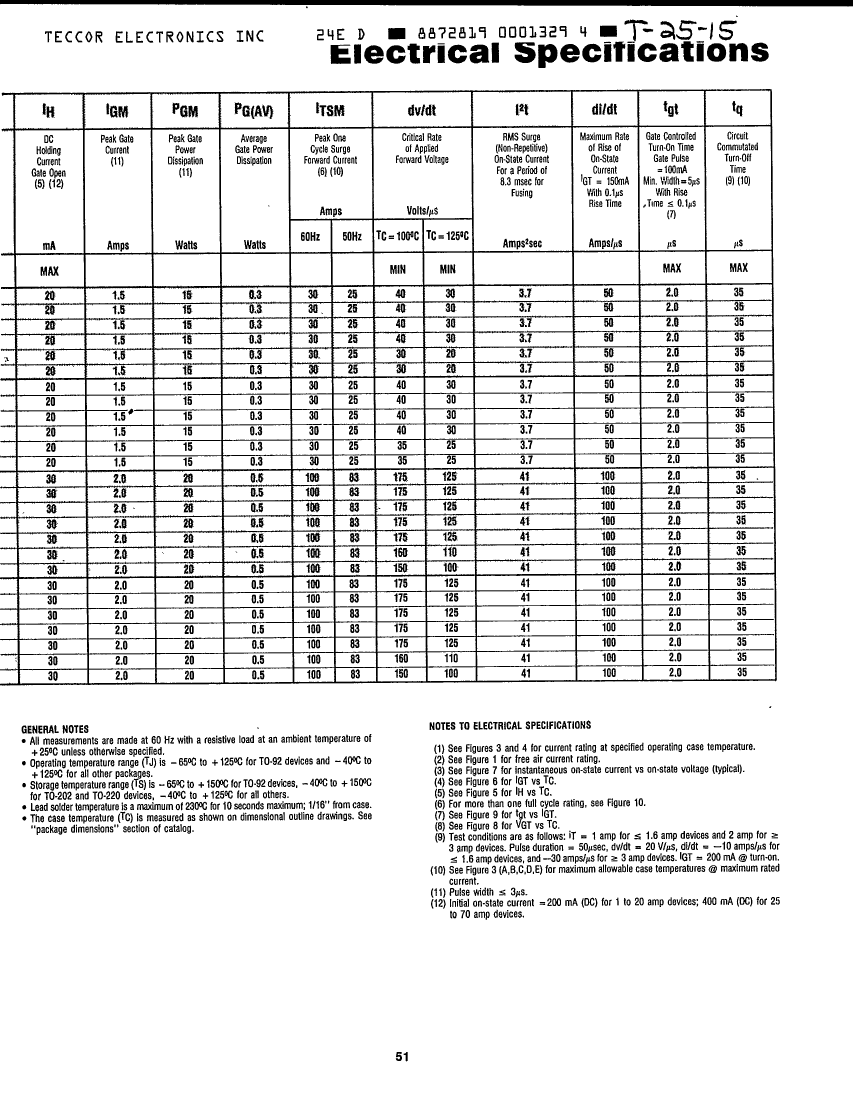

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Teccor Electronics |
| Parts packaging code | TO-218 |
| package instruction | FLANGE MOUNT, R-PSFM-D3 |
| Contacts | 3 |
| Reach Compliance Code | unknown |
| Shell connection | ANODE |
| Nominal circuit commutation break time | 35 µs |
| Configuration | SINGLE |
| Critical rise rate of minimum off-state voltage | 200 V/us |
| Maximum DC gate trigger current | 40 mA |
| Maximum DC gate trigger voltage | 1.5 V |
| Maximum holding current | 50 mA |
| JESD-30 code | R-PSFM-D3 |
| JESD-609 code | e0 |
| Maximum leakage current | 1.5 mA |
| On-state non-repetitive peak current | 500 A |
| Number of components | 1 |
| Number of terminals | 3 |
| Maximum on-state current | 35000 A |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -40 °C |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | FLANGE MOUNT |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Not Qualified |
| Maximum rms on-state current | 35 A |
| Maximum repetitive peak off-state leakage current | 20 µA |
| Off-state repetitive peak voltage | 800 V |
| Repeated peak reverse voltage | 800 V |
| surface mount | NO |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | SOLDER LUG |
| Terminal location | SINGLE |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Trigger device type | SCR |
| S8035W | S1055M | S1065K | |
|---|---|---|---|
| Description | Silicon Controlled Rectifier, 35A I(T)RMS, 35000mA I(T), 800V V(DRM), 800V V(RRM), 1 Element, TO-218X, 3 PIN | Silicon Controlled Rectifier, 55A I(T)RMS, 55000mA I(T), 100V V(DRM), 100V V(RRM), 1 Element, TO-218AC | Silicon Controlled Rectifier, 65A I(T)RMS, 65000mA I(T), 100V V(DRM), 100V V(RRM), 1 Element, TO-218AC |
| Is it Rohs certified? | incompatible | incompatible | incompatible |
| package instruction | FLANGE MOUNT, R-PSFM-D3 | FLANGE MOUNT, R-PSFM-T3 | FLANGE MOUNT, R-PSFM-T3 |
| Reach Compliance Code | unknown | unknown | unknown |
| Shell connection | ANODE | ANODE | ISOLATED |
| Nominal circuit commutation break time | 35 µs | 35 µs | 35 µs |
| Configuration | SINGLE | SINGLE | SINGLE |
| Critical rise rate of minimum off-state voltage | 200 V/us | 425 V/us | 425 V/us |
| Maximum DC gate trigger current | 40 mA | 40 mA | 50 mA |
| Maximum DC gate trigger voltage | 1.5 V | 1.5 V | 2 V |
| Maximum holding current | 50 mA | 60 mA | 80 mA |
| JESD-30 code | R-PSFM-D3 | R-PSFM-T3 | R-PSFM-T3 |
| JESD-609 code | e0 | e0 | e0 |
| Maximum leakage current | 1.5 mA | 1 mA | 1.5 mA |
| On-state non-repetitive peak current | 500 A | 650 A | 950 A |
| Number of components | 1 | 1 | 1 |
| Number of terminals | 3 | 3 | 3 |
| Maximum on-state current | 35000 A | 55000 A | 65000 A |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT |
| Certification status | Not Qualified | Not Qualified | Not Qualified |
| Maximum rms on-state current | 35 A | 55 A | 65 A |
| Maximum repetitive peak off-state leakage current | 20 µA | 10 µA | 20 µA |
| Off-state repetitive peak voltage | 800 V | 100 V | 100 V |
| Repeated peak reverse voltage | 800 V | 100 V | 100 V |
| surface mount | NO | NO | NO |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | SOLDER LUG | THROUGH-HOLE | THROUGH-HOLE |
| Terminal location | SINGLE | SINGLE | SINGLE |
| Trigger device type | SCR | SCR | SCR |
| ECCN code | - | EAR99 | EAR99 |
| JEDEC-95 code | - | TO-218AC | TO-218AC |
| Base Number Matches | - | 1 | 1 |
