P74FCT3373A{QSOP} datasheet, PDF

Datasheet> All Categories > logic> logic> P74FCT3373A{QSOP}

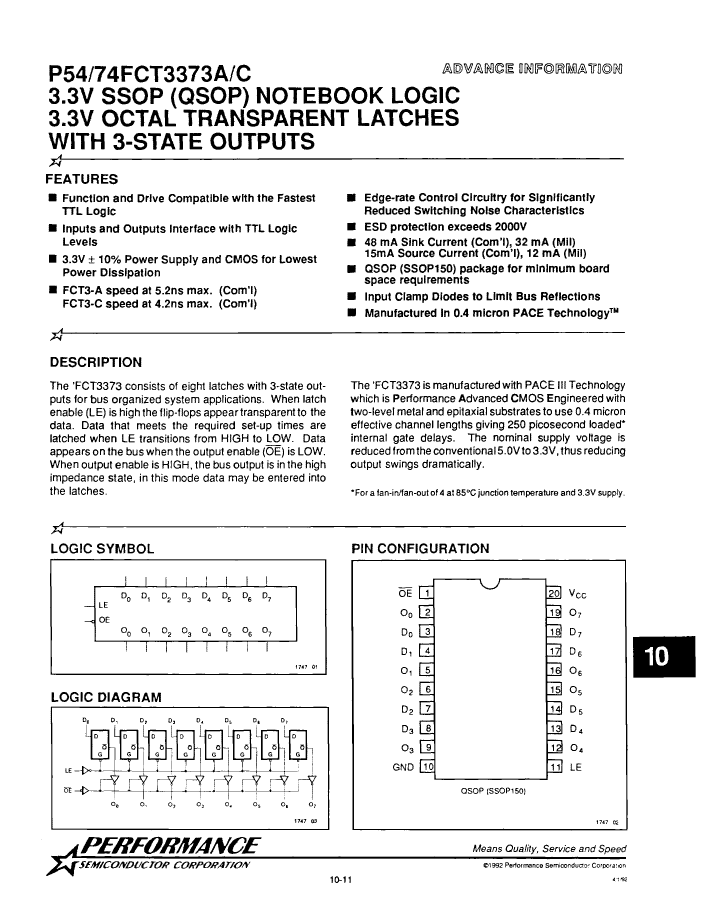

P74FCT3373A{QSOP}: DescriptionBus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20, 0.150 INCH, QSOP-20; Categorylogic logic; File Size47KB，2 Pages; ManufacturerPyramid Semiconductor Corporation; Websitehttp://www.pyramidsemiconductor.com/

Download Datasheet Parametric Compare View All

P74FCT3373A{QSOP} Overview

Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20, 0.150 INCH, QSOP-20

P74FCT3373A{QSOP} Parametric

Parameter Name	Attribute value
Maker	Pyramid Semiconductor Corporation
Parts packaging code	QSOP
package instruction	SSOP,
Contacts	20
Reach Compliance Code	unknown
series	FCT
JESD-30 code	R-PDSO-G20
length	8.65 mm
Logic integrated circuit type	BUS DRIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
width	3.9 mm

Preview

Download Datasheet

View All

P74FCT3373A{QSOP} Related Products

	P74FCT3373A{QSOP}	P54FCT3373A(QSOP)	P54FCT3373A{QSOP}	P54FCT3373C{QSOP}	P74FCT3373C{QSOP}
Description	Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20, 0.150 INCH, QSOP-20	Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20, 0.150 INCH, QSOP-20	Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20, 0.150 INCH, QSOP-20	Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20, 0.150 INCH, QSOP-20	Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20, 0.150 INCH, QSOP-20
Maker	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation
package instruction	SSOP,	SSOP,	SSOP,	SSOP,	SSOP,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
series	FCT	FCT	FCT	FCT	FCT
JESD-30 code	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20
length	8.65 mm	8.65 mm	8.65 mm	8.65 mm	8.65 mm
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	8	8	8	8	8
Number of functions	1	1	1	1	1
Number of ports	2	2	2	2	2
Number of terminals	20	20	20	20	20
Maximum operating temperature	70 °C	125 °C	125 °C	125 °C	70 °C
Minimum operating temperature	-	-55 °C	-55 °C	-55 °C	-
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	SSOP	SSOP	SSOP	SSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	1.75 mm	1.75 mm	1.75 mm	1.75 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	MILITARY	MILITARY	MILITARY	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.635 mm	0.635 mm	0.635 mm	0.635 mm	0.635 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
width	3.9 mm	3.9 mm	3.9 mm	3.9 mm	3.9 mm
Parts packaging code	QSOP	-	QSOP	QSOP	QSOP
Contacts	20	-	20	20	20
