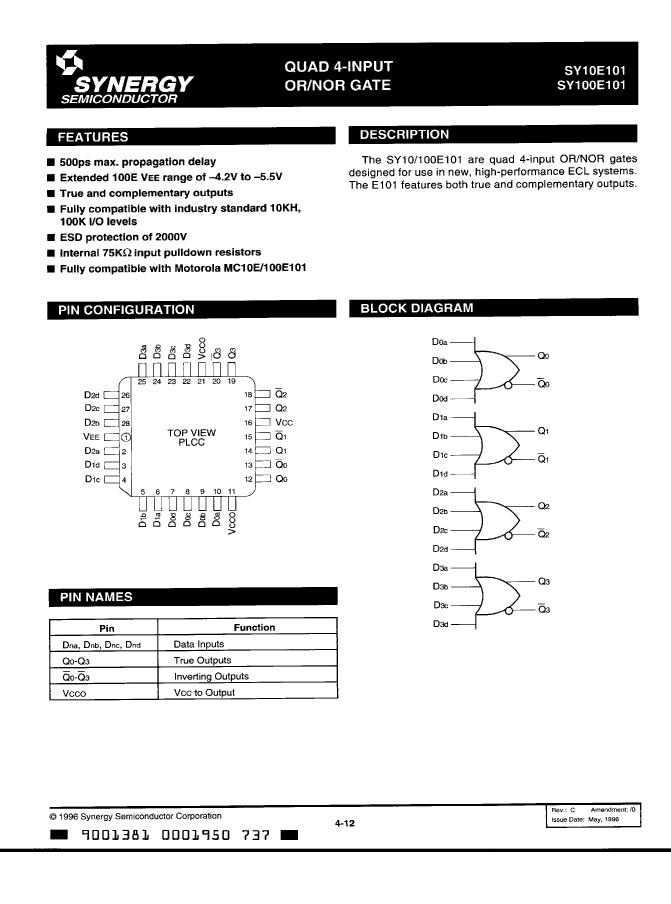

OR/NOR Gate, 100E Series, 4-Func, 4-Input, ECL, PQCC28,

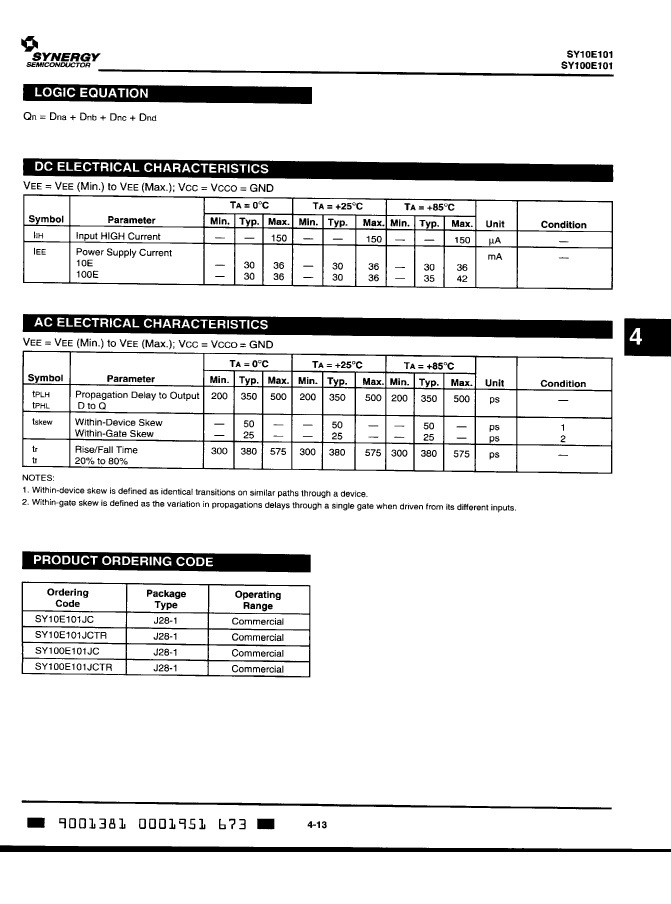

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Synergy Semiconductor Corp |
| Reach Compliance Code | unknown |
| series | 100E |
| JESD-30 code | S-PQCC-J28 |
| JESD-609 code | e0 |
| Logic integrated circuit type | OR/NOR GATE |
| Number of functions | 4 |
| Number of entries | 4 |
| Number of terminals | 28 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | |
| Output characteristics | OPEN-EMITTER |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | QCCJ |
| Encapsulate equivalent code | LDCC28,.5SQ |
| Package shape | SQUARE |
| Package form | CHIP CARRIER |
| power supply | -4.5 V |
| Maximum supply current (ICC) | 42 mA |
| Prop。Delay @ Nom-Sup | 0.5 ns |
| propagation delay (tpd) | 0.5 ns |
| Certification status | Not Qualified |
| Schmitt trigger | NO |
| surface mount | YES |
| technology | ECL |
| Temperature level | OTHER |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | J BEND |
| Terminal pitch | 1.27 mm |
| Terminal location | QUAD |
| SY100E101JC | SY10E101JC | SY10E101JCTR | SY100E101JCTR | |
|---|---|---|---|---|
| Description | OR/NOR Gate, 100E Series, 4-Func, 4-Input, ECL, PQCC28, | OR/NOR Gate, 10E Series, 4-Func, 4-Input, ECL, PQCC28, | OR/NOR Gate, 10E Series, 4-Func, 4-Input, ECL, PQCC28, | OR/NOR Gate, 100E Series, 4-Func, 4-Input, ECL, PQCC28, |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible |
| Maker | Synergy Semiconductor Corp | Synergy Semiconductor Corp | Synergy Semiconductor Corp | Synergy Semiconductor Corp |
| Reach Compliance Code | unknown | unknown | unknown | unknown |
| series | 100E | 10E | 10E | 100E |
| JESD-30 code | S-PQCC-J28 | S-PQCC-J28 | S-PQCC-J28 | S-PQCC-J28 |
| JESD-609 code | e0 | e0 | e0 | e0 |
| Logic integrated circuit type | OR/NOR GATE | OR/NOR GATE | OR/NOR GATE | OR/NOR GATE |
| Number of functions | 4 | 4 | 4 | 4 |
| Number of entries | 4 | 4 | 4 | 4 |
| Number of terminals | 28 | 28 | 28 | 28 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C | 85 °C |
| Output characteristics | OPEN-EMITTER | OPEN-EMITTER | OPEN-EMITTER | OPEN-EMITTER |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | QCCJ | QCCJ | QCCJ | QCCJ |
| Encapsulate equivalent code | LDCC28,.5SQ | LDCC28,.5SQ | LDCC28,.5SQ | LDCC28,.5SQ |
| Package shape | SQUARE | SQUARE | SQUARE | SQUARE |
| Package form | CHIP CARRIER | CHIP CARRIER | CHIP CARRIER | CHIP CARRIER |
| power supply | -4.5 V | -5.2 V | -5.2 V | -4.5 V |
| Maximum supply current (ICC) | 42 mA | 36 mA | 36 mA | 42 mA |
| Prop。Delay @ Nom-Sup | 0.5 ns | 0.5 ns | 0.5 ns | 0.5 ns |
| propagation delay (tpd) | 0.5 ns | 0.5 ns | 0.5 ns | 0.5 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Schmitt trigger | NO | NO | NO | NO |
| surface mount | YES | YES | YES | YES |
| technology | ECL | ECL | ECL | ECL |
| Temperature level | OTHER | OTHER | OTHER | OTHER |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | J BEND | J BEND | J BEND | J BEND |
| Terminal pitch | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm |
| Terminal location | QUAD | QUAD | QUAD | QUAD |
