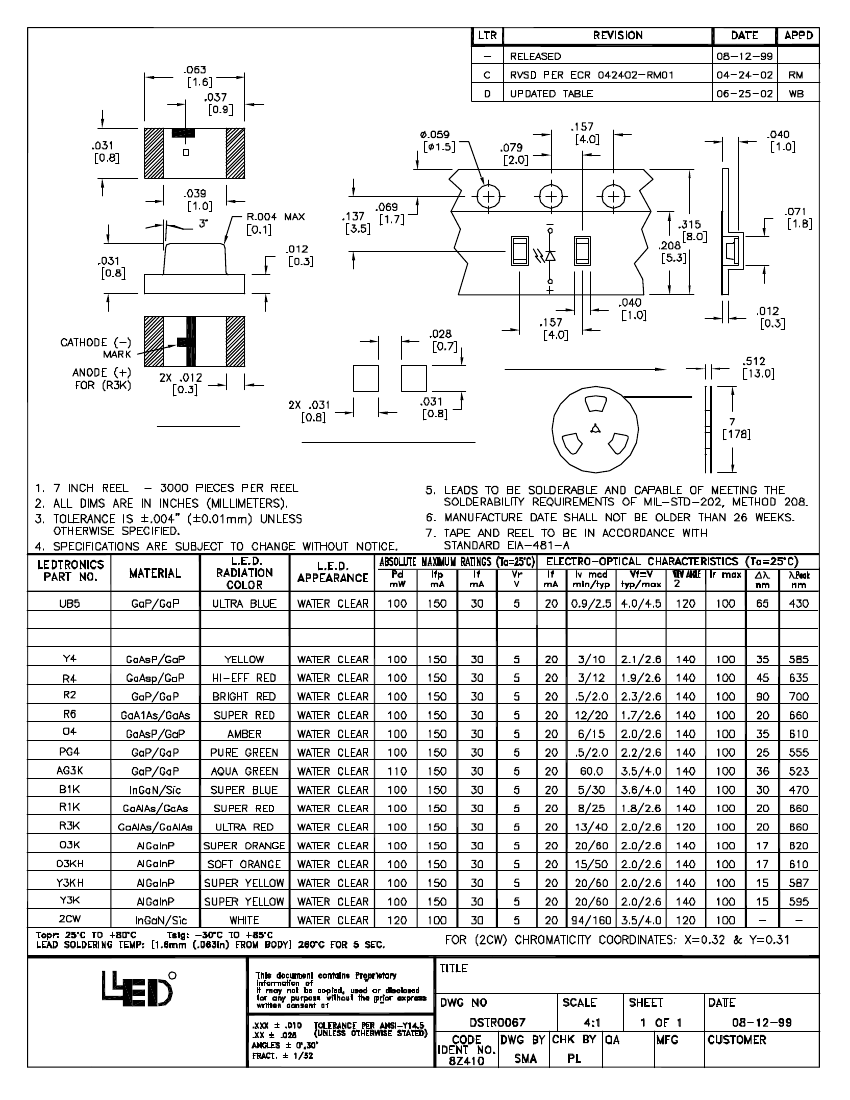

SML0603-Y4: DescriptionSingle Color LED, Yellow, Water Clear, 1mm,; CategoryLED optoelectronic/LED photoelectric; File Size187KB，1 Pages; ManufacturerLEDtronics; Websitehttp://ledtronics.com.my

Download Datasheet Parametric Compare View All

SML0603-Y4 Overview

Single Color LED, Yellow, Water Clear, 1mm,

Parameter Name	Attribute value
Maker	LEDtronics
Reach Compliance Code	unknown
color	YELLOW
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	10.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	80 °C
Minimum operating temperature	25 °C
Optoelectronic device types	SINGLE COLOR LED
total height	0.8 mm
method of packing	TAPE AND REEL 7\"
peak wavelength	585 nm
shape	RECTANGULAR
size	1 mm
surface mount	YES
Terminal pitch	1.5 mm
perspective	140 deg

USER DIRECTION OF FEED

SCALE 8:1

NOTES:

SUGGESTED PAD LAYOUT

θ1/2

µΑ

R

-PROPRIETARY-

LEDTRONICS, INC.

SML0603-XXXX (0603 PROFILE)

LEDTRONICS, INC.

23105 KASHIWA COURT

TORRANCE, CA 90505

TM

	SML0603-Y4	SML0603-R6	SML0603-AG3K	SML0603-O3KH	SML0603-PG4
Description	Single Color LED, Yellow, Water Clear, 1mm,	Single Color LED, Super Red, Water Clear, 1mm,	Single Color LED, Aqua Green, Water Clear, 1mm,	Single Color LED, Soft Orange, Water Clear, 1mm,	Single Color LED, Pure Green, Water Clear, 1mm,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
color	YELLOW	SUPER RED	AQUA GREEN	SOFT ORANGE	PURE GREEN
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A
Lens type	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR
Nominal luminous intensity	10.0 mcd	20.0 mcd	60.0 mcd	50.0 mcd	2.0 mcd
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1	1
Number of terminals	2	2	2	2	2
Maximum operating temperature	80 °C	80 °C	80 °C	80 °C	80 °C
Minimum operating temperature	25 °C	25 °C	25 °C	25 °C	25 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm
method of packing	TAPE AND REEL 7\"	TAPE AND REEL 7"	TAPE AND REEL 7\"	TAPE AND REEL 7\"	TAPE AND REEL 7\"
peak wavelength	585 nm	660 nm	523 nm	610 nm	555 nm
shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
size	1 mm	1 mm	1 mm	1 mm	1 mm
surface mount	YES	YES	YES	YES	YES
Terminal pitch	1.5 mm	1.5 mm	1.5 mm	1.5 mm	1.5 mm
perspective	140 deg	140 deg	140 deg	140 deg	140 deg
Maker	LEDtronics	-	LEDtronics	LEDtronics	LEDtronics
