COMPONENTS PRODUCT INFORMATION
NEW

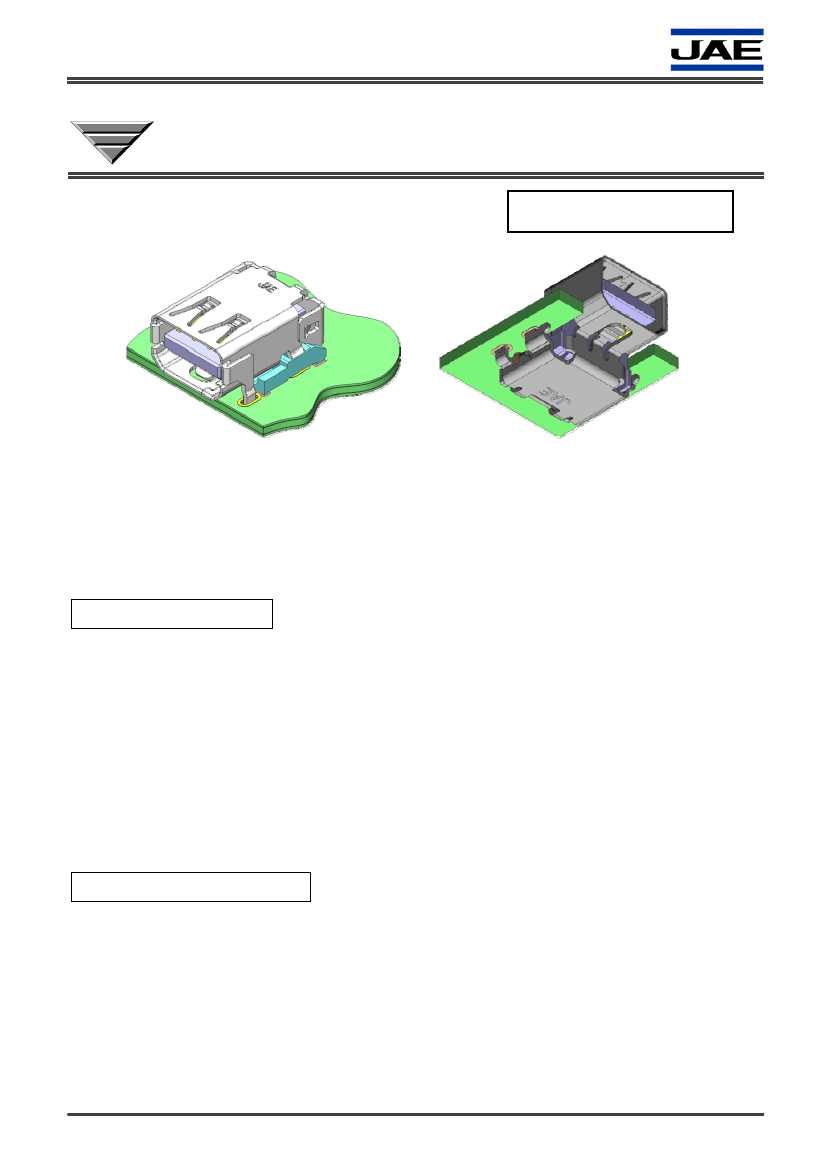

Thunderbolt Compatible Connector
CONNECTOR
MB-0248-1
June 2012
DP3 Series
RoHS Compliant

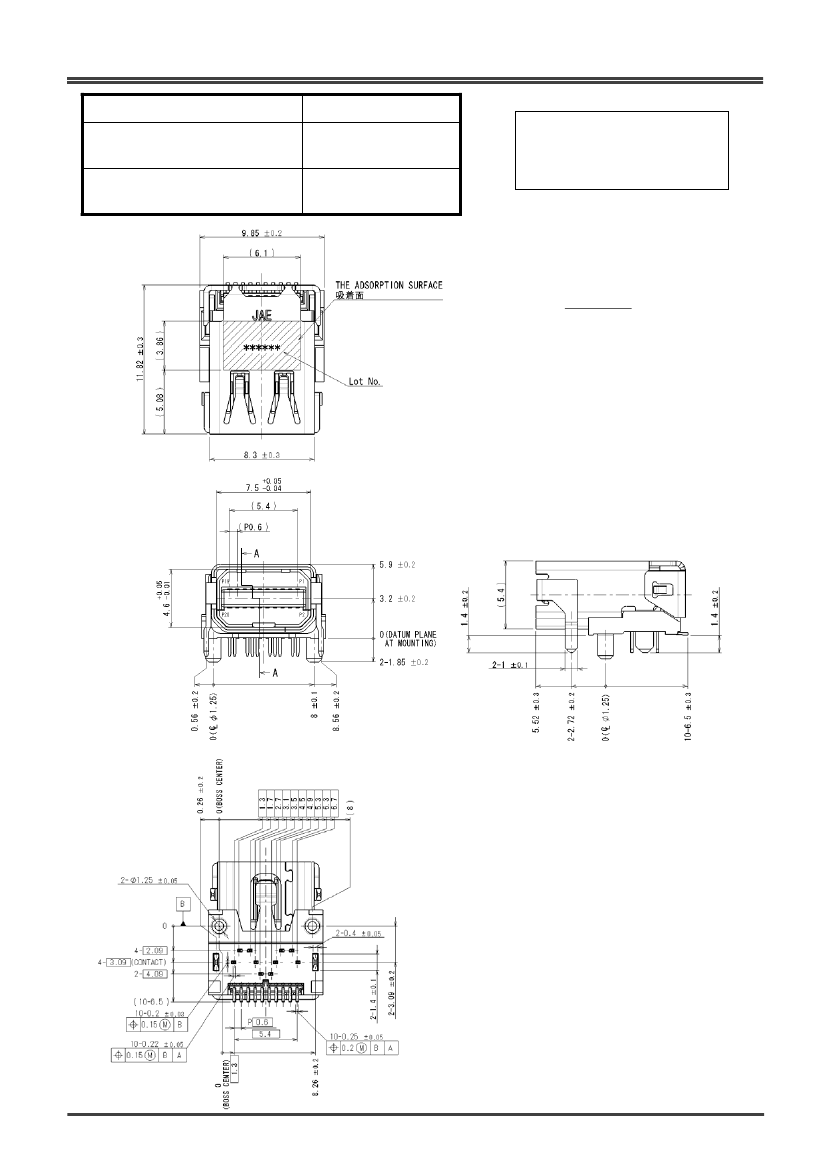

On-board Standard

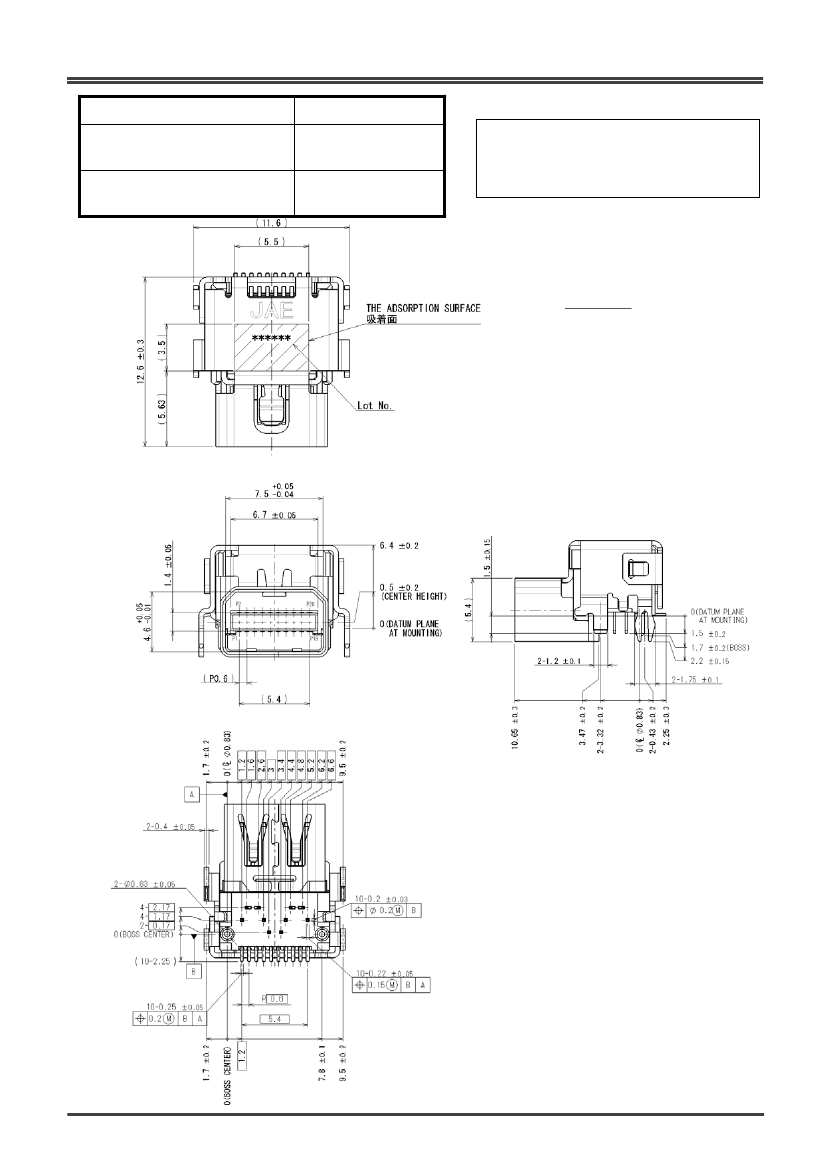

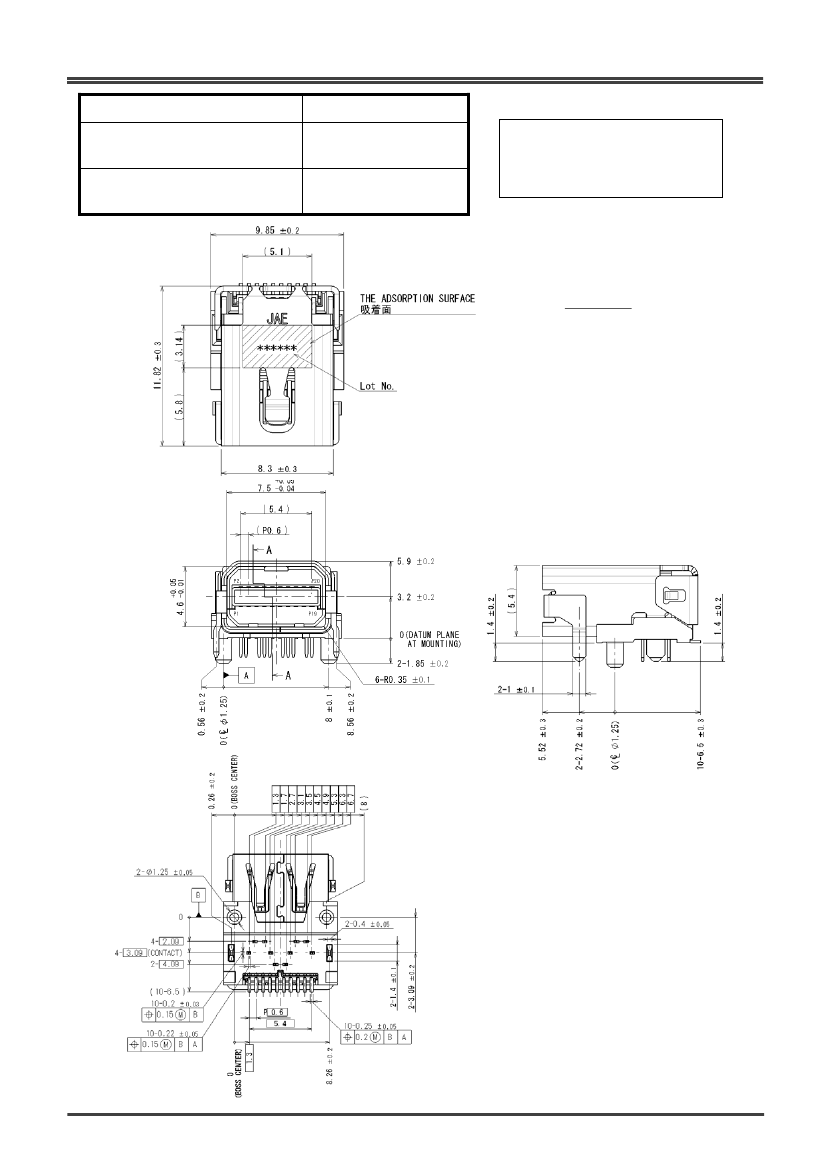

Reverse Sunk-into-the-board
The DP3 Series has been developed as an I/O connector compatible with Thunderbolt
TM
Technology for high-speed transmission between PCs and peripheral devices.
*Thunderbolt is a trademark of Intel in the US and other countries.
Features
10Gbps
high-speed transmission connector for Thunderbolt.
Available
in standard and reverse mounting, sunk-into-the-board type is also available.
Enhanced
board mounting strength with through-hole hold-downs on the metal shell.
Friction
lock with the metal shell enhances cable plug retention strength and creates a
clear click feeling when mated.
Connector
is supplied in embossed reel.
General Information
■No.
of Contacts: 20
■Contact
Resistance: 100m
max.
■Dielectric
Withstanding Voltage:
AC300Vr.m.s per 1 minute
■Operating
Temperature:
-20 Deg. C to +85 Deg. C
■Rated
Current: 0.5A (signal pin)
■Insulation
Resistance: 10M min.
■Durability:
10,000 mating cycles
JAE PMK Div. Proprietary. Copyright © 2012, Japan Aviation Electronics Industry, Ltd.
1/7
MB-0248-1
Materials / Finishes
Component
Contact
Housing
Shell
Material / Finish
Copper alloy / 0.3 Au plating over Ni (contact area)
Sn plating over Ni (terminal area)
Glass filled LCP / None
Stainless steel / Ni
Ordering Information
DP3 R 020 S U32 J Q 1 R****
Emboss Reel
Number of pieces per reel
Through-hole Terminal Length
None: 1.4mm
1: 2.1 mm
Plating
Q: 0.3m Au plating
J: Angle type
Distance from Mounting Surface to Center Line of Mating Interface
U32: 3.2mm upward from mating surface
L05: 0.5mm downward from mating surface
Mounting Direction
S: Standard mounting
R: Reverse mounting
No. of Contacts
R: Receptacle
Series
JAE PMK Div. Proprietary. Copyright © 2012, Japan Aviation Electronics Industry, Ltd.
2/7
