P8228T Overview

Current Sense Transformer, 10A, 1:100

P8228T Parametric

Parameter Name	Attribute value
Maker	Pulse Electronics
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LENGHT DIMENSION INCLUDES TERMINAL ALSO
high	4.83 mm
length	8.38 mm
Manufacturer's serial number	P8228
Installation features	SURFACE MOUNT
Maximum operating frequency	1000 kHz
Minimum operating frequency	50 kHz
Maximum operating temperature	130 °C
Minimum operating temperature	-40 °C
method of packing	TAPE & REEL
Peak primary current	10 A
physical size	L8.38XB7.21XH4.83 (mm)
primary type	WOUND PRIMARY
secondary inductance	2000 µH
surface mount	YES
Transformer type	CURRENT SENSE TRANSFORMER
Turns ratio (Np:Ns)	1:100
width	7.21 mm

Preview

Download Datasheet

View All

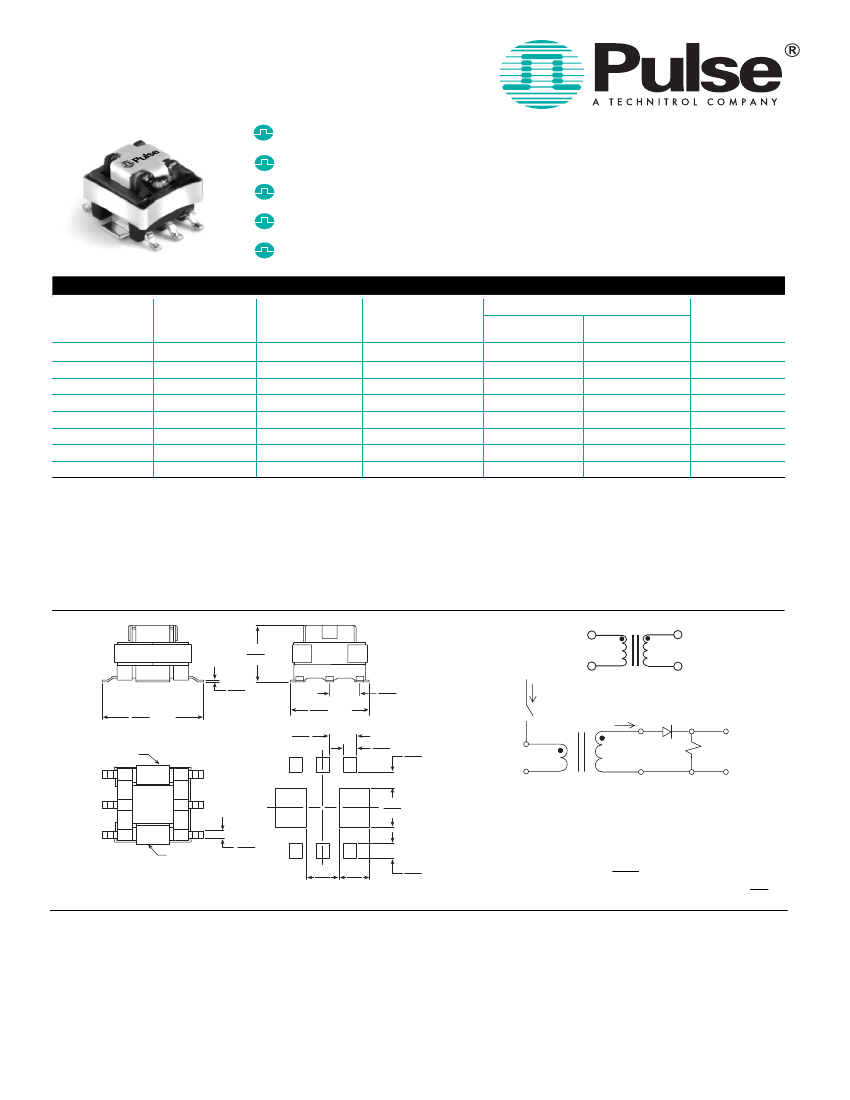

SMT CURRENT SENSE

TRANSFORMERS

P822X Series

Height:

5.1mm Max

Footprint:

8.4mm x 7.2mm Max

Current Rating:

up to 10A

Frequency Range:

50kHz to 1MHz

Reverse Polarity version of P820X

Electrical Specifications @ 25°C — Operating Temperature -40°C to +130°C

Part

Number

P8222

P8223

P8224

P8225

P8226

P8227

P8228

P8229

Turns

Ratio

1:20

1:30

1:40

1:50

1:60

1:70

1:100

1:125

Current

Rating

(A)

Secondary

Inductance

(mH MIN)

0.08

0.18

0.32

0.50

0.72

0.98

2.00

3.00

DCR

(mΩ MAX)

Primary

Secondary

(8-7)

(6-4)

550

870

1140

1500

1750

4750

5500

6500

Hipot

RMS

)

500

NOTES:

1. The temperature of the component (ambient temperature plus temper-

ature rise) must be within the specified operating temperature range.

2.The maximum current rating is based upon temperature rise of the

component and represents the DC current which will cause a typical

temperature rise of 40°C with no airflow when both one turn windings

connected in parallel.

3. To calculate the value of the terminating resistor (Rt) use the following

formula: Rt (Ω) = Vref * N / (Ipeak_primary)

4. The peak flux density of the device must remain below 2000 Gauss. To

calculate the peak flux density for uni-polar current use following formula:

Bpk = 37.59 * Vref * (Duty_Cycle_Max) * 10

/ ( N * Freq_kHz)

* for bi-polar current applications divide Bpk as calculated above by 2.

5. Add “T” suffix to the part number for Tape & Reel packaging, (i.e. P8222T).

Mechanical

.190

4,83 NOM

.010

0,25

.330

8,38 MAX

Pin 8

Pin 7

BOTTOM VIEW

.024

0,61

.106

2,69

.100

2,54

.060

1,52

.120

RECOMMENDED

3,05

PAD LAYOUT

.073

1,85 NOM

Schematic

Iprimary

Isecondary

.050

1,27

.050

1,27

.284

7,21 MAX

.073

1,85

Vref

APPLICATION CIRCUIT

Weight

. . . . . . . . . . . . . .0.34 grams

Tray

. . . . . . . . . . . . . . . . . .120/tray

Tape & Reel

. . . . . . . . . . . .900/reel

Coplanarity

. . . . . . . . .0.006 inches

Dimensions:

Inches

Unless otherwise specified, all tolerances are ± .010

0,25

For More Information:

Pulse Worldwide

Headquarters

12220 World Trade Dr.

San Diego, CA 92128

U.S.A.

www.pulseeng.com

TEL: 858 674 8100

FAX: 858 674 8262

Pulse

Europe

Einsteinstrasse 1

D-71083 Herrenberg

Germany

Tel: 49 7032 7806 116

Fax: 49 7032 7806 135

Pulse China

Headquarters

No. 1

Industrial District

Changan, Dongguan

China

Tel: 86 769 85538070

Fax: 86 769 85538870

Pulse North China

Room 1503

XinYin Building

No. 888 YiShan Rd.

Shanghai 200233

China

Tel: 86 21 54643211/2

Fax: 86 21 54643210

Pulse South Asia

150 Kampong Ampat

#07-01/02

KA Centre

Singapore 368324

Tel: 65 6287 8998

Fax: 65 6280 0080

Pulse North Asia

No. 26

Kao Ching Rd.

Yang Mei Chen

Taoyuan Hsien

Taiwan, R. O. C.

Tel: 886 3 4641811

Fax: 886 3 4641911

Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product

names mentioned herein may be trademarks or registered trademarks of their respective owners.

www.pulseeng.com

P626.A (7/06)
