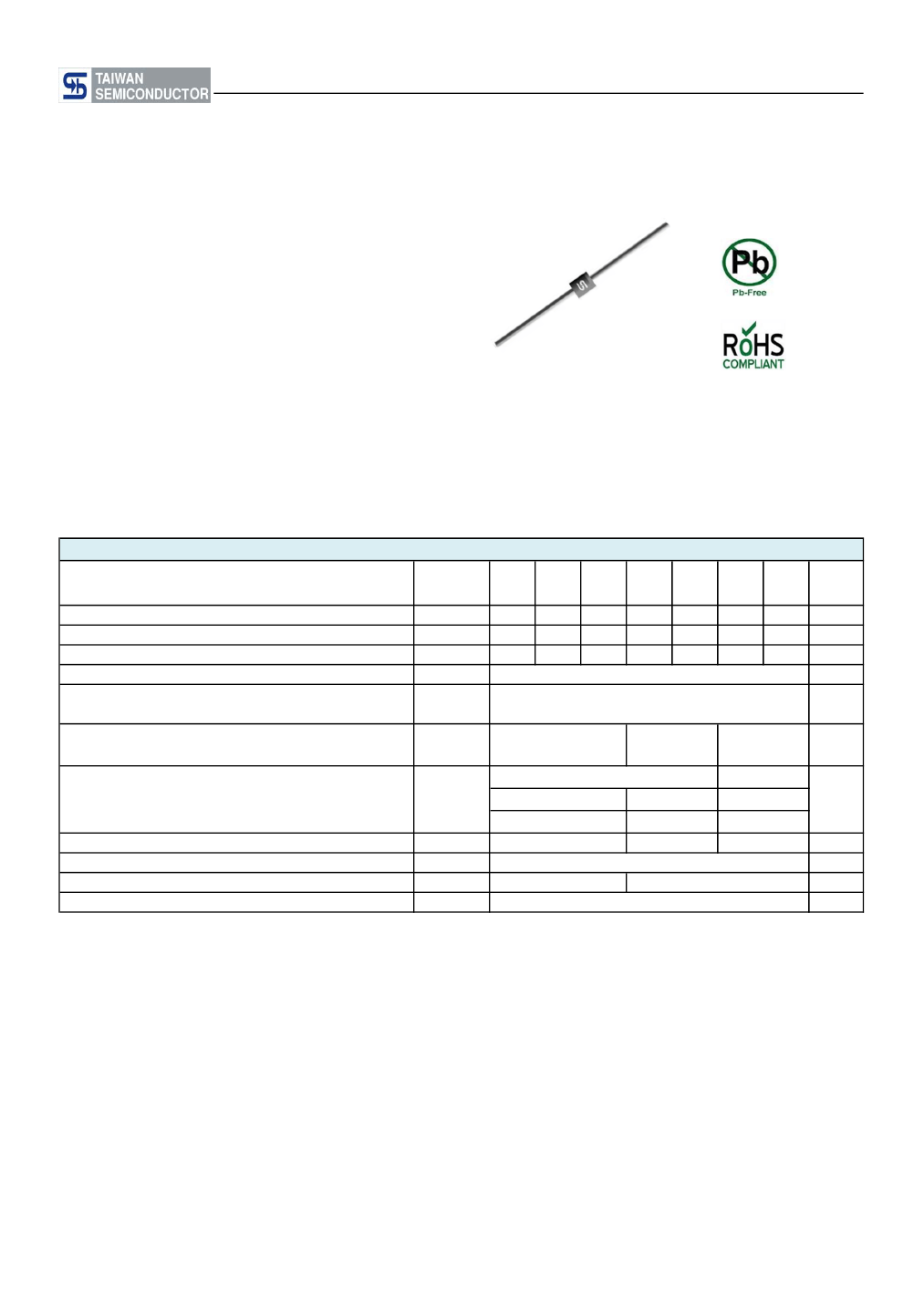

SR002 thru SR010
Taiwan Semiconductor
CREAT BY ART
FEATURES
- Low forward voltage drop
- Low power loss, high efficiency
- Guardring for overvoltage protection
- High surge current capability
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition
Schottky Barrier Rectifier
MECHANICAL DATA
Case：DO-204AL(DO-41)
Molding compound, UL flammability classification rating 94V-0
Base P/N with suffix "G" on packing code - halogen-free, RoHS compliant
Base P/N with prefix "H" on packing code - AEC-Q101 qualified
Terminal：Matte
tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 1A whisker test,
with prefix "H" on packing code meet JESD 201 class 2 whisker test
Weight：0.33
gram (approximately)

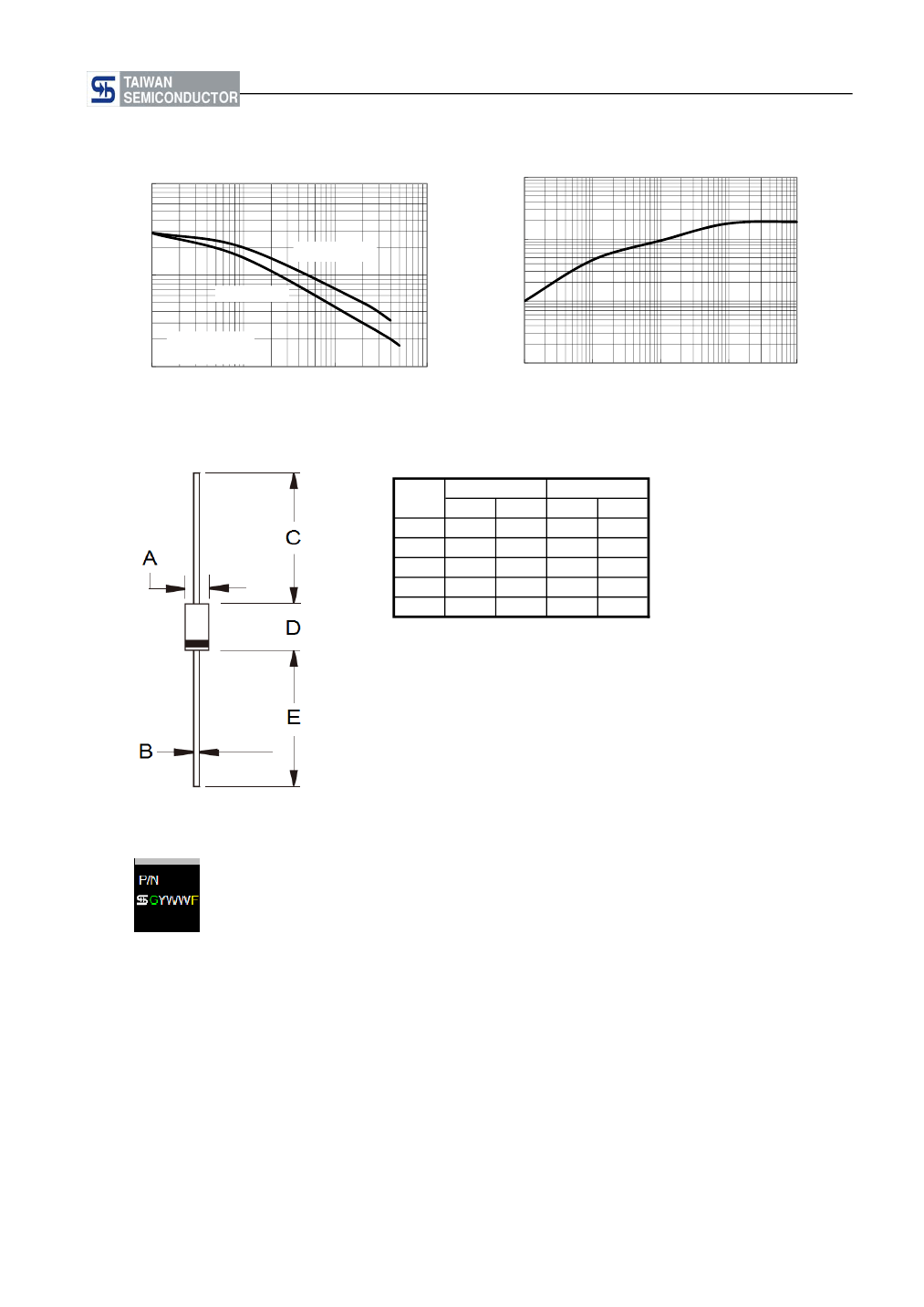

DO-204AL(DO-41)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERSTICS
(T
A
=25℃ unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Maximum instantaneous forward voltage (Note 1)
@ 0.5 A
Maximum reverse current @ rated VR
T
A
=25
℃
T
A
=100℃
T
A
=125
℃
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
0.55
0.5
I
R
Cj
R
θJA
T
J
T
STG
- 55 to + 125
10
-
110
50
- 55 to + 150
- 55 to + 150
5
-
80
SR
002
20
14
20
SR
003
30
21
30
SR
004
40
28
40
SR
005
50
35
50
0.5
30
0.70
0.85
0.1
-
2
65
O
SR
006
60
42
60
SR
009
90
63
90
SR
010
100
70
100
UNIT
V
V
V
A
A
V
mA
pF
C/W
O
O
Typical Junction Capacitance (Note 2)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1：Pulse test with PW=300u sec, 1% duty cycle
C
C
Note 2：Measured at 1 MHz and Applied Reverse Voltage of 4.0V D.C.
Document Number：DS_D1308043
Version:F13
SR002 thru SR010
Taiwan Semiconductor
CREAT BY ART
ORDERING INFORMATION
PART NO.
AEC-Q101
QUALIFIED
A0
SR0xx
(Note 1)
A1
Prefix "H"
R0
R1
B0
Note 1: "xx" defines voltage from 20V (SR002) to 100V (SR010)
Suffix "G"
PACKING CODE GREEN COMPOUND
CODE
DO-41
DO-41
DO-41
DO-41
DO-41
3000 / Ammo box (52mm taping)
3000 / Ammo box (26mm taping)
5000 / 13" Paper reel
5000 / 13" Paper reel (Reverse)
1000 / Bulk packing
PACKAGE
PACKING
EXAMPLE
PREFERRED P/N
SR006 A0
SR006 A0G
SR006HA0
PART NO.
SR006
SR006
SR006
H
AEC-Q101
QUALIFIED
PACKING CODE
A0
A0
A0
G
Green compound
AEC-Q101 qualified
GREEN COMPOUND
CODE
DESCRIPTION

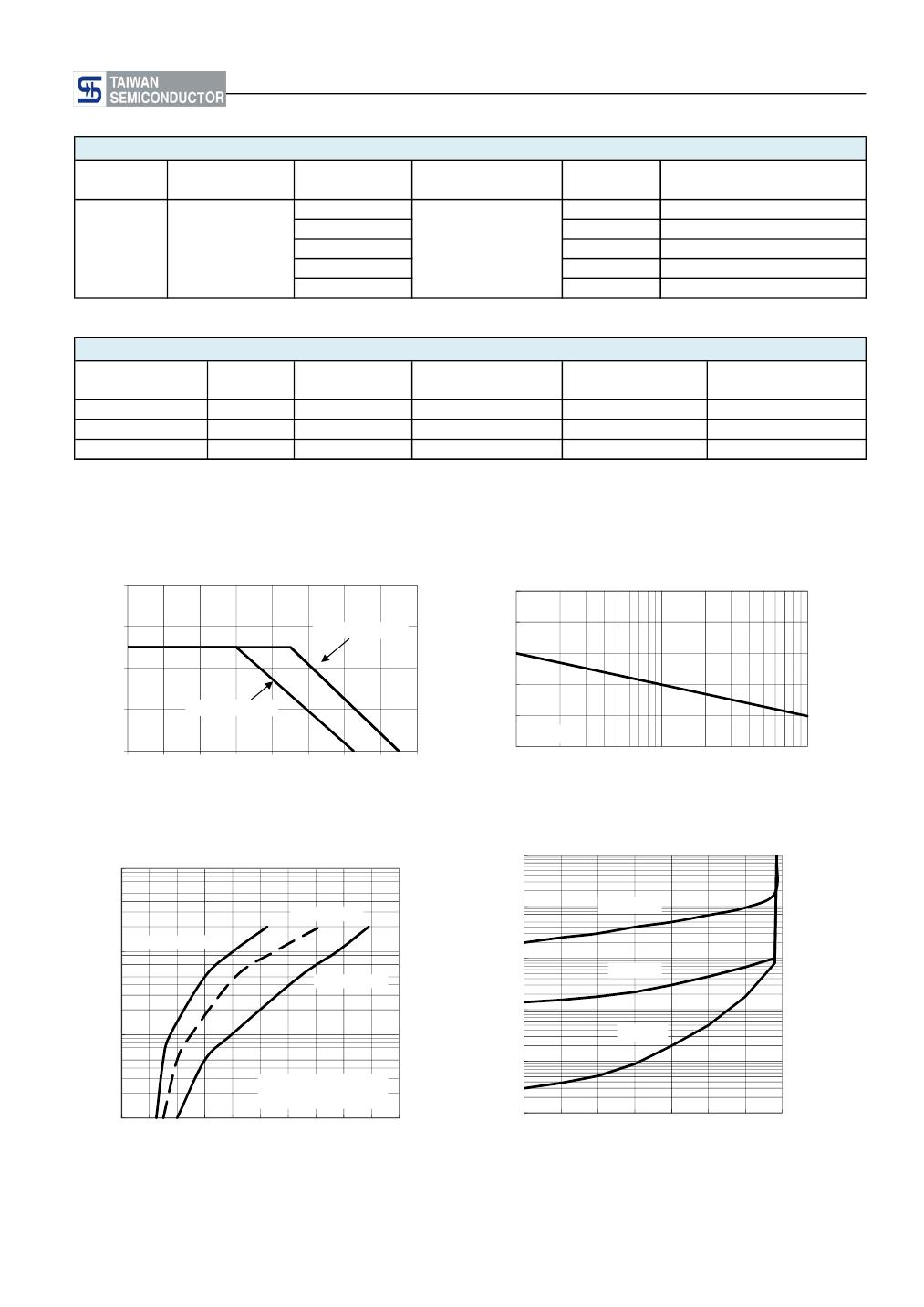

RATINGS AND CHARACTERISTICS CURVES
(TA=25℃ unless otherwise noted)
FIG.1- FORWARD CURRENT DERATING CURVE
0.8
AVERAGE FORWARD CURRENT (A)
50
40
FIG. 2- MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
0.6
SR005 - SR010
0.4
CURRENT (A)
30
20
10
0
TA=25℃
1
10
NUMBER OF CYCLES AT 60 Hz
100
0.2
SR002 - SR004
0
0
20
40
60
80
100
120
140
160
LEAD TEMPERATURE (
o
C)
FIG. 4- TYPICAL REVERSE CHARACTERISTICS
FIG. 3- TYPICAL FORWARD CHARACTERISTICS
100
INSTANTANEOUS REVERSE CURRENT. (mA)
INSTANTANEOUS FORWARD CURRENT (A)
100
SR005-SR006
10
SR002-SR004
10
TA=125℃
1
TA=75℃
0.1
TA=25℃
0.01
SR009-SR010
1
Pulse Width=300μs
1% Duty Cycld
0.1
0.3
0.5
0.7
0.9
1.1
1.3
1.5
1.7
1.9
2.1
0.1
FORWARD VOLTAGE (V)
0.001
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE.(%)
