ABS1631449 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> ABS1631449

ABS1631449: DescriptionSNAP ACTING/LIMIT SWITCH, SPDT, MOMENTARY, 2A, 30VDC, 4mm, PANEL MOUNT; CategoryMechanical and electronic products switch; File Size291KB，11 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html; Environmental Compliance

Download Datasheet Parametric View All

ABS1631449 Overview

SNAP ACTING/LIMIT SWITCH, SPDT, MOMENTARY, 2A, 30VDC, 4mm, PANEL MOUNT

ABS1631449 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Panasonic
Reach Compliance Code	compli
ECCN code	EAR99
Is Samacsys	N
Actuator stroke	3.3 mm
Actuator type	SHORT HINGE LEVER
body width	6.4 mm
body height	16.9 mm
Body length or diameter	21.2 mm
Maximum contact current (DC)	0.1 A
Contact (DC) maximum rated R load	.1A@30VDC
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	30 V
Electrical life	200000 Cycle(s)
JESD-609 code	e4
Manufacturer's serial number	ABS1
Installation features	PANEL MOUNT
Maximum operating force	0.39 N
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum pre-travel	2.5 mm
seal	ENVIRONMENTALLY SEALED; IP67
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Switch type	SNAP ACTING/LIMIT SWITCH
Terminal surface	Gold (Au)
Termination type	WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

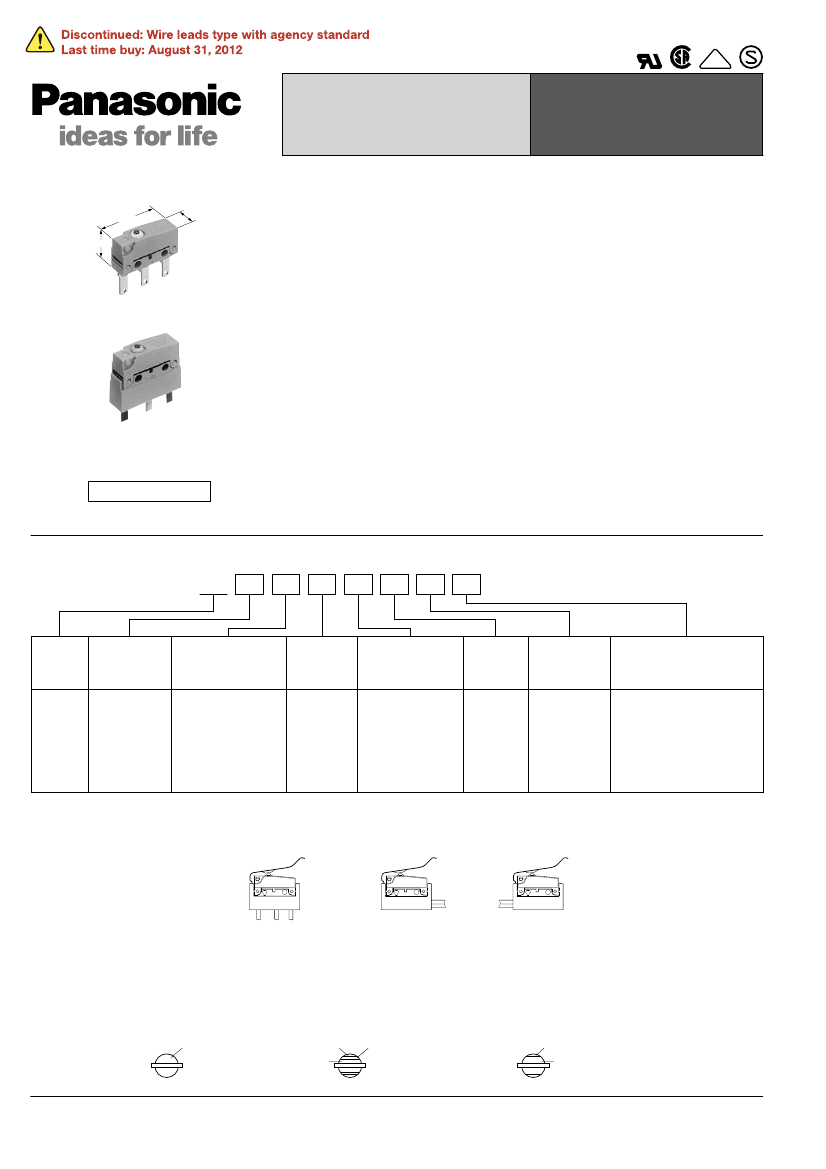

VDE

HIGH ENVIRONMENTAL

RESISTANCE

TURQUOISE SWITCHES

ABS TYPE

FEATURES

19.3

11.1

6.4

• Subminiature size (19.8×11.1×6.4 mm)

• Sealed construction for use in adverse environment-Sealed construction by

epoxy resin and rubber cap greatly reduces possible miscontact due to

contaminants such as dust. Conforming to IP67* of IEC protective construction

classiﬁcation

• Elastomer double molding technology, an industry ﬁrst and ultrasonic swaging

technology contribute to uniform sealing in high production quantities

• Expansion of low-level circuit type

• We offer a Au clad 2-ply contact type (for small loads) that we developed

speciﬁcally for small current and voltage loads in the range of 1 mA to 100 mA

and 5 V to 30 V.

• UL/CSA/VDE/SEMKO approved

(AS for Au-clad twin layer, VDE and SEMKO are not approved.)

* Based on the protective construction classiﬁcation of IEC, items which satisfy the test

requirements are denoted with an IP designation.

TYPICAL APPLICATIONS

RoHS compliant

• Automotive

• Home appliances (vacuum cleaner, air puriﬁer)

• Others (gas cooking range)

ORDERING INFORMATION

Ex. ABS

Operating

Type of

Contact

force by

Terminal

Actuator

Contact*

Agency standard

switch

arrangement

pin plunger

(max.)

ABS:

1: Straight type 1: .110 quick-connect 1: SPDT

0: Pin plunger

4: 0.98 N

0: AgNi alloy

3: UL/CSA/VDE/SEMKO

Turquoise 4: Right angle

terminal

2: SPST-NC 1: Short hinge lever 5: 1.47 N

1: Au-clad

(AgNi alloy contact,

switch

5: Left angle

4: Solder terminal

3: SPST-NO 2: Hinge lever

triple layer

Au-clad triple layer type)

S type

5: PC board terminal

3: Long hinge lever

4: Au-clad

9: UL/CSA

6: Wire leads

4: Simulated roller

double layer

(Au-clad double layer type)

lever

6: Roller lever

8: Leaf lever

Wire and

terminal

position

Remarks: 1.

Standard packing: Dust protected type 100 pcs./carton, 1,000 pcs./case; Immersion protected type 50 pcs./case.

SPST-NC and SPST-NO are only available for wire leads type.

Leaf lever is only available for wire leads type

Wire leads type with agency standard will be discontinued from August 31, 2012.

As for wire position:

Straight type

Wire opposite to the

actuator side type

(Right angle)

Wire actuator side type

(Left angle)

5. Not every combination is available. Please refer to the following table, “PRODUCT TYPES”.

* Contact

0: AgNi alloy

AgNi alloy

1: Au-clad triple layer

Au-clad

CuNi alloy

AgNi alloy

4: Au-clad double layer

Au-clad

CuNi alloy

Panasonic Corporation

Automation Controls Business Unit

industrial.panasonic.com/ac/e

AECTB2E 201201-T
