SK30
Vishay Aztronic
High Current Toroidal Inductors,
EMI/RFI Noise Suppression, Switching Power Supplies
and Output Chokes
FEATURES
•
SK series inductors have a copper winding on a toroid
•
Available with a bare construction or in a case
•
Main uses are power supply, filtering or dc-to-dc
converters with frequencies up to 300 kHz

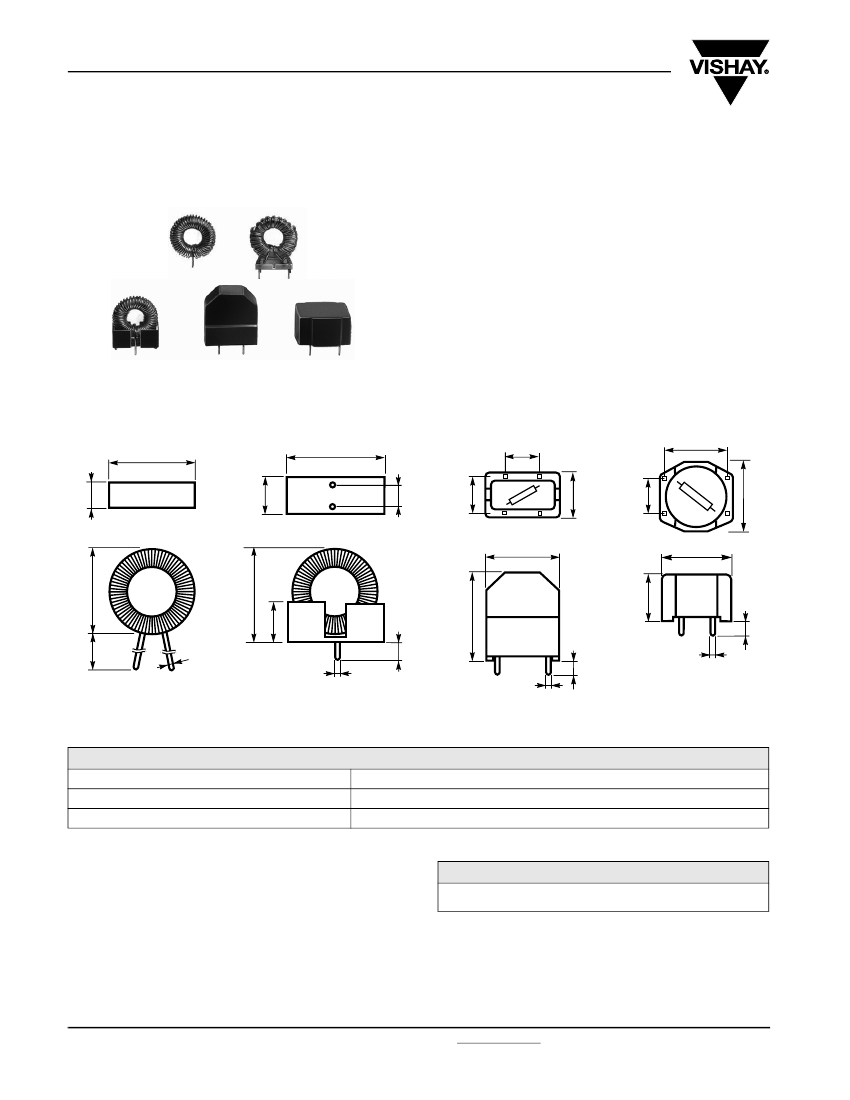

DIMENSIONS
in millimeters
SK30 N
30
SK30 E
(10 µH to 100 µH)
32
1
SK30 V
12.5
2
18
4
32
3
20
1
2
SK30 H
3
3
33
4
3
15
18
12.5
15
30
35
15
35
20
3.5
3.5
Ød
0.7 x 0.7
3.5
0.7 x 0.7
15
Ød
ELECTRICAL SPECIFICATIONS
Tolerance
Max. Operating Frequency
Maximum Voltage
± 20 %
300 kHz
250 V
RMS
MECHANICAL SPECIFICATIONS
Magnetic Circuit
Terminals
toroid
wire N, S and E versions
pins: V and H versions
PACKAGING
50 pieces in box
MARKING (V AND H VERSIONS)
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature Range
- 40 °C + 125 °C
Print marked:
manufacturer, model, style, inductance value, nominal
current
www.vishay.com
35
For technical questions, contact: sfer@vishay.com
Document Number: 59022
Revision: 01-Oct-07
SK30
High Current Toroidal Inductors,
Vishay Aztronic
EMI/RFI Noise Suppression, Switching Power Supplies
and Output Chokes
ORDERING INFORMATION
SK
MODEL
30
STYLE
V
VERSION
47 µH
INDUCTANCE VALUE
NO LOAD
e2
LEAD FINISH
e2: SnCu
SAP PART NUMBERING GUIDELINES
S
K
3
0
V
VERSION
4
7
0
M
B
2
5
MODEL
STYLE
INDUCTANCE
VALUE
TOL.
PACKAGING
CODE
SPECIAL
(IF APPLICABLE)
See the end of this data book for conversion tables
INDUCTANCE VALUE VERSUS CURRENT
L
with
no load
L at
nominal
current
0
I nominal
I
MAX.
A
8
6.3
4
2.5
1.6
1.25
0.8
L
WITH
NO LOAD
µH
10
22
47
100
220
470
1000
L MIN.
AT NOMINAL
CURRENT
µH
7
15
33
70
154
330
700
DCR
MAX.
mΩ
15
30
63
149
341
623
1465
Ø D MAX.
(WIRE DIAMETER)
N - S - E VERSIONS
mm
1.1
1
0.8
0.7
0.6
0.5
0.4
On request: other values or pin configuration.
Document Number: 59022
Revision: 01-Oct-07
For technical questions, contact: sfer@vishay.com
www.vishay.com
36
