RCWL
www.vishay.com
Vishay Dale
Thick Film Surface Mount Chip Resistors,
Wraparound, Low Value (0.1
to 0.91
)
FEATURES
• Low resistance values (0.1
to 0.91
)
• Suitable for current sensing and shunts
• Metal glaze on high quality ceramic
• Protective overglaze
• Solder contacts on Ni barrier layer
• Compliant to RoHS Directive 2002/95/EC
• Halogen-free according to IEC 61249-2-21
definition
Note
*
Pb containing terminations are not RoHS compliant, exemptions
may apply
STANDARD ELECTRICAL SPECIFICATIONS
GLOBAL
MODEL
RCWL0402
RCWL0603
RCWL0805
RCWL1206
RCWL1210
RCWL1218
RCWL2010
RCWL2512
CASE SIZE
POWER RATING
P
70 °C
W
0.063
0.1
0.125
0.25
0.33
1.0
0.5
1.0
TEMPERATURE
COEFFICIENT
± ppm/°C
600
400
400
200
300
200
300
200
200
200
200
200
RESISTANCE
RANGE
0.22 to 0.43
0.47 to 0.91
0.10 to 0.43
0.47 to 0.91
0.10 to 0.43
0.47 to 0.91
0.10 to 0.43
0.47 to 0.91
0.10 to 0.91
0.10 to 0.91
0.10 to 0.91
0.10 to 0.91
TOLERANCE
±%
5
5
5
5
5
5
5
5
E-SERIES
0402
0603
0805
1206
1210
1218
2010
2512
24
24
24
24
24
24
24
24
Note
• Power rating depends on the max. temperature at the solder point, the component placement density and the substrate material.
• Part marking: Reference Surface Mount Resistor Marking document number 20020.
• The resistance is measured from the top side.
GLOBAL PART NUMBER INFORMATION
Part Number: RCWL0402R470JQEA
R
C
W
L
0
4
0
2
R
4
7
0
J
Q
E
A
GLOBAL MODEL
RCWL0402
RCWL0603
RCWL0805
RCWL1206
RCWL1210
RCWL1218
RCWL2010
RCWL2512
VALUE
R
= Decimal
R470
= 0.47
TOLERANCE
J
= ± 5.0 %
TCR
N
= ± 200 ppm/°C
M
= ± 300 ppm/°C
Q
= ± 400 ppm/°C
T
= ± 600 ppm/°C
PACKAGING
EA
= Lead (Pb)-free,
tape/reel
TA
= Tin/lead,
tape/reel
Revision: 06-Dec-11
Document Number: 20018
1
For technical questions, contact:
ff2cresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
RCWL
www.vishay.com
Vishay Dale

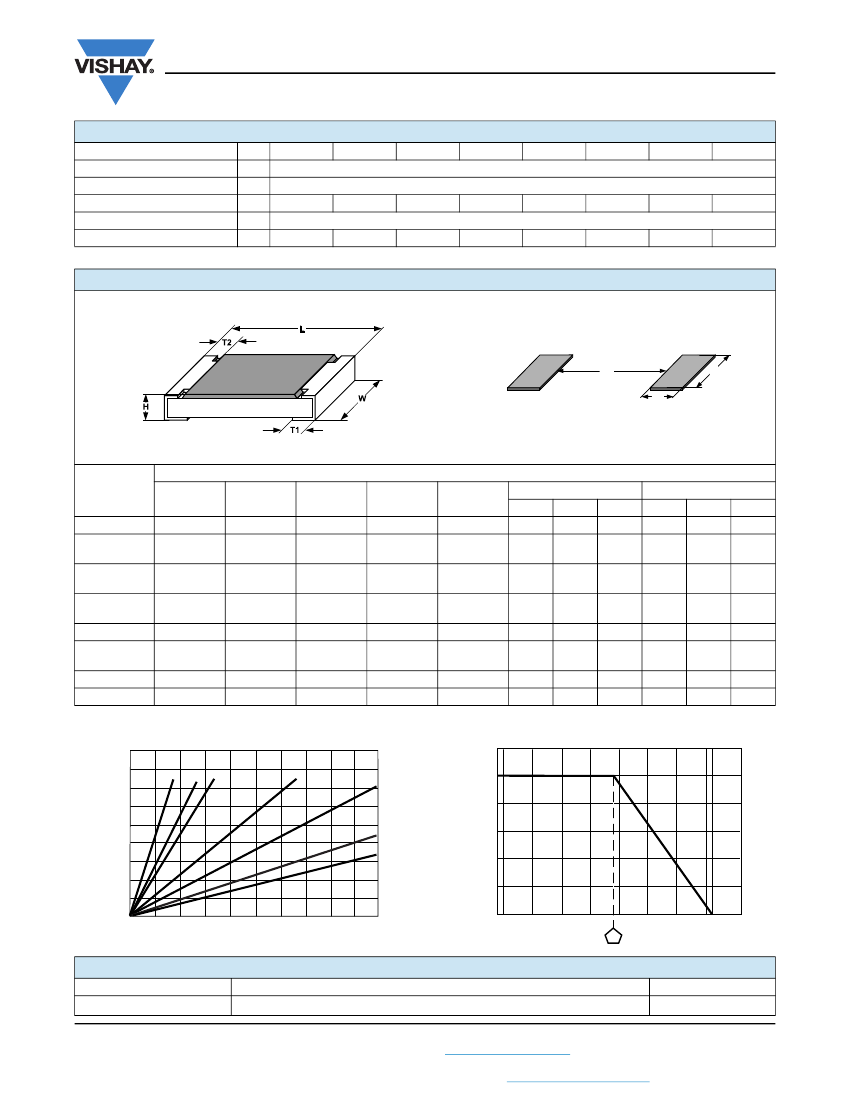

TECHNICAL SPECIFICATIONS
PARAMETER
Operating temp. range
Maximum operating voltage
Insulation voltage
U
ins
(1 min)
Insulation resistance
Weight/1000 pieces (typical)
UNIT RCWL0402 RCWL0603 RCWL0805 RCWL1206 RCWL1210 RCWL1218 RCWL2010 RCWL2512
°C
V
V
g
0.65
2
5.5
10
> 75
> 100
> 200
- 55 to + 155
(P x
R)
1/2
> 300
> 10
9
16
29.5
25.5
40.5
> 300
> 300
> 300
> 300
DIMENSIONS
l
a
b
DIMENSIONS
in millimeters
MODEL
RCWL0402
RCWL0603
RCWL0805
RCWL1206
RCWL1210
RCWL1218
RCWL2010
RCWL2512
L
1.0 ± 0.05
1.55
2.0
3.2
+ 0.10
- 0.05
+ 0.20
- 0.10
+ 0.10
- 0.20
W
0.5 ± 0.05
0.85 ± 0.1
1.25 ± 0.15
1.6 ± 0.15
2.5 ± 0.2
4.6 ± 0.15
2.5 ± 0.15
3.15 ± 0.15
H
0.35 ± 0.05
0.45 ± 0.05
0.45 ± 0.05
0.55 ± 0.05
0.55 ± 0.05
0.55 ± 0.05
0.6 ± 0.1
0.6 ± 0.1
T1
0.25 ± 0.05
0.3 ± 0.2
0.3
+ 0.20
- 0.10
T2
0.2 ± 0.1
0.3 ± 0.2
0.3 ± 0.2
0.4 ± 0.2
0.4 ± 0.2
0.4 ± 0.2
0.6 ± 0.2
0.6 ± 0.2
REFLOW SOLDERING
a
0.4
0.5
0.7
0.9
0.9
1.05
1.0
1.0
b
0.6
0.9
1.3
1.7
2.5
4.9
2.5
3.2
l
0.5
1.0
1.2
2.0
2.0
1.9
3.9
5.2
WAVE SOLDERING
a
0.5
0.9
0.9
1.1
1.1
1.25
1.2
1.2
b
0.6
0.9
1.3
1.7
2.5
4.8
2.5
3.2
l
0.5
1.0
1.3
2.3
2.2
1.9
3.9
5.2
0.45 ± 0.2
0.45 ± 0.2
0.45 ± 0.2
0.6 ± 0.2
0.6 ± 0.2
3.2 ± 0.2
3.2
+ 0.10
- 0.20
5.0 ± 0.15
6.3 ± 0.2
TEMPERATURE RISE
Temperature Rise in °C
90
80
70
60
50
40
2512
30
1218
20
10
0
0
0.1
0.2
0.3
0.4
0.5
2010
0402 0603 0805
1206
DERATING
Rated Power in %
120
100
1210
80
60
40
20
0
- 55
- 25
0
25
75
70
100
125
155
175
Power in W
Ambient Temperature in °C
PERFORMANCE
TEST
Thermal shock
Revision: 06-Dec-11
CONDITIONS OF TEST
MIL-STD-202, method 107, - 55 °C to + 125 °C, 300 cycles at each extreme
TEST LIMITS
± (2.0 % + 0.005
) R
Document Number: 20018
2
For technical questions, contact:
ff2cresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
RCWL
www.vishay.com
Vishay Dale
CONDITIONS OF TEST
2 x rated power; duration according the model
MIL-STD-202, method 108, 1000 h at T = 125 °C, 0 % power
JESD 22, method JA-104, 1000 cycles (- 55 °C to + 125 °C)
TEST LIMITS
± (0.5 % + 0.005
) R
± (2.0 % + 0.005
) R
± (2.0 % + 0.005
) R
± (2.0 % + 0.005
) R
± (0.5 % + 0.005
) R
± (2.0 % + 0.005
) R
± (1.0 % + 0.005
) R
± (2.0 % + 0.005
) R
PERFORMANCE
TEST
Short time overload
High temperature exposure
Temperature cycling
Biased humidity
Mechanical shock
Vibration
Operational life
Resistance to solder heat
Moisture resistance
MIL-STD-202, method 103, 1000 h 85 °C/85 % RH, 10 % x (P x
R)
1/2
MIL-STD-202, method 213, condition C, 10
g’s,
6 ms (half sine), 3 directions
MIL-STD-202, method 204, 5
g’s,
20 min, 12 cycles, 3 directions, 10 Hz to 2000 Hz ± (0.5 % + 0.005
) R
MIL-STD-202, method 108, 1000 h at T = 125 °C at rated power
MIL-STD-202, method 210, + 260 °C solder,
10 s to 12 s dwell, 25 mm/s emergence
MIL-STD-202, method 106, 0 % power, 7a and 7b not required
PACKAGING
MODEL
RCWL0402
RCWL0603
RCWL0805
RCWL1206
RCWL1210
RCWL1218
RCWL2010
RCWL2512
REEL
TAPE WIDTH
8 mm/punched paper
8 mm/punched paper
8 mm/punched paper
8 mm/punched paper
12 mm/punched paper
12 mm/embossed plastic
12 mm/embossed plastic
12 mm/embossed plastic
DIAMETER
180 mm/7"
180 mm/7"
180 mm/7"
180 mm/7"
180 mm/7"
180 mm/7"
180 mm/7"
180 mm/7"
PITCH
2 mm
4 mm
4 mm
4 mm
4 mm
4 mm
4 mm
8 mm
PIECES/REEL
10 000
5000
5000
5000
5000
4000
4000
2000
CODE
EA
EA
EA
EA
EA
EA
EA
EA
Note
• Embossed carrier tape per EIA-481-1A.
Revision: 06-Dec-11
Document Number: 20018
3
For technical questions, contact:
ff2cresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
