LKR450477M: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum, 450V, 20% +Tol, 20% -Tol, 470uF; CategoryPassive components capacitor; File Size140KB，3 Pages; ManufacturerMaxcap Electronics Sdn Bhd

Download Datasheet Parametric View All

LKR450477M Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum, 450V, 20% +Tol, 20% -Tol, 470uF

LKR450477M Parametric

Parameter Name	Attribute value
Maker	Maxcap Electronics Sdn Bhd
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	470 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	35 mm
dielectric materials	ALUMINUM
length	50 mm
Manufacturer's serial number	LKR(450V,35)
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Package form	PCB Mount
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	450 V
ripple current	1390 mA
series	LKR(450V,35)
Terminal pitch	10 mm

Preview

Download Datasheet

View All

Aluminum Electrolytic Capacitor

LKR

•

,

.

Standard Series, Snap-In Type.

105°C,

2,000

.

105°C, Load Life: 2,000Hours

Item

Rated Voltage Range

Temperature Range

Capacitance Tolerance

Leakage Current

6.3 ~ 450 VDC

Specifications

-40 ~ +105°C (6.3 ~ 350V), -25 ~ +105°C (400 ~ 450V)

±

20% (

3

20°C, 120 Hz)

) (After 5 minutes)

(

20

)

CV (µA) (5

Rated Voltage (V)

Dissipation Factor

D.F (tan

)

10

0.50

16

0.40

25

0.35

35

0.30

50

0.25

63

0.25

100

0.20

160~350 350~450

0.15

0.20

:

1,000µF ,

1,000µF,

(tan )

0.02.

( 20°C, 120 Hz)

Note: For capacitance of more than 1,000µF, the value of D.F should be added 0.02 for every increase of 1,000µF.

105°C

2,000

,

20°C

,

:

The following specifications shall be satisfied when

the capacitors are restored to 20°C after the rated

voltage is applied for 2,000 hours at 105°C

JIS C5141

W

±

20%

≤

±

20% of the initial value

200%

≤

200% of the initial specified value

≤

the initial specified value

Load Life

Cpacitance Change

(tan )

D.F

Leakage Current

Others

. Satisfies characteristic W of JIS C5141.

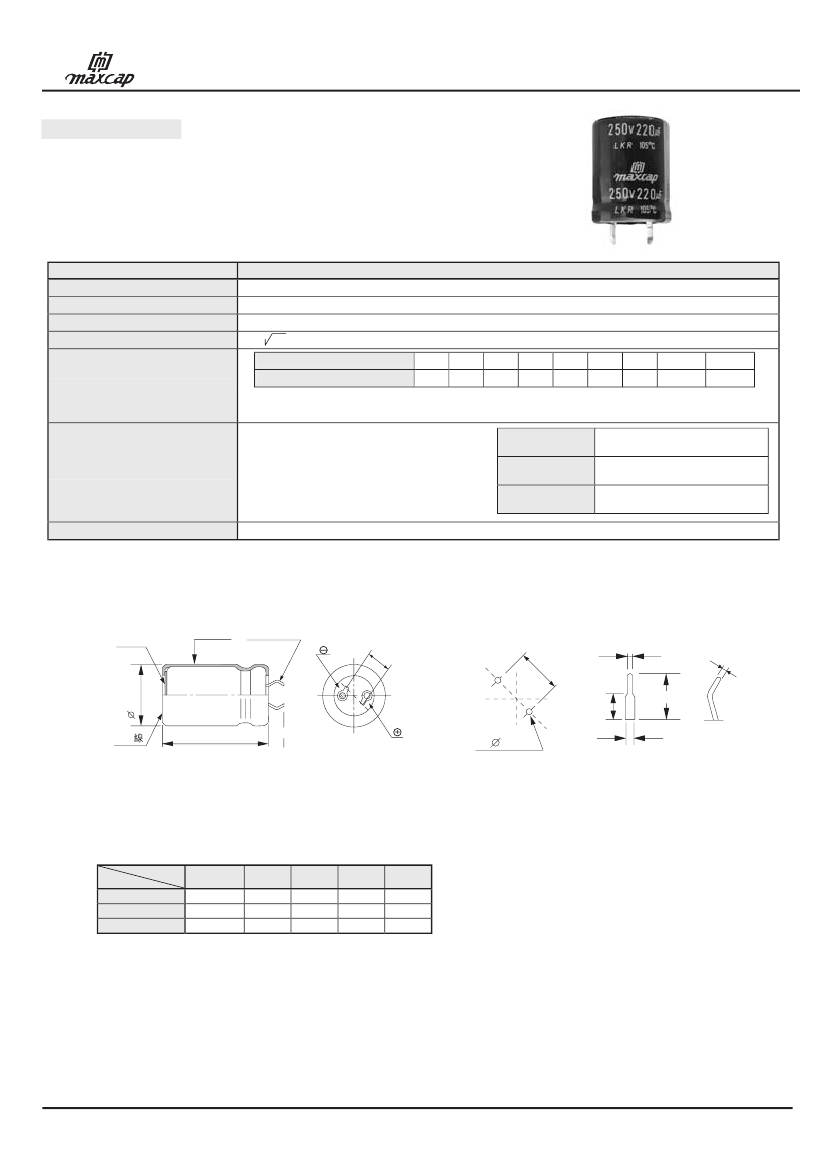

Figure and Dimensions

Unit: mm

PLATE

D

+1MAX

SLEEVE

TERMINAL

0.8 ± 0.1

10

10 ± 0.2

0.8 ± 0.1

L + 2 MAX

6.0 ± 1 *

4.0

6.0 ± 1

1.5 ± 0.1

VENT

2- 2 ± 0.1

*

4.0±0.5mm

* 4.0±0.5mm length of terminal can be supplied upon customer request.

Frequency Multiplying Factor of Ripple Current

(Hz)

(V)

50

0.88

0.81

0.77

120

1.00

300

1.07

1.17

1.16

1K

1.15

1.32

1.30

10K~

1.15

1.45

1.41

~ 100

160 ~ 250

315 ~

MAXCAP Electronics Co., Ltd.

45
