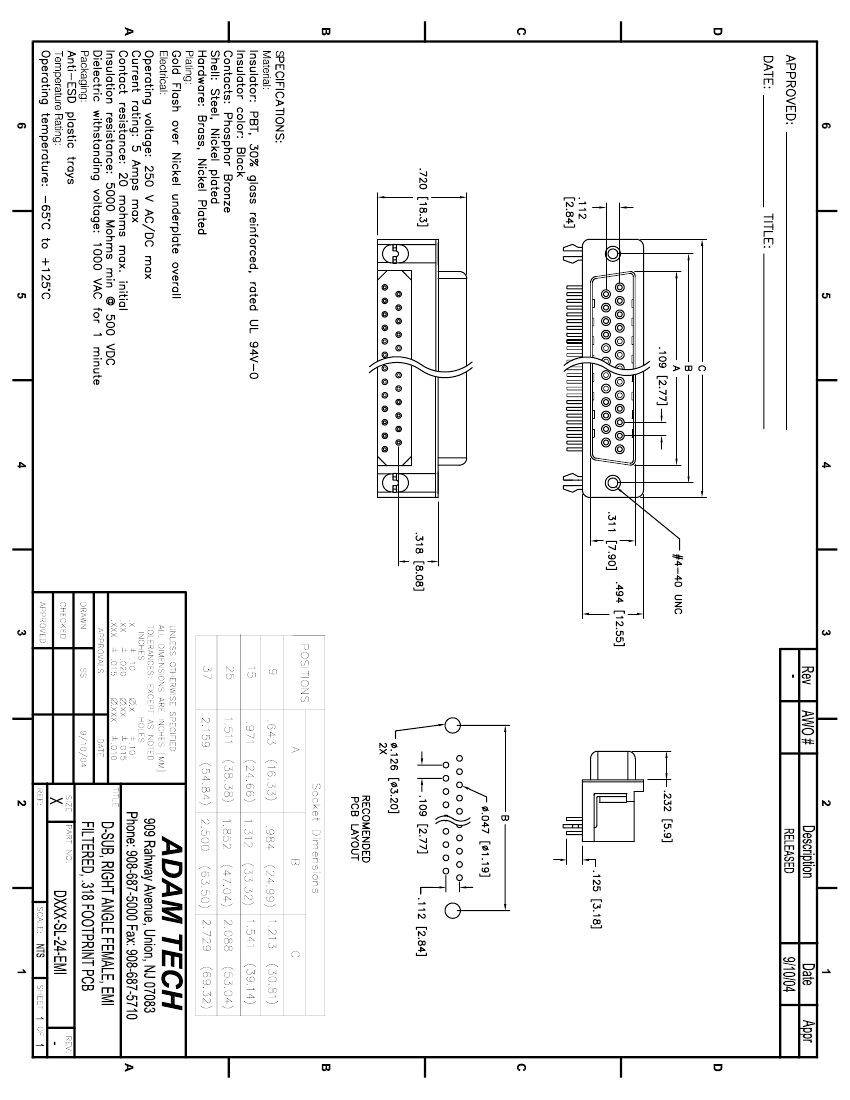

DB25SL24EMI

Description
D Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug
CategoryThe connector    The connector
File Size107KB,1 Pages
ManufacturerAdam Tech
Download Datasheet Parametric Compare View All

DB25SL24EMI Overview

D Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug

DB25SL24EMI Parametric

Parameter NameAttribute value
MakerAdam Tech
Reach Compliance Codecompliant
Other featuresROHS COMPLIANT
body width0.494 inch
subject depth0.488 inch
body length2.088 inch
Body/casing typePLUG
Contact to complete cooperationAU ON NI
Contact completed and terminatedGOLD OVER NICKEL
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeSTAGGERED
Contact resistance20 mΩ
Contact styleRND PIN-SKT
Dielectric withstand voltage1000VAC V
Filter functionYES
Insulation resistance5000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial numberD
Plug contact pitch0.109 inch
Match contact row spacing0.112 inch
Installation option 1#4-40
Installation option 2LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
PCB row number2
Number of rows loaded2
Maximum operating temperature125 °C
Minimum operating temperature-65 °C
PCB contact patternSTAGGERED
PCB contact row spacing2.8448 mm
Plating thicknessFLASH inch
Rated current (signal)5 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Shell surfaceNICKEL
Shell materialSTEEL
Terminal length0.125 inch
Terminal pitch2.7686 mm
Termination typeSOLDER
Total number of contacts25

DB25SL24EMI Related Products

DB25SL24EMI DC37SL24EMI DE09SL24EMI
Description D Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug D Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug D Type Connector, 9 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug
Reach Compliance Code compliant compliant compliant
Other features ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT
body width 0.494 inch 0.494 inch 0.494 inch
subject depth 0.488 inch 0.488 inch 0.488 inch
body length 2.088 inch 2.729 inch 1.213 inch
Body/casing type PLUG PLUG PLUG
Contact to complete cooperation AU ON NI AU ON NI AU ON NI
Contact completed and terminated GOLD OVER NICKEL GOLD OVER NICKEL GOLD OVER NICKEL
Contact point gender FEMALE FEMALE FEMALE
Contact material PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE
contact mode STAGGERED STAGGERED STAGGERED
Contact resistance 20 mΩ 20 mΩ 20 mΩ
Contact style RND PIN-SKT RND PIN-SKT RND PIN-SKT
Dielectric withstand voltage 1000VAC V 1000VAC V 1000VAC V
Filter function YES YES YES
Insulation resistance 5000000000 Ω 5000000000 Ω 5000000000 Ω
Insulator color BLACK BLACK BLACK
insulator material GLASS FILLED POLYBUTYLENE TEREPHTHALATE GLASS FILLED POLYBUTYLENE TEREPHTHALATE GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number D D D
Plug contact pitch 0.109 inch 0.109 inch 0.109 inch
Match contact row spacing 0.112 inch 0.112 inch 0.112 inch
Installation option 1 #4-40 #4-40 #4-40
Installation option 2 LOCKING LOCKING LOCKING
Installation method RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD BOARD
PCB row number 2 2 2
Number of rows loaded 2 2 2
Maximum operating temperature 125 °C 125 °C 125 °C
Minimum operating temperature -65 °C -65 °C -65 °C
PCB contact pattern STAGGERED STAGGERED STAGGERED
PCB contact row spacing 2.8448 mm 2.8448 mm 2.8448 mm
Plating thickness FLASH inch FLASH inch FLASH inch
Rated current (signal) 5 A 5 A 5 A
Guideline UL, CSA UL, CSA UL, CSA
reliability COMMERCIAL COMMERCIAL COMMERCIAL
Shell surface NICKEL NICKEL NICKEL
Shell material STEEL STEEL STEEL
Terminal length 0.125 inch 0.125 inch 0.125 inch
Terminal pitch 2.7686 mm 2.7686 mm 2.7686 mm
Termination type SOLDER SOLDER SOLDER
Total number of contacts 25 37 9
Base Number Matches - 1 1
