ST1307EAB-2.0480 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> ST1307EAB-2.0480

ST1307EAB-2.0480: DescriptionCMOS Output Clock Oscillator, 1MHz Min, 32MHz Max, 2.048MHz Nom; CategoryPassive components oscillator; File Size635KB，5 Pages; ManufacturerPericom Semiconductor Corporation (Diodes Incorporated); Websitehttps://www.diodes.com/; Environmental Compliance

Download Datasheet Parametric View All

ST1307EAB-2.0480 Overview

CMOS Output Clock Oscillator, 1MHz Min, 32MHz Max, 2.048MHz Nom

ST1307EAB-2.0480 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Pericom Semiconductor Corporation (Diodes Incorporated)
package instruction	DILCC6,.2
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ENABLE/DISABLE FUNCTION
Maximum control voltage	3 V
Minimum control voltage	0.3 V
maximum descent time	8 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	50 ppm
frequency stability	50%
JESD-609 code	e4
linearity	10%
Manufacturer's serial number	ST1307
Installation features	SURFACE MOUNT
Number of terminals	6
Maximum operating frequency	32 MHz
Minimum operating frequency	1 MHz
Nominal operating frequency	2.048 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	CMOS
Output load	30 pF
Package body material	CERAMIC
Encapsulate equivalent code	DILCC6,.2
physical size	7mm x 5mm x 2mm
power supply	3.3 V
Certification status	Not Qualified
longest rise time	8 ns
Maximum slew rate	15 mA
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %
technology	CMOS
Terminal surface	Gold (Au)

Preview

Download Datasheet

View All

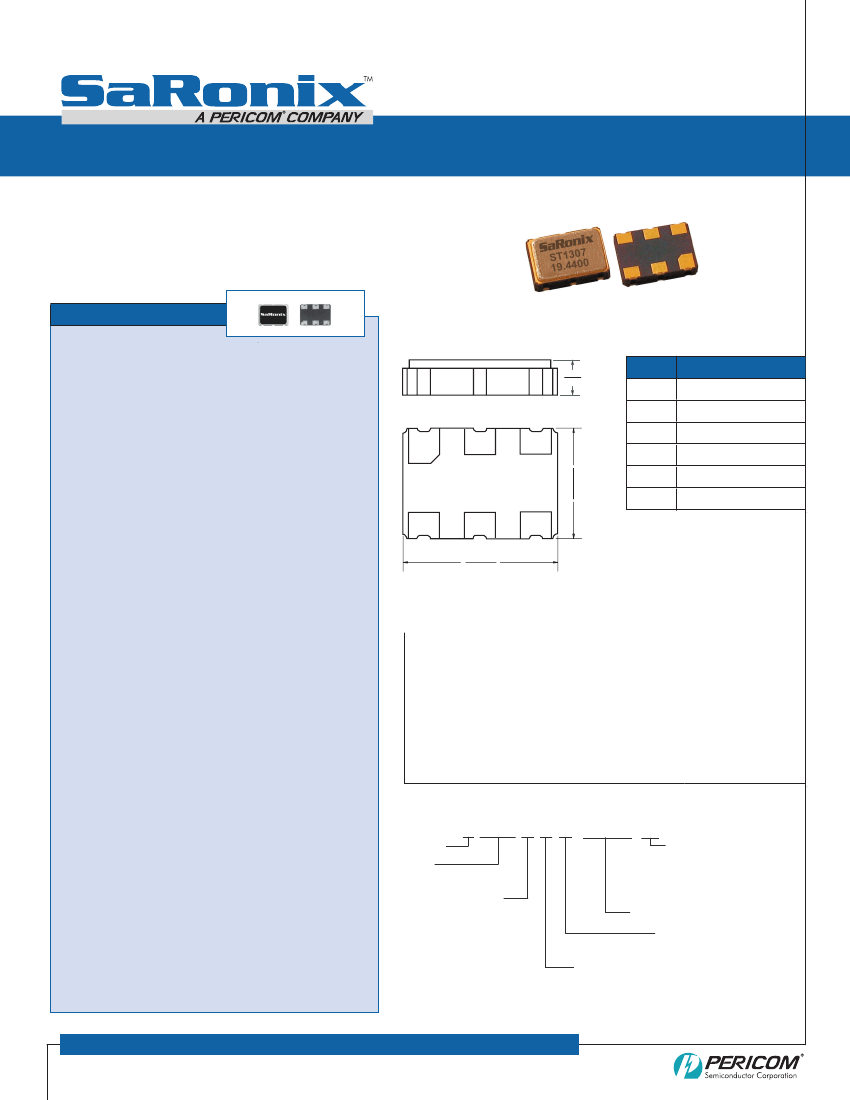

ST1307 Series

3.3V CMOS Ultra Low Jitter

Voltage Controlled Crystal Oscillator (VCXO)

Actual Size = 5 x 7mm

Product Features

• High Q fundamental-mode crystal

• No internal PLL or frequency multiplication

• Very low phase noise

• LVCMOS compatible output

• Commercial and industrial operation

• ±50 ppM stability (or as specified)

• ±50 to ±100 ppM absolute (net) pull range

• RoHS Compliant

Package Outline

½½½½ ½½½

½½½½

Pin Functions

Pad

Function

Control voltage

Output Enable/Disable

Ground

Output

No Connect

Supply voltage

½½

½½½½½½½½½

½½

½½½½½½½½½

½½½½½½½½½½½

½½

Full Mechanical Drawings page 6.

Dimensions are in mm/inches.

Product Description

The ST1307 is a voltage controlled crystal oscillator

that achieves superb jitter and pullability over a broad

range of operating conditions and frequencies. The

device is constructed with a hermetically sealed,

fundamental-mode quartz crystal resonator exhibiting a

high-Q for exceptional phase noise performance. The

device, available on tape and reel, is contained in a

5x7mm ceramic package.

Common Frequencies

Contact SaRonix for additional frequencies

1.5440

2.0480

6.1760

8.1920

12.2880

12.3520

14.7456

15.0000

16.3840

18.4320

19.4400

20.0000

20.4800

24.5760

25.0000

27.0000

Applications

The ST1307 Series VCXO is an ideal component

in phase locked loop circuits that perform clock

smoothing, clock/data recovery, or frequency

translation and card synchronization functions,

supporting jitter-sensitive applications such as:

• SMPTE-compliant Video networking

• SONET/SDH timing control and line cards

• T1/E1 Platforms

• Satellite and microwave communications

Ordering Information

SaRonix

Model

Stability Tolerance

B = ±50 ppm, 0 to +70°C

E = ±50 ppm, -40 to +85°C

S T1307 B A B - 19.4400 (T)

Packaging

blank = bulk packaged

(T) = Tape & Reel*

*full reel increments only (500pcs)

Frequency (MHz)

Linearity

B = 10%

Pullability

(minimum APR)

A = ±50 ppm

B = ±100 ppm

Pericom Semiconductor Corporation • 1-800-435-2336 • http://www.pericom.com/saronix

All specifications are subject to change without notice.

DS 268 Rev A | 05/20/05
