QL4016-2CG84M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Programmable logic devices> Programmable logic> QL4016-2CG84M

QL4016-2CG84M: DescriptionField Programmable Gate Array, 320 CLBs, 16000 Gates, 320-Cell, CMOS, CPGA84, 0.100 INCH PITCH, CERAMIC, PGA-84; CategoryProgrammable logic devices Programmable logic; File Size389KB，22 Pages; ManufacturerQuickLogic Corporation; Websitehttps://www.quicklogic.com

Download Datasheet Parametric View All

QL4016-2CG84M Overview

Field Programmable Gate Array, 320 CLBs, 16000 Gates, 320-Cell, CMOS, CPGA84, 0.100 INCH PITCH, CERAMIC, PGA-84

QL4016-2CG84M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	QuickLogic Corporation
Parts packaging code	PGA
package instruction	HPGA, PGA84M,11X11
Contacts	84
Reach Compliance Code	compliant
ECCN code	3A001.A.2.C
Other features	MAXIMUM GATES UPTO 61,820
Combined latency of CLB-Max	4.384 ns
JESD-30 code	S-CPGA-P84
length	27.94 mm
Humidity sensitivity level	3
Configurable number of logic blocks	320
Equivalent number of gates	16000
Number of entries	60
Number of logical units	320
Output times	60
Number of terminals	84
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	320 CLBS, 16000 GATES
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	HPGA
Encapsulate equivalent code	PGA84M,11X11
Package shape	SQUARE
Package form	GRID ARRAY, HEAT SINK/SLUG
Peak Reflow Temperature (Celsius)	225
power supply	3.3,3.3/5 V
Programmable logic type	FIELD PROGRAMMABLE GATE ARRAY
Certification status	Not Qualified
Filter level	MIL-STD-883 Class S (Modified)
Maximum seat height	7.0612 mm
Maximum supply voltage	3.6 V
Minimum supply voltage	3 V
Nominal supply voltage	3.3 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	PERPENDICULAR
Maximum time at peak reflow temperature	NOT SPECIFIED
width	27.94 mm

Preview

Download Datasheet

View All

Military QuickRAM

90,000 Usable PLD Gate QuickRAM Combining Performance, Density

and

Embedded RAM

Military QuickRAM

EVICE

IGHLIGHTS

Device Highlights

Features

EATURES

Total of 316 I/O pins

High Performance and High Density

Up to 90,000 Usable PLD Gates with 316 I/Os

300 MHz 16-bit Counters, 400 MHz Datapaths, 160+

MHz FIFOs

0.35um four-layer metal non-volatile CMOS process for

smallest die sizes

308 bi-directional input/output pins, PCI-compliant for

5.0 volt and 3.3 volt buses for -1/-2/-3/-4 speed grades

8 high-drive input/distributed network pins

Eight Low-Skew Distributed Networks

High Speed Embedded SRAM

Up to 22 dual-port RAM modules, organized in user-

configurable 1,152-bit blocks

5ns access times, each port independently accessible

Fast and efficient for FIFO, RAM, and ROM functions

Two array clock/control networks available to the logic

cell flip-flop clock, set and reset inputs - each driven by

an input-only pin

Six global clock/control networks available to the logic

cell F1, clock, set and reset inputs and the input and I/O

output enable control - each driven by an input-only or

I/O pin, or any logic cell output or I/O cell feedback

Easy to Use / Fast Development Cycles

100% routable with 100% utilization and complete

pin-out stability

Variable-grain logic cells provide high performance and

100% utilization

Comprehensive design tools include high quality Verilog/

VHDL synthesis

High Performance

Input + logic cell + output total delays under 6 ns

Data path speeds exceeding 400 MHz

Counter speeds over 300 MHz

FIFO speeds over 160+ MHz

Advanced I/O Capabilities

Military Reliability

Interfaces with both 3.3 volt and 5.0 volt devices

PCI compliant with 3.3V and 5.0V buses for -1/-2

speed grades

Full JTAG boundary scan

Registered I/O cells with individually controlled clocks

and output enables

Device

QL4016

11,520 RAM Bits

Mil-STD-883 and Miil Temp Ceramic

Mil Temp Plastic - Guaranteed -55

C to 125

Usable

Gates

8,000-

16,000

Package

Max

I/O

118

174

207

223

316

Qualification

Level

M, /883

Supply

Voltage

3.3 V

3.3V

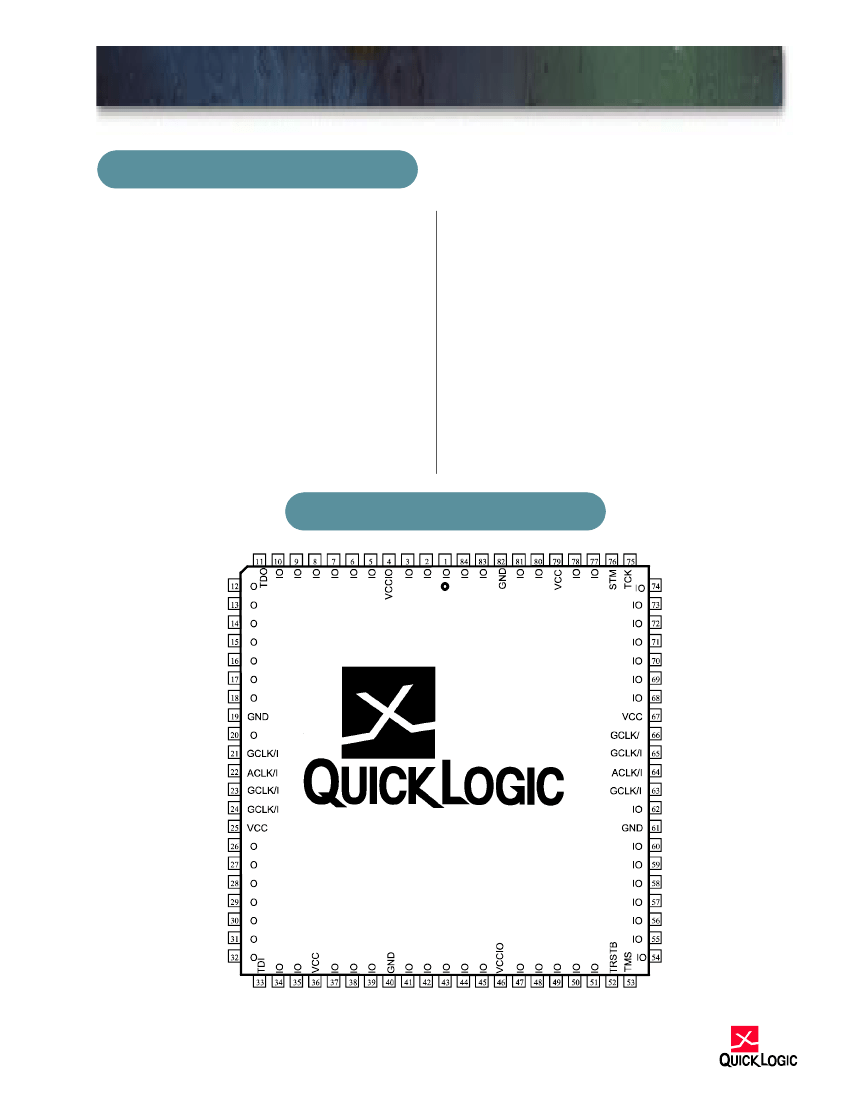

84CPGA

84PLCC

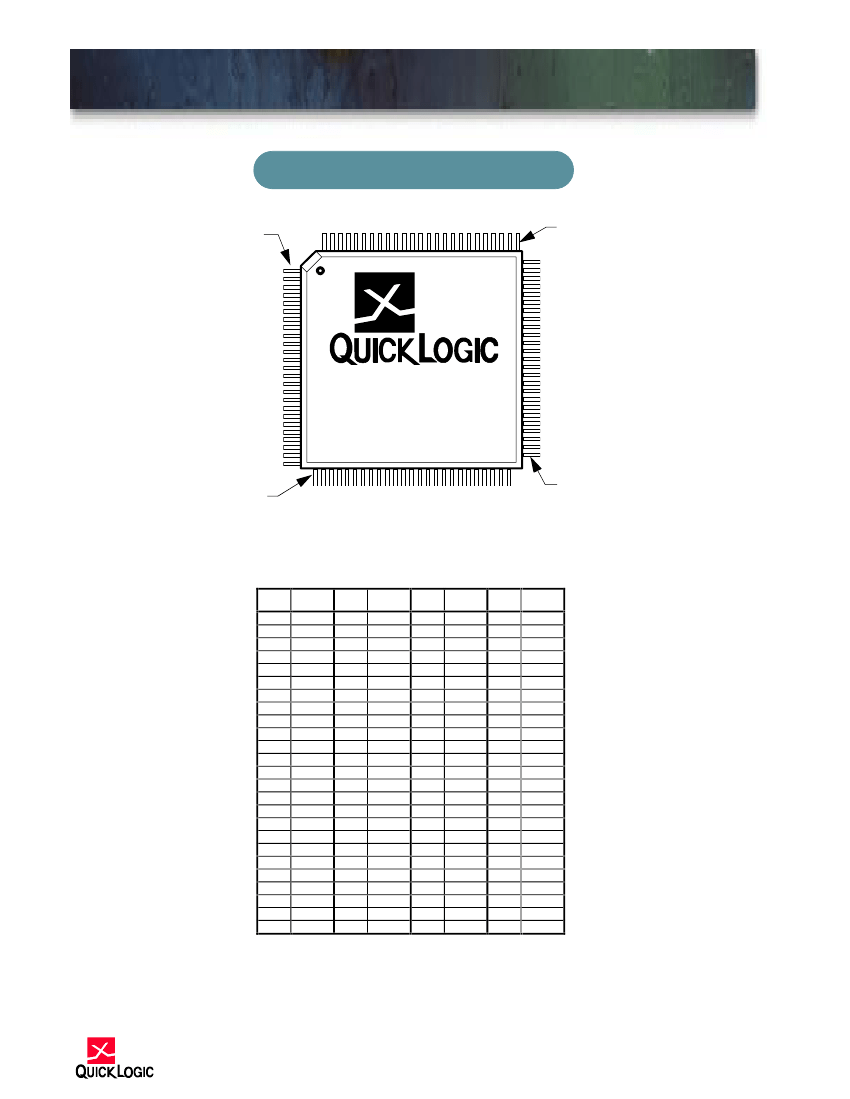

100CQFP

144CPGA

QL4036

16,000-

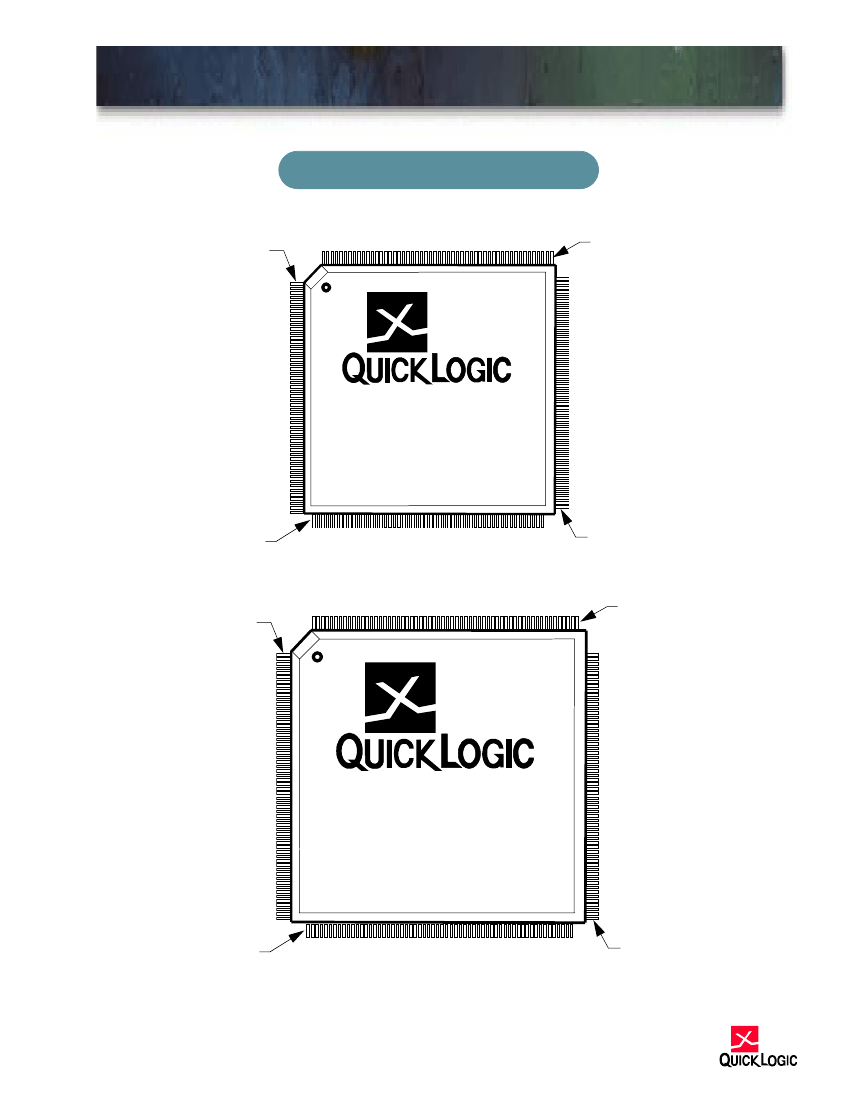

208PQFP

16,128 RAM bits

25,000

208CQFP

208PQFP

208CQFP

QL4090

36,000-

240PQFP

25,344 RAM bits

60,000

256CPGA

456PBGA

M = Military Temperature (-15 to +125 degrees C)

/888 = MIL STD 883

TABLE 1: Selector Table
