DM74S151 1-of-8 Data Selector/Multiplexer with Complementary Outputs
August 1986
Revised April 2000
DM74S151
1-of-8 Data Selector/Multiplexer
with Complementary Outputs
General Description
These data selectors/multiplexers contain full on-chip
decoding to select the desired data source. The
DM74S151 selects one-of-eight data sources. The
DM74S151 has a strobe input which must be at a low logic
level to enable these devices. A high level at the strobe
forces the W output HIGH and the Y output LOW.
The DM74S151 features complementary W and Y outputs.
Features
s
Select one-of-eight data lines
s
Performs parallel-to-serial conversion
s
Permits multiplexing from N lines to one line
s
Also for use as Boolean function generator
s
Typical average propagation delay time, data input to W
output 4.5 ns
s
Typical power dissipation 225 mW
Ordering Code:
Order Number
DM74S151N
Package Number
N16E
Package Description
16-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
Connection Diagram
Function Table
Inputs
Select
C
X
L
L
L
L
H
H
H
H
B
X
L
L
H
H
L
L
H
H
A
X
L
H
L
H
L
H
L
H
Strobe
S
H
L
L
L
L
L
L
L
L
Outputs
Y
L
D0
D1
D2
D3
D4
D5
D6
D7
W
H
D0
D1
D2
D3
D4
D5
D6
D7
H
=
HIGH Level
L
=
LOW Level
X
=
Don’t Care
D0, D1…D7
=
The level of the respective D input
© 2000 Fairchild Semiconductor Corporation
DS006468
www.fairchildsemi.com
DM74S151
Logic Diagram
www.fairchildsemi.com
2
DM74S151
Absolute Maximum Ratings
(Note 1)
Supply Voltage
Input Voltage
Operating Free Air Temperature Range
Storage Temperature Range
7V
5.5V
0°C to
+70°C
−65°C
to
+150°C
Note 1:
The “Absolute Maximum Ratings” are those values beyond which
the safety of the device cannot be guaranteed. The device should not be
operated at these limits. The parametric values defined in the Electrical
Characteristics tables are not guaranteed at the absolute maximum ratings.
The “Recommended Operating Conditions” table will define the conditions
for actual device operation.
Recommended Operating Conditions
Symbol
V
CC
V
IH
V
IL
I
OH
I
OL
T
A
Supply Voltage
HIGH Level Input Voltage
LOW Level Input Voltage
HIGH Level Output Current
LOW Level Output Current
Free Air Operating Temperature
0
Parameter
Min
4.75
2
0.8
−1
20
70
Nom
5
Max
5.25
Units
V
V
V
mA
mA
°C
Electrical Characteristics
over recommended operating free air temperature (unless otherwise noted)
Symbol
V
I
V
OH
V
OL
I
I
I
IH
I
IL
I
OS
I
CC
Parameter
Input Clamp Voltage
HIGH Level
Output Voltage
LOW Level
Output Voltage
Input Current @ Max Input Voltage
HIGH Level Input Current
LOW Level Input Current
Short Circuit Output Current
Supply Current
Conditions
V
CC
=
Min, I
I
= −18
mA
V
CC
=
Min, I
OH
=
Max,
V
IL
=
Max, V
IH
=
Min
V
CC
=
Min, I
OL
=
Max
V
IH
=
Min, V
IL
=
Max
V
CC
=
Max, V
I
=
5.5V
V
CC
=
Max, V
I
=
2.7V
V
CC
=
Max, V
I
=
0.5V
V
CC
=
Max (Note 3)
V
CC
=
Max (Note 4)
−40
45
2.7
3.4
0.5
1
50
−2
−100
70
Min
Typ
(Note 2)
Max
−1.2
Units
V
V
V
mA
µA
mA
mA
mA
Note 2:
All typicals are at V
CC
=
5V, T
A
=
25°C.
Note 3:
Not more than one output should be shorted at a time, and the duration should not exceed one second.
Note 4:
I
CC
is measured with the strobe and data select inputs at 4.5V, all other inputs and outputs OPEN.
3
www.fairchildsemi.com
DM74S151
Switching Characteristics
at V
CC
=
5V and T
A
=
25°C
R
L
=
280Ω
Symbol
t
PLH
t
PHL
t
PLH
t
PHL
t
PLH
t
PHL
t
PLH
t
PHL
t
PLH
t
PHL
t
PLH
t
PHL
Parameter
Propagation Delay Time
LOW-to-HIGH Level Output
Propagation Delay Time
HIGH-to-LOW Level Output
Propagation Delay Time
LOW-to-HIGH Level Output
Propagation Delay Time
HIGH-to-LOW Level Output
Propagation Delay Time
LOW-to-HIGH Level Output
Propagation Delay Time
HIGH-to-LOW Level Output
Propagation Delay Time
LOW-to-HIGH Level Output
Propagation Delay Time
HIGH-to-LOW Level Output
Propagation Delay Time
LOW-to-HIGH Level Output
Propagation Delay Time
HIGH-to-LOW Level Output
Propagation Delay Time
LOW-to-HIGH Level Output
Propagation Delay Time
HIGH-to-LOW Level Output
From (Input)
To (Output)
Select to Y (4 Levels)
Select to Y (4 Levels)
Select to W (3 Levels)
Select to W (3 Levels)
Strobe to Y
Strobe to Y
Strobe to W
Strobe to W
D0 thru D7 to Y
D0 thru D7 to Y
D0 thru D7 to W
D0 thru D7 to W
C
L
=
15 pF
Min
Max
18
18
15
13.5
16.5
18
13
12
12
12
7
7
C
L
=
50 pF
Min
Max
21
21
18
17
19
21
16
16
15
15
9
10
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
Units
www.fairchildsemi.com
4
DM74S151 1-of-8 Data Selector/Multiplexer with Complementary Outputs
Physical Dimensions
inches (millimeters) unless otherwise noted

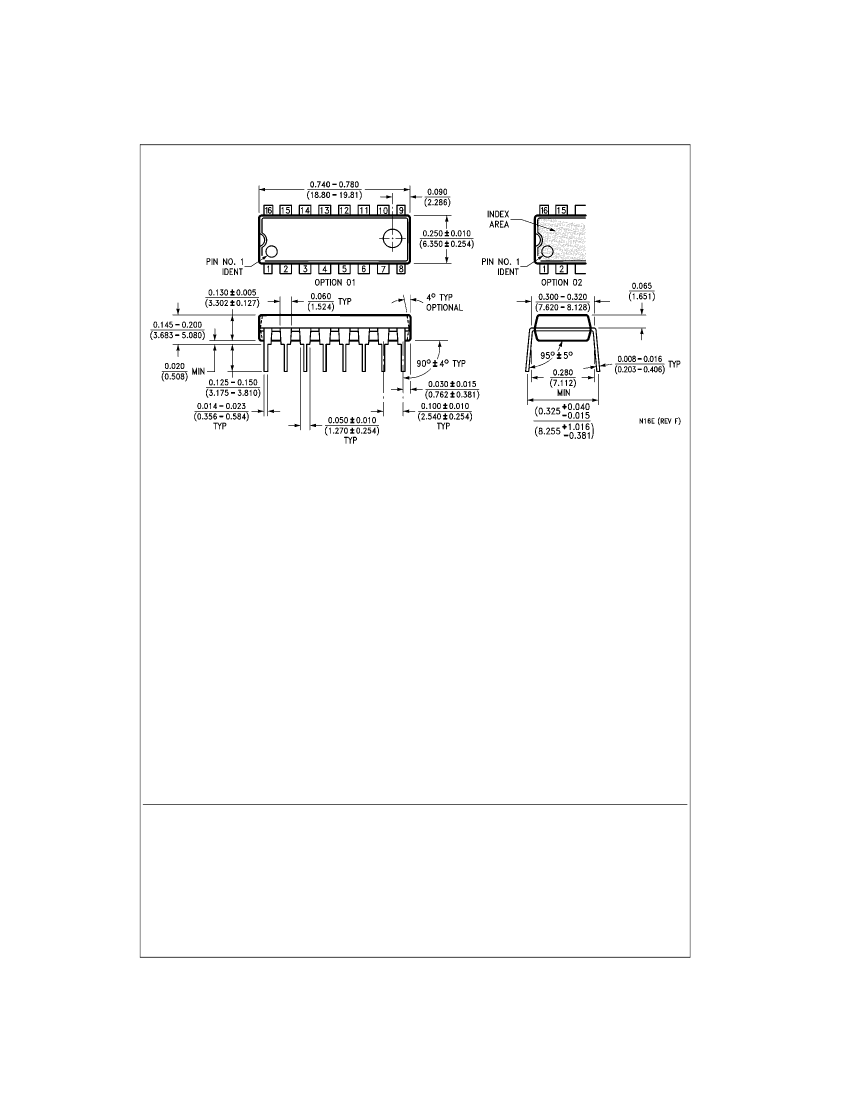

16-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
Package Number N16E
