DV74LS573N datasheet, PDF - EEWORLD Datasheet

DV74LS573N: DescriptionBus Driver, LS Series, 1-Func, 8-Bit, True Output, TTL, PDIP20, PLASTIC, DIP-20; Categorylogic logic; File Size147KB，3 Pages; ManufacturerAVG [AVG Semiconductors(HITEK)]

Download Datasheet Parametric Compare View All

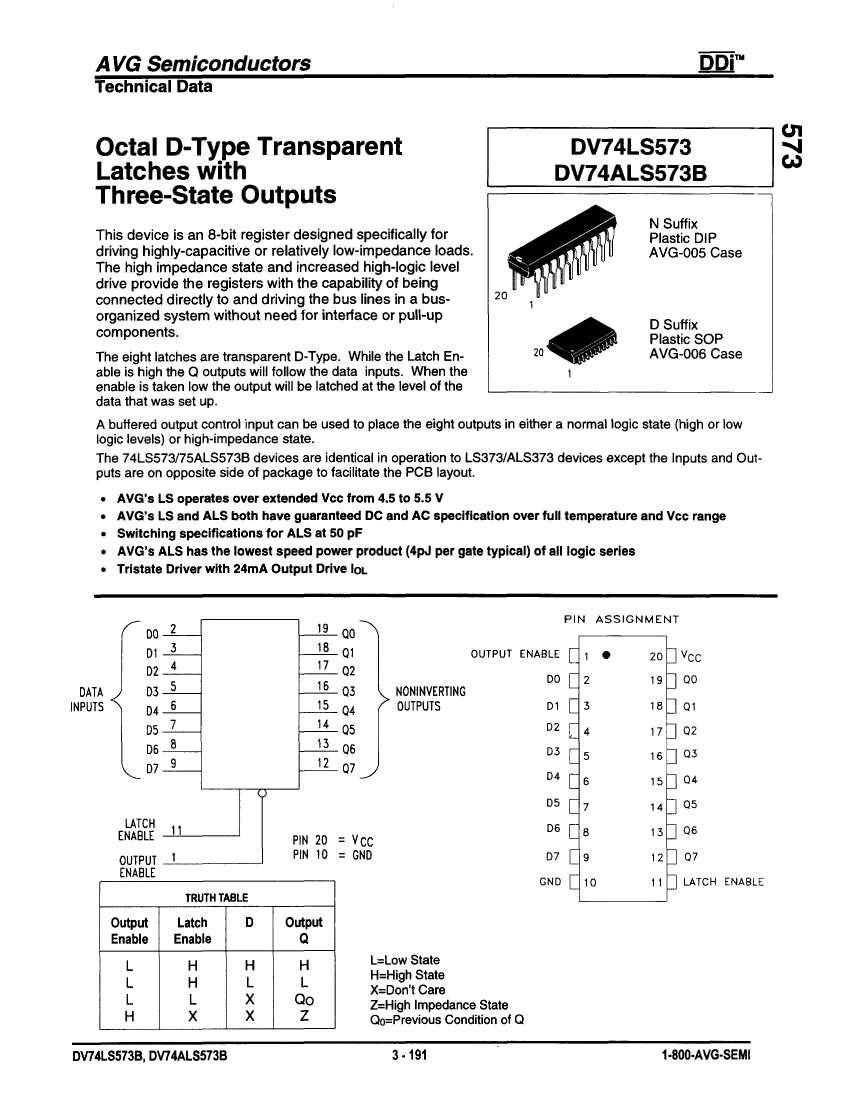

DV74LS573N Overview

Bus Driver, LS Series, 1-Func, 8-Bit, True Output, TTL, PDIP20, PLASTIC, DIP-20

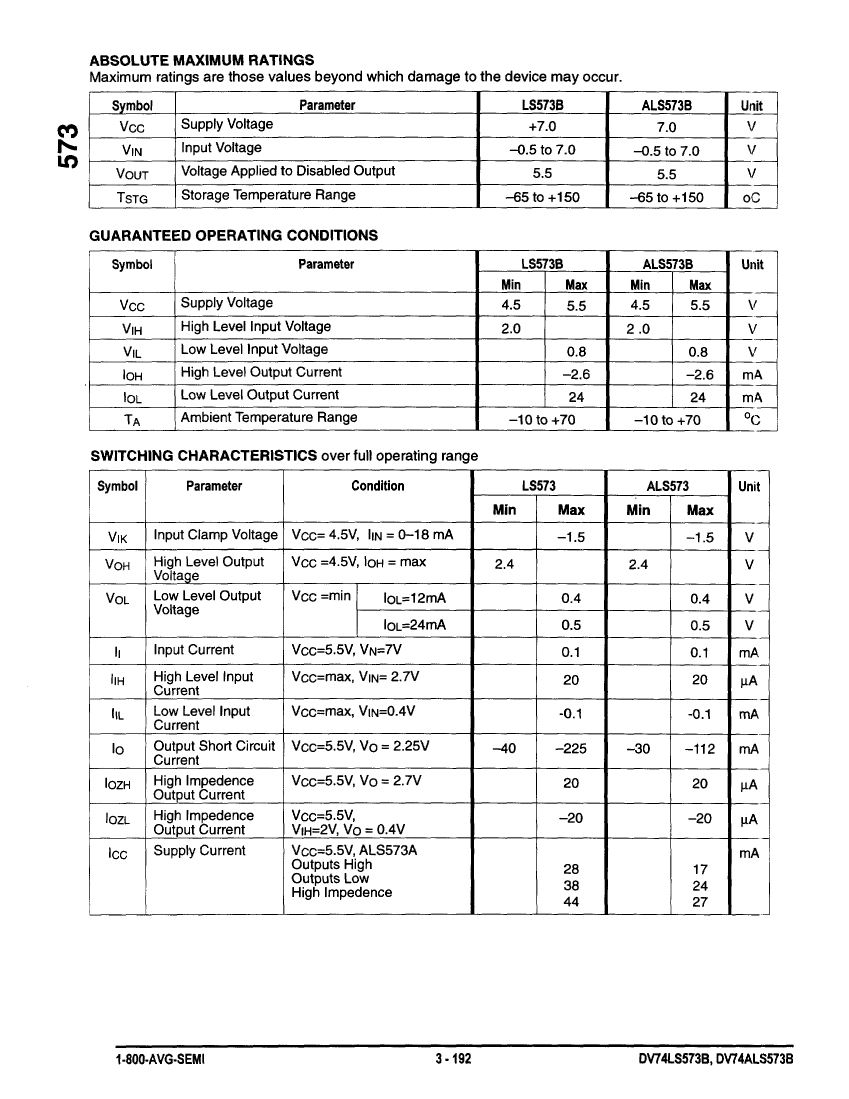

Parameter Name	Attribute value
Maker	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	DIP
package instruction	DIP,
Contacts	20
Reach Compliance Code	unknown
Other features	BROADSIDE VERSION OF 373
series	LS
JESD-30 code	R-PDIP-T20
length	26.415 mm
Load capacitance (CL)	45 pF
Logic integrated circuit type	BUS DRIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum supply current (ICC)	38 mA

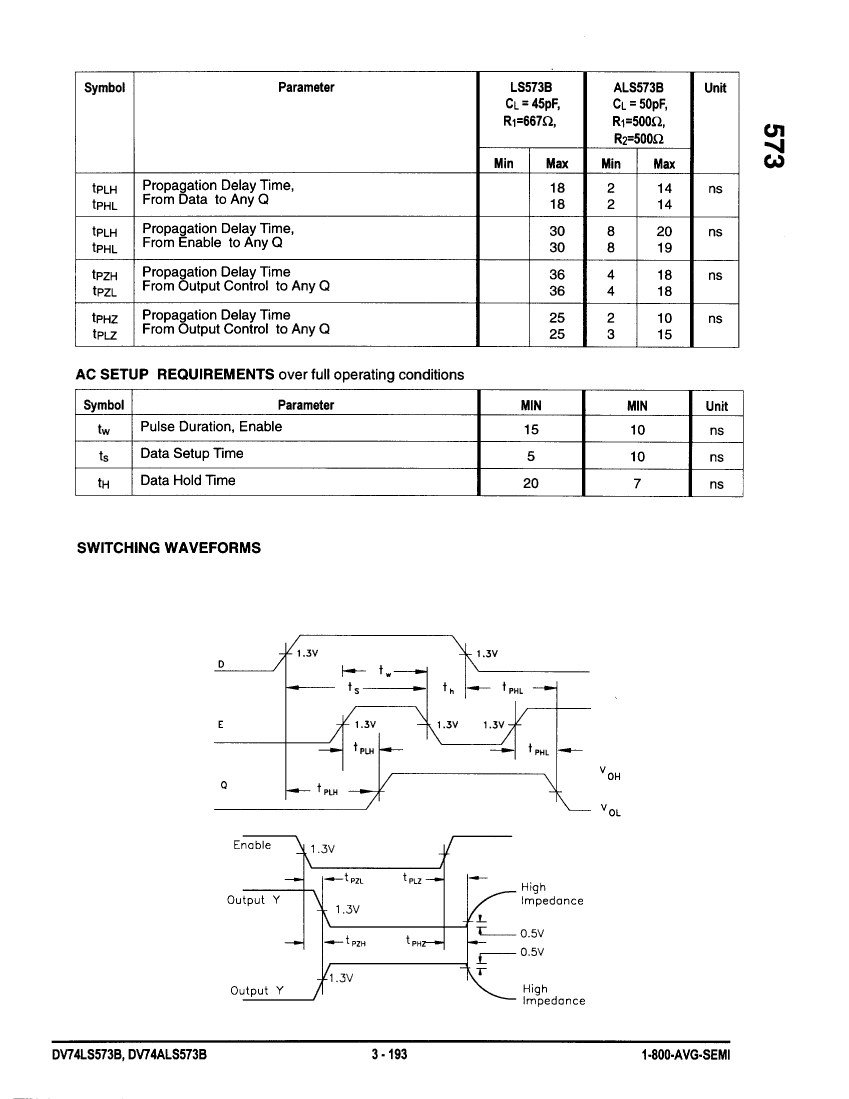

propagation delay (tpd)	30 ns
Certification status	Not Qualified
Maximum seat height	4.57 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

	DV74LS573N	DV74LS573D	RCWP0402158KFMS369	RCWP0402158KFMS6
Description	Bus Driver, LS Series, 1-Func, 8-Bit, True Output, TTL, PDIP20, PLASTIC, DIP-20	Bus Driver, LS Series, 1-Func, 8-Bit, True Output, TTL, PDSO20, PLASTIC, SOP-20	Fixed Resistor, Metal Glaze/thick Film, 0.05W, 158000ohm, 30V, 1% +/-Tol, 300ppm/Cel, Surface Mount, 0402, CHIP	RESISTOR, METAL GLAZE/THICK FILM, 0.05 W, 1 %, 300 ppm, 158000 ohm, SURFACE MOUNT, 0402, CHIP
package instruction	DIP,	SOP,	CHIP	SMT, 0402
Reach Compliance Code	unknown	unknown	compliant	compliant
Other features	BROADSIDE VERSION OF 373	BROADSIDE VERSION OF 373	ANTI-SULFUR	ANTI-SULFUR
Number of terminals	20	20	2	2
Maximum operating temperature	70 °C	70 °C	155 °C	155 °C
Minimum operating temperature	-10 °C	-10 °C	-65 °C	-65 °C
Package form	IN-LINE	SMALL OUTLINE	SMT	SMT
surface mount	NO	YES	YES	YES
technology	TTL	TTL	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM
