DH3405 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> DH3405

DH3405: DescriptionAC-DC Regulated Power Supply Module, 1 Output, PACKAGE-5; CategoryPower/power management The power supply circuit; File Size44KB，2 Pages; ManufacturerFenghua (HK) Electronics Ltd.

Download Datasheet Parametric Compare View All

DH3405 Overview

AC-DC Regulated Power Supply Module, 1 Output, PACKAGE-5

DH3405 Parametric

Parameter Name	Attribute value
Maker	Fenghua (HK) Electronics Ltd.
Parts packaging code	MODULE
package instruction	PACKAGE-5
Contacts	5
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	AC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	170 V
Minimum input voltage	113 V
JESD-30 code	R-XSMA-T5
Number of functions	1
Output times	1
Number of terminals	5
Nominal output voltage	15 V
Package body material	UNSPECIFIED
Encapsulate equivalent code	SIP5/10,.2
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
Maximum supply current (Isup)	100 mA
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	SINGLE
Fine-tuning/adjustable output	NO

Preview

Download Datasheet

View All

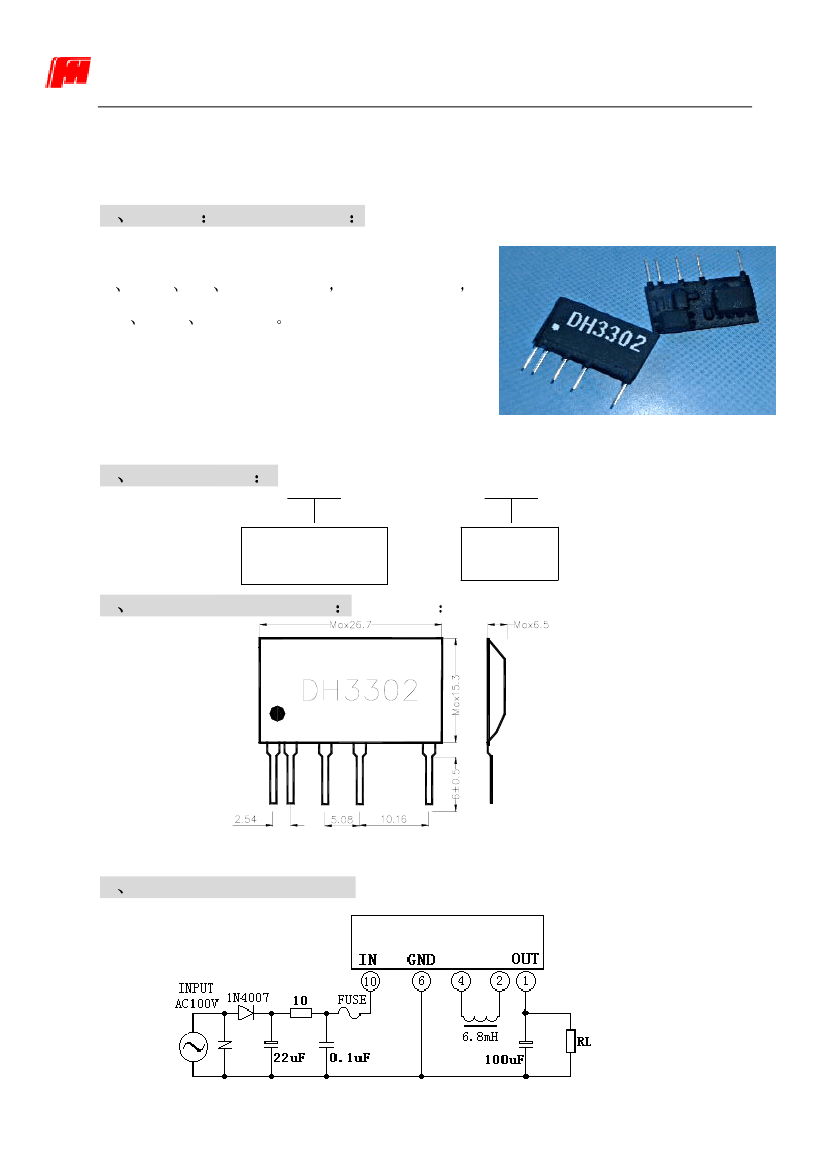

广东风华高新科技股½有限公司

Fenghua Advanced Technology (holding) Co., Ltd

端华片式电阻器分公司

Duanhua Chip Resistor Ltd

AC/DC

非隔离型电源模块

AC/DC NON-ISOLATED POWER SUPPLY

一

产品简介

Brief Introduction

该电源模块产品是我司开发的适用于家电内部的微处理

器电动机

LED

传感器等的电源具有内½电流保护 ½

积小

重量½

效率高功½

Power supply for the microcomputer, fan motor, LED, buzzer

and sensor circuit of the house-hold electric equipment. It is more

miniature, light and high efficiency without transformer than that of

with transformer by means of switching mode AC/DC, and with over current protector.

二

定货方式

Order

３３０２

　产品代码

Ｐ½½½½½½　Ｃ½½½

端华片式电阻器分公司

Duanhua Chip Resistor Ltd

三

外½尺寸

Shape Dimensions

(单½ unit

mm)

四

应用参考电路

Block Diagram:

DH3405 Related Products

	DH3405	DH3403	DH3305	DH3304	DH3406	DH3404	DH3402	DH3306	DH3303	DH3302
Description	AC-DC Regulated Power Supply Module, 1 Output, PACKAGE-5	AC-DC Regulated Power Supply Module, 1 Output, PACKAGE-5	AC-DC Regulated Power Supply Module, 1 Output, PACKAGE-5	AC-DC Regulated Power Supply Module, 1 Output, PACKAGE-5	AC-DC Regulated Power Supply Module, 1 Output, PACKAGE-5	AC-DC Regulated Power Supply Module, 1 Output, PACKAGE-5	AC-DC Regulated Power Supply Module, 1 Output, PACKAGE-5	AC-DC Regulated Power Supply Module, 1 Output, PACKAGE-5	AC-DC Regulated Power Supply Module, 1 Output, PACKAGE-5	AC-DC Regulated Power Supply Module, 1 Output, PACKAGE-5
Parts packaging code	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE
package instruction	PACKAGE-5	, SIP5/10,.2	, SIP5/10,.2	PACKAGE-5	, SIP5/10,.2	, SIP5/10,.2	PACKAGE-5	PACKAGE-5	, SIP5/10,.2	, SIP5/10,.2
Contacts	5	5	5	5	5	5	5	5	5	5
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	170 V	170 V	170 V	170 V	170 V	170 V	170 V	170 V	170 V	170 V
Minimum input voltage	113 V	113 V	113 V	113 V	113 V	113 V	113 V	113 V	113 V	113 V
JESD-30 code	R-XSMA-T5	R-XSMA-T5	R-XSMA-T5	R-XSMA-T5	R-XSMA-T5	R-XSMA-T5	R-XSMA-T5	R-XSMA-T5	R-XSMA-T5	R-XSMA-T5
Number of functions	1	1	1	1	1	1	1	1	1	1
Output times	1	1	1	1	1	1	1	1	1	1
Number of terminals	5	5	5	5	5	5	5	5	5	5
Nominal output voltage	15 V	9 V	15 V	12 V	24 V	12 V	5 V	24 V	9 V	5 V
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Encapsulate equivalent code	SIP5/10,.2	SIP5/10,.2	SIP5/10,.2	SIP5/10,.2	SIP5/10,.2	SIP5/10,.2	SIP5/10,.2	SIP5/10,.2	SIP5/10,.2	SIP5/10,.2
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply current (Isup)	100 mA	100 mA	100 mA	100 mA	100 mA	100 mA	100 mA	100 mA	100 mA	100 mA
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Fine-tuning/adjustable output	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Maker	Fenghua (HK) Electronics Ltd.	-	Fenghua (HK) Electronics Ltd.	Fenghua (HK) Electronics Ltd.	Fenghua (HK) Electronics Ltd.	Fenghua (HK) Electronics Ltd.	Fenghua (HK) Electronics Ltd.	Fenghua (HK) Electronics Ltd.	Fenghua (HK) Electronics Ltd.	Fenghua (HK) Electronics Ltd.
