Ordering number : EN5563
GaAS MMIC
SPM0103A
Low-Noise GaAs Amplifier MMIC
Features
•
•
•
•
•
Low-voltage, low-current operation
Compact mini-mold package
No matching circuits needed for I/O
Low noise
Ideal for use as first stage for mobile communications
receiver amplifier
Package Dimensions
unit: mm
7272-CP5
[SPM0103A]
SANYO: CP5
Specifications
Absolute Maximum Ratings
at Ta = 25°C
Parameter
Power supply voltage
Gate voltage
Allowable power dissipation
Operating temperature
Storage temperature
Junction temperature
Symbol
V
DD
V
G
P
D
Topr
Tstg
Tj
V
DD
= 3 V, I
D
= 60 mA or less
Conditions
Ratings
5
–2
0.25
–30 to +90
–55 to +150
150
Unit
V
V
W
°C
°C
°C
Electrical Characteristics
at Ta = 25°C
Parameter
Drain current t
Noise figure
Linear gain
VSWR (input)
VSWR (output)
Individual component name indication: MJ
Symbol
I
D
NF
G
L
Conditions
V
DD
= 3 V, V
G
= 0
V
DD
= 3 V, I
D
= 25 mA, f = 1.9 GHz
V
DD
= 3 V, I
D
= 25 mA, f = 1.9 GHz
V
DD
= 3 V, I
D
= 25 mA, f = 1.9 GHz
V
DD
= 3 V, I
D
= 25 mA, f = 1.9 GHz
Ratings
min
50
typ
70
1.1
12
2.1
2.1
max
95
1.5
Unit
mA
dB
dB
SANYO Electric Co.,Ltd. Semiconductor Bussiness Headquarters
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110 JAPAN
N3096HA(OT) No. 5563-1/2
SPM0103A

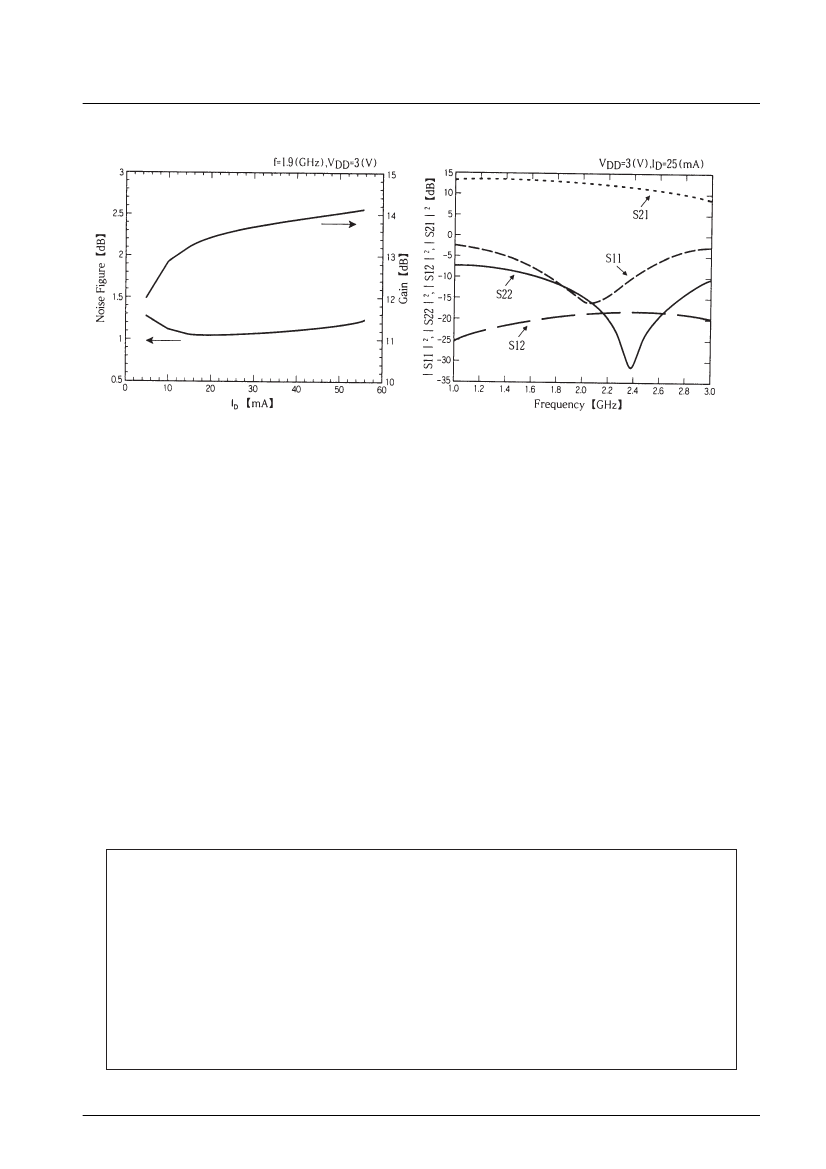

Current-Dependent Characteristics
Frequency Characteristics
s
No products described or contained herein are intended for use in surgical implants, life-support systems, aerospace
equipment, nuclear power control systems, vehicles, disaster/crime-prevention equipment and the like, the failure of
which may directly or indirectly cause injury, death or property loss.
s
Anyone purchasing any products described or contained herein for an above-mentioned use shall:
Accept full responsibility and indemnify and defend SANYO ELECTRIC CO., LTD., its affiliates, subsidiaries and
distributors and all their officers and employees, jointly and severally, against any and all claims and litigation and all
damages, cost and expenses associated with such use:
Not impose any responsibility for any fault or negligence which may be cited in any such claim or litigation on
SANYO ELECTRIC CO., LTD., its affiliates, subsidiaries and distributors or any of their officers and employees
jointly or severally.
s
Information (including circuit diagrams and circuit parameters) herein is for example only; it is not guaranteed for
volume production. SANYO believes information herein is accurate and reliable, but no guarantees are made or implied
regarding its use or any infringements of intellectual property rights or other rights of third parties.
This catalog provides information as of August, 1997. Specifications and information herein are subject to
change without notice.
No. 5563-2/2
